MagellanTM 83/8400 Calibration Process Quick Reference Sheet

1 2 3 4

5 6 7 8

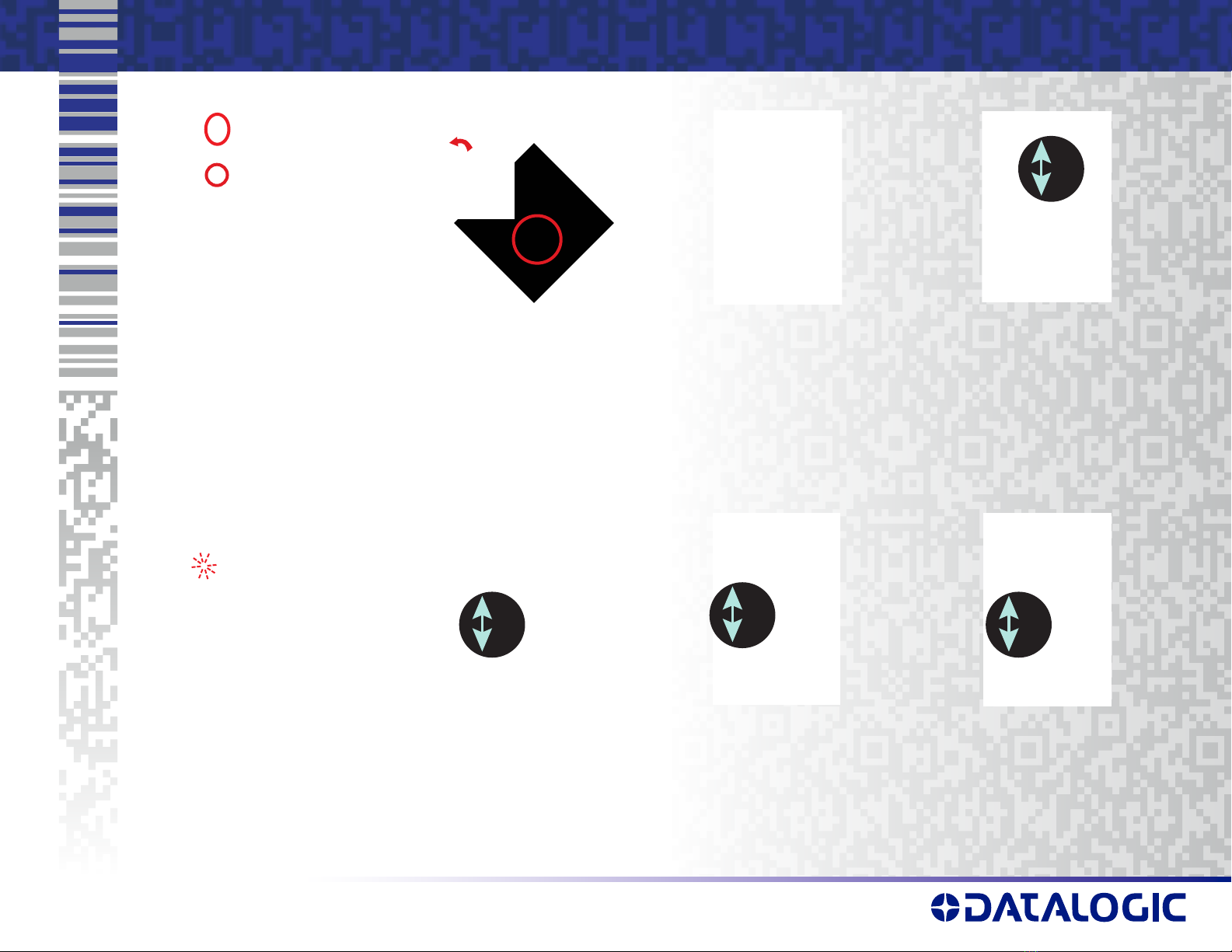

Ensure that the Scanner-

Scale is powered-on (the

green top LED and orange

>0< button will be lit or

flashing).

Return the wire lift handle

to its down position and

replace the Top Platter. (If

the Top Platter does not

seat correctly, recheck to

see that the lift handle is

fully retracted.)

After ensuring the platter

is fully seated, press &

release the flashing >0<

button once. Wait for the

scanner to sound two

beeps. (The >0< button

will continue to flash.)

Place 20 lbs. of certified

weights on the platter and

press & release the >0<

button once. The scanner

will emit a trill sound upon

registering the weight.

Remove the weights from

the platter and press &

release the >0< button once

to complete the calibration

sequence. The scanner will

reset and the >0< button

will light steadily.

Remove the Top Platter

from the scanner-scale,

and locate the switch

door.

Open the calibration door

cover by pushing back

towards the optics

chassis. (It may be

necessary to push the

wire lift handle into the

upright position to access

the cover.)

Use your finger to reach

inside the calibration bay,

locate the small plunger

switch and press &

release it once. The

scanner will issue seven

rapid beeps and the >0<

button will begin to flash.

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U.

9Remove the platter and

push the wire lift handle

to the upright position in

preparation for sealing the

calibration door.

10 Fully close the calibration

door and apply the

calibration seal in accor-

dance with local require-

ments. The door is fully

closed when the holes in

the door and the metal

tab are aligned. (See

Sealing Notes.)

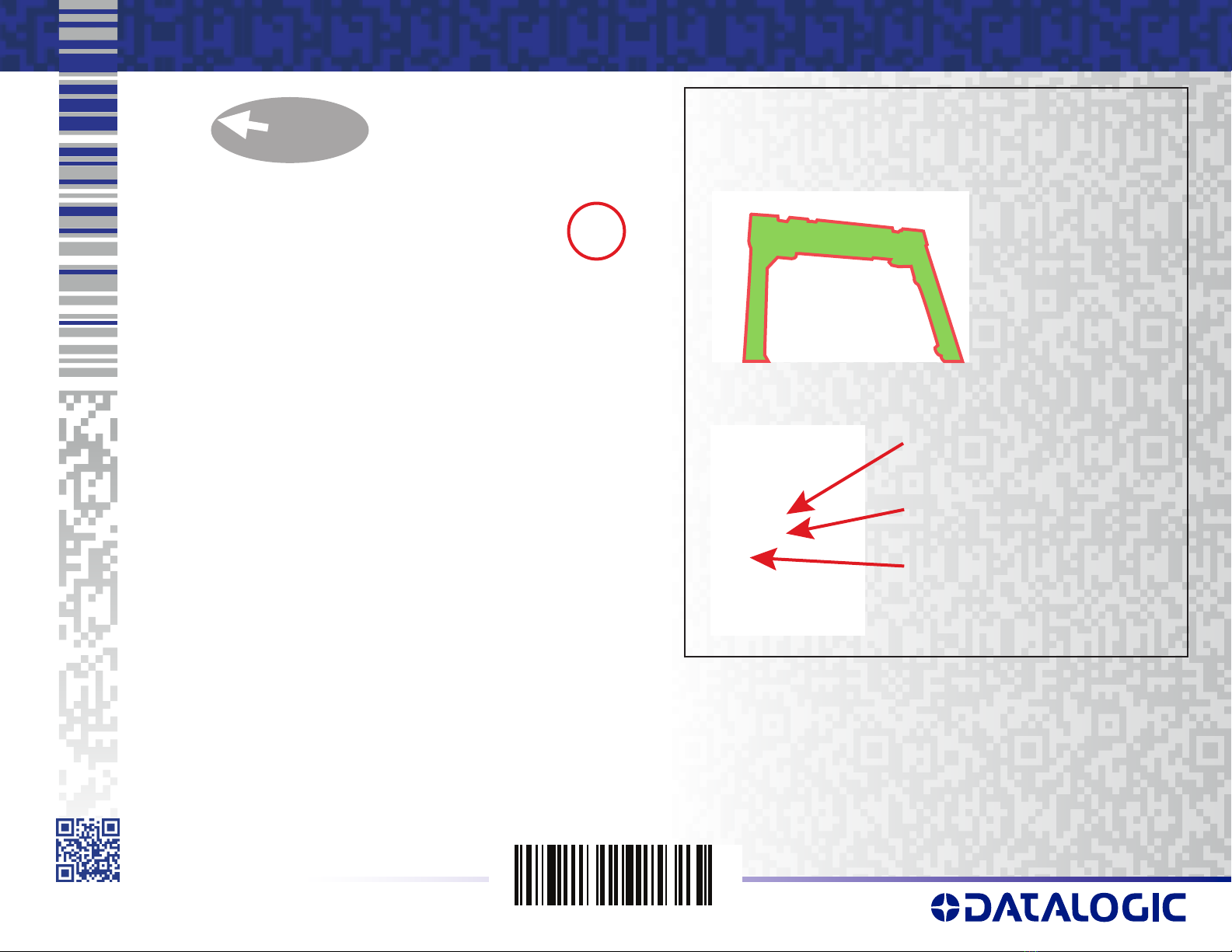

No portion of the seal,

whether wire, paper

label or other method,

should be in contact

with the weigh frame

(shown in green) or

scale movement will be

compomised.

Lift Handle Sealing Notes

Conditions to Avoid:

Wire loop too long (not snug)

Calibration door not closed

Seal in contact with weigh frame

CALL DATALOGIC TECHNICAL SUPPORT: 1-800-547-2507

VIEW THE CALIBRATION VIDEO AT: http://www.youtube.com/watch?v=wHYjcTdd9Gk

IF YOU ENCOUNTER PROBLEMS OR HAVE QUESTIONS ABOUT

ANY PART OF THE CALIBRATION PROCESS:

820061014 (Rev. A)October 2013
