FuelightTM FL-3000 and FL-4500 Petroleum

Display Installation Quick Guide

DD2238842

Rev 08

06 February 2019

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 1 of 4

Installation

1. Mount the display into the sign structure using the provided holes in

the mounting ange. Alternate holes can be drilled into the mouting

ange if needed. Refer to Figure 1 and Figure 2.

Note: Do not drill holes into the display face. This will void the

warranty.

2. Use appropriate screws or other hardware to secure the sign to the

structure.

Note: The display is front ventilated. Do not block the display face.

This may void the display warranty.

Grounding

FL-3000 and FL-4500 series displays do not require a local earth ground

electrode.

The displays still require a safety ground from the electrical service panel

for the primary power wires to comply with national electric codes.

Power Installation

Install Daktronics FuelightTM displays using a two wire plus ground circuit.

The ground from the circuit must be connected to the ground bus bar

or green wire attached to the

grounding stud within each Fuelight

display. Refer to Figure 3. Do not

connect neutral to ground at the

disconnect or at the display, this

would violate electrical codes

and void the warranty. Use a

disconnect so that all ungrounded

conductors can be disconnected.

To connect power to the display:

1. Route the power cable into

the display through one of

the knockouts on the display’s

backsheet.

2. Use wire nuts or other

appropriate hardware to

connect power wires - hot

(black) and neutral (white) - to

the power supply harness or

pigtail. Refer to Figure 3 and

Figure 4.

Figure 1: Securing Digit Cabinet

daktronics

CORNER GAS

UNL

REG

DSL

Figure 2: Inserting Digits into

Cabinet

TOP TOP TOP TOP

Display 1

Power In

From Power

Box At

Display Base

Display 2

Power Out

From Display 1

Daisy Chained

To Display 2

Use Grounding

Stud

Display 3

Power Out

From Display 1

Daisy Chained

To Display 2

Use Grounding

Stud

Use Grounding

Stud

Power

Box

Figure 3: Proper Grounding for Multiple Fuelight Displays

FuelightTM FL-3000 and FL-4500 Petroleum

Display Installation Quick Guide

DD2238842

Rev 08

06 February 2019

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 2 of 4

3. Connect supply power ground wire to the grounding stud. Refer to Figure 4.

Note: Verify the power supply ground wire is connected to the

grounding stud.

Display Interconnections

Signal travels from the host driver jack J9 to additional display drivers

through the Line-to-Line cable. Line-to-line connections are made using

jacks J9 and J10 on the driver.

The preferred cable routing has signal leaving each driver from jack J9

and entering the next driver on jack J10

Each time you connect the line-to-line cable to J9, you must also

connect the drain wire to the upper-left stud that holds the driver in

place.

1. Use provided knockouts on the back of the display for signal

entrance and exit. Refer to Figure 5.

2. Install the provided bushing at the

knockout location.

3. Connect the provided line-to-line

cable, shown in Figure 6, to host

driver jack J9. The host driver can be

identied by having the

communication option attached to

jack J16.

4. Place the drain wire of the line-to-

line cable on the upper-left stud that

holds the driver in place. Refer to

Figure 7.

5. Place the 6-32 nut on the stud and

tighten it with a 5/16” nut driver. Refer

to Figure 8.

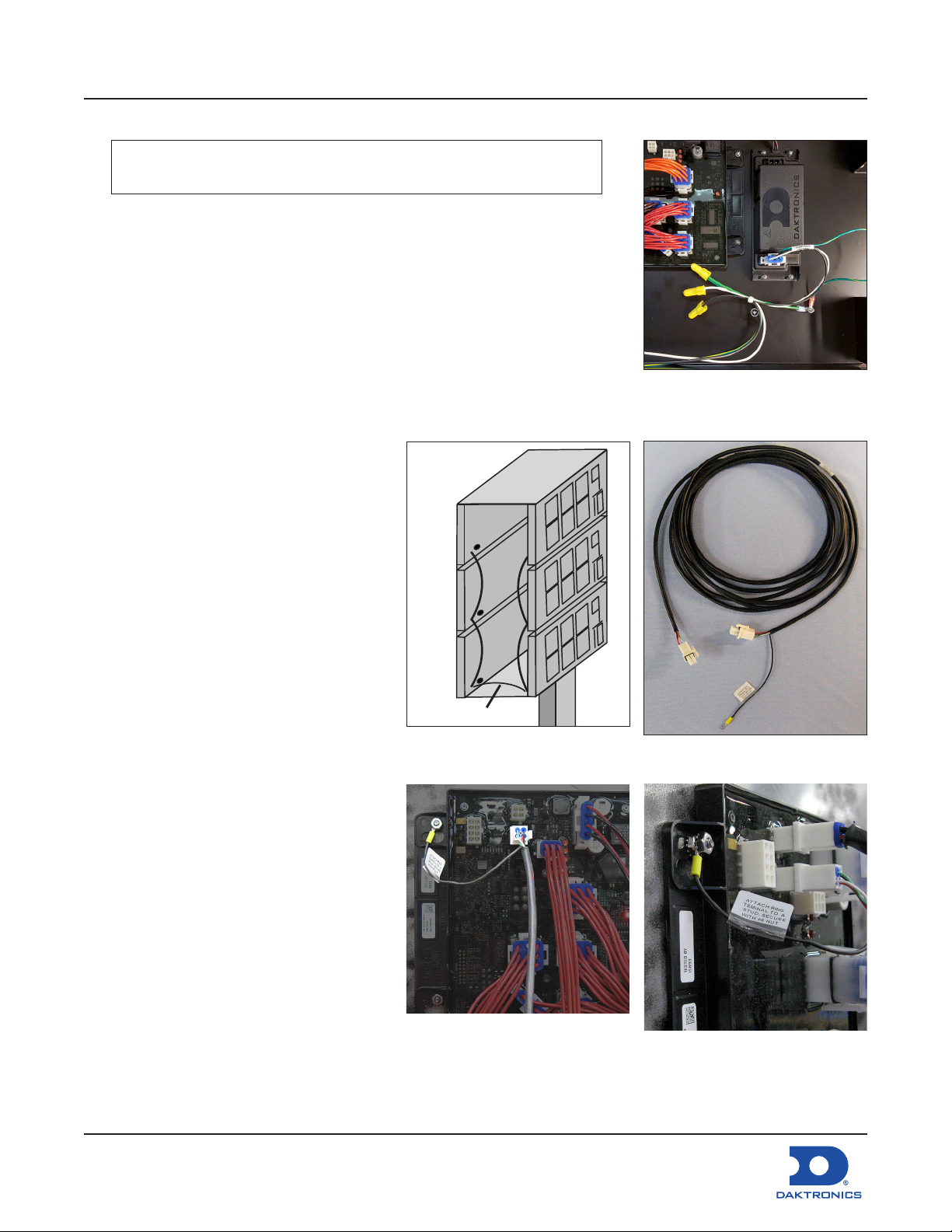

Figure 4: Power Connection With

Grounding Stud

Line 2

Line 3

Line 1

Signal Wire

Figure 5: Line-to-Line Details Figure 6: Line-to-Line Cable

Figure 7: Installed Line-to-Line

Cable with Drain Wire Figure 8: Installed Drain Wire

FuelightTM FL-3000 and FL-4500 Petroleum

Display Installation Quick Guide

DD2238842

Rev 08

06 February 2019

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 3 of 4

6. Route the provided line-to-line cable from the host driver jack J9 to the next client display driver,

connecting to jack J10. Refer to

Figure 9.

7. Run cable through the

knockouts located on the

display’s backsheet and be

sure to use the provided cable

bushings that snap into place.

8. Repeat until all displays are

connected.

Note: Do not connect the last

display driver back to

the host.

Additional Information

Important Notes:

• Route cables at least 6 inches

away from interfering sources

like ballasts, orescent light

bulbs, power sources, any type of motor, etc.

• Pull excess cable into the display cabinet, coil cable, zip tie it together and carefully place coil

inside the display cabinet.

For additional support information or communications installation information, visit www.daktronics.com/

support.

Installing a Cash/Credit Display

A rectangular opening must be provided to accommodate the Cash/

Credit™ display. Consult the shop drawing for cutout dimensions.

1. Lift displays into the support structure. Figure 10 shows a display being

inserted into a support structure.

Note: Daktronics assumes no liability for display damage or injury

resulting from incorrect setup or incorrect lifting methods.

2. Drill through the front anges of the cabinet to attach the display to

the base structure using appropriate hardware for site conditions.

Refer to Figure 11. Actual site demands will dictate variances and

appropriate mounting methods.

Access Internal Cash/Credit Display Components

The door of Cash/Credit displays is secured by a screw (two screws

secure the door on 2H displays).

1. Use a Phillips-head screwdriver to loosen the screw.

2. Open the door using the knob attached to the display face.

Face 2Face 1

Price 1

Price 2

Price 1

Price 2

Host Driver - Comm Attached

J10 - Line In

J9 - Line Out

J16 - Comm Port

LINE TO LINE

COMM

PORT

Figure 9: Line-to-Line Cable Installation

CORNER GAS

REG

DSL

UNL

Figure 10: Inserting Display Into

Cabinet

Figure 11: Secure Display in Sign

Structure

FuelightTM FL-3000 and FL-4500 Petroleum

Display Installation Quick Guide

DD2238842

Rev 08

06 February 2019

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 4 of 4

3. The power supply is attached inside the cabinet to the display’s backsheet, as shown in Figure 12,

and its location varies between display sizes.

Grounding

Cash/Credit displays do not require a local earth ground electrode.

The displays still require a safety ground from the electrical service panel for the primary power wires to

comply with national electric codes.

Cash/Credit Display Power Installation

Install Daktronics Cash/Credit displays using a two-wire plus

ground circuit. The ground from the circuit must be connected

to the grounding stud within each Cash/Credit display. Do not

connect neutral to ground at the disconnect or at the display,

this would violate electrical codes and void the warranty.

Use a disconnect so that all ungrounded conductors can be

disconnected.

To connect power to the display, complete the following steps:

1. Route power cable into the display through one of the

knockouts on the display’s backsheet.

2. Use wire nuts or other appropriate hardware to connect

power wires to the power supply harness or pigtail. Refer to

Figure 13.

3. Connect supply power ground wire to the grounding stud.

Refer to Figure 13.

Note: Verify the power supply ground wire is connected to

the grounding stud.

Connect Cash/Credit Display to the Fuelight Driver

Connect the 8 position Mate-N-Lok plug of harness W-2709 from

the cash/credit module to jack J18 on a Fuelight driver. Refer to Figure 14.

Use

Grounding

Stud

SERIAL #

LABEL B

LABEL A

LABEL C

Figure 12: Internal Component Locations

Figure 13: Power Connection

Figure 14: Cash/Credit Display

Connection to Driver
