Daikin RKD24HV2S User manual

REMOVAL

PROCEDURE

SERVICE MANUAL

24000/28000 Btu/h Class

Outdoor Unit

Inverter

Pair Type

Si001168

Service Manual

Removal Procedure

Outdoor Unit

Applicable Models

zCooling Only

RKD24HV2S

RKD28HV2S

Si001168

Removal Procedure 1

Table of Contents

1. Removal of Outer Panels ........................................................................2

2. Removal of Electrical Box .....................................................................15

3. Removal of PCBs..................................................................................20

4. Removal of Fan Motor...........................................................................25

5. Removal of Electronic Expansion Valve Coil / Thermistors ..................26

6. Removal of Reactor ..............................................................................28

7. Removal of Sound Blankets..................................................................29

8. Removal of Compressor .......................................................................31

Note: The illustrations may be slightly different depending on the model.

Removal of Outer Panels Si001168

2Removal Procedure

1. Removal of Outer Panels

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step Procedure Points

1. Appearance features

2. Remove the suction grille. The hooks are secured in

the clearances of the

outdoor heat exchanger fins.

1Unfasten the 2 hooks at

the bottom.

2Slide the suction grille

downward to unfasten

the 3 top hooks.

3Remove the suction

grille.

(R6182)

Hook

Rear side Suction grille

(R16916)

Hook

(R16917)

(R6372)

Si001168 Removal of Outer Panels

Removal Procedure 3

3. Remove the top panel.

1Remove the 4 screws

on the back and the

screw on the left side.

2Remove the 2 screws

on the front and the

screw on the right side

panel.

3Lift the top panel and

remove it.

Step Procedure Points

(R6373)

Top panel

(R17070)

Right side

panel

(R6189)

Removal of Outer Panels Si001168

4Removal Procedure

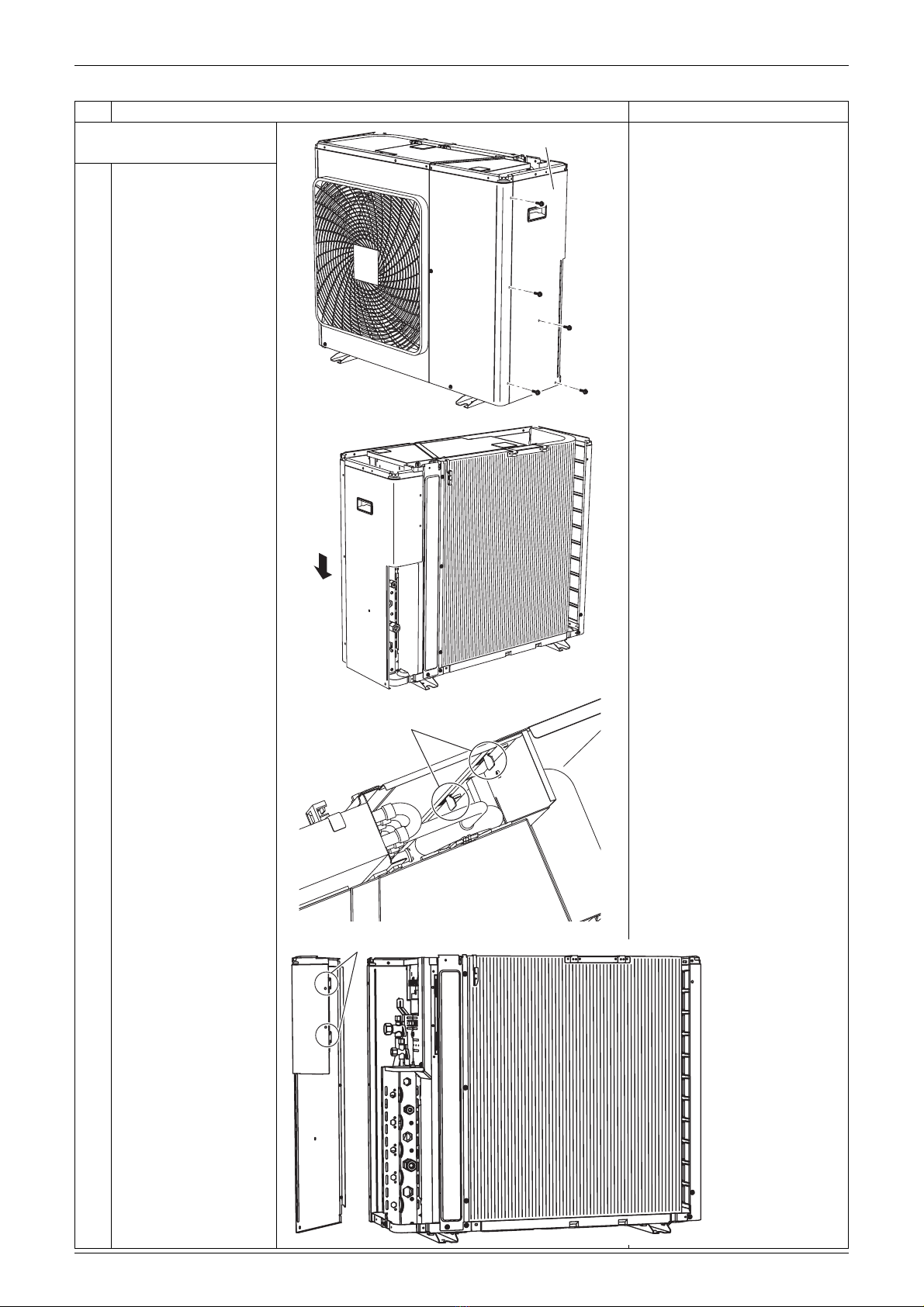

4. Remove the right side

panel.

1Remove the 5 screws.

2Slide the right side

panel downward to

unfasten the 2 hooks on

the rear side.

Step Procedure Points

(R17071)

Right side panel

(R6191)

(R17072)

Hook

(R17073)

Si001168 Removal of Outer Panels

Removal Procedure 5

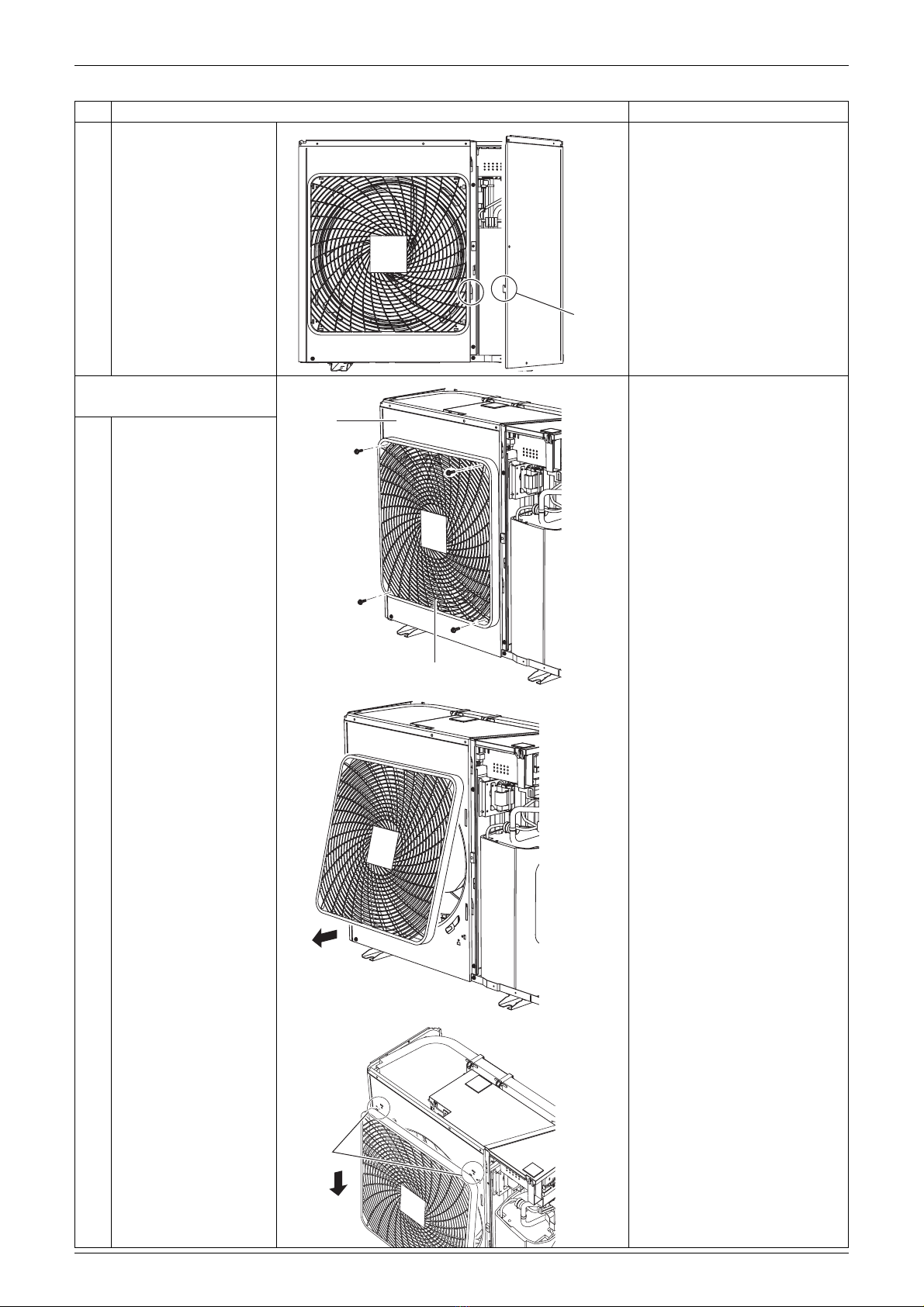

3Remove the right side

panel.

5. Remove the front panel

(2)

+:This screw is M5(3) × 16

1Remove the 2 screws.

2Slide the front panel (2)

downward to unfasten

the hooks.

Step Procedure Points

(R6194)

(R17096)

Front Panel (2)

Front

Panel (1)

(R6197)

Removal of Outer Panels Si001168

6Removal Procedure

3Remove the front panel

(2).

6. Remove the front panel

(1)

Remove the discharge grille

and the outdoor fan before

removing the front panel (1).

1Remove the 4 screws

on the discharge grille.

2Pull the bottom of the

discharge grille.

3Slide the discharge

grille downward to

unfasten the 2 hooks at

the top.

Step Procedure Points

(R17074)

Hook

(R16875)

Discharge grille

Front

Panel (1)

(R16876)

(R16877)

Hook

Si001168 Removal of Outer Panels

Removal Procedure 7

4Remove the discharge

grille.

5Remove the nut of the

outdoor fan.

Nut size : M8

6Remove the 2 screws

on the partition plate

(1).

Step Procedure Points

(R6204)

(R16878)

Outdoor fan

13 mm

(R12301)

(R16879)

Partition plate (1)

Removal of Outer Panels Si001168

8Removal Procedure

7Remove the screw at

the bottom left of the

front.

8Remove the screw at

the bottom of the left

side.

9Remove the screw at

the bottom of the rear

side.

Step Procedure Points

(R16880)

(R6208)

(R6209)
