Dahua DH-PFS3009-8ET-65 User manual

Dahua 9-Port Fast Ethernet Switch with

8-Port PoE

User's Manual

V1.0.1

V1.0.0

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

Foreword I

Foreword

General

This user’s manual (hereinafter referred to be "the Manual") introduces the features and

structure of 9-Port Fast Ethernet Switch with 8-Port PoE.

Models

DH-PFS3009-8ET-65

Safety Instructions

The following categorized signal words with defined meaning might appear in the Manual.

Signal Words

Meaning

DANGER

Indicates a high potential hazard which, if not avoided, will result

in death or serious injury.

WARNING

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

CAUTION

Indicates a potential risk which, if not avoided, could result in

property damage, data loss, lower performance, or unpredictable

result.

TIPS

Indicates dangerous high voltage.

Take care to avoid coming into contact with electricity.

NOTE

Indicates a laser radiation hazard.

Take care to avoid exposure to a laser beam.

Revision History

Version

Revision Content

Release Time

V1.0.1

Delete technical specifications.

June 2019

V1.0.0

First release.

September 2018

Privacy Protection Notice

As the device user or data controller, you might collect personal data of other such as face,

fingerprints, car plate number, Email address, phone number, GPS and so on. You need to be

in compliance with the local privacy protection laws and regulations to protect the legitimate

rights and interests of other people by implementing measures include but not limited to:

Foreword II

providing clear and visible identification to inform data subject the existence of surveillance

area and providing related contact.

About the Manual

The Manual is for reference only. If there is inconsistency between the Manual and the

actual product, the actual product shall prevail.

We are not liable for any loss caused by the operations that do not comply with the Manual.

The Manual would be updated according to the latest laws and regulations of related

regions. For detailed information, see the paper manual, CD-ROM, QR code or our official

website. If there is inconsistency between paper manual and the electronic version, the

electronic version shall prevail.

All the designs and software are subject to change without prior written notice. The product

updates might cause some differences between the actual product and the Manual. Please

contact the customer service for the latest program and supplementary documentation.

There still might be deviation in technical data, functions and operations description, or

errors in print. If there is any doubt or dispute, please refer to our final explanation.

Upgrade the reader software or try other mainstream reader software if the Manual (in PDF

format) cannot be opened.

All trademarks, registered trademarks and the company names in the Manual are the

properties of their respective owners.

Please visit our website, contact the supplier or customer service if there is any problem

occurred when using the device.

If there is any uncertainty or controversy, please refer to our final explanation.

Table of Contents III

Table of Contents

Foreword.................................................................................................................................................... I

1 Product Overview.................................................................................................................................. 1

Introduction ................................................................................................................................... 11.1 Features........................................................................................................................................ 11.2 Typical Application......................................................................................................................... 11.3

2 Device Structure.................................................................................................................................... 2

Side Panel..................................................................................................................................... 22.1 Front Panel.................................................................................................................................... 22.2 PoE Power Supply........................................................................................................................ 22.3

Product Overview 1

1 Product Overview

Introduction1.1

9-Port Fast Ethernet Switch with 8-Port PoE is a type of layer two commercial switch, which

supports Ethernet power supply. It provides 8 10/100 Mbps Ethernet ports and 1 100 Mbps

uplink ports.

Features1.2

Layer two commercial switch.

Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards.

MAC auto study and aging, MAC address capacity is 2K.

Supports MDI/MDIX self-adaptation.

Supports Flow Control.

RJ45 port supports 10/100 Mbps self-adaptation, supports IEEE802.3af and IEEE802.3at

power supply standards.

Adopts metal enclosure.

Supports AC 100V-240V power supply.

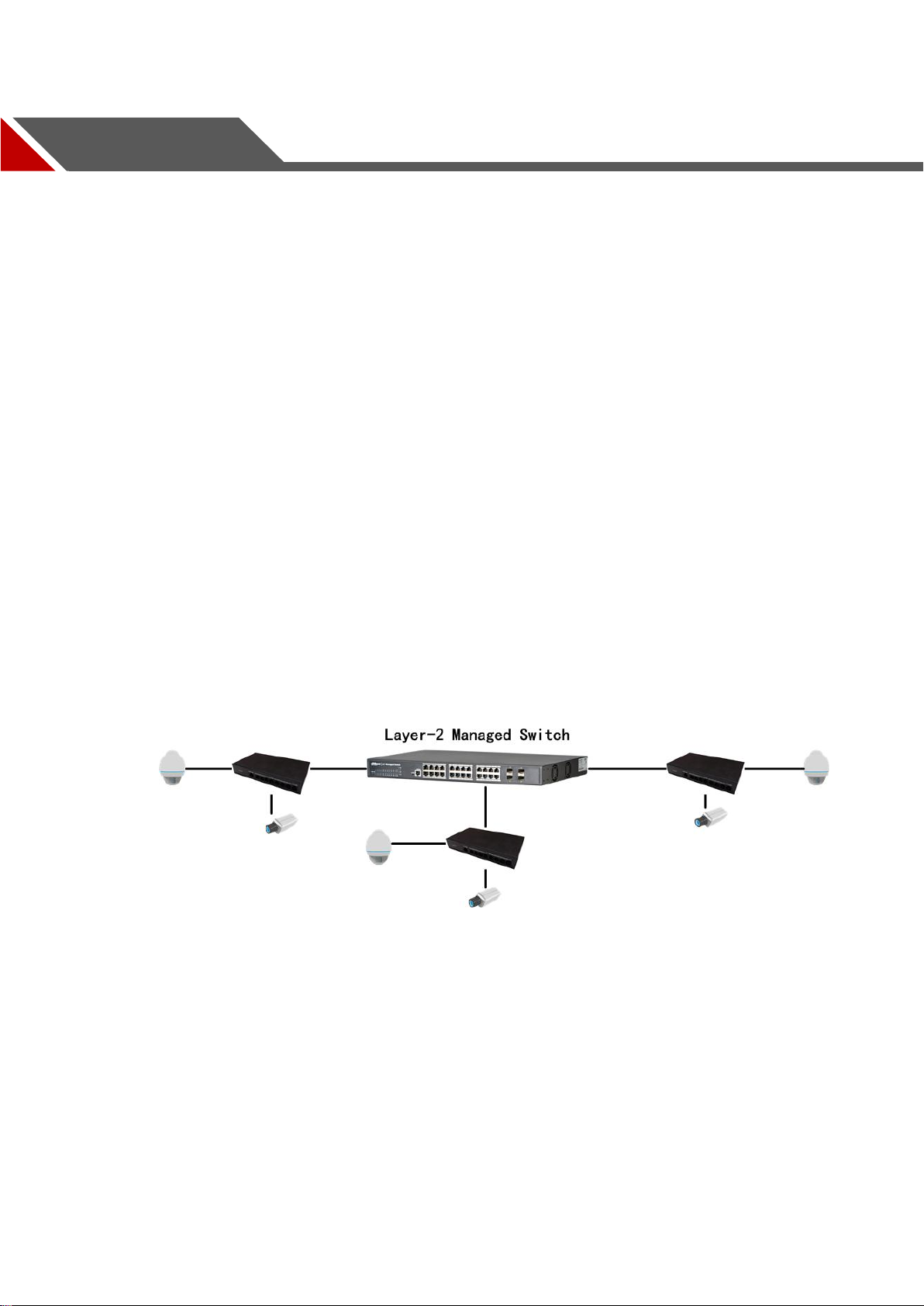

Typical Application1.3

The typical networking scene is shown in Figure 1-1.

Typical networking sceneFigure 1-1

Device Structure 2

2 Device Structure

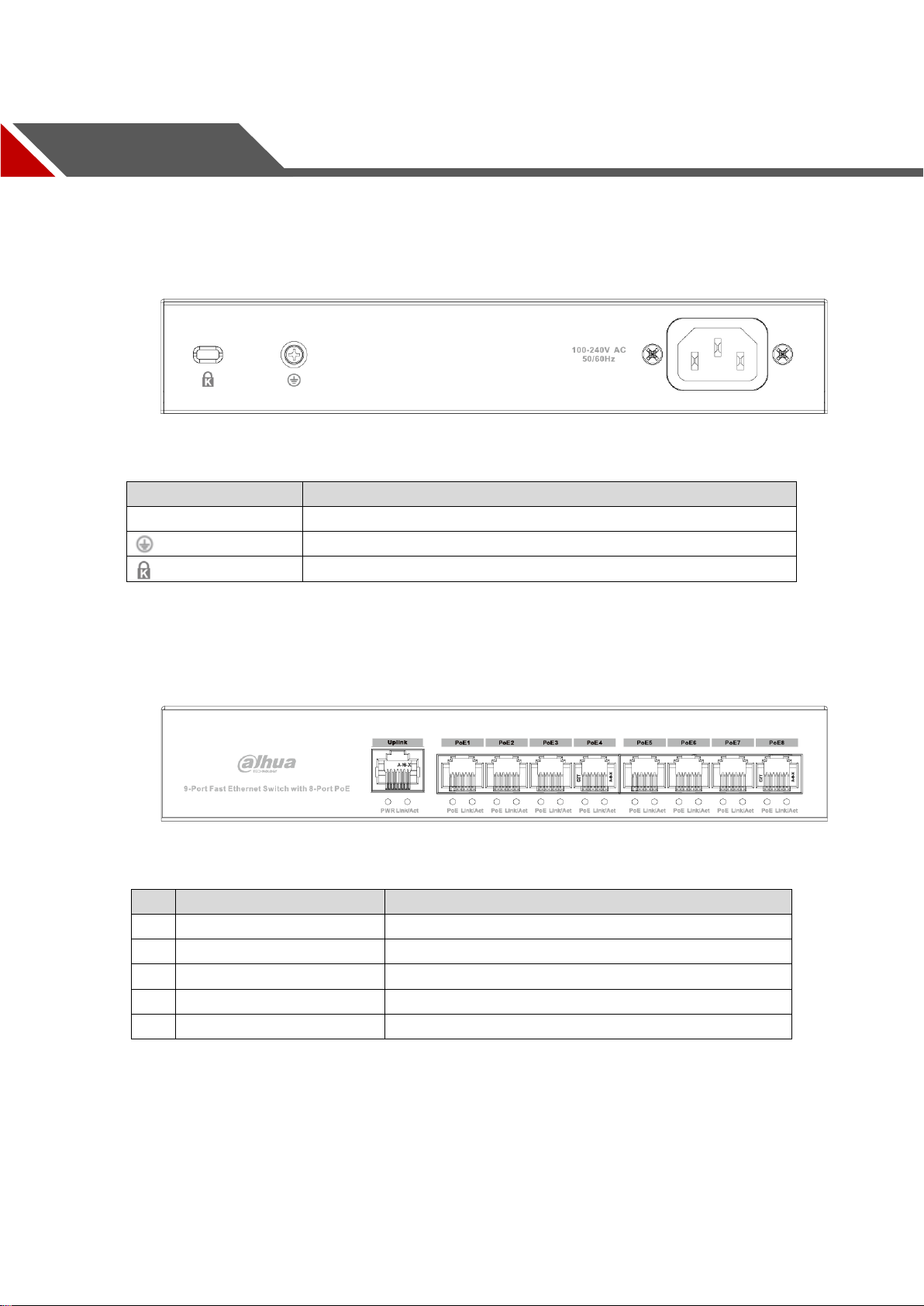

Side Panel2.1

The structure of side panel is shown in Figure 2-1.

Side panelFigure 2-1

Please refer to Table 2-1 for the description of side panel.

Table 2-1 The description of side panel

Name

Note

PWR

Power port. Supports AC 100V-240V power input.

GND.

The switch lock.

Front Panel2.2

The front panel is shown in Figure 2-2. Front panelFigure 2-2

Please refer to Table 2-2 for the description of front panel.

Table 2-2 The description of front panel

Name

Note

10/100 Base-T PoE port

8*10/100Mbps self-adaptive PoE power supply ports.

10/100 Base-T uplink port

1*10/100Mbps self-adaptive uplink port.

Link/act

Single port Link status indicator light.

PoE

Single port PoE status indicator light.

PWR

Power indicator light.

PoE Power Supply2.3

Eight 100M RJ45 ports support IEEE802.3af and IEEE802.3at standard power supply.

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China

Postcode: 310053

Tel: +86-571-87688883

Fax: +86-571-87688815

Email: overseas@dahuatech.com

Website: www.dahuasecurity.com
