1 Overview

Fingerprint Access Control Card Reader is a biometric recognition device and also a

complement to video monitoring and visual talk. Its appearance is neat and fashionable,

and its function is enhanced. It is designed for commercial building, corporation property

and intelligent community.

It has:

 Blue light

 Mifare card or EM card. Reading distance is 6cm~10cm. Response time is <0.1s.

 Fingerprint verification response time≤0.5s, fingerprint response time ≤1.5s.

 Max fingerprint storage is 4500.

 Wiegand protocol and RS485 output. RS495 baud rate is 9600bps.

 Can read 32 bit Mifare SN. Use high safety 64 bit key for mutual verification, via

security algorithm. It has advanced key management system, lowering risk due to

stolen data and copied intelligent card.

 ID recognition mode of card, card + fingerprint, fingerprint, card or fingerprint.

 Vandal-proof alarm, built-in watch dog program.

 All connection ports has over current and voltage protection.

 Online upgrade.

 Direct installation and open hole installation.

 Protection level: IP65, working temperature: ：-30℃～60℃, working temperature: ≤

95%.

 Working voltage: 9VDC～15VDC, working current: 150mA.

 Dimension: 125mm*56mm*47mm，0.15kg.

2 Device Structure

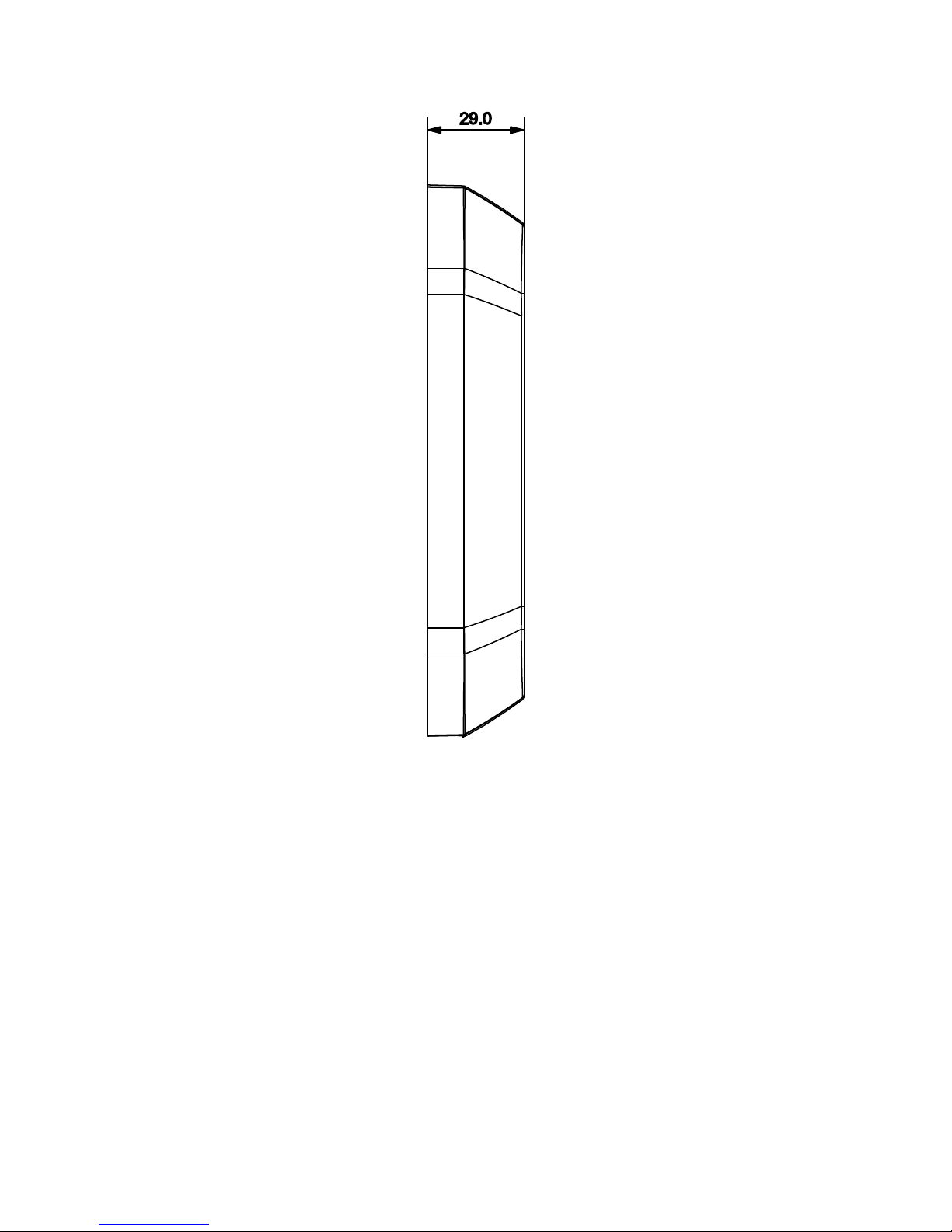

Fingerprint Access Control Card Reader’s dimension is shown in Figure 2- 1and Figure 2-

Figure 2- 1

Figure 2- 2

3 Device Installation

Fingerprint Access Control Card Reader’s installation illustration and steps are:

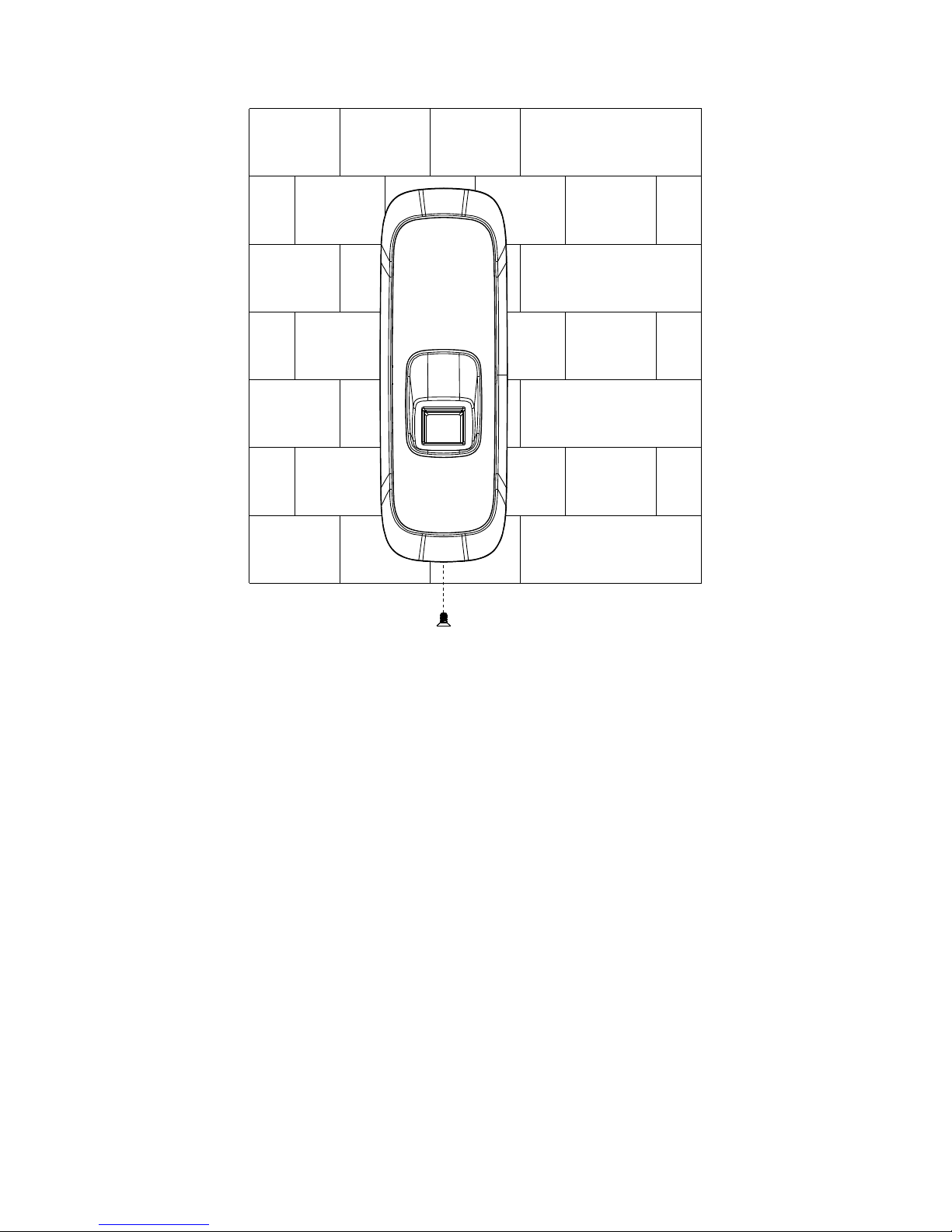

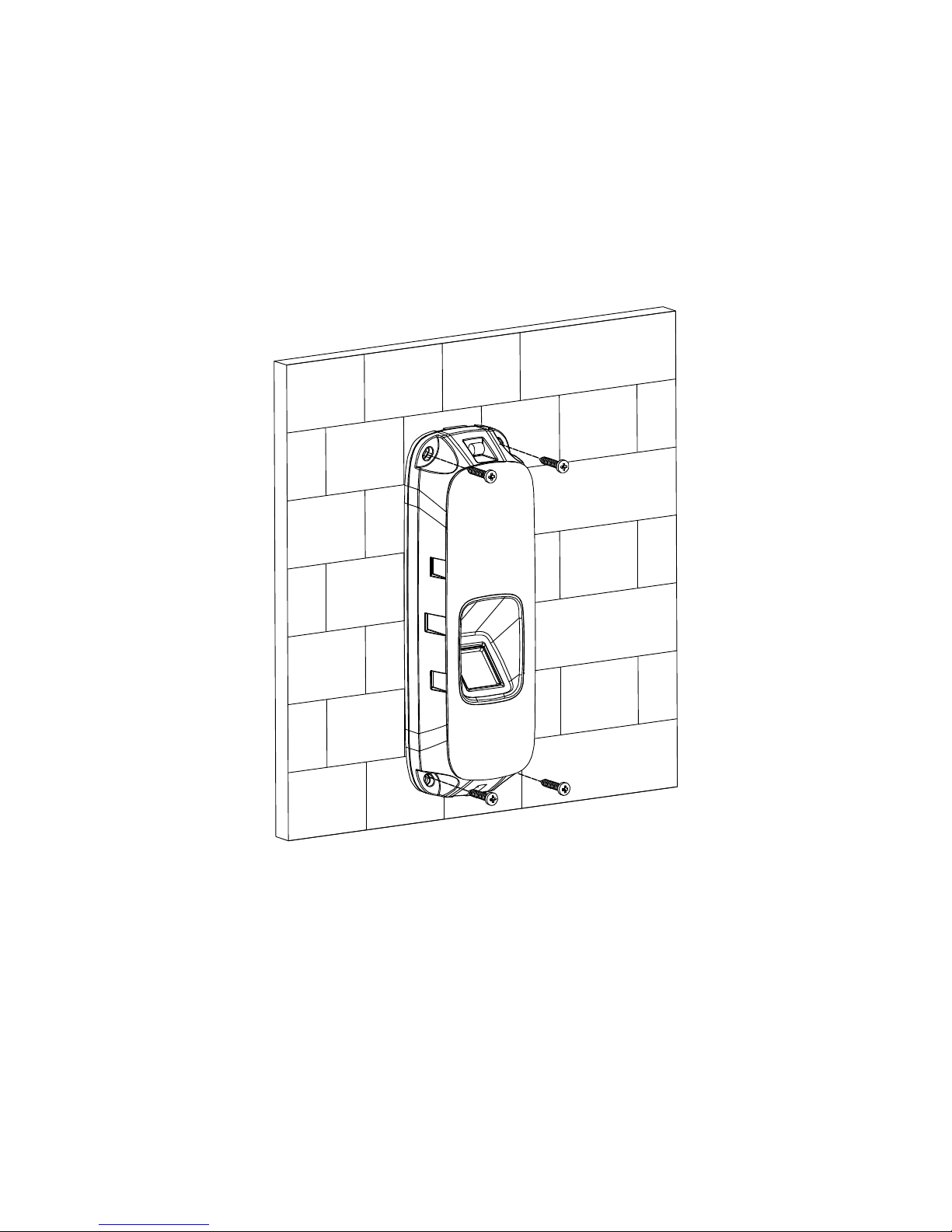

Step 1. Remove front cover, fix the device on wall via screw 1. See Figure 3- 1.

Figure 3- 1

Step 2. Put back front cover. Fix cover on the device via screw 2. See Figure 3- 2.

Figure 3- 2

4 System Framework

4.1 Wiring

Fingerprint Access Control Card Reader has 8-pin wiring, see Chart 4- 1.

No. Color Port Note Protocol

1 Red 12V DC 12V power -

2 Black GND GND -

3 Blue ALARM_OUT Weigand vandal-proof

alarm output

Weigand

protocol

4 White D1 Weigand signal line 1

5 Green D0 Weigand signal line 0

6 Brown LED/BELL_CTRL Weigand swiping card

indicator signal line

7 Yellow RS485- - RS485

protocol

8 Purple RS485+ -

Chart 4- 1

4.2 System Framework

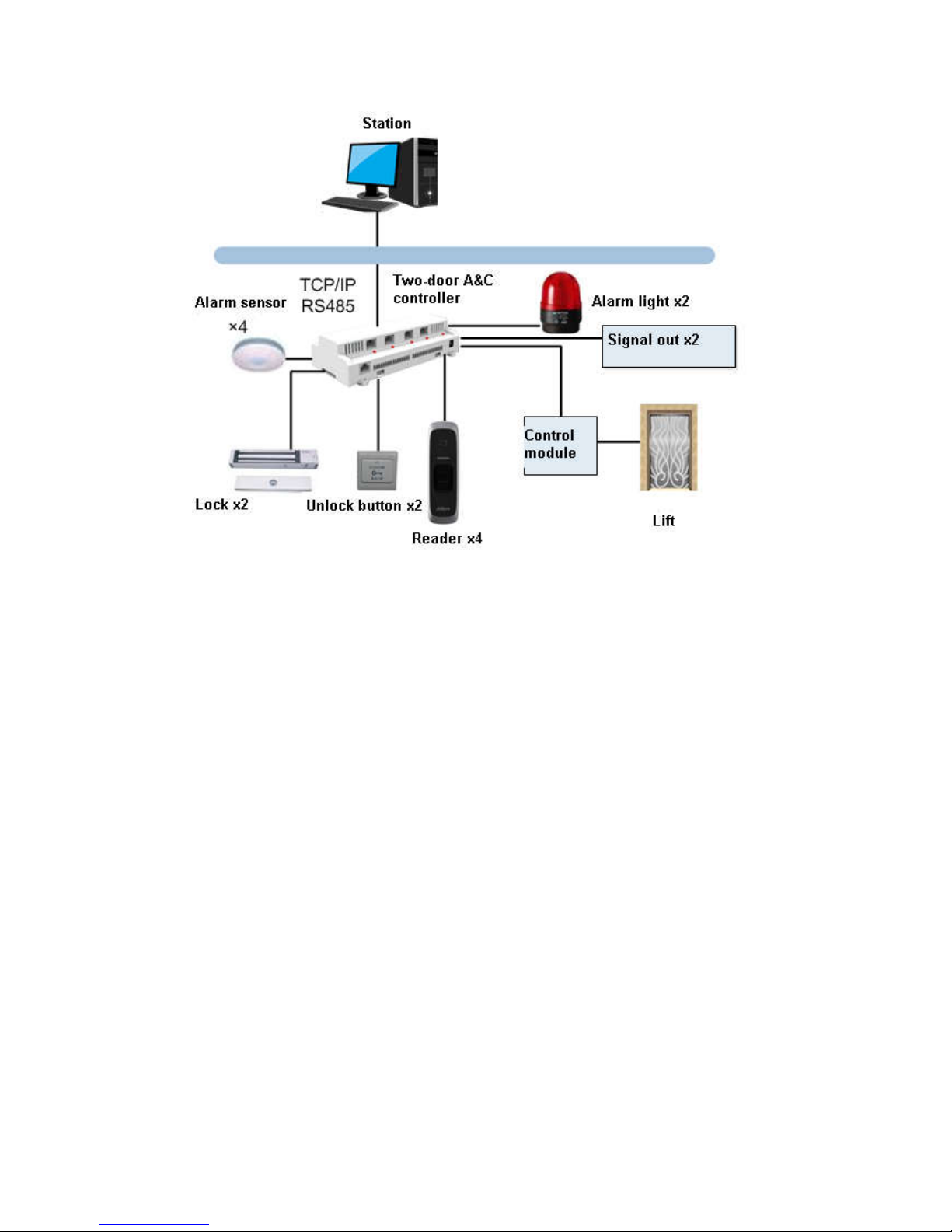

Fingerprint Access Control Card Reader and access controller is connected as in Figure 4-

Figure 4- 1

Note:

 This manual is for reference only. Slight difference may be found in user

interface.

 All the designs and software here are subject to change without prior written

notice.

 All trademarks and registered trademarks are the properties of their respective

owners.

 If there is any uncertainty or controversy, please refer to the final explanation of

us.

 Please visit our website or contact your local service engineer for more

information.
