Dahle 929 IS User manual

Operating

Instructions

Dahle 929IS

929 IS

INDUSTRIAL SHREDDER

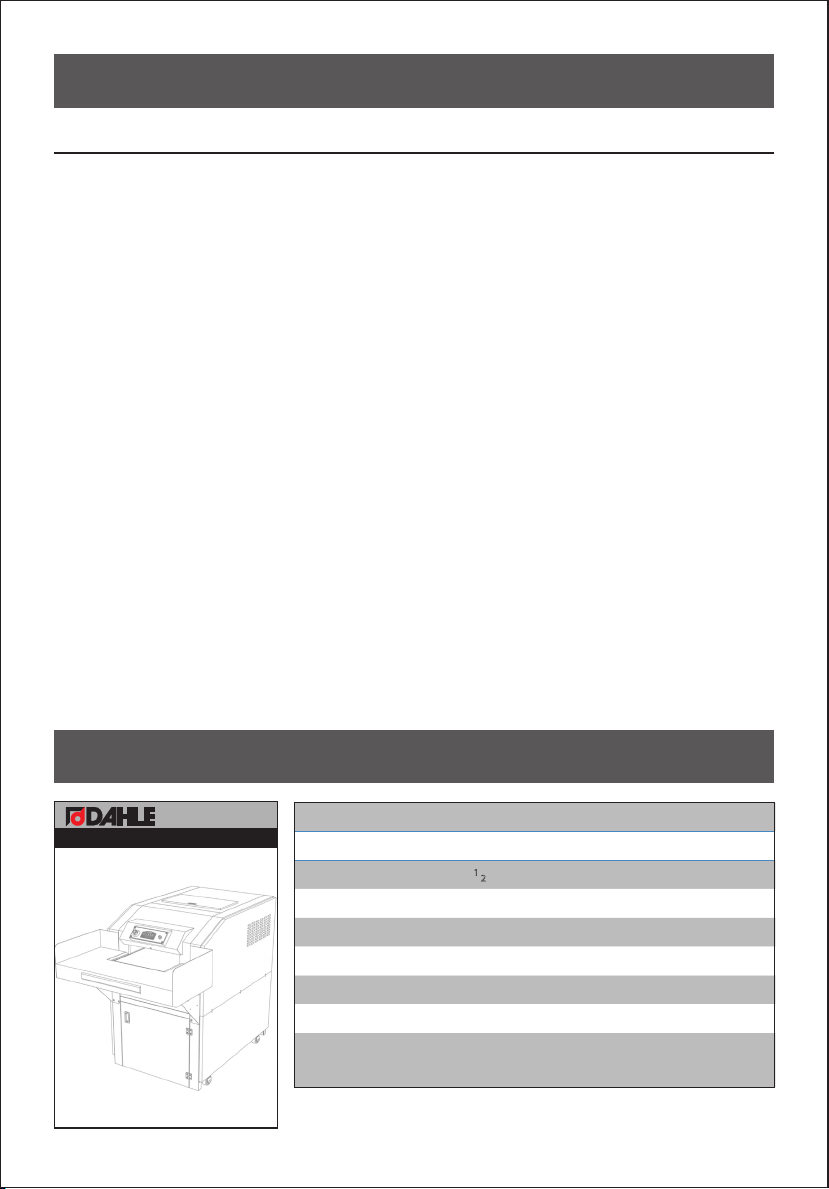

TABLE OF CONTENTS

SPECIFICATIONS

CONTENTS PAGE

Safety Precautions................................................................................................................................3-4

Installation ..................................................................................................................................................4

Operation................................................................................................................................................5-6

Auto Oiler ....................................................................................................................................................7

Maintenance ..............................................................................................................................................7

Output Conveyor Installation (optional) .........................................................................................7

Troubleshooting .......................................................................................................................................8

Warranty ......................................................................................................................................................8

READ CAREFULLY BEFORE USING

Proper care of your new shredder will ensure many years of trouble free operation,

with minimum of maintenance or repair.

IMPORTANT:

Please note that all packaging should be retained by the customer for (30) days from

the time of receipt. In the event that this unit needs to be sent back for replacement

or repair this packaging will be required to do so. Should the packaging have been

discarded before the (30) day requested period, packaging costs may be incurred by

the customer.

929 IS

INDUSTRIAL SHREDDER

Security Level: P3

Shred Size: 8mm X 40mm

Feed Width: 21 1⁄2”

Shred Capacity: 500 sheets

Bin Capacity: 120 gal.

Warranty: 1 year

Dimensions: 78.75” X 48” X 64.5”

Weight: 3,175 lbs.

Power Supply: 220v 3 phase, 50 amp

NEMA CS 8365 Plug, CS 8369Receptacle

Results may vary depending on power source, paper type, and proper maintenance.

Warranty includes labor but excludes wearable parts.

Your new shredder features powerful cutting mechanisms that may cause serious

injury. Please follow all safety precautions.

• Only store, transport, and operate the shredder in an upright position!

• All liquids and gases used on the shredder must comply with Dahle guidelines!

• The shredder must only be operated in enclosed spaces at temperatures of 15 °C to

32 °C(59 °F–90 °F) and non-condensed humidity of 15% to 95%!

• Do not place the shredder near a heat source!

• Ensure the shredder is rmly on the oor at a distance of 4” from the wall; activate

caster locks!

• Avoid any accumulation of heat!

• The mains socket must be grounded and easily accessible at all times!

• Use only the power cord supplied with the device by Dahle and ensure that it is not

damaged!

• Ensure that the building installation has short-circuit protection: max. 16 A (US

max. 20 A)!

• Do not use near ammable liquids and gases!

• Do not use near caustic substances!

• Do not subject to moisture!

• Do not open up the machine!

• Automatic start-up!

• Switch o the shredder at the main switch when not in use!

• Only use the shredder provided that it is in perfect working order, while observing

the operating instructions and the usual regulations, guidelines and applicable

safety and accident prevention requirements. Take the shredder out of service

immediately if faults occur!

• The device is not intended for use by persons (including children) with restricted

physical, sensory or mental capabilities or a lack of experience and knowledge, un-

less they are working under supervision or receive detailed instruction about how

to use the device from a person who is responsible for safety.

IMPORTANT SAFETY PRECAUTIONS

INSTALLATION

1. It is obligatory to follow the safety instructions!

2. Read the operating instructions carefully before using the shredder!

3. This shredder is not intended to be used by children (the product is not a toy)!

4. Do not touch the feed opening with your hands!

5. Do not allow items of clothing to touch the feed opening!

6. Do not allow your hair to touch the feed opening!

7. Prior to maintenance work, disconnect the shredder from the power supply!

• Mount work shelf to front of shredder using six (6)

screws provided and attach two (2) wires to Black

Terminal box to connect Safety Bar mechanism.

• Insert supplied waste container into the shredder.

• Plug shredder directly into a NEMA CS 8369

receptacle.

• Connect Auto Oiler supply tube located on

side of machine

OPERATION

POWER ON

• Turn the key on the main power switch ON.

AUTO START/STOP

• Press the START button. The AUTO LED will illuminate indicating the shredder is ready

for use.

• When in AUTO mode, the shredder will start and stop automatically when shredding.

• AUTO mode switches o after ten (10) minutes of no activity.

MANUAL MODE

• With the AUTO button illuminated, push the START button again. The MANUAL LED

will illuminate, and the shredder will begin to run. Press the START button again to

turn o Manual mode.

DOOR OPEN

• When the waste door is open the DOOR OPEN LED will illuminate and the shredder

will not operate. Close the door to resume shredding.

REVERSE MODE

• In the event of a jam, press the REV (reverse) button. Reduce the capacity of materi-

al to be shredded and re-insert into the shredder.

OPERATION

CLEANING

• From the STOP mode, push and hold the reverse (REV) button for ve seconds. The

machine will cycle through a one-minute cleaning mode and then automatically

STOP. It is recommended to activate CLEANING mode monthly, or every time the

waste container is emptied.

FULL

• The FULL LED will illuminate if the waste container is full. Open the cabinet door,

empty the waste container, replace the waste container, close the cabinet door, and

press the START button to resume shredding.

EMERGENCY STOP

• Press the EMERGENCY STOP button to immediately turn OFF the

shredder. To resume operation, turn the red knob clockwise until

it releases.

MAINTENANCE

• After emptying waste container, it is recommended to run a CLEANING cycle

by pressing and holding the REV button for ve seconds. The machine will cycle

through a one-minute cleaning mode and then automatically STOP.

• Clean the exterior of the machine with a soft cloth. Do not use harsh detergents or

chemicals.

AUTO OILER

This shredder is equipped with an auto oiling system. This system

is designed to pump the optimal amount of oil onto the cutting

blades at specic time intervals. Please make sure the oil con-

tainer stays full and use only Dahle branded oil. Use of other oil

may void warranty and cause damage to the shredder. To add oil

follow the following steps:

• Remove hose and cap and ll existing bottle with Dahle

shredder oil.

• Insert hose and cap into the bottle.

OUTPUT CONVEYOR INSTALLATION (OPTIONAL)

• Keep shredder power OFF.

• Keep the conveyor belt power on RUN and speed lever on HIGH.

• Connect power plug to the socket inside shredder.

• Arrange handles in a straight line and put conveyor belt into shredder. Lock handles

929 CB

OPTIONAL CONVEYOR BELT

TROUBLESHOOTING

Clear

Easy check points before you report malfunction.

Symptoms Check Point

1. The paper shredder is not

working.

2. Auto LED light is off

- Check the power plug

- Check the voltage of the outlet

(AC 120V or 220V it depends on your countryís

voltage rate)

- Check the breaker which is located on left side

of machine.

Confirmation

3. The paper shredder does not

reverse and just stops when

it's fed too much paper.

4. When the waste basket is

full, the shredder is not

working.

- Clear the waste basket then check that the Full LED

light is off

- Press the reverse button and clear the jammed

paper then re-operate the paper shredder.

WARRANTY

Dahle guarantees it’s industrial shredders to be free from manufacturing defects (ma-

terials / workmanship) for a period of one year. Dahle oers a one year guarantee on

the cutting cylinders.

This warranty shall not apply to wearable items or defects caused by ordinary wear

and tear, insucient maintenance or improper operation. This warranty applies to the

original purchaser only and is not transferable. There are no other warranties ex-

pressed or implied beyond the face of this agreement.
