Daewoo FR-510M User manual

Service Manual

Refrigerator

Model: FR-510M

FR-540M

FR-510P

FR-540P

DAEWOO ELECTRONICS CO., LTD.

S/M No. : FR510P0010

✔

Caution

: In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information,please refer to PPL(Parts Price List) in

Service Information Center (http://svc.dwe.co.kr).

1.Specification-----------------------------------------------------------------------------------------------1

2.External view-----------------------------------------------------------------------------------------------2

3.Wire diagram--------------------------------------------------------------------------------------------- 3

4.Name of parts--------------------------------------------------------------------------------------------- 4

5.Air flow diagram----------------------------------------------------------------------------------------- 5

6.Refrigerant cycle diagram---------------------------------------------------------------------------- 6

7.Machine room view and part list--------------------------------------------------------------------7

8. Main components----------------------------------------------------------------------------------------- 8

9. Door color specification--------------------------------------------------------------------------------- 9

10. Exploded view and parts list ------------------------------------------------------------------------ 15

11. Electronic function -------------------------------------------------------------------------------------- 25

1. SPECIFICATION

MODEL NAME FR-510M FR-540M FR-510P FR-540P

Refirgerant R12 200g 200g 200g 200g

R134a 170g 170g 170g 170g

Cooling System Fan Cooling Convection

Refrigeration System Air Forced Convection

Defrost System Fin Evaporator Forced

Defrost Operation AutomaticStart & Stop

Cold Control Adjustable Dial AdjustableButton

Capacity

Freezer 119



118



119



118



Refrigerator 299



306



299



306



Total418



424



418



424



External

Dimension

Height 1741mm 1768mm 1741mm 1768mm

Width770mm770mm770mm770mm

Depth 700mm700mm700mm700mm

Net Weight 88Kg 89Kg 88Kg 89Kg

2. EXTERNAL VIEWS

1. FR-510M

760

31.5

595770

1422.5

700

533

770

568

1039 1741

121

712 2424

136 988 511 222460

760

2. FR-540M

760

31.5

595770

1422.5

700

533

770

568

1066 1768

121

712 2424

136 1015 511 222460

760

3. WIRE DIAGRAM

1. FR-510M, 540M

TEMP

FUSE

GRAY

DEFROST

HEATER

COMPRESSOR

BLACK

PTC OL

WHITE P-RELAY

BIMETAL

WHITE

1 2

3 4 RED RED

RED

BLACK

WHITE/BLUE

TEMP

CONTROLLER

R-LAMP

F-LAMP

YELLOW

BROWN

PLUG

GN/YW

L/BLUE

PINK

BLUE

RED

DOOR

SWITCH

BROWN

MFM

2. FR-510P, 540P

GN/YW

PULG

COMPRESSOR

YELLOW

DOOR

SWITCH

YELLOW

P-RELAY

BLACK

VIOLET

BLUE

R-LAMP

BLUEX3

BROWN

REDRED

WHITE

F-LAMP

WHITE

R-LAMP

BLACK

2134

TEMP

FUSE

GRAY

DEFROST

HEATER

DOWN

TRANS

YELLOW

GREEN

BROWN

WHITE

RED

BLACK

VIOLET

GRAYx2

BLACKx2

BLUE

ORANGE

D-SENSOR

F-SENSOR

F-PCB

M-PCB

BROWN

L/BLUE

RED

YELLOW

4. NAME OF PARTS

1. FR-510M, 540M

Freezer Compartment Lamp

2Shelf Freezer & Ice Tray

Guide

3Case Icing

4Case Ice

5Case Child

6Temperature Controller

(Refrigerator Compartment)

7Shelf Refrigerator

8Window Refrigerator

9Lever Moisture Control

10 Cover Vegetable

11 Case Vegetable

12 Front Grille

13 Adjustable Foot

14 Pocket Freezer

15 Egg Pocket

16 Case Egg

17 Pocket Multi

18 Pocket Bottle (A)

19 Pocket Bottle (B)

20 Freezer Temperature

Controller

(Freezer compartment)

2. FR-510P, 540P

Freezer Compartment lamp

2Shelf Freezer & Ice Tray

3Case Icing

4Case Ice

5Case Child

6Temperature Controller

(Refrigerator Compartment)

7Shelf Refrigerator

8Window Refrigerator

9Lever Moisture Controller

10 Cover Vegetable

11 Case Vegetable

12 Front Grille

13 Adjustable Foot

14 Pocket Freezer

15 Egg Pocket

16 Case Egg

17 Pocket Multi

18 Pocket Bottle (A)

19 Pocket Bottle (B)

20 Freezer Temperature

Controller

(Freezer Compartment)

4. FR-540P

760

31.5595770

1422.5

700

533

770

568

1066 1768

121

712 2424

136 1015 511 22

760

3. FR-510P

760

31.5595770

1422.5

700

533

770

568

1039 1741

121

712 2424

136 988 511 22

760

5. AIR FLOW DIAGRAM

-16~-18

-17~-19

1~32~4

2~3

5~7

2~4

3~5

3~5 2~4

Freezer door pocket

Do not put ice cream or frozen

food in freezer door pocket to

store for a long term. Opening

and shutting the door can rise up

the temperature.

Cold air absorbing duct

Do not place food in front

of the duct because it is the

entrance of the cold air.

Refrigerator door pocket

Temperature is high even if the

pocket is in the middle.

When storing margarine or cheese

for one or two weeks, make use

of the refrigerator shelf.

Crisper

Suitable in storing fruits or

vegetable.

Wrapping can prevent from

dryness.

Freezer room

Do not put any bottle such as

beer or beverage because it can

be frozen and broken.

Refrigerating room

This model is multi-flow type

which flows out cold air from

each shelf space. The hot air

after making the refrigerator

cold, flows into cooling system

through the front upper part.

Do not put food having much

moisture at the middle part of

each shelf space ("A", "B" and

"C" part). It can be frozen owing

to the low temperature.

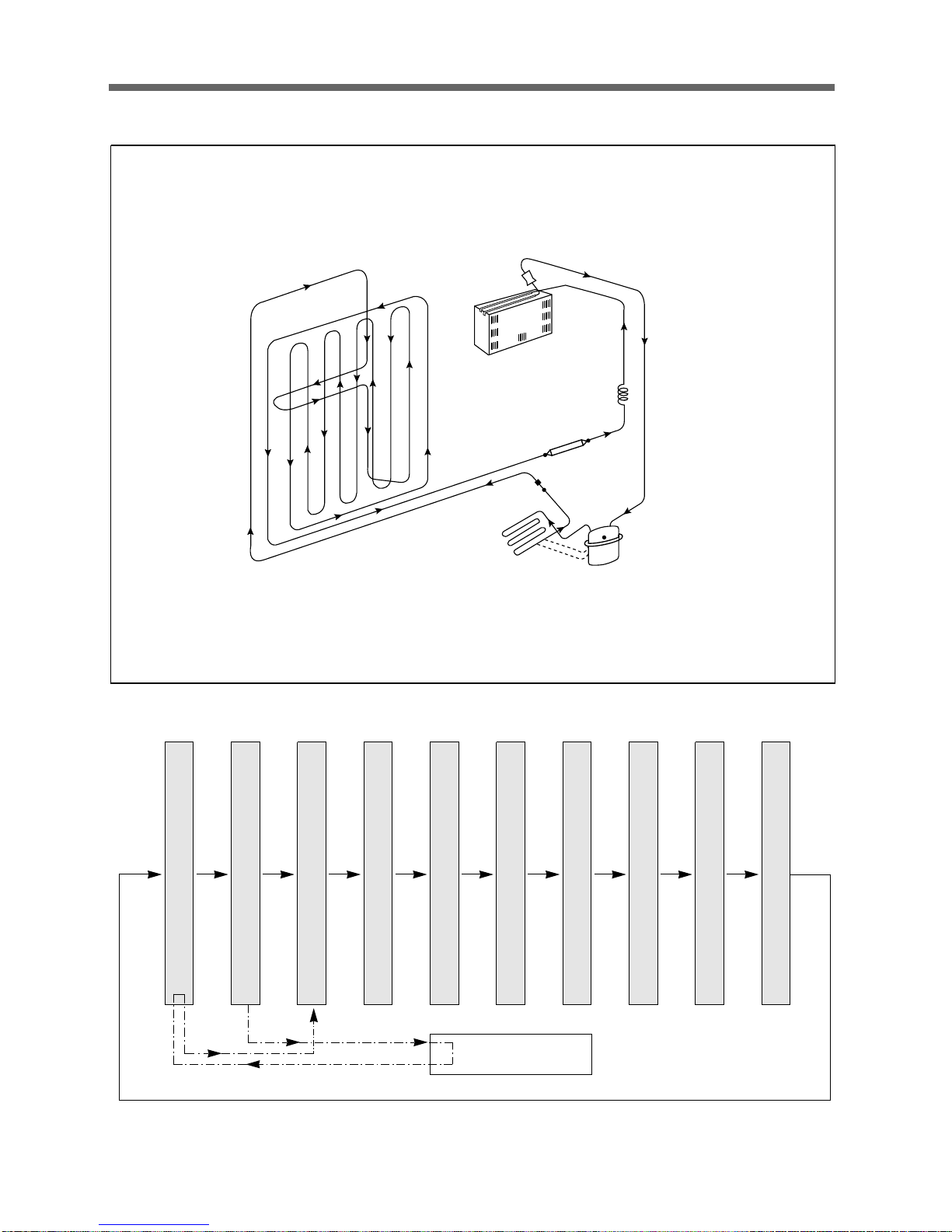

6. REFRIGERANT CYCLE DIAGRAM

FIN CROSS

EVA

SUC-PIPE

MAIN CAPI TUB.

ACCUM

HOT PIPE

DRYER

COMP

AUX-HOT PIPE

BACK PLATE PIPE

COOLING PIPE

7. MACHINE ROOM VIEW AND PART LIST

1 2 3414

2210

NO PART NAME NO PART NAME NO PART NAME

1BASE COMPRESSOR 9DRYER 17 BIND WIRE

2COMPRESSOR 10 PIPE CON (SUC) 18 PLUG POWER AS

3ABSORBER COMPRESSOR 11 VIBRATIONPROOF GUM 19 SCREW MACHINE

4WASHER COMP. *T 12 PIPE CON (AUX) 20 PIPE CON (HOT)

5SWITCH P-RELAY AS 13 HOSE DRAIN (B) 21 TAPE OPP

6BAND RELAY 14 VIBRATIONPROOF MASS 22 PIPE CON (P.A)

7TAPE COTTON 15 SCREW TAPPING

8 PIPE SERVICE 16 COVER CONNECTOR
