Daewoo FR-430 User manual

Service Manual

Refrigerator

Model: FR-430

DAEWOO ELECTRONICS CO., LTD.

S/M No. : FR43000010

1.Specification-----------------------------------------------------------------------------------------------1

2.External view-----------------------------------------------------------------------------------------------2

3.Wire diagram--------------------------------------------------------------------------------------------- 3

4.Name of parts--------------------------------------------------------------------------------------------- 4

5.Air flow diagram----------------------------------------------------------------------------------------- 5

6.Refrigerant cycle diagram---------------------------------------------------------------------------- 6

7.Machine room view and part list--------------------------------------------------------------------7

8. Main components----------------------------------------------------------------------------------------- 8

9. Door color specification-------------------------------------------------------------------------------- 11

10. Exploded view and parts list ------------------------------------------------------------------------ 14

1. SPECIFICATION

MODEL NAME FR-430

Refirgerant R12170g

R134a 145g

Cooling System Fan Cooling Convection

Refrigeration System AirForced Convection

Defrost System Fin EvaporatorForced

Defrost Operation Automatic Start& Stop

Cold Control AdjustableDial

Capacity

Freezer 86



Refrigerator 273



Total359



External

Dimension

Height 1744mm

Width721mm

Depth 655mm

Net Weight 77Kg

1310

703 565

5301078

117 10

1078 530

1744

710 721

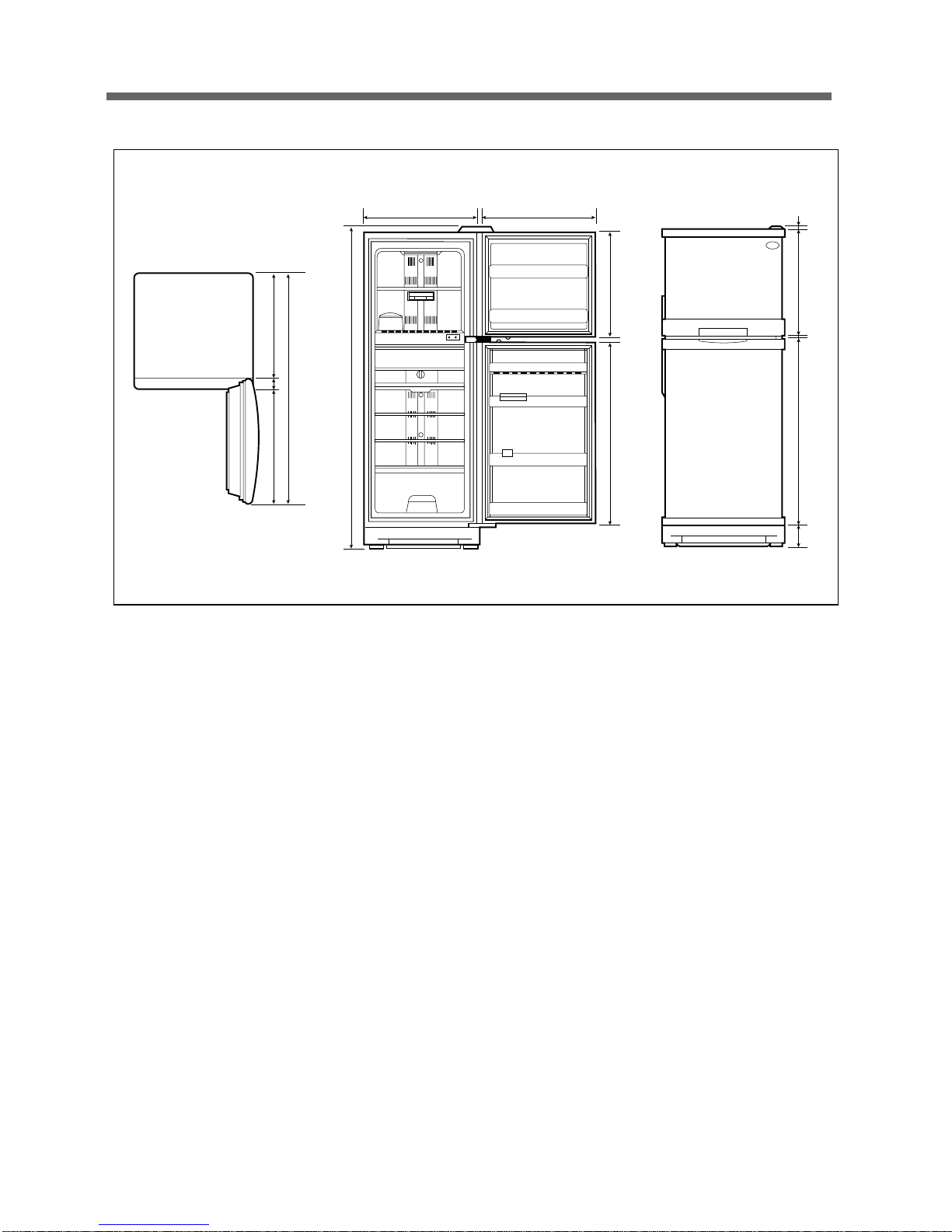

2. EXTERNAL VIEWS

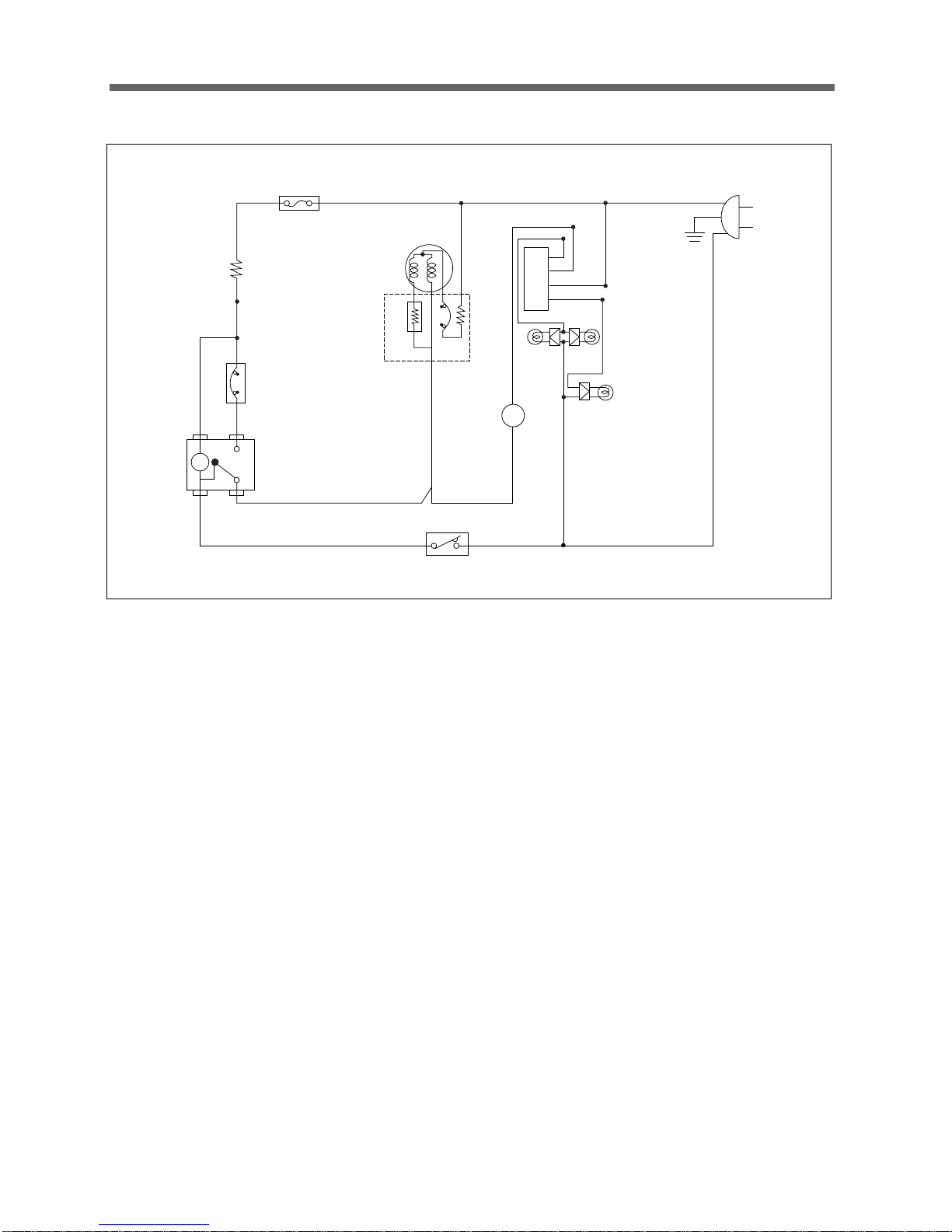

3. WIRE DIAGRAM

PLUG

GN/YW

L/BLUEBLACKBLACK

COMPRESSOR

PTC OL

GRAY

WHITE

WHITE GREEN

THERMOSTAT YELLOW BROWN

YELLOW F LAMP

RED

PINK

BLUE

2BLACK

R LAMP

YELLOW

R LAMPP-RELAY

WHITE

BIMETAL

BROWN

DEFROST

TIMER

TEMP

FUSE

GLASS

HEATER

1 2

DOOR

SWITCH

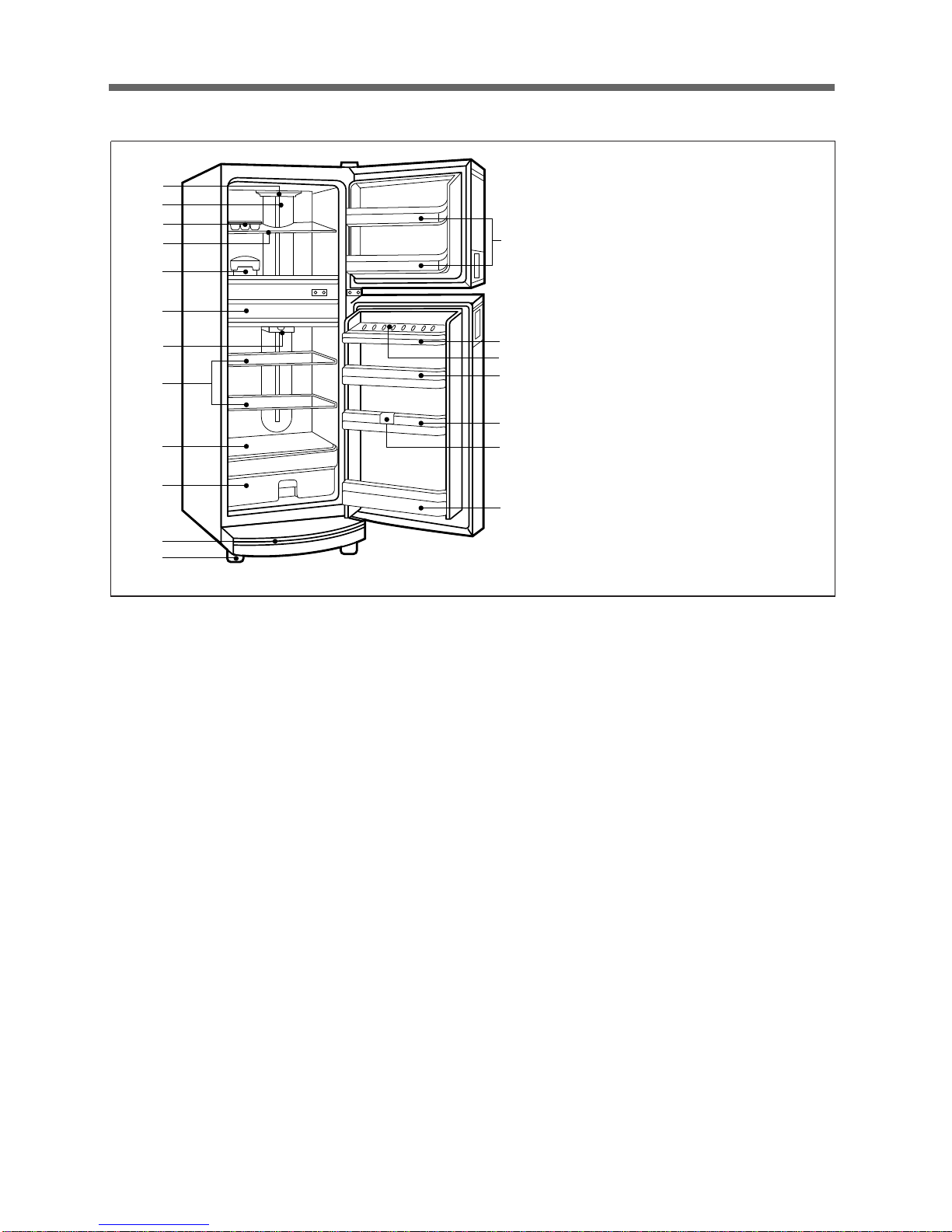

4. NAME OF PARTS

1Box Control

2Lamp

3Case Icing

4Shelf Freezer

5Case Ice

Case Child

7Refrigerator Temperature

Controller

8Shelf Refrigerator

9Cover Vegetable Case

10 Case Vegetable

11 Adjustable Foot

12 Front Grille

13 Freezer Pocket

14 Egg Pocket

15 Egg Tray

16 Refrigerator Pocket(SM)

17 Refrigerator

Pocket(Medium)

18 Refrigerator Pocket(BG)

19 Deodorant

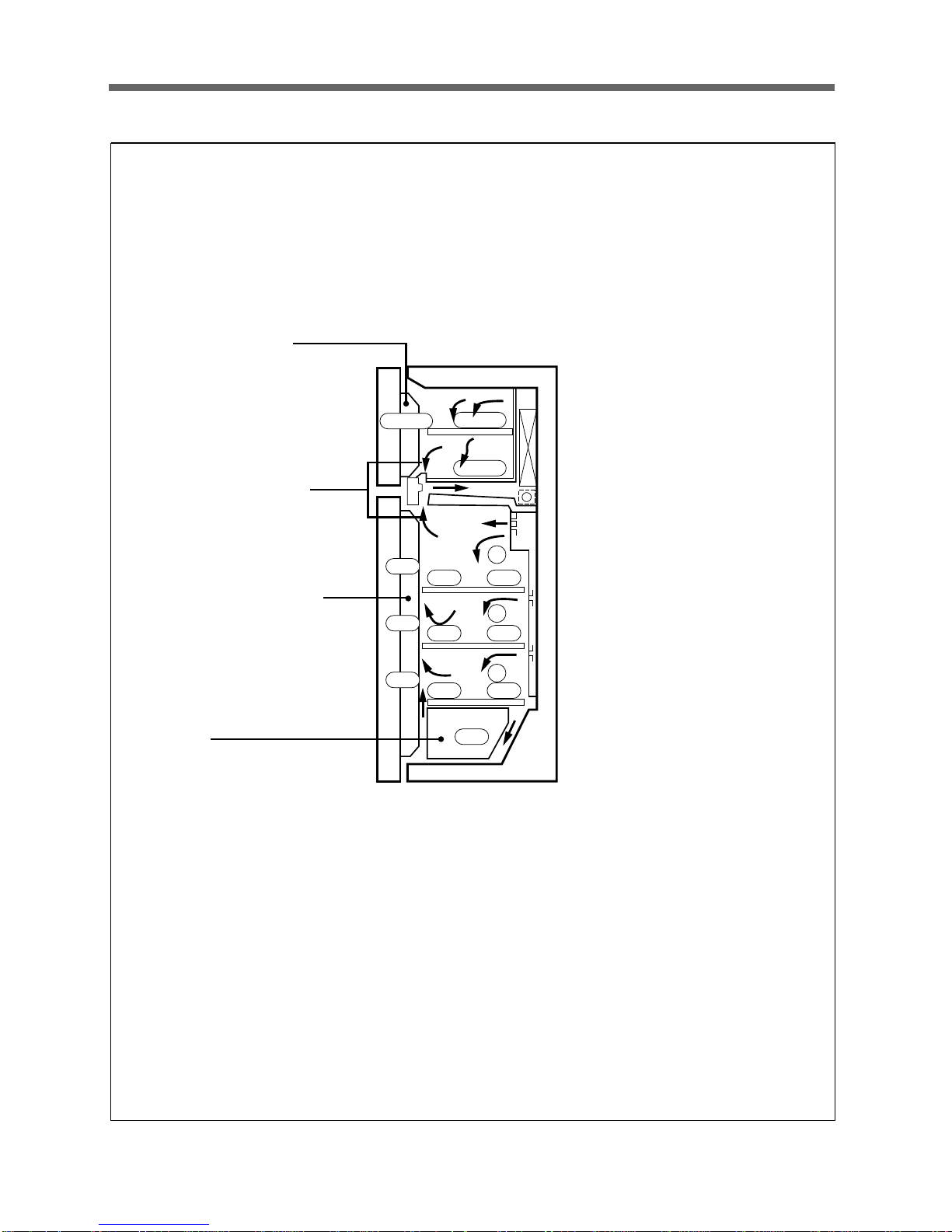

5. AIR FOLW DIAGRAM

-16~-18

-17~-19

1~32~4

2~3

5~7

2~4

3~5

3~5 2~4

Freezer door pocket

Do not put ice cream or frozen

food in freezer door pocket to

store for a long term. Opening

and shutting the door can rise up

the temperature.

Cold air absorbing duct

Do not place food in front

of the duct because it is the

entrance of the cold air.

Refrigerator door pocket

Temperature is high even if the

pocket is in the middle.

When storing margarine or cheese

for one or two weeks, make use

of the refrigerator shelf.

Crisper

Suitable in storing fruits or

vegetable.

Wrapping can prevent from

dryness.

Freezer room

Do not put any bottle such as

beer or beverage because it can

be frozen and broken.

Refrigerating room

This model is multi-flow type

which flows out cold air from

each shelf space. The hot air

after making the refrigerator

cold, flows into cooling system

through the front upper part.

Do not put food having much

moisture at the middle part of

each shelf space ("A","B"and

"C"part). It can be frozen owing

to the low temperature.

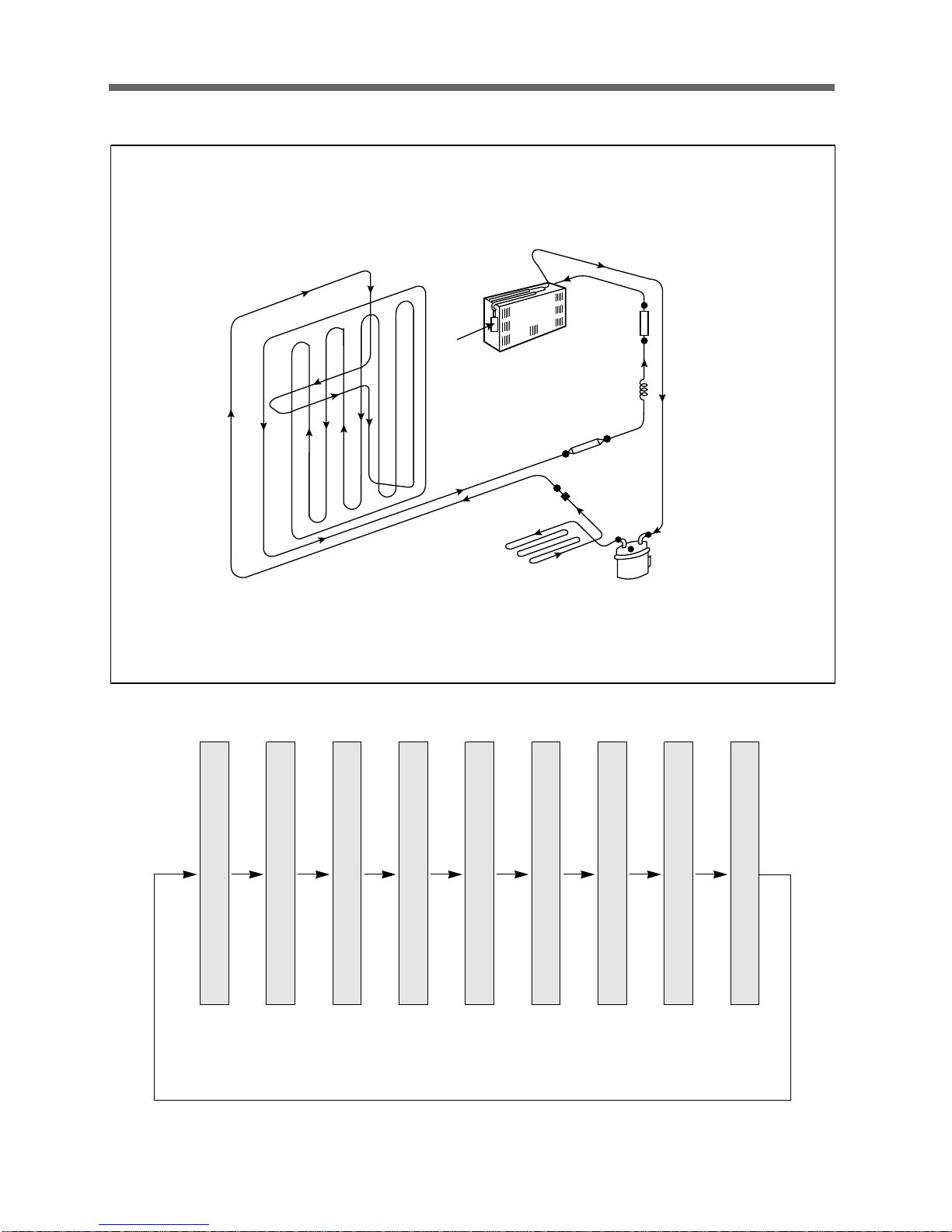

6. REFRIGERANT CYCLE DIAGRAM

FIN. CROSS

EVA

ACCUM

SUC-PIPE

COMP

HOT PIPE

DRYER

CAPI TUBE

I-PIPE

BACK PLATE PIPE

AUX-CON PIPE

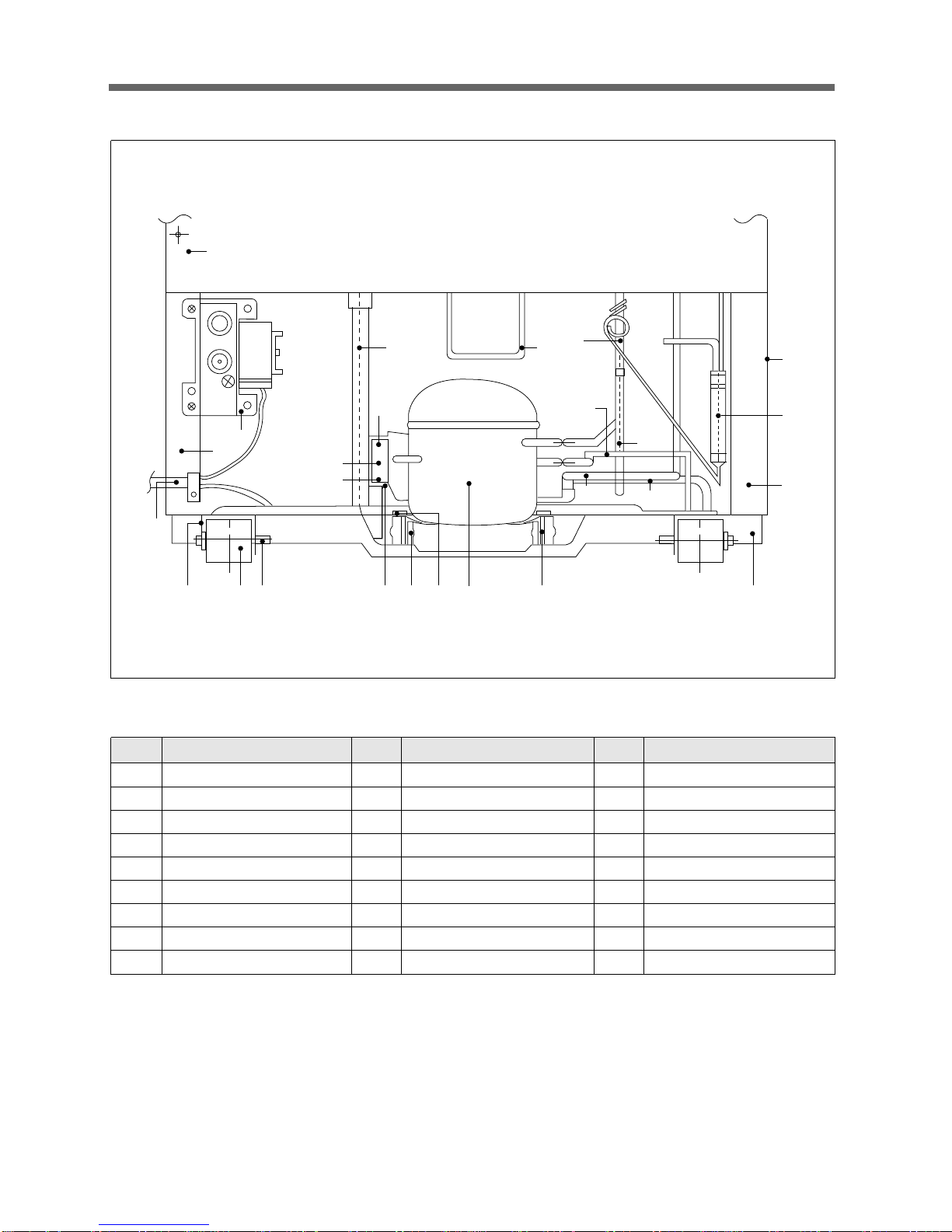

7. MACHINE ROOM VIEW AND PART LIST

22 25

4 5

10 11 1314 12

16 17

NO PART NAME NO PART NAME NO PART NAME

1CABINET COVER 10 RELAY BAND 19 SUCTION PIPE

2CABINET 11 ABSORBER 20 BACK PLATE PIPE

3POWER BOX 12 BOLT 21 REINFORCE *L

4CASTER 13 WASHER 22 REINFORCE *R

5CASTER PIN 14 COMPRESSOR 23 DRAIN HOSE (B)

6CASTER FIXTURE 15 PIPE (PA) 24 COMPRESSOR BASE

7PTC-RELAY 16 PIPE (CH) 25 PIPE (AE)

8OVERLOAD 17 PIPE (AC) 26 POWER CORD

9 RELAY COVER 18 DRYER

1. COMPRESSOR

2. RELAY ASSEMBLY

3. RUNNING CAPACITOR

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

220V/50Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Comp. model X CL23YE-3-C X KL25YE-5-C SL25YE-5-C PL23YE-4 SL25YE-5-C

Part code X 3957123C30 X 3958123C60 3954125C50 3956123840 3954125C50

Strating type X CSIR X CSIR RSIR RSCR RSIR

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Comp. model X HBL23YE-3-C X X HSL25YE-5-C X HSL25YE-5-C

Part code X 3952123L30 X X 3954125L50 X 3954125L50

Strating type X CSR X X RSIR X RSIR

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

220V/50Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Relay model X 427THBYY-52 X 724RFBYY-52 232THBYY-52 197SHBYY-52 232THBYY-52

Part code X 3018103020 X 3018103051 3018103040 3018103010 3018103040

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 230V/50Hz 230V/50Hz

240V/50Hz

Relay model X 427THBYY-52 X X 276THBYY-52 276THBYY-52 276THBYY-52

Part code X 3018108090 X X 3018105680 3018109800 3018105680

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Spec.

XXXXX350V/5µF X X

Part code

XXXXX400EL15110 X X

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Spec.

X 300V/7µF X X X X X X

Part code

X 386100400 X X X X X X

8. MAIN COMPONENTS
