Daewoo FR-330 User manual

Service Manual

Refrigerator

Model: FR-330

DAEWOO ELECTRONICS CO., LTD.

S/M No. : FR33000012

✔

Caution

: In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information,please refer to PPL(Parts Price List) in

Service Information Center (http://svc.dwe.co.kr).

CONTENTS

1. SPECIFICATION 1

2. NAME OF PARTS 2

3. REFRIGERANT CYCLE DIAGRAM 3

4. WRING DIAGRAM 4

5. MACHINE ROOM VIEW AND PART LIST 5

6. METHODS OF EXCHANGING MAIN PARTS 6

7. EXPLODE VIEW AND PARTS LIST 10

8. PARTS LIST 11

1.Specification

Refrigerant R134a

COOLING System

Refrigeration System

Defrost System

Defrost Operation

Cold Control

Freezer

Refrigerator

Total

Height

Width

Depth

Net Weight

-1-

207L

268L

115g

Fan Cooling Convection Type

Air Forced Convection

Forced Fin-Evaporator Type

57Kg

External

Dimension

1636mm

600mm

687mm

Automatic Start & Stop

Adjustable Dial

Capacity

61L

2. NAME OF PARTS

-2-

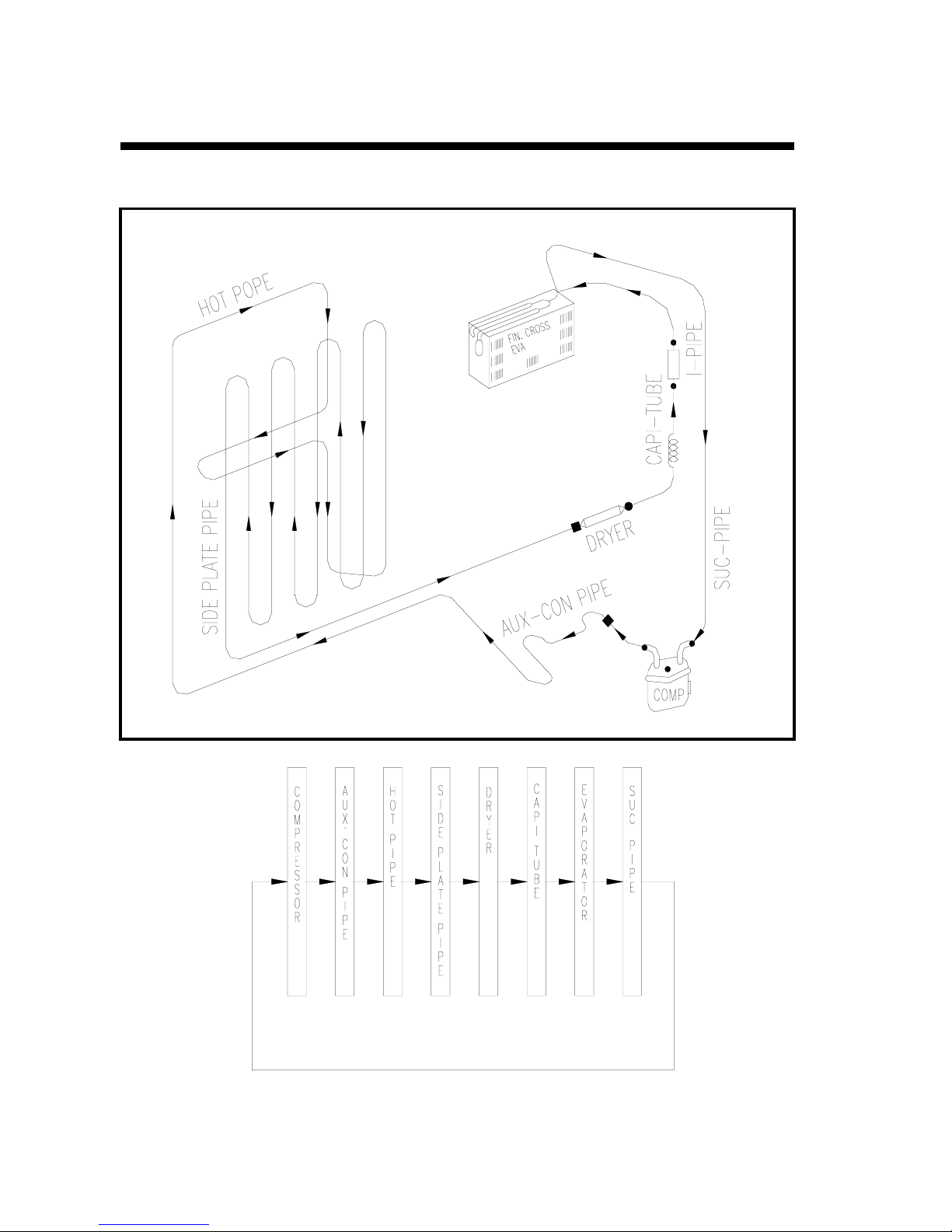

3. REFRIGERANT CYCLE DIAGRAM

-3-

4. WRING DIAGRAM

-4-

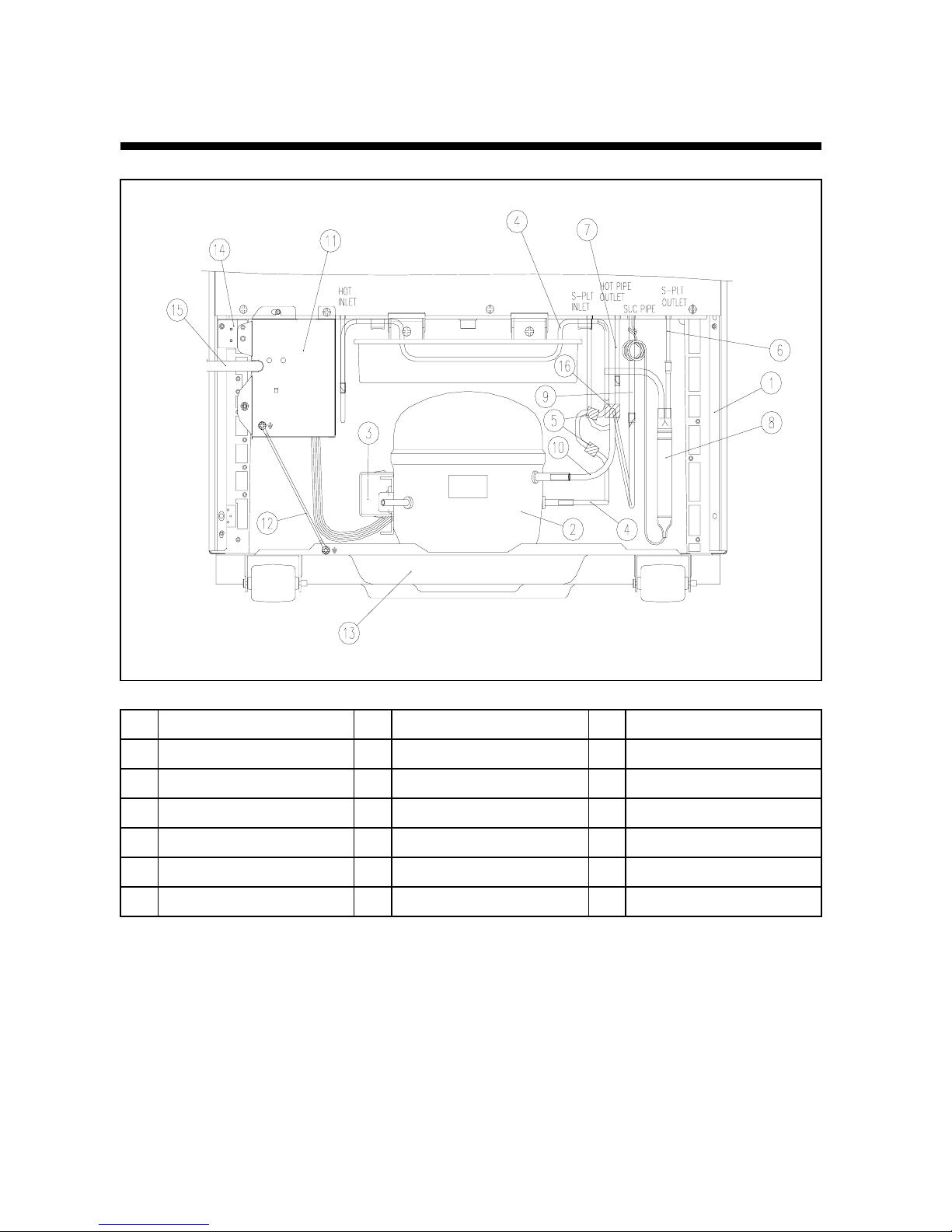

NO PART NAME NO PART NAME NO PART NAME

1 BASE CAB AS 7 PIPE HOT 13 BASE COMP AS

2 COMPRESSOR 8 DRYER AS 14 BRACKET EARTH

3 P-RELAY AS 9 PIPE SUC AS 15 POWER CORD AS

4 PIPE VAPORI AS 10 PIPE SUC CONN 16 ABSORBER PIPE A

5 ABSORBER PIPE B 11 BOX POWER AS

6 PIPE S *PLT 12 HARNESS EARTH

5. MACHINE ROOM VIEW AND PART LIST

-5-

(1) Freezing room louver

1) Unscrew, remove the F-louver by

pulling forward with inserting

screwdriver into the hole of F louver.

2) Assemble it by pressing triangle

shape ( ) by hand.

(2) R control box

1) After pressing both bottom surfaces

of shade and pull forward.

2) To exchange the interior lamp,

unscrew the lamp counterclockwise.

3) Remove two screws

6. METHODS OF EXCHANGING MAIN PARTS

-6-

Methode of exchanging main parts

4) Pull slightly forward with instant force.

5) Remove the housing

6) After romoving the control switch knob

and two screws for fixing control switch,

change the control switch to new one.

-7-

Methode of exchanging main parts

(3) Bimetal

1) Cut off the wire bind.

2) Take out the bimetal.

(4) Glass tube heater

1) Remove 2 screws that fasten the evaporator.

2) Slightly pull the evaporator to the arrow's

direction.

3) Move the entire eveporator upward the pipe

center to the arrow's direction.

(Do not crumble the part A of the

accumulator during the process.)

-8-

Evaporator fastening screw

BIMETAL
