Dacor Millennia MET304 Technical manual

PLANNING

GUIDE

3.1

Specications subject to change without notice. Phone: (800) 793-0093www.dacor.com

30 Inch and 36 Inch Wide,

Discovery™Electric Cooktops

PRODUCT DIMENSIONS - METB365-1

36 1/4" *

(92.1 cm)

34 3/8"

(87.3 cm)

19 3/8"

(49.5 cm)

21 1/4" *

(54.0 cm)

4" (10.2 cm)

Chassis height

30 1/4" *

(76.8 cm)

28 3/8"

(72.1 cm)

19 3/8"

(49.5 cm)

21 1/4" *

(54.0 cm)

4" (10.2 cm)

Chassis height

PRODUCT DIMENSIONS - MET304

MET304 and METB365-1

Product tolerances: ±1/16” (±1.6 mm) unless otherwise noted

Document # PG03-001 Revised 10/01/11 Page 1/3

NOTES:

1. The cooktop is supplied with a flexible, 48 inch long

power conduit consisting of two (2) insulated hot lead

conductors (L1 and L2) and one (1) insulated ground

conductor. There is no neutral connection. All leads are

copper. The conduit is connected to the right corner of

the cooktop. Do not connect the ground wire to neutral.

2. Tested in accordance with the latest edition of ANSI

Z21.1 and U.L. 858 Standard for household cooking

appliances.

3. These cooktops are not approved for recessed

installation.

Model No. Electrical Circuit Required Total Connected

Load*

Minimum Supply Wire Size

Line and Ground Connections

MET304 240 Vac, 60 Hz, 40 Amps. 6.9 kW (29 Amps.)

METB365-1 240 Vac, 60 Hz, 50 Amps.* 9.6 kW (40 Amps.)

* For reference only, See the product data label on bottom of unit for exact specifications.

ELECTRICAL SUPPLY REQUIREMENTS

WARNING

• Observe all governing codes and ordinances during planning

and installation. Contact your local building department for

further information.

• This appliance must be installed in accordance with the

accompanying installation instructions.

* For units with stainless steel trim, other units may be up to 1/8" less.

PLANNING

GUIDE

3.2

Specications subject to change without notice. Phone: (800) 793-0093www.dacor.com

30 Inch and 36 Inch Wide,

Discovery Electric Cooktops

MET304 and METB365-1

All tolerances: +1/16”, -0, (+1.6 mm, -0) unless otherwise stated

Document # PG03-001 Revised 10/01/11 Page 2/3

When installing model METB365-1 and the bottom of the chassis is to be

enclosed wall to wall, you must install Dacor ventilation duct kit ATD323.

Allow a minimum of 6 inches (15.2 cm) clearance between

the top of the countertop and any combustible surface

below, including the upper edge of a drawer below the

cooktop. Proper under-cabinet clearance is also required

for the cooktop hold down brackets.

6” (15.2 cm)

min. clearance

to combustible

surfaces

6" (15.2 cm) min.

from mounting surface to

combustibles below

cooktop chassis

min. to combustible,

side wall, both sides

Rear

wall

1" min.

19 3/4" min.

(50.2 cm)

6" (15.2 cm)

(2.5 cm)

2 1/4" min.

(5.7 cm)

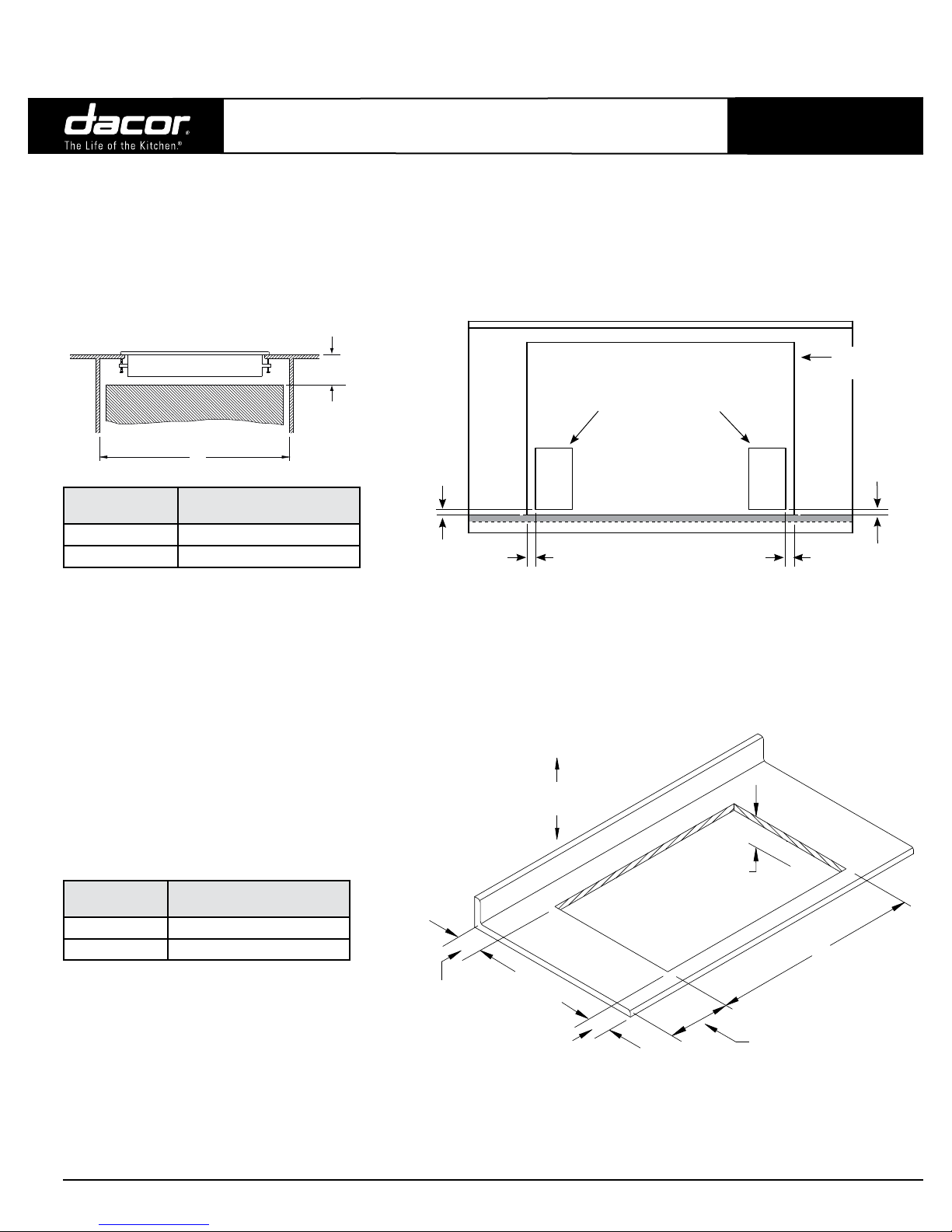

UNDER COUNTER CLEARANCE

Model (A) Minimum Under Counter

Clearance (Width)

MET304 30 1/2” (77.5 cm)

METB365-1 36 1/2” (92.7 cm)

Model (B) Minimum Under Counter

Clearance (Width)

MET304 28 3/4” (73.0 cm)

METB365-1 34 3/4” (88.3 cm)

COUNTERTOP CUTOUT (WITHOUT RAISED VENT)

3/4”

7 3/4” X 4 3/8”ventilationcut-outsinenclosureoor

1 1/2”1 1/2”

3/4”

TOP VIEW VENTILATION CUTOUT

Cooktop cutout in

top of cabinet

PLANNING

GUIDE

3.3

Specications subject to change without notice. Phone: (800) 793-0093www.dacor.com

30 Inch and 36 Inch Wide,

Discovery Electric Cooktops

Stiffener

Cabinet face

Countertop

Floor

3/8” min. (1.0 cm) space

behind raised vent

chassis to clear stiffener

3/8” min. (1.0 cm)

flat countertop overhang

required behind cutout

ERV or PRV series raised

vent: Check raised vent

dimensions/specifications

to determine proper fit

ETT or MET series cooktop

19 3/4"

(50.2 cm)

6" min.

(15.2 cm)

6" min.

(15.2 cm)

1" min.

(2.5 cm)

Cabinet

face

6" (15.2 cm) min.

from mounting surface to

combustibles below

cooktop chassis

Rear

wall

Stiffener

Cabinet face

Countertop

Floor

5/8” min. (1.6 cm) space

behind raised vent

chassis to clear stiffener

4 5/8” (11.7 cm)

9 7/8” (25.1 cm) with

CABP3 blower installed

5/8” min. (1.6 cm)

flat countertop overhang

required behind cutout

RV series raised vent:

Check raised vent

dimensions/specifications

to determine proper fit

ETT or MET series cooktop

ERV AND PRV SERIES RAISED VENT INSTALLATION

SIDE VIEW

RV SERIES RAISED VENT INSTALLATION

SIDE VIEW

COUNTERTOP CUTOUT (WITH RAISED VENT)

TOP VIEW

COUNTERTOP CUTOUT (WITH RAISED VENT)

ISO VIEW

MET304 and METB365-1

All tolerances: +1/16”, -0, (+1.6 mm, -0) unless otherwise stated

Document # PG03-001 Revised 10/01/11 Page 3/3

Model/Configuration (A) Cooktop

Cutout Width

(B) Raised Vent

Cutout Width

Depth

(D) Raised Vent

Cutout Depth

(E) Minimum

Rear Countertop

Overhang

MET304 cooktop with ERV30 or PRV30

raised vent 28 3/4”

(73.0 cm)

27 3/4”

(70.5 cm)

22 1/2”

(57.2 cm)

2 3/4”

(7.0 cm)

3/8”

(1.0 cm)

MET304 cooktop with

RV30 raised vent

22 1/4”

(56.5 cm)

2 1/2”

(6.4 cm)

5/8”

(1.6 cm)

METB365-1 cooktop with ERV36 or

PRV36 raised vent 34 3/4”

(88.3 cm)

33 3/4”

(85.7 cm)

22 1/2”

(57.2 cm)

2 3/4”

(7.0 cm)

3/8”

(1.0 cm)

METB365-1 cooktop with RV36 raised

vent

22 1/4”

(56.5 cm)

2 1/2”

(6.4 cm)

5/8”

(1.6 cm)
