DAB DAB E.SYBOX User manual

ASSEMBLY AND DISMANTLING

GUIDE

• Various-size flat screwdriVers

• PhilliPs screwdriVers, medium

and large size

• torx screwdriVers, size t20

and t25

• allen key, size 4

• wrench, size 13

• multi-griP Pliers (2 Pcs)

• rubber hammer

REQUIRED TOOLS

Pull up and remove the tran-

sparent cover

2

1

3

3

DISMANTLING

Take out the hex key tool

Take out the ﬂat tool

Pull out the small key tool

The small key may be used to

unscrew the front display’s small

screws. This will allow the user to

rotate the display and adapt the

view to the position of installation

4

5

6

4

Put the hex key tool and ﬂat tool

together: the ﬂat tool may be in-

serted both in the hole no. 1 and

2, according to the needs and

comfort of the user

1

2

With the resulting composite tool,

unscrew the all the external caps

7

7

a

DISMANTLING

7

b

5

7

c

7

d

7

e

6

Note that the non-return valve

access cap (left) has a bigger size

than the other ones (1 ¼” vs 1”).

Be careful not to mix them up

when reassembling the pump

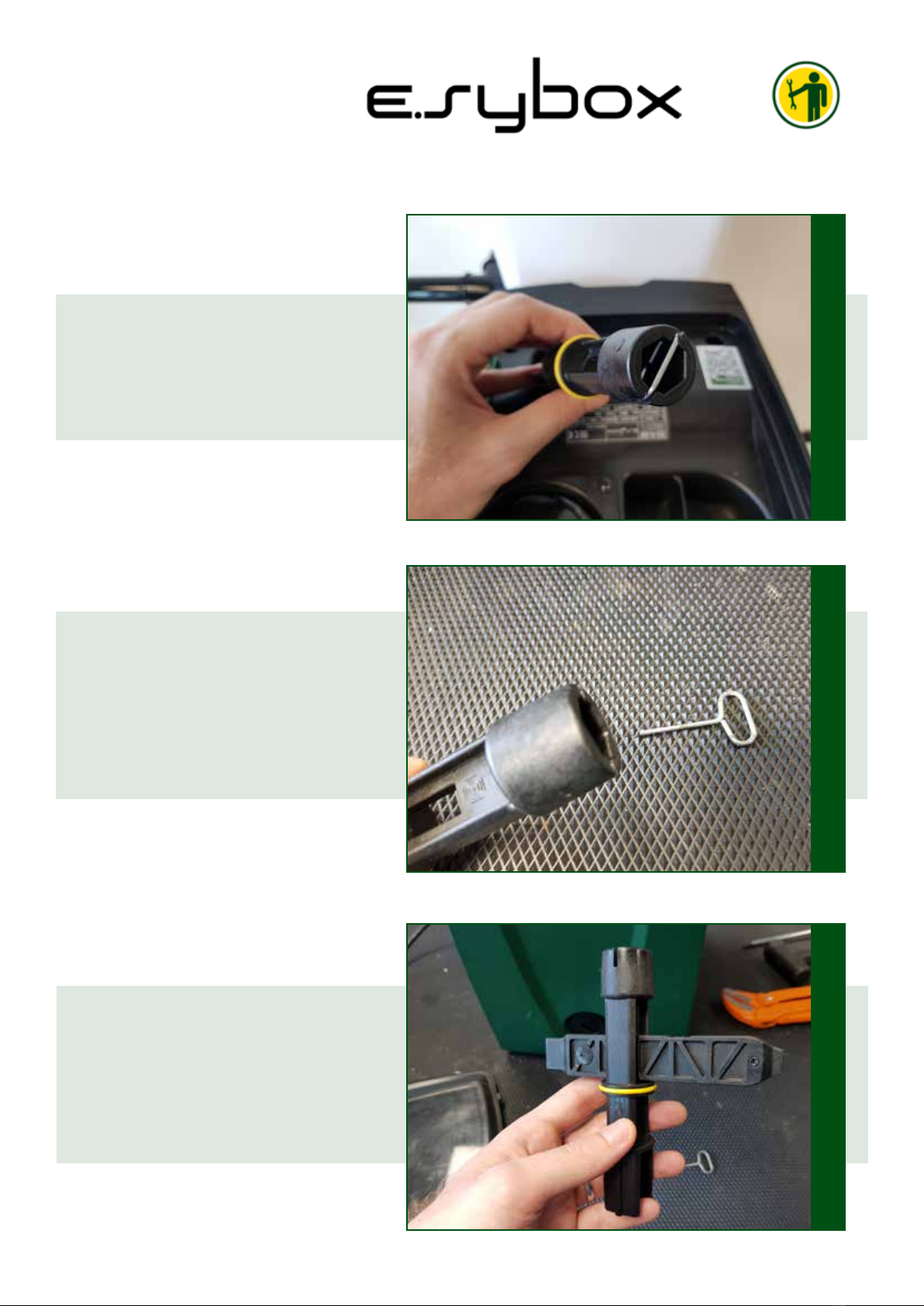

Pull out the non-return valve. Use

the composite tool (or pliers)

Unscrew the self-priming valve

access cap

DISMANTLING

8

9

10

7

Pull the self-priming valve out (use

pliers if you cannot do it manually)

11

12

8

11

a

If the pump is working with a po-

sitive suction head, trade places

of the screw and the spring to

exclude the self-priming effect and

avoid noises during priming

To remove the front cover, un-

screw the highlighted screws

from the top cover and the bot-

tom cover

Lift the front cover, paying at-

tention not to pull the ﬂat cable

excessively

13

13

a

14

DISMANTLING

9
