D-Link Express Ethernetwork DI-707P User manual

Before you begin…

Make sure that any existing Firewall Software/Devices are disabled and/or

shutdown before beginning installation of your new D-Link DI-707P

Broadband Router.

•DI-707P Broadband Router with Print Server

•Quick Install Guide

•Power Adapter

•CAT-5 UTP Cable

•CD-ROM(Print Server Software, Quick Install Guide, User’s

Manual)

When you have completed the steps in this installation guide, your connected

network may look something like this:

Connecting the DI

707P

Ethernet Broadband Router to

your network

Contents of Package

First, plug in the power supply as

shown. Plug the other end of the

power supply into the power source.

Flip the POWER toggle switch to the

ON position.

(During a self-test phase, the

indicator lights will flash briefly. At

the end of the self-test, the M1

indicator light will flash continuously

to indicate normal operation.)

Next, connect the WANport to

the Cable or DSL modem using

Ethernet cable.

Using CAT5 UTP cable,

connect each computer that is

equipped with an Ethernet

adapter to one of the four

Ethernet LAN ports on the DI-

707P.

The LED for the specific Local

Ethernet Port will light up to

indicate connection.

Connecting the DI

707P

Ethernet Broadband Router to your

network

Make sure that TCP/IP protocol has been

installed in your computer.

Next, set the TCP/IP protocol to

“Obtain an IP Address automatically”

by doing the following:

•Go to Start>Settings

•Select “Control Panel”

•Double -click the “Network” icon

•Select the TCP/IP line that includes the

name of your network adapter card,

under the “Configuration” tab in the

“Network” window

•Click on “Properties” in this window

•The window at the right will appear

•Select the “IP Address”tab as shown

•Choose “Obtain an IP

address automatically”

•Click “OK”

Note: For information on setting the IP address of your computer manually

(a static IP address,) please see Appendix A in this guide.

Next, find your IP Address by doing the following:

For Windows 98/ME:

•Go to Start>Run

•Type in “winipcfg”

•Click “OK”

For Windows 2000:

•Go to Start>Run

•Type “cmd”

•When the prompt

appears, type

“ipconfig”

•Hit “Enter”

•The window displayed on the next page will appear

Checking the IP Address

•Use the “pull-down

menu” on this screen to

display the Ethernet

card that is installed in

your computer and

connected to the DI-

707P. The IP Address

(for the Ethernet

network adapter) that

appears in this window

must be between

192.168.0.2 and

192.168.0.254 in order

to configure

the DI-707P.

•If the IP Address is not in that range, please do the following:

Click on “Release All” and “Renew All” to obtain a “Dynamic IP Address”from

the DI-707P within the range of 192.168.0.100 to 192.168.0.199.

Note: Please disable any proxy server setting for the web browser.

Open the web browser, and type in the

DI-707P’s IP Address.

For example, type http://192.168.0.1 into

the “Location” or “Address” field.

Hit “Enter”

Configuring the DI-707P with

the Web browser

Checking the IP Address

Type “admin” in the “System Password” field.

Click on “Log in”

Click on “Setup”

Configuring the DI-707P with

the Web browser

Click “Change”

(Please see separate instructions below for DSL and Cable users.)

For DSL users:

Select “PPP over Ethernet” if you are using a PPPoE client to connect to

your DSL provider (contact your DSL provider if you are uncertain.)

Configuring the DI-707P with

the Web browser

For DSL users (continued):

Enter the PPPoE Account and Password that your ISP assigned to you.

Leave the password field blank if you do not want to change the password.

Input the PPPoE Service Name if your ISP requires it.

Set the Maximum Idle Time. (Entering a value of “0” will disable this feature.)

Click “Save.”

Restart the computer.

Configuring the DI-707P with

the Web browser

For Cable Users:

Select “Dynamic IP Address.”

Click “Save.”

Enter the “Host Name” given to you by your cable provider

(for example, “@Home.”)

For information on configuring a back-up dial-up modem, please see the

“Configuration” section of your User’s Manual.

Click “Save”after you have input the information.

Restart the computer.

Configuring the DI-707P with

the Web browser

To check the connection, open the web browser and go to your favorite website.

If you are unable to browse, please do the following:

1. Refer to Appendix B to check your connection.

2. Use “Help” on the Main Menu.

3. Refer to the troubleshooting section in the user’s manual.

Your DI-707P Ethernet Broadband Router is now ready to use. Please proceed to the

“Print Server Installation” instructions that follow if you plan to use the Print

Server feature.

Checking the Connection

to the Internet

NOTE: Installing the Print Server software is only necessary if you plan to

use the Print Server function of the D-Link DI-707P. If you choose to use the print server

function, plug the printer cable from your printer into the printer port on the DI

-707P, if you

have not already done so.

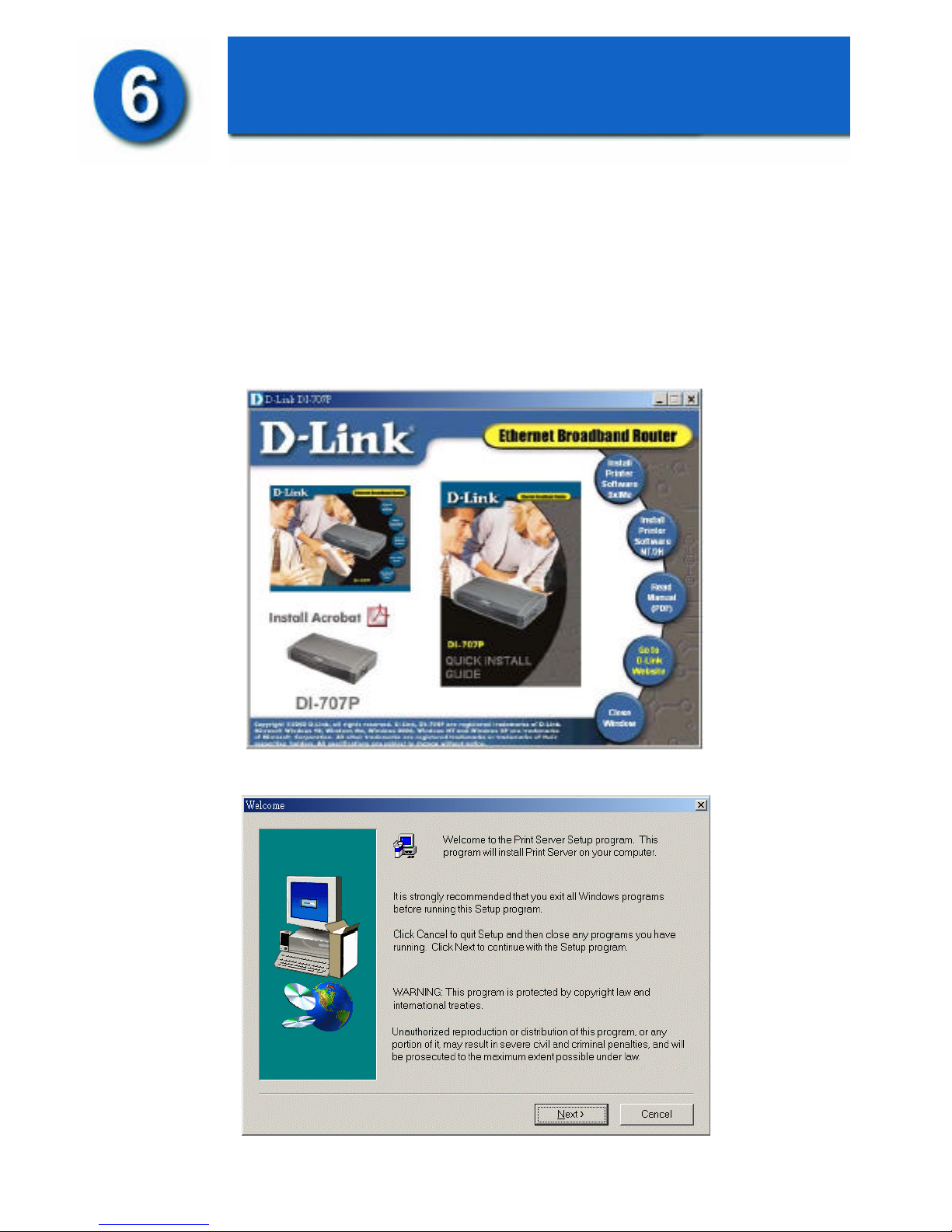

Turn “ON” the computer. Insert the Print Server installation CD into the CD-ROM

drive. The following screen will appear. If the CD does not automatically run, then

click on “install.exe” on the CD.

Click on “Install Printer Software”

At the “Welcome” screen,

Click “Next”

Print Server Installation

(optional)
