D-Link DIR-300S User manual

Quick Installation Guide

DIR-300S

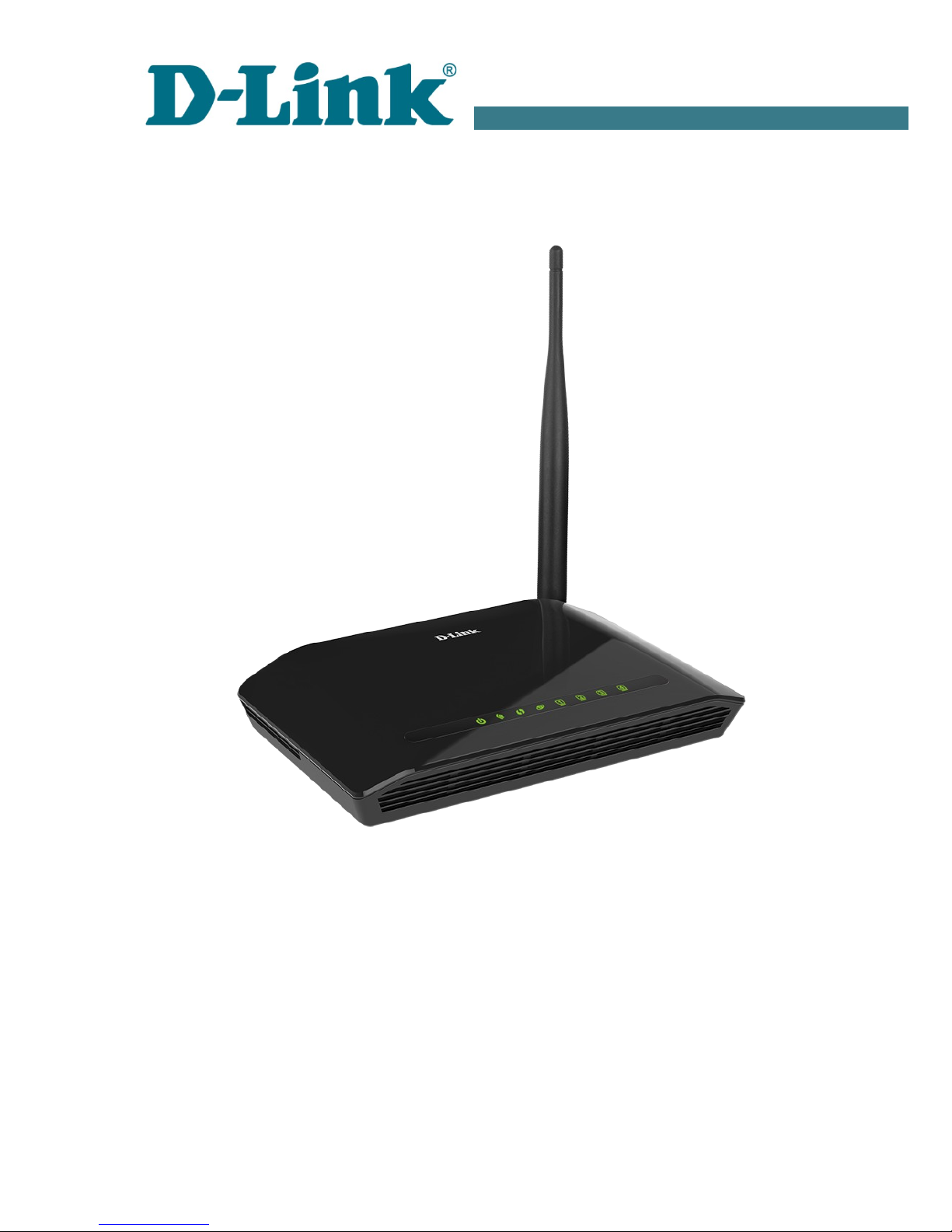

Wireless N150 Router

DIR-300S Quick Installation Guide

BEFORE YOU BEGIN

Delivery Package

•Router DIR-300S

•Power adapter DC 12V/0.5A

•Ethernet cab e (CAT 5)

•“Quick Installation Guide” (brochure).

If any of the items are missing, p ease contact your rese er.

The “User Manual” and “Quick Installation Guide” documents are avai ab e

on D-Link website (see www.d ink.ru).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

Default Settings

IP address o wireless router 192.168.0.1

Username (login) admin

Password admin

Name o wireless network (SSID) DIR-300

Network key (PSK)

see WPS PIN on the

barcode abe on the

bottom pane of the

device

DIR-300S Quick Installation Guide

System Requirements and Equipment

•A computer with any operating system that supports a web browser.

•A web browser to access the web-based interface of the router:

◦App e Safari 5 and ater

◦Goog e Chrome 5 and ater

◦Microsoft Internet Exp orer 8 and ater

◦Mozi a Firefox 5 and ater

◦Opera 10 and ater.

•A NIC (Ethernet or Wi-Fi adapter) to connect to the router.

•An 802.11b, g, or n Wi-Fi adapter to create a wire ess network.

DIR-300S Quick Installation Guide

CONNECTING TO PC

PC with Ethernet Adapter

1. Make sure that your PC is powered off.

2. Connect an Ethernet cab e between any of LAN ports ocated on the back

pane of the router and the Ethernet port of your PC.

3. Connect the power cord to the power connector port on the back pane of

the router, then p ug the power adapter into an e ectrica out et or power

strip.

4. Turn on the router by pressing the ON/OFF button on its back pane .

5. Turn on your PC and wait unti your operating system is comp ete y

oaded.

Now you shou d configure your PC to obtain an IP address automatica y (as

DHCP c ient).

DIR-300S Quick Installation Guide

Obtaining P Address Automatically

in OS Windows XP

1. C ick the Start button and proceed to the Control Panel > Network

and Internet Connections > Network Connections window.

2. In the Network Connections window, right-c ick the re evant Local

Area Connection icon and se ect the Properties ine in the menu

disp ayed.

3. In the Local Area Connection Properties window, on the General

tab, se ect the Internet Protocol (TCP/IP) ine. C ick the Properties

button.

DIR-300S Quick Installation Guide

4. Se ect the Obtain an IP address automatically and Obtain DNS

server address automatically radio buttons. C ick the OK button.

5. C ick the ОК button in the connection properties window.

Now your computer is configured to obtain an IP address automatica y.

DIR-300S Quick Installation Guide

Obtaining P Address Automatically

in OS Windows 7

1. C ick the Start button and proceed to the Control Panel window.

2. Se ect the Network and Sharing Center section. (If the Contro Pane

has the category view (the Category va ue is se ected from the View by

drop-down ist in the top right corner of the window), choose the View

network status and tasks ine under the Network and Internet

section.)

3. In the menu ocated on the eft part of the window, se ect the Change

adapter settings ine.

4. In the opened window, right-c ick the re evant Local Area Connection

icon and se ect the Properties ine in the menu disp ayed.

5. In the Local Area Connection Properties window, on the

Networking tab, se ect the Internet Protocol Version 4 (TCP/IPv4)

ine. C ick the Properties button.

DIR-300S Quick Installation Guide

6. Se ect the Obtain an IP address automatically and Obtain DNS

server address automatically radio buttons. C ick the OK button.

7. C ick the OK button in the connection properties window.

Now your computer is configured to obtain an IP address automatica y.

DIR-300S Quick Installation Guide

PC with Wi-Fi Adapter

1. Connect the power cord to the power connector port on the back pane of

the router, then p ug the power adapter into an e ectrica out et or power

strip.

2. Turn on the router by pressing the ON/OFF button on its back pane .

3. Turn on your PC and wait unti your operating system is comp ete y

oaded.

4. Turn on your Wi-Fi adapter. As a ru e, modern notebooks with bui t-in

wire ess NICs are equipped with a button or switch that turns on/off the

wire ess adapter (refer to your PC documents). If your PC is equipped

with a p uggab e wire ess NIC, insta the software provided with your

Wi-Fi adapter.

Now you shou d configure your Wi-Fi adapter.

DIR-300S Quick Installation Guide

Configuring Wi-Fi Adapter in OS Windows XP

1. C ick the Start button and proceed to the Control Panel > Network

and Internet Connections > Network Connections window.

2. Se ect the icon of the wire ess network connection and make sure that

your Wi-Fi adapter is on.

3. Search for avai ab e wire ess networks.

4. In the opened Wireless Network Connection window, se ect the

wire ess network DIR-300 and c ick the Connect button.

5. In the opened window, enter the network key (see WPS PIN on the

barcode abe on the bottom pane of the device) in the Network key and

Con irm network key fie ds and c ick the Connect button.

After that the Wireless Network Connection Status window appears.

If you perform initia configuration of the router via Wi-Fi connection,

note that immediate y after changing the wire ess defau t settings of the

router you wi need to reconfigure the wire ess connection using the

new y specified settings.
