D-Link AirPlus DI-614+ User manual

Before You Begin

1. If you purchased this router to share your high-speed Internet connection with

other computers, you must have either an Ethernet-based Cable or a DSL modem

with an established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for

configuring the DI-614+ Wireless Router. The DI-614+ acts as a DHCP server and

will assign all the necessary IP address information on your network. See

Appendix at the end of this Quick Installation Guide or the Manual on the CD-

ROM for setting each network adapter to automatically obtain an IP address.

Check Your Package Contents

These are the items included with your DI-614+ purchase:

If any of the above items are missing, please contact your reseller.

property of their respective holders. Software and specifications subject to change without

notice. DI-614+.05082002

This product can be set up using any

current web browser, i.e., Internet

Explorer 5x, Netscape Navigator 4x.

DI-614+

D-Link AirPlus™

Wireless Broadband Route

• DI-614+ Wireless Broadband Router

• CD-ROM (containing Manual and Warranty)

• Ethernet (CAT5 UTP/Straight-Through) Cable

• 5V DC, 2.5A Power Adapter

Using a power

supply with a

different voltage rating

will damage and void

the warranty for this

product.

Connecting The DI-614+ Wireless Router

To Your Network

A. First, connect the power adapter to the receptor at the back panel of

the DI-614+ and then plug the other end of the power adapter to a wall

outlet or power strip. The Power LED will turn ON to indicate proper

operation.

B. Insert one end of an Ethernet cable to the WAN port on the back

panel of the DI-614+ and the other end to the Ethernet port located on

your Cable or DSL modem. The WAN LED light will illuminate to

indicate proper connection.

C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-

614+ and an available Ethernet port on the network adapter in the

computer you will use to configure the DI-614+. The LED light for LAN

Port 1 will illuminate to indicate proper connection. (Note: Some

computers already have network adapters pre-installed.)

D. Computers equipped with 802.11b wireless adapters will be able to

connect to the DI-614+. The DWL-650+ AirPlus Wireless Cardbus

Adapter and the DWL-520+ AirPlus Wireless PCI Adapter will be able

to connect out of the box with the router using their default wireless

settings.

Restart Your Computer

Reset Button

Pressing this button restores

the router to its original factory

default settings.

A.Receptor for

Power Ada

ter

B.WAN Port

This is the

connection for the

Ethernet Cable to

Ethernet Port on

the Cable or DSL

Modem.

C.LAN Port

These are the

connections for

Ethernet cables to

your Ethernet-

enabled

computers.

D.Antennas

Used to

wirelessly

connect to

802.11b

adapters.

Connecting Additional Computers To The

DI-614+ Wireless Router

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-

equipped computers to the remaining Ethernet LAN ports on the back

panel of the DI-614+.

When you have completed the steps in this Quick Installation Guide, your

connected network should look similar to this:

Using The Setup Wizard

The logon pop-up

screen will appear.

Once you have

logged in, the

Home screen

will appear.

Open your Web

browser and type

“http://192.168.0.1” into

the URL address box.

Then press the Enter or

Return key.

Type “admin” for the

username and leave the

password field blank.

Click OK

Click Run Wizard

You will see the following screens.

Step 1 - Set up your new

password.You have the option to

establish a password.

Step 2 - “Choose your time

zone”, you will be prompted to

select the type of Internet

connection for your router (see next

page).

Click Next

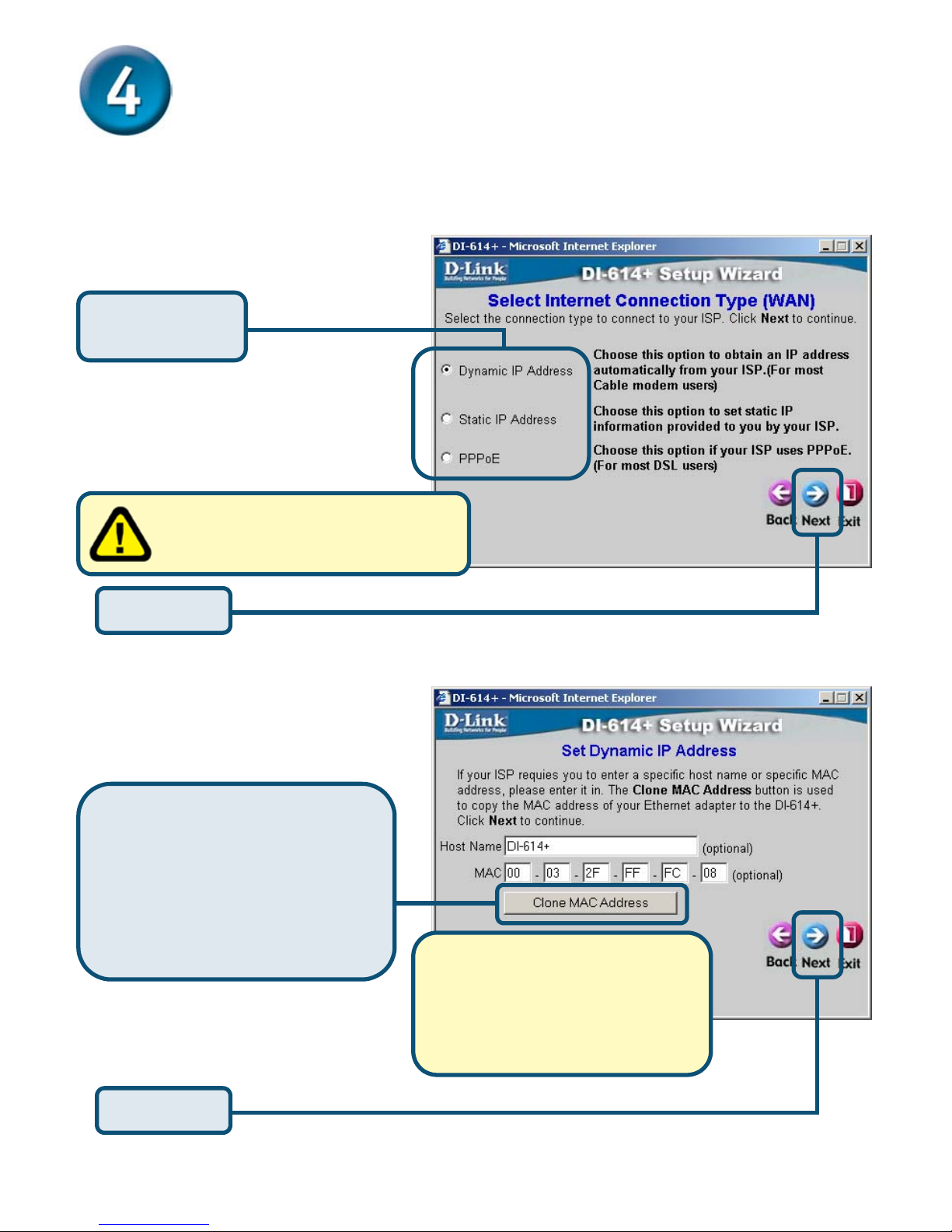

The Setup Wizard (continued)

Select the type of Internet connection for your router.

If you selected Dynamic IP

Address, this screen will

appear:

Select one of

these settings

If you are unsure of which setting to

select, please contact your Internet

Service Provider.

Click the “Clone MAC

Address” button to

automatically copy the MAC

address of the network adapter

in your computer. You can also

manually type in the MAC

address. What is a MAC address? Each

network adapter has a discrete

Media Access Control (MAC)

address. Note that some computers

and peripherals may already include

built-in network adapters.

Click Next

If your ISP requires a Static IP

Address, and this option is

selected, then this screen will

appear:

If your ISP uses PPPoE (Point-to-

Point Protocol over Ethernet), and

this option is selected, then this

screen will appear:

Enter the IP address

information originally

provided to you by your ISP.

You will need to complete all

the required fields.

Enter in the username

and password provided

to you by your ISP.

Click Next

Do not use

the numbers

displayed in these

fields. They are only

shown as an example.

The Setup Wizard (continued)

Wireless Setup

The default wireless settings are:

SSID = default

Channel = 6

You can change these settings to

match an existing wireless network.

Encryption

The DI-614+ is capable of three

levels of wireless encryption - 64-

bit, 128-bit, and 256-bit. By default

the encryption is disabled. You

can change the encryption settings

for more secure wireless

communication.

Click Next

Your Setup is Complete!

You will be returned to the Home tab.

Click Restart

Click Close

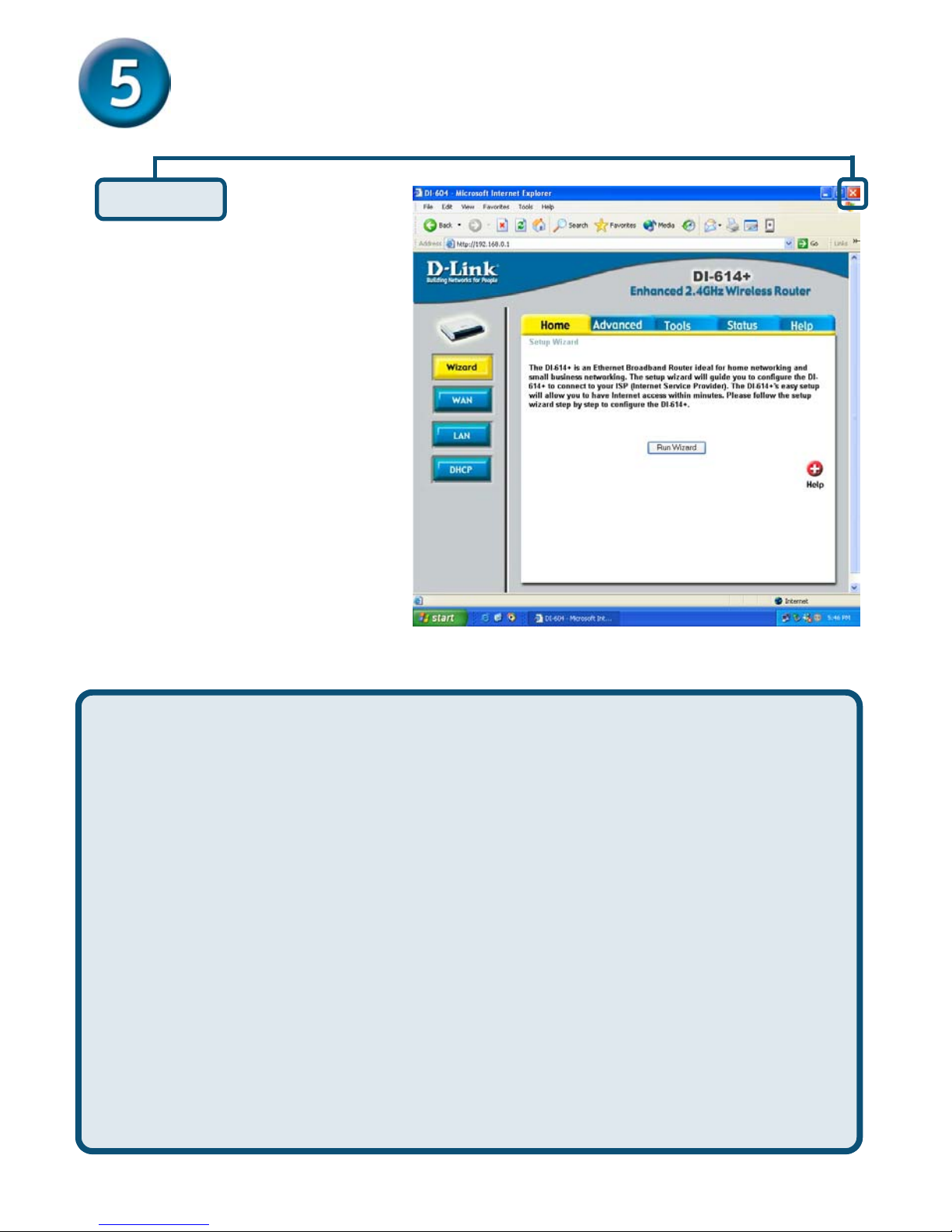

Test Your Internet Connection

Then relaunch your Web browser

(i.e., Internet Explorer or

Netscape Navigator), to link to

your favorite Web site to test your

Internet connection.

For additional settings or

information, refer to the

Advanced, Tools, or Status tabs

on the web-management

interface; or to the manual located

on the CD-ROM.

Click Exit

Technical Support

You can find the most recent software and user documentation on the D-Link

website.

D-Link provides free technical support for customers within the United States

for the duration of the warranty period on this product.

U.S. customers can contact D-Link technical support through our web site or

by phone.

D-Link Technical Support over the Telephone:

(800) 758-5489

24 hours a day, seven days a week

D-Link Technical Support over the Internet:

http://support.dlink.com

email: [email protected]
