D-Link DWL-3600AP User manual

This document will guide you through the

basic installation process for your new

D-Link Unied Wireless Access Point.

Building Networks for People

DWL-3600AP

Quick Installation Guide

802.11n Unied Access Point

Quick Installation Guide

2  D-Link DWL-3600AP Quick Install Guide

About This Guide

This installation guide provides basic instructions for installing the DWL-3600AP

Wireless Access Point on your network. For additional information about how to use

the Access Point, please refer to the User Manual, which is available on the D-Link

support website.

Unpacking the Product

System Requirements

Open the shipping carton and carefully unpack its contents. Refer to the package

contents located below to make sure all items are present and undamaged. If any

item is missing or damaged, please contact your local D-Link reseller for replacement.

- DWL-3600AP 802.11n Unied Access Point

- Power Adapter

- Mounting Ring

- Ethernet Cable

- Console Cable*

Note: Using a power supply with a different voltage than the one included

with the DWL-3600AP may cause damage and will void the warranty for this

product.

*The console cable is an optional accessory and not included in the package in Armenia,

Azerbaijan, Belarus, Georgia, Israel, Kaliningrad, Kazakhstan, Kyrgyzstan, Latvia, Lithuania,

Moldova, Mongolia, Russia, Turkey, Turkmenistan, Ukraine, and Uzbekistan. If a cable is

required, please contact your reseller to order it (Model: ACS-AP-CONSOLE).

- Windows®, Macintosh®, or Linux-based operating system

- Computer with an Ethernet adapter, or a router or switch

- Internet Explorer 7.0, Safari 5.0, Firefox 4.0, or higher

D-Link DWL-3600AP Quick Install Guide  3

2.4 GHz – When this LED is lit, the access point’s 2.4 GHz radio is enabled. It will

blink when there is wireless trafc.

LAN – When this LED is lit, the device’s Ethernet port is connected to an active

router or switch. The LED will blink when there is Ethernet trafc.

POWER – When the LED is lit, the access point is powered and ready for use.

Optional Accessories

- PoE Base Unit (Model: DPE-101GI)

Note: These accessories are not included in the package. If any of these items

are required, please contact your reseller to order it.

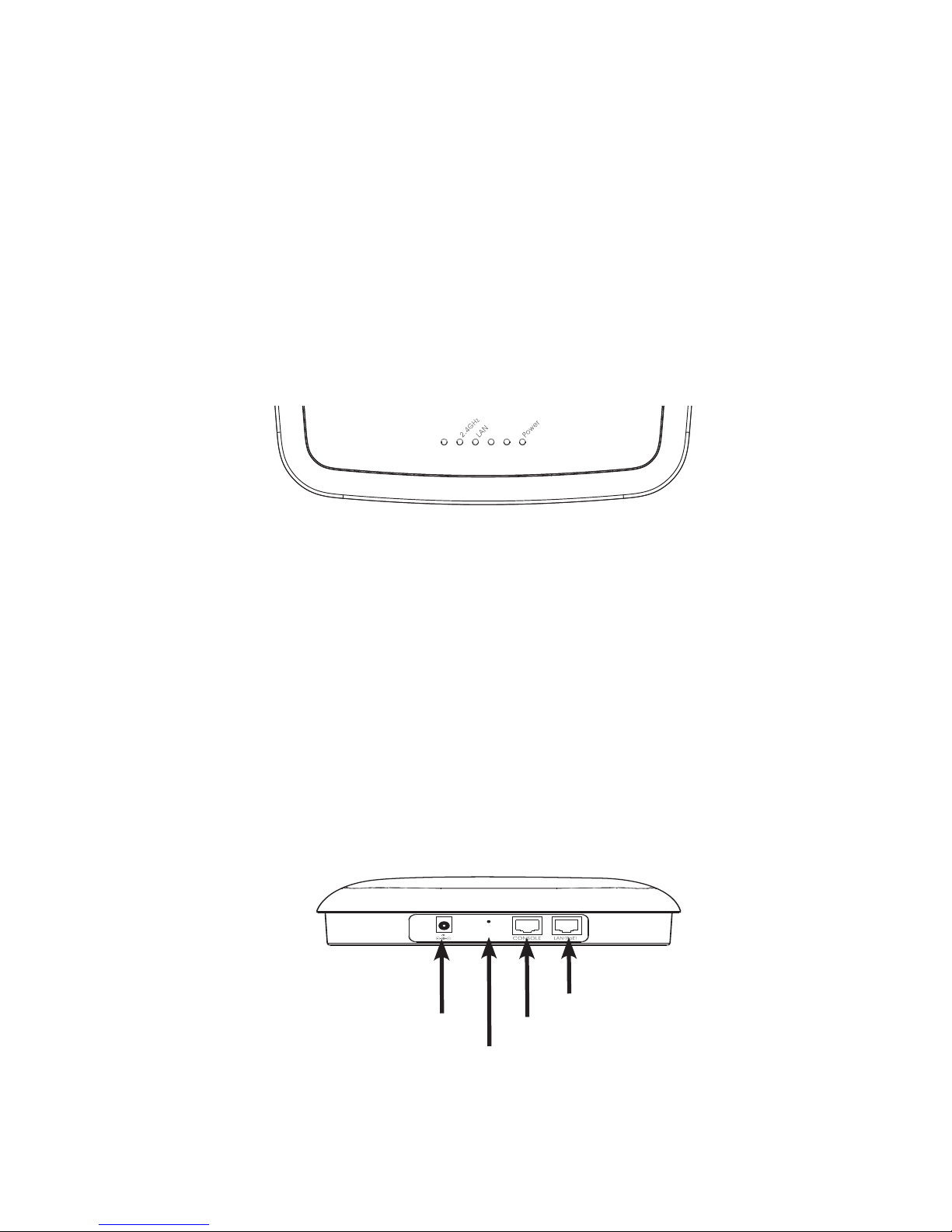

Figure 2. DWL-3600AP Rear Panel

Hardware Overview

Figure 1. DWL-3600AP LEDs

RESET

2.5A

Power Receptor

LAN Port (PoE)

Reset Port

Console Port

LEDs

Connections

4  D-Link DWL-3600AP Quick Install Guide

Power on the access point

To power on the DWL-3600AP, you can use ONE of the following methods:

1. Connect the supplied power adapter

2. Plug one end of an Ethernet cable into the LAN port of the DWL-3600AP and the

other end into a port on a power over Ethernet (PoE) switch.

Congure the access point

To set up and manage the DWL-3600AP, use one of the following methods:

• Manage the access point from the computer: Connect the access point and your

computer directly via a straight-through Ethernet cable.

• Manage the access point from the computer via the Switch or Router: Connect

the access point and your computer to the same switch or router.

• Manage the access point from the computer via the Unied Wireless Switch or

Wireless Controller: Connect the access point to a Unied Wireless Switch or

Wireless Controller. Connect your computer to the same network as that of the

Unied Wireless Switch or Wireless Controller.

Installation

D-Link DWL-3600AP Quick Install Guide  5

Mounting Options

You can mount a DWL-3600AP access point on any of the following types of surfaces:

• Solid surface wall or ceiling

• Tabletop

Cable Requirement

Use a CAT5 cable with an even sheath.

The Ethernet ports on the DWL-3600AP access point cannot accept a CAT5 cable

that has an uneven sheath; the RJ-45 connector on the cable will not fit properly into

the receptacle on the access point.

Wall Installation Recommendations

If you plan to install the DWL-3600AP on a wall or other vertical surfaces, orient the

top of the access point (the side with the LEDs) toward the intended coverage area.

The radio antennas transmit through the top of the access point, not through the

bottom (where the bracket is).

Warning: The DWL-3600AP is designed to receive PoE power only from an

802.3af-compliant source, or from a D-Link-approved power injector. Connecting

an access point to a Power over Ethernet (PoE) device that is not approved by

D-Link can damage the equipment.

6  D-Link DWL-3600AP Quick Install Guide

Solid Wall or Ceiling

Installation

1. Place the plastic wall mounting ring on a wall or ceiling.

2. Mark the points where you will insert the screws. Take out the mounting ring.

3. Drill holes in the marked points and insert the plastic wall anchors.

4. Use the supplied screws to attach the mounting ring to the wall.

5. Plug the CAT5 cable into the LAN port on the access point.

Figure 3. Insert screws through mounting ring

Figure 4. Plug cable into access point

D-Link DWL-3600AP Quick Install Guide  7

6. To attach the access point to the mounting ring, rst locate the right side of the

access point that has a small lock symbol on it, and make sure to line up this side

with the side of the mounting ring that has Open - Close written on it.

7. Twist counter-clockwise to lock the access point onto the ring. The lock symbol on

the access point must point directly to the Close text on the mounting ring.

Figure 5. Insert access point into mounting ring

8  D-Link DWL-3600AP Quick Install Guide

Technical Support

D-Link’s website contains the latest user documentation and software

updates for D-Link products.

U.S. and Canadian customers can contact D-Link Technical Support through

our website or by phone.

United States

Telephone

(877) 354-6555

World Wide Web

http://support.dlink.com

Canada

Telephone

(877) 354-6560

World Wide Web

http://support.dlink.com

Version 1.0

June 19, 2012

D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective

owners. Product specications, size and shape are subject to change without notice, and actual product appearance may dier from

that depicted on the packaging. Visit www.dlink.com for more details.
