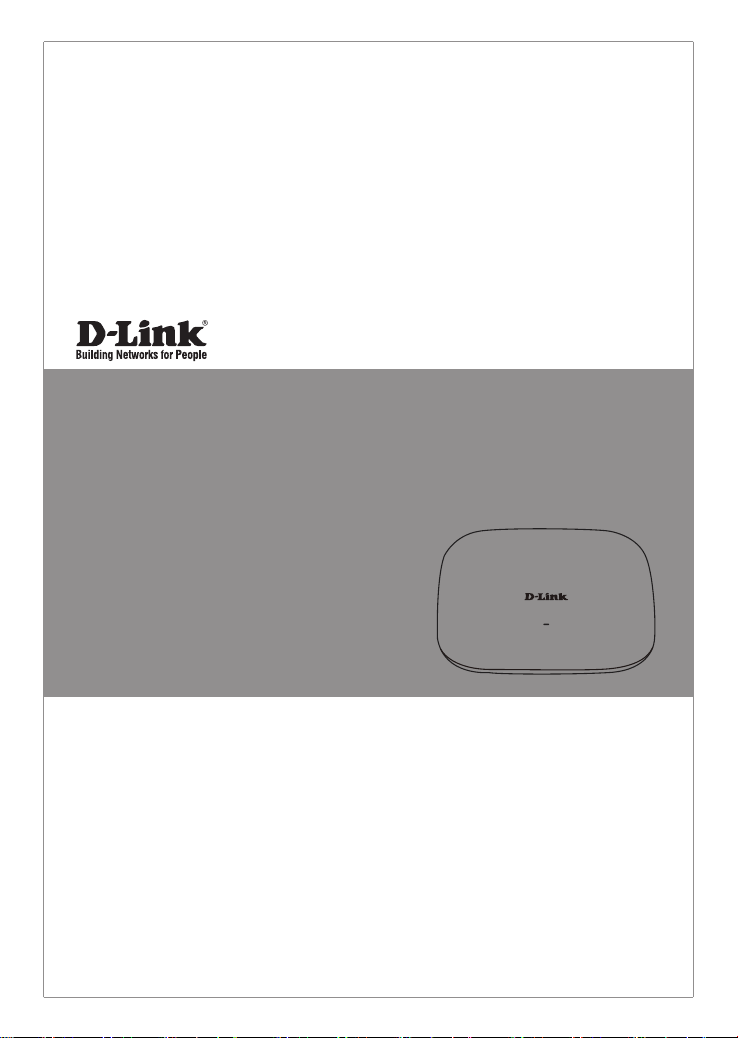

D-Link DAP-2610 User manual

This document will guide you through the basic installation

process for your new D-Link Wireless AC Access Point.

DAP-2610

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

Wireless AC1300 Wave 2 Dual-Band PoE Access Point

Quick Installation Guide

Краткое руководство по установке

Guía de Instalación Rápida

Guia de Instalação Rápida

快速安裝指南

Petunjuk Pemasangan Cepat

クイックインストールガイド

2D-Link DAP-2610 Quick Install Guide

ENGLISH

DAP-2610 Quick Install Guide

This installation guide provides basic instructions for installing the DAP-2610 Wireless Access

Point on your network. For additional information about how to use the Access Point, please

see the User’s Manual which is available on the CD included in this package or from the

D-Link support website.

System Requirements

Minimum System Requirements:

CD-ROM Drive

an Ethernet port, or an installed Ethernet adapter

Internal Explore 11, Safari 7, Firefox 28, Google Chrome 33 or later versions of these

browsers

1. Package Contents

DAP-2610 802.11ac Access Point

Power Adapter

Mounting Brackets

Ethernet Cable

CD-ROM

If any of the above items are missing, please contact your reseller.

Note: Using a power supply with a different voltage than the one included with the DAP-2610

will cause damage and void the warranty for this product.

D-Link DAP-2610 Quick Install Guide

ENGLISH

2. Hardware Overview

LED

Power/Status LED - Dual color (Red/green)

Flash Red during booting up or malfunction

Static Green while it’s ready/working

Solid Red while boot up fail

Interfaces

Power Receptor

LAN Port (PoE)

4D-Link DAP-2610 Quick Install Guide

ENGLISH

2. Connect the access point and your computer to the same switch. Manage the

access point from the computer.

Enter 192.168.0.50 in the address field of your browser, which is the default IP

address of the access point.

Username: admin

Password: (Leave the password field blank)

Power on the access point

To power on the DAP-2610, you can use ONE of the following methods:

1. Connect the supplied power adapter, OR

2. Plug one end of your Ethernet cable into the LAN port of the DAP-2610, and the

other end into a port on a PoE switch.

Congure the access point

To set up and manage the DAP-2610, use one of the following methods:

1. Connect the access point and your computer directly via a straight-through

Ethernet cable. Manage the access point from the computer.

Ensure your computer is congured with a static IP address in 192.168.0.0/24

subnet.

Launch a web browser, type the default IP address of the access point

(http://192.168.0.50) and then press Enter.

Username: admin

Password: (Leave the password eld blank)

ComputerDAP-2610

3. Installation

Switch ComputerDAP-2610

D-Link DAP-2610 Quick Install Guide

ENGLISH

Solid wall or ceiling

Installation

1. Place the mounting bracket on a wall or

ceiling.

5. Plug the Ethernet cable into the LAN

port on the access point.

6. To attach the access point to the

mounting bracket.

2. Mark the points where you will insert the

screws. Take out the mounting ring.

3. Drill holes in the marked points and

insert the plastic wall anchors.

4. Use the supplied screws to attach the

mounting ring to the wall.

6D-Link DAP-2610 Quick Install Guide

ENGLISH

1. Clip two ceiling brackets onto the ceiling

panels. Make sure both brackets are in

line with each other.

2. Use the provided screws to attach the

mounting ring to the ceiling bracket.

3. Plug the Ethernet cable into the LAN

port on the access point.

4. Place the DAP-2610’s male bracket

in the mounting bracket’s female

bracket. Click DAP-2610 and the

mounting bracket to lock in position.

Ceiling bracket

Ceiling crossbar

Mounting with a ceiling bracket

Installation

D-Link DAP-2610 Quick Install Guide

ENGLISH

TECHNICAL SUPPORT

Australia:

Tel: 1300-700-100

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-832-2856000

Toll Free 1800-233-0000

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street -

City Light Building - oor 5

Nasrcity - Cairo, Egypt

Tel.: +2 02 23521593 - +2 02 23520852

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce # 84 ,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1121 70008

Technical Support:

+966 1121 70009

General Inquiries: info.sa@ dlinkmea.com

Tech Support: support.sa@ dlinkmea.com

Pakistan

Islamabad Ofce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Ofce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

8D-Link DAP-2610 Quick Install Guide

ENGLISH

TECHNICAL SUPPORT

Iran

Unit 1, 1st Floor, Plot No 3, Pazhoheshgah (2)

Alley, Ahmad Ghasir (Bokharest) St. , Shahid

Beheshti (Abbas Abad) St. , Tehran, Iran.

Postal Code : 1514615911

Tel: +98-21-88880918,19

General Inquiries: [email protected]

Tech Support: [email protected]

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029

Bureau N° 312 ET 337

Casablanca , Maroc

Phone : +212 663 72 73 24

Email: [email protected]

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: [email protected]

Bahrain

Technical Support: +973 1 3332904

Kuwait:

Technical Support: + 965 22453939 / +965

22453949

D-Link DAP-2610 Quick Install Guide

РУССКИЙ

Краткое руководство по установке

DAP-2610

Данное руководство содержит основные инструкции по установке беспроводной

точки доступа DAP-2610 в сети. Для получения дополнительной информации об

использовании точки доступа обратитесь к руководству пользователя, находящемуся

на входящем в комплект поставки компакт-диске, или к Web-сайту поддержки D-Link.

Системные требования

Минимальные системные требования:

Привод CD-ROM

Порт Ethernet или установленный Ethernet-адаптер

Internet Explorer 11, Safari 7, Firefox 28, Google Chrome 33 или более поздние

версии данных Web-браузеров

1. Комплект поставки

Беспроводная точка доступа DAP-2610

Адаптер питания

Кронштейны

Ethernet-кабель

Компакт-диск

Если что-либо из перечисленного отсутствует, обратитесь к Вашему поставщику.

Примечание: Использование источника питания с напряжением, отличным от

аналогичного параметра источника питания, входящего в комплект поставки точки

доступа DAP-2610, приведет к повреждению устройства и аннулированию гарантии на

данный продукт.

10 D-Link DAP-2610 Quick Install Guide

РУССКИЙ

2. Обзор аппаратной части

Индикатор

Индикатор питания/состояния - Двухцветный (красный/зеленый)

Мигает красным цветом при загрузке или неисправности

Горит зеленым цветом, когда устройство готово к работе или работает

Горит красным цветом, когда произошла ошибка при загрузке

Интерфейсы

Разъем питания

Порт LAN (PoE)
