D-Link DAP-1665 User manual

Quick Install Guide

Wireless AC1200

Dual Band Access Point

DAP-1665

2DAP-1665 Install Guide

Network Requirements:

• An Ethernet-based Network (AP mode)

• IEEE 802.11ac, n, or g wireless clients (AP/Repeater Mode)

• IEEE 802.11ac, n, or g wireless network (Client Mode)

Browser Requirements:

• Internet Explorer®7.0, Chrome, Firefox, or Safari 4.0 or higher

Minimum Requirements

Package Contents

Note: Usinga powersupplywith adierentvoltagethantheone includedwiththe DAP-1665willcausedamage

and void the warranty for this product. If any of the above items are missing, please contact your reseller.

DAP-1665 Wireless AC1200 Dual Band Access Point

Two Detachable Antennas

Ethernet Cable

Quick Install Guide

Power Adapter

Wi-Fi Conguration Card

DAP-1665 Install Guide 3

Hardware Overview

Connections

321

1 Reset

Use an unfolded paper clip to press and hold the reset

button for 10 seconds. This will reset the DAP-1665 back

to the factory default settings.

2 LAN Port

Connect an Ethernet-based device such as a computer,

video game console, Network Attached Storage (NAS)

device, or media player.

3 Power Button Press the power button to power on and o.

4 Power Receptor Receptor for the supplied power adapter.

4DAP-1665 Install Guide

Hardware Overview

LEDs

4321

1 Power LED A solid light indicates a proper connection to the power

supply.

22.4GHz Wireless LED

A solid green light indicates the wireless function is

working.The light will be o during device reboot or if the

wireless radio is disabled.

35GHz Wireless LED

A solid green light indicates the wireless function is

working.The light will be o during device reboot or if the

wireless radio is disabled.

4 LAN LED A solid light indicates a connection to an Ethernet-

enabled device.

DAP-1665 Install Guide 5

What Mode Should I Use?

Access Point Mode

RESET

LAN

Use Access Point Mode (default mode) if you want to connect wireless

clients (such as laptops, tablets, smartphones, and media players) to

your wired network. When in Access Point Mode, the device can either

act as the wireless transmitter for your wired router or become a

separate access point to expand your network.

Setup instructions for Access Point Mode begin on page 8.

6DAP-1665 Install Guide

RESET

LAN

Use Repeater Mode to extend the wireless signal of your wireless router,

increasing your wireless network coverage. The DAP-1665 will connect

wirelessly to your wireless router or access point and will broadcast its

signal to your wireless clients.

Note: For best performance, place your DAP-1665 in between your router

and your dead zone, making sure it’s placed in a location where the signal is

still strong.

Setup instructions for Repeater Mode begin on page 11.

Repeater Mode

DAP-1665 Install Guide 7

Wireless Client Mode

Use Wireless Client Mode to connect one Ethernet-based device, such

as a computer, video game console, Network Attached Storage (NAS)

device, or media player to your existing wireless network.

Note: Wireless clients cannot connect to the DAP-1665 wirelessly when in

this mode.

Setup instructions for Wireless Client Mode begin on page 13.

RESET

LAN

8DAP-1665 Install Guide

Installation

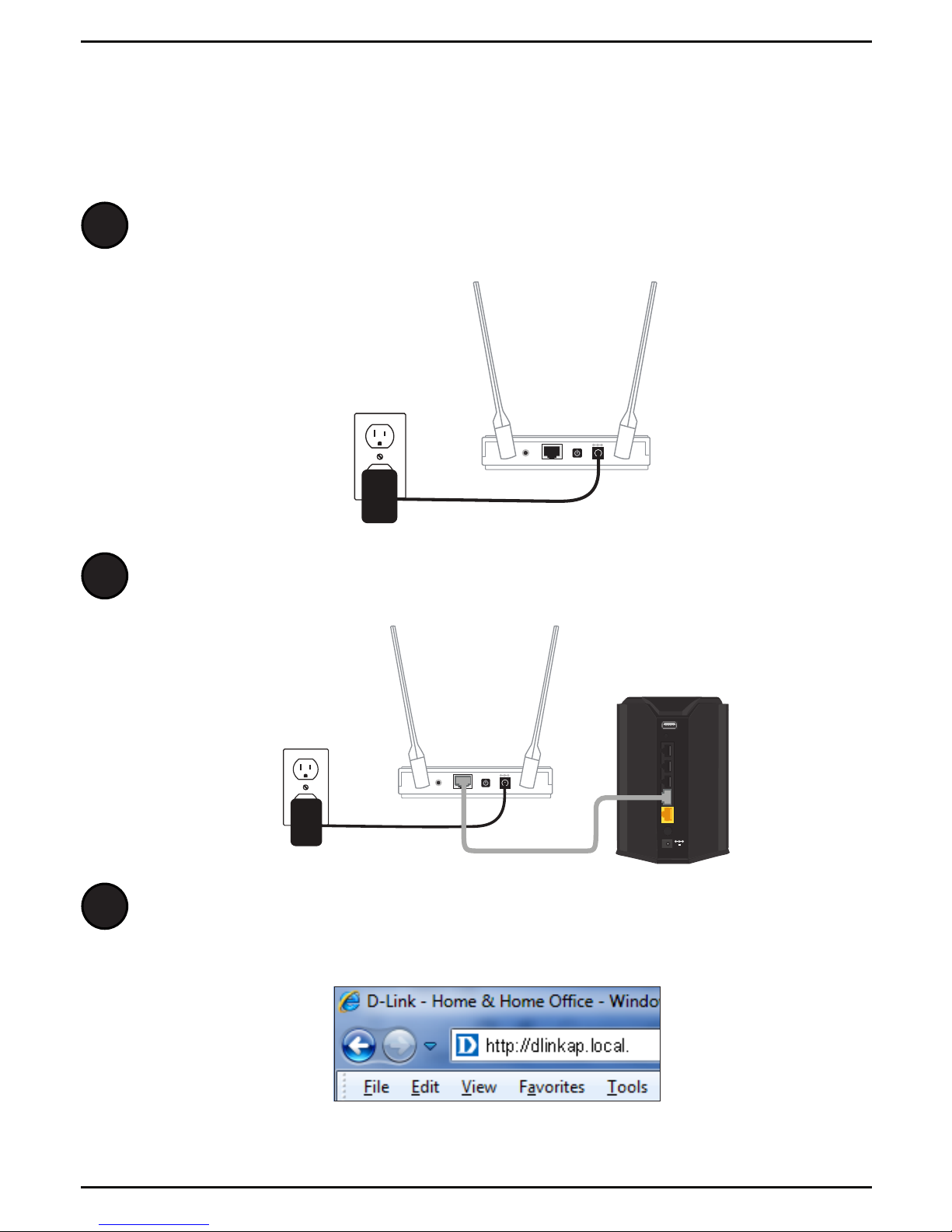

Plug the supplied power adapter into your DAP-1665 and connect it to the outlet or surge

protector. Press the Power button on the back of the device. Verify that the Power LED is lit.

RESET

LAN

Attach one end of the included Ethernet cable to the LAN port on the back of the DAP-1665, and

the other end into the Ethernet port on your wireless router.

RESET

LAN

12V

USB

WPS

LAN

INTERNET

POWER

LAN

Access Point Mode

From the computer connected to your wireless router, open a web browser (e.g., Internet Explorer,

Firefox, Safari, or Chrome) and enter http://dlinkap.local./. Windows XP users can enter http://

dlinkap. Use the Setup Wizard to congure your AP.

DAP-1665 Install Guide 9

At the login screen, select Admin from the User Name drop-down menu and

leave the password blank. Click Log In to continue.

5Click LaunchWireless SetupWizard and you will be guided through the steps

required to get your access point up and running.

You will see the welcome screen for the Wi-Fi Connection Setup Wizard. Click

Next to continue.

10 DAP-1665 Install Guide

Select Access Point from the Wireless Mode drop-down menu. Click Next to

continue.

Enter a 2.4Ghz and 5GHz Wi-Fi Network Name and Wi-Fi Password. Click

Next to continue.

When setup is complete,make a note of your settings and click Save. The

DAP-1665 will reboot.

Your setup is complete!
