Technical Support Setup Procedure

Page | 1

How to configure DAP-1365 as Access Point with non-

default wireless SSID?

(Note: Please ensure the device LED is blinking orange colour before you do setup.

If it is not blinking in orange colour, follow the guide on page 4 on how to reset the device

before follow the guide to setup.)

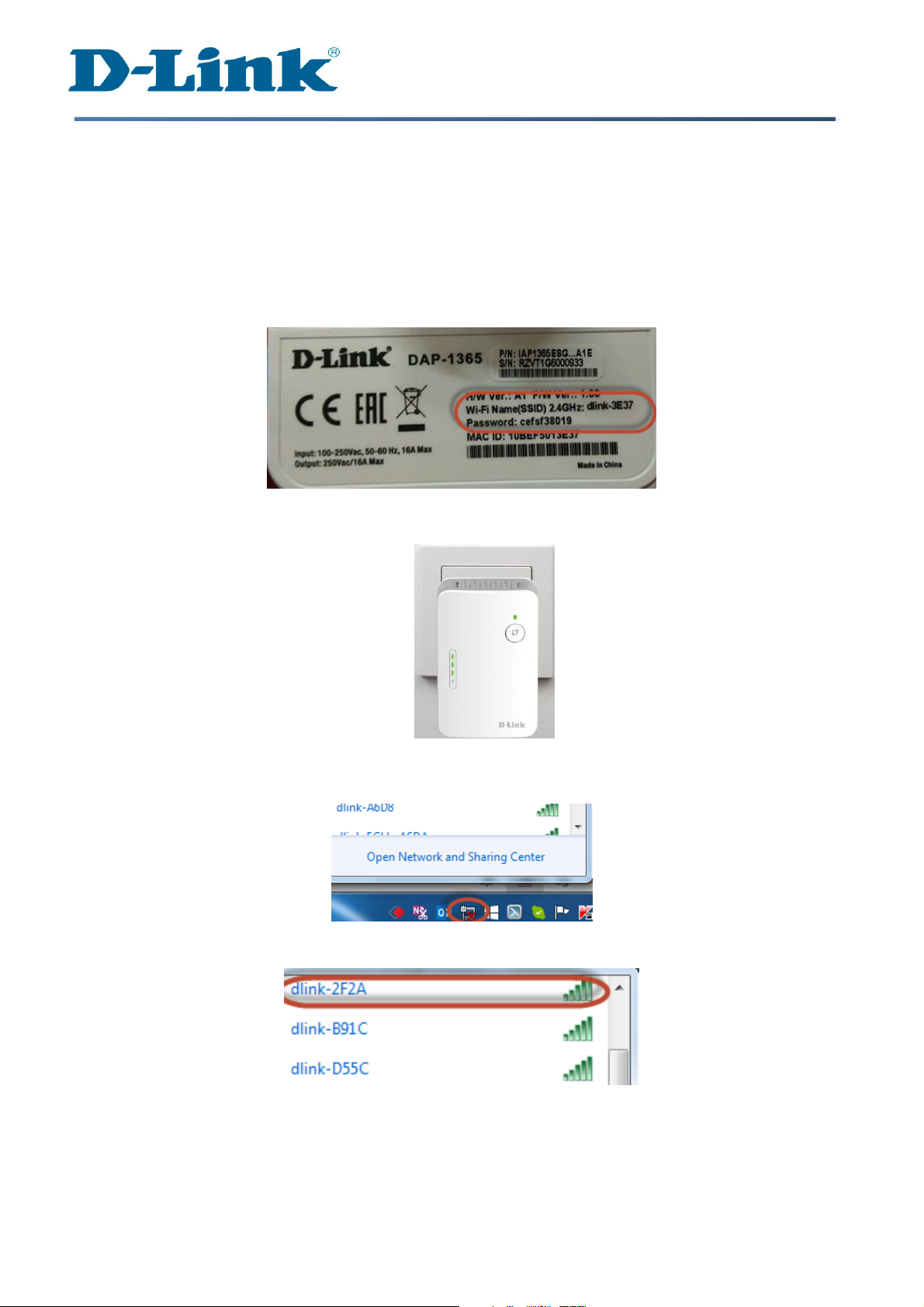

Step 1: Copy down the wireless name and password that was on the sticker of the device.

Step 2: Plug DAP-1365 direct to power outlet.

Step 3: Click on the Computer Icon on the right bottom side of the Windows.

Step 4: Select the Wireless network name that was copy down.

Technical Support Setup Procedure

Page | 2

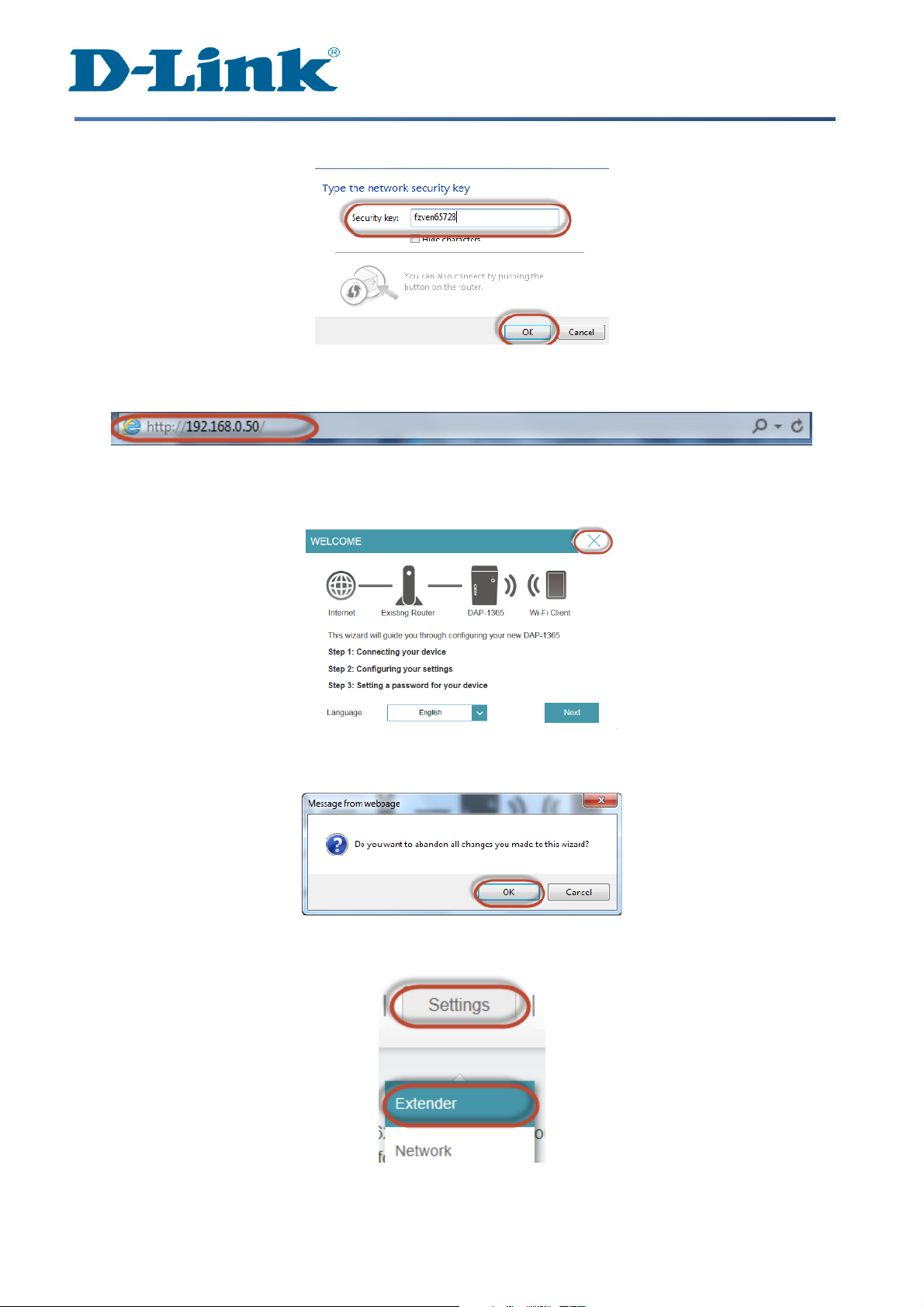

Step 5: Enter the Wifi Password which had copy down earlier on. Click on OK.

Step 6: Open Internet Explorer and enter http://192.168.0.50 on the URL bar.

Step 7: Click on X.

Step 8: Click on OK.

Step 9: Click on Settings and select Extender.

Technical Support Setup Procedure

Page | 3

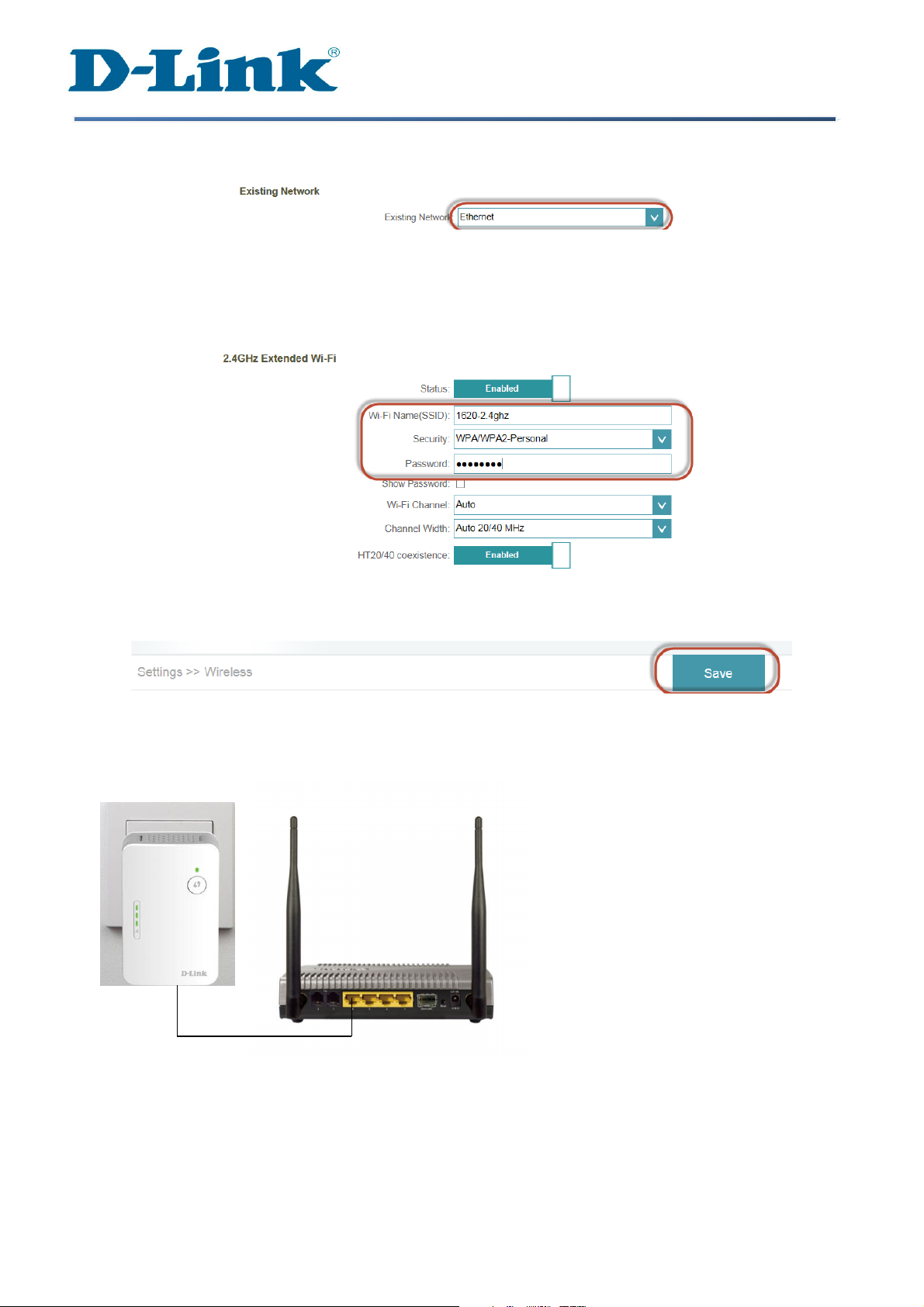

Step 10: Select Ethernet for Existing Network.

Step 11: 2.4Ghz Extended Wi-Fi

a) Give a different Wi-Fi Name in the box beside Wi-fi Name (SSID).

b) Give a different Wi-Fi Password in the box beside Password

Step 12: Click on Save.

Step 13 a) Plug DAP-1365 direct to power outlet.

b) Connect LAN Cable from DAP-1365 to LAN port of the Router.

Step 14: Use computer to connect to the wireless you had setup.

--- END ---

Technical Support Setup Procedure

Page | 4

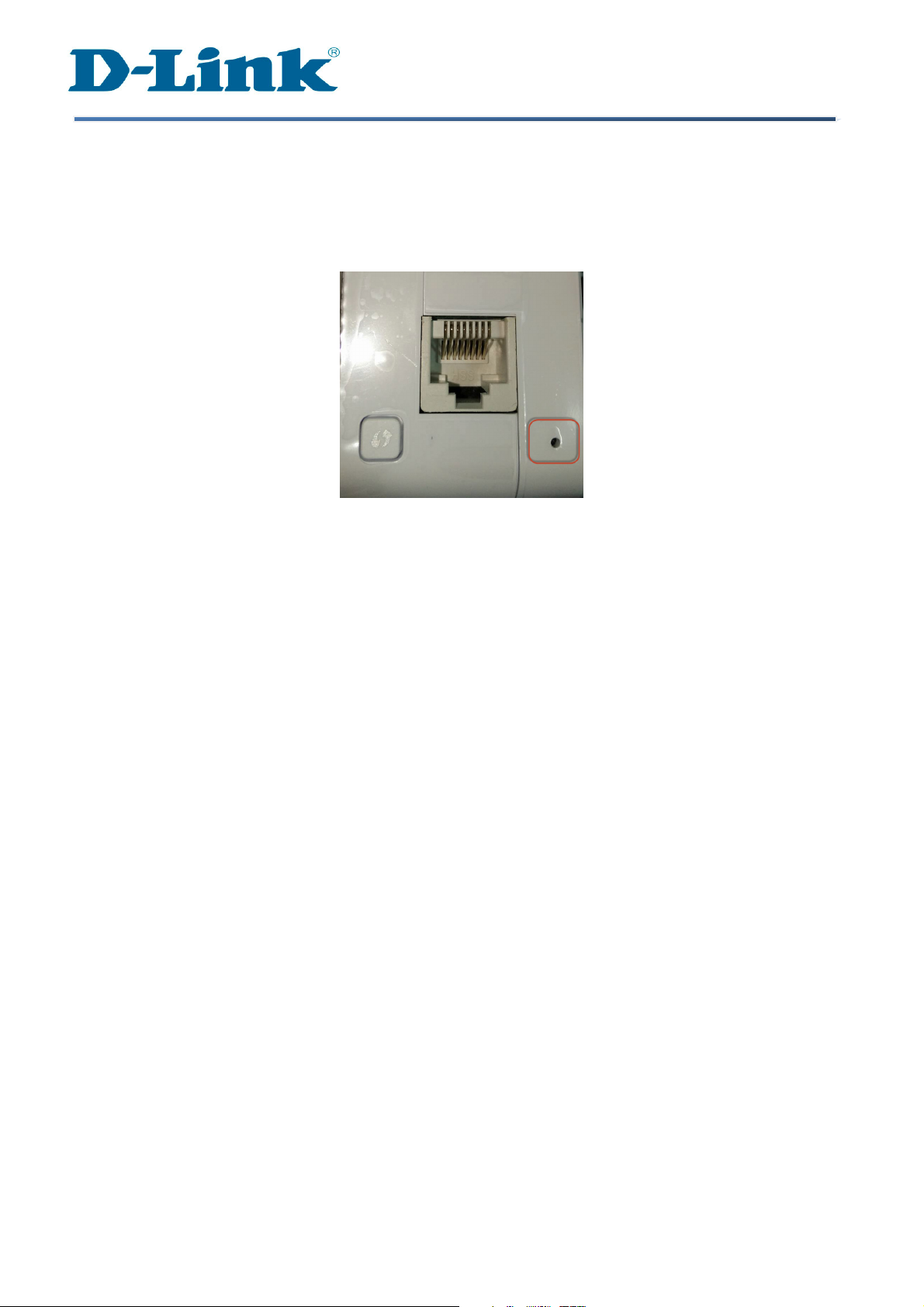

How to reset DAP-1365.

Step 1: Plug DAP-1365 direct to power outlet.

Step 2: Power on DAP-1365 and wait for 1 min.

Step 3: Use a paper clip to press and hold the Reset Button for 30 second.

Step 4: Wait for 2 min for the device to fully power on after reset.

--- END ---
