D-Link AirPremier N DAP-2310 User manual

Air

Premier®N ACCESS POINT

DAP-2310

QUICK

INSTALLATION

GUIDE

КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ

GUÍA DE INSTALACIÓN RÁPIDA

GUIA DE INSTALAÇÃO RÁPIDA

快速安裝指南

PETUNJUK PEMASANGAN CEPAT

ENGLISH

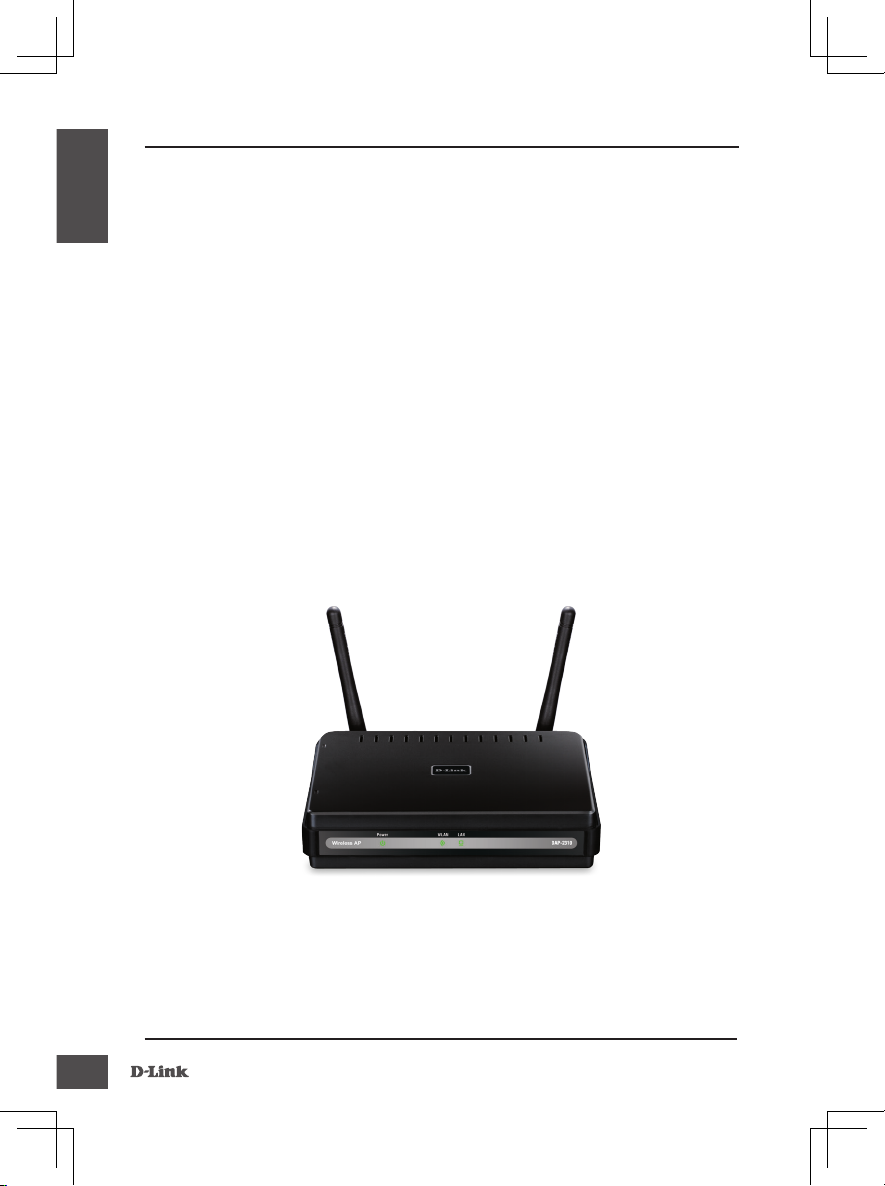

Package Contents

System Requirements

If any of the above items are missing, please contact your reseller.

• Computers with Windows®, Macintosh®, or Linux-based

operating systems and an installed Ethernet Adapter

•InternetExplorerversion7.0orFirefox3.0orhigher(forconguration)

• D-Link DAP-2310 AirPremier®N Access Point

• 2 Detachable Antennas

• Power Adapter

• CAT5 Ethernet Cable

• CD-ROM with Installation Guide, User Manual, and Special Offers

Note: Using a power supply with a different voltage than the one included with

the DAP-2310 may damage the unit and will void the warranty for this product.

ENGLISH

If any of the above items are missing, please contact your reseller.

Connecting the

DAP-2310 to your network

C. Antennas

Used to broadcast wireless network

and recieve connections from

802.11 b/g/n wireless clients.

B. LAN Port

Connects DAP-2310

to a switch or PC.

A. Connect the power adapter to the receptor on the rear panel of the

DAP-2310 and then plug the other end of the power

adapter to a wall outlet or power strip. The power

LED will turn ON to indicate proper operation.

Using an Ethernet cable, insert one end of the cable

to the LAN port on the rear panel of the DAP-2310

and the other end of the cable to a switch.

Note: You can also connect the DAP-2310 directly to the

computerthatwillbeusedforconguration.TheLANLED

will illuminate to indicate a proper Ethernet connection.

Computers with 802.11 b/g/n wireless adapters

can connect to the DAP-2310.

A. Power Receptor

Receptor for Power Adapter.

D. Reset

Reset the Access Point.

ENGLISH

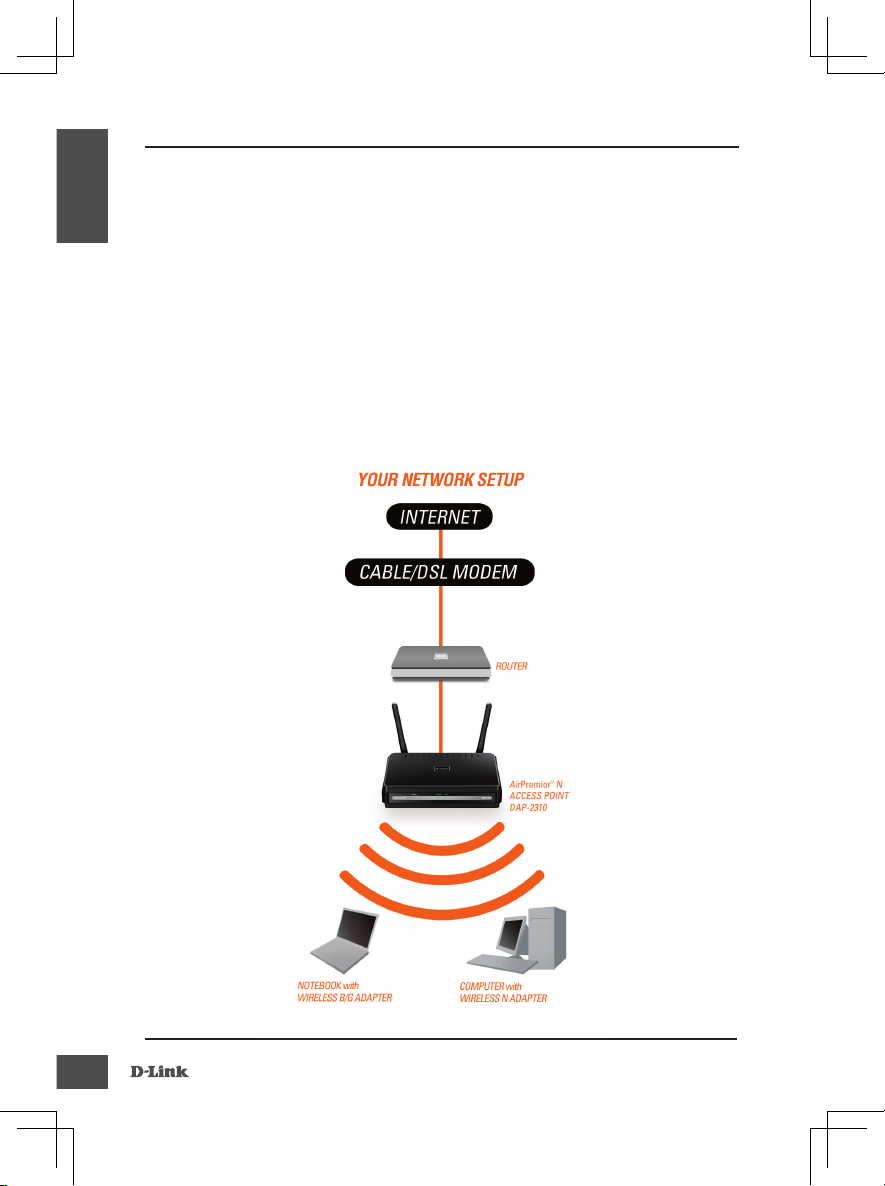

1. You will need broadband Internet access.

2. Consult with your cable or DSL provider for

proper installation of the modem.

3. Connect the Cable or DSL modem to a router.

4. If you are connecting a desktop computer to your

network, install a wireless PCI adapter into an

available PCI slot on your desktop computer.

5. Install the drivers for your wireless CardBus

adapter into a laptop computer.

Getting Started

ENGLISH

Using the Conguration Menu

First, disable the Access the Internet using a proxy server function.

To disable this function, go to Control Panel > Internet Options >

Connections > LAN Settings and uncheck the enable box.

Startyourwebbrowserprogram(InternetExplorer,MozillaFirefox).

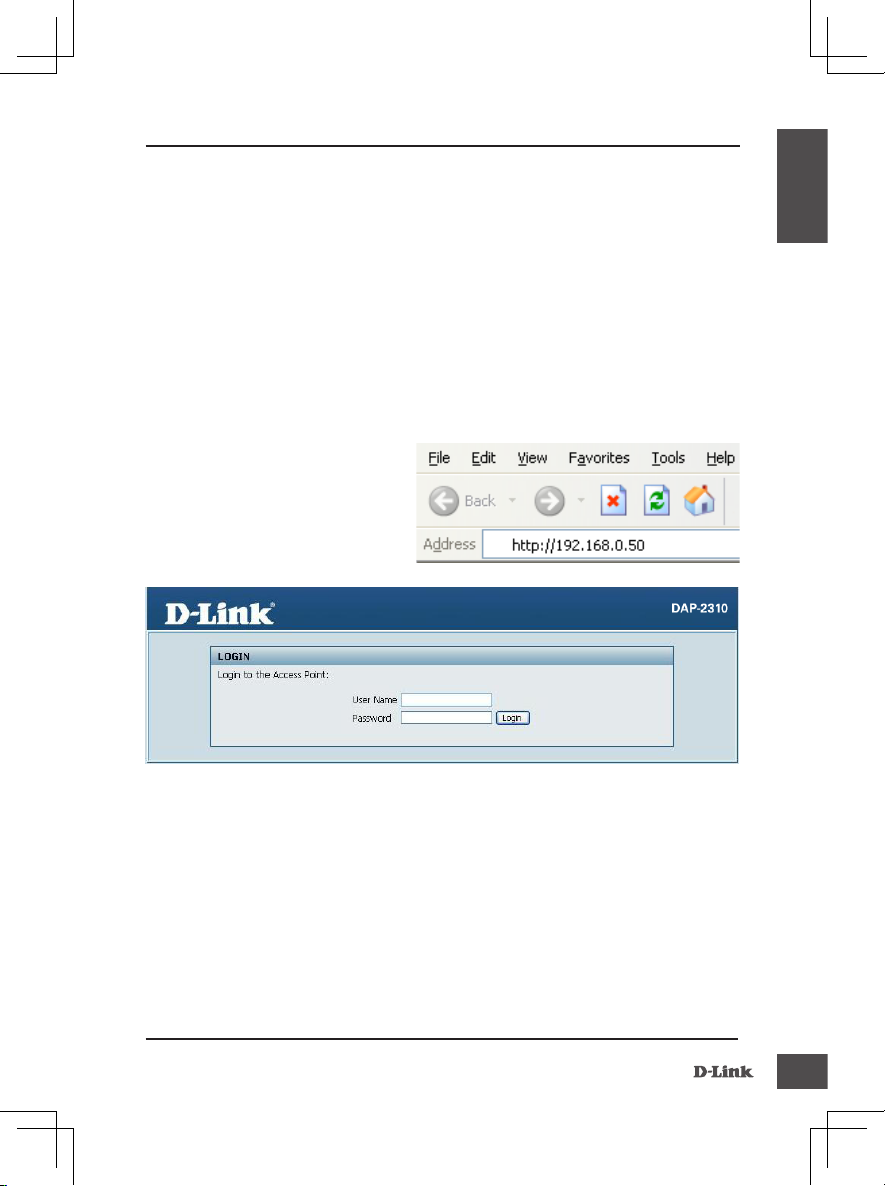

Please start your web browser program, type the IP address

ofthedevice(http://192.168.0.50)andpressEnter. Make sure

that the IP addresses of the device and the computer are in the

samesubnet.Then,refertothemanualforconguration.

Note: If you have changed the

default IP address assigned to

the DAP-2310, make sure to

enter the correct IP address.

• Type admin in the User Nameeld.

• Leave the Passwordeldblank.

• Click the Login button.

Note: If you have changed the password, make

sure to enter the correct password.

ENGLISH

TECHNICAL SUPPORT

YoucanndsoftwareupdatesanduserdocumentationontheD-Linkwebsite.

Tech Support for customers in

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-832-2856000

Toll Free 1800-233-0000

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

 08600DLINK(forSouthAfricaonly)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

Saudi Arabia (KSA):

Tel: +966 01 217 0008

Fax: +966 01 217 0009

Saturday to Wednesday 9.30AM to 6.30PM

Thursdays 9.30AM to 2.00 PM

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street - City Lights Building

Nasrcity - Cairo, Egypt

Floor6,ofceC2

Tel.: +2 02 26718375 - +2 02 26717280

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce#84,

AlKhaleejBuilding(MujamathuAl-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1 217 0008

Technical Support:

+966 1 2170009 / +966 2 6522951

General Inquiries: [email protected]

Tech Support: [email protected]

Pakistan

IslamabadOfce:

61-A, Jinnah Avenue, Blue Area,

Suite#11,EBC,SaudiPakTower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

KarachiOfce:

D-147/1,KDAScheme#1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]

ENGLISH

TECHNICAL SUPPORT

Iran

Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest

St. , Argentine Sq. ,

Tehran IRAN

Postal Code : 1513833817

Tel: +98-21-88880918,19

+98-21-88706653,54

General Inquiries: [email protected]

Tech Support: [email protected]

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029

Bureau N° 312 ET 337

Casablanca , Maroc

Phone : +212 663 72 73 24

Email: [email protected]

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: [email protected]

Bahrain

Technical Support: +973 1 3332904

Kuwait:

Technical Support: + 965 22453939 / +965

22453949

Türkiye Merkez İrtibat Ofisi

AyazağaMaslakyolu

ErdebilCevahirİşMerkeziNo:5/AAyazağa/

Maslakİstanbul

Tel: +90 212 2895659

ÜcretsizMüşteriDestekHattı:08002110065

Web:www.dlink.com.tr

Teknik Destek: [email protected]

073-796-2797

PYCCКИЙ

Комплект поставки

Системные требования

Если что-либо из перечисленного отсутствует обратитесь,

пожалуйста, к поставщику.

•КомпьютерподуправлениемОСWindows®, Macintosh®

илиLinuxсустановленнымEthernet-адаптером

•InternetExplorerверсии7.0илиFirefox3.0ивыше(длянастройки)

•ТочкадоступаD-LinkangeBoosterN650DAP-2310

•2съемныеантенны

•Адаптерпитания

•КабельEthernet5категории

•Компакт-дисксруководствомпоустановке,руководством

пользователяиспециальнымидополнениями

Примечание: Использование источника питания с другими

характеристиками может повлечь выход из строя устройства и

потерю гарантии.

PYCCКИЙ

Подключение DAP-2310 к сети

C. Антенны

Используютсядляприемаипередачи

беспроводныхсигналовиустановки

соединениясбеспроводными

клиентами802.11b/g/n.

B. Порт LAN

ДляподключенияDAP-2310к

коммутаторуиликомпьютеру.

A. Подключитеадаптерпитаниякразъемупитанияназадней

панелиDAP-2310изатемподключитедругойконецадаптера

питаниякнастеннойрозеткеилисетевомуфильтру.Индикатор

Powerзагорится,чтоговоритоправильнойработе.

ПодключитеодинконецкабеляEthernetкпортуLANназадней

панелиDAP-2310идругойконецкабеляккоммутатору.

Примечание:DAP-2310можнотакжеподключить

непосредственноккомпьютеру,которыйиспользуется

длянастройки.ИндикаторLANзагорится,что

говоритоправильномEthernet-соединении.

КDAP-2310могутподключатьсякомпьютерыс

беспроводнымиадаптерами802.11b/g/n.

A. Разъем питания

Разъемдляадаптера

питания.

D. Кнопка Reset

Перезагружаетточкудоступа.

PYCCКИЙ

1.НеобходимоширокополосноеподключениекИнтернет

2.ПроконсультируйтесьскабельнымилиDSL-провайдером

поповодукорректнойустановкимодема.

3.ПодключитекабельныйилиDSL-модемкмаршрутизатору.

4.Передподключениемнастольногокомпьютераксети,установите

беспроводнойPCI-адаптервдоступныйPCI-слоткомпьютера.

5.Установитедрайверыдлябеспроводного

адаптераCardBusвноутбук.

Начало работы
