D-Link DWL-500 User manual

DWL-500

11 Mbps Wireless PCI Adapter

11 Installing the DWL-500 PCI Holder DriversInstalling the DWL-500 PCI Holder Drivers

With the computer turned ON, insert the driver CD for the DWL-500

Wireless PCI Adapter into the CD-ROM.

The driver CD will automatically load.

Click on “Install Drivers”.

Click on “Install PCI-Holder Drivers” .

At the “Welcome” window,

Click Next.

The next screen will be the license agreement,

Click Yes to accept.

Select “No, I will restart my computer

later” at the next screen.

Click Finish.

Rev. dwl-500.98-12-7-00,8am

Quick Install GuideQuick Install Guide

for Windows 98/98SEfor Windows 98/98SE

Note: Please insert only the DWL-650 PC Card into the provided PCI

Holder. Use of other cards could result in damage to your computer.

Installing the DWL-650 DriversInstalling the DWL-650 Drivers

From the initial screen,

Click on “Install DWL-650 Drivers”

to proceed with the installation.

The following “Welcome” screen

will be displayed.

Click Next.

The next screen will prompt for the System ID.

The word “default” will be displayed in the text

box.

Type in the desired name of the System ID in the

provided text box. The system ID needs to be

the same for all wireless network devices.

Click Next.

The next screen will be the license agree-

ment.

Click Yes.

Rev. dwl-500.98-12-7-00,8am

22 Installing the DriversInstalling the Drivers continuedcontinued

Windows will then copy files. After the files are

loaded, Windows will prompt to restart the comput-

er.

Select “No, I will restart my computer.”

Click Finish.

The next screen will appear.

Click Next.

Select the Network Mode.

If you are connecting to an Access Point, select

“Infrastructure”. Otherwise, if you are con-

necting directly to another wireless adapter

without an Access Point, or a Wireless

Residential Gateway then select “Ad Hoc”.

Click Next.

Windows will prompt for the destination fold-

er.

Click Next to accept the selected folder.

Otherwise, click Browse and select the

desired folder.

Rev. dwl-50098-12-7-00,11am

33 Installing the DWL-500 Wireless PCI CARDInstalling the DWL-500 Wireless PCI CARD

Insert the DWL-500 Wireless PCI Holder ,

without the PC CARD, into an available

PCI slot in the computer. Secure the PCI

Holder with a screw.

Shut down the computer.

After the PCI Card Holder is secured, then

insert the PCI Card, facing down as

shown, into the PCI Card Holder.

Press the PC Card firmly into the PCI

holder.

After the PC card is firmly seated,

then restart the computer.

Rev. dwl-500.98-12-7-00,8am

44 Finish InstallationFinish Installation

Windows will recognize the PCI Holder.

If the PC Card Wizard appears, refer to

Appendix C for installation.

If prompted for Windows 98 files or driver files,

please refer to Appendices A&B.

If the following prompt appears,

Click OK to continue.

Restart the computer.

After restarting, Windows will recognize the

PC Card drivers.

If prompted for Windows 98 files or driver files,

please refer to Appendices A&B.

Restart the computer to finish installation.

To check that wireless adapter is working, click

on the configuration utility icon in the task bar.

Make sure that there is a wireless connection

under the “link info tab”.

Rev. dwl-500.98-12-7-00,8am

For instructions on configuration, please see your User’s Manual.

APPENDIXAPPENDIX

If prompted for the Windows 98 CD, insert

the Windows 98 CD into the

CD-ROM Drive.

Click OK.

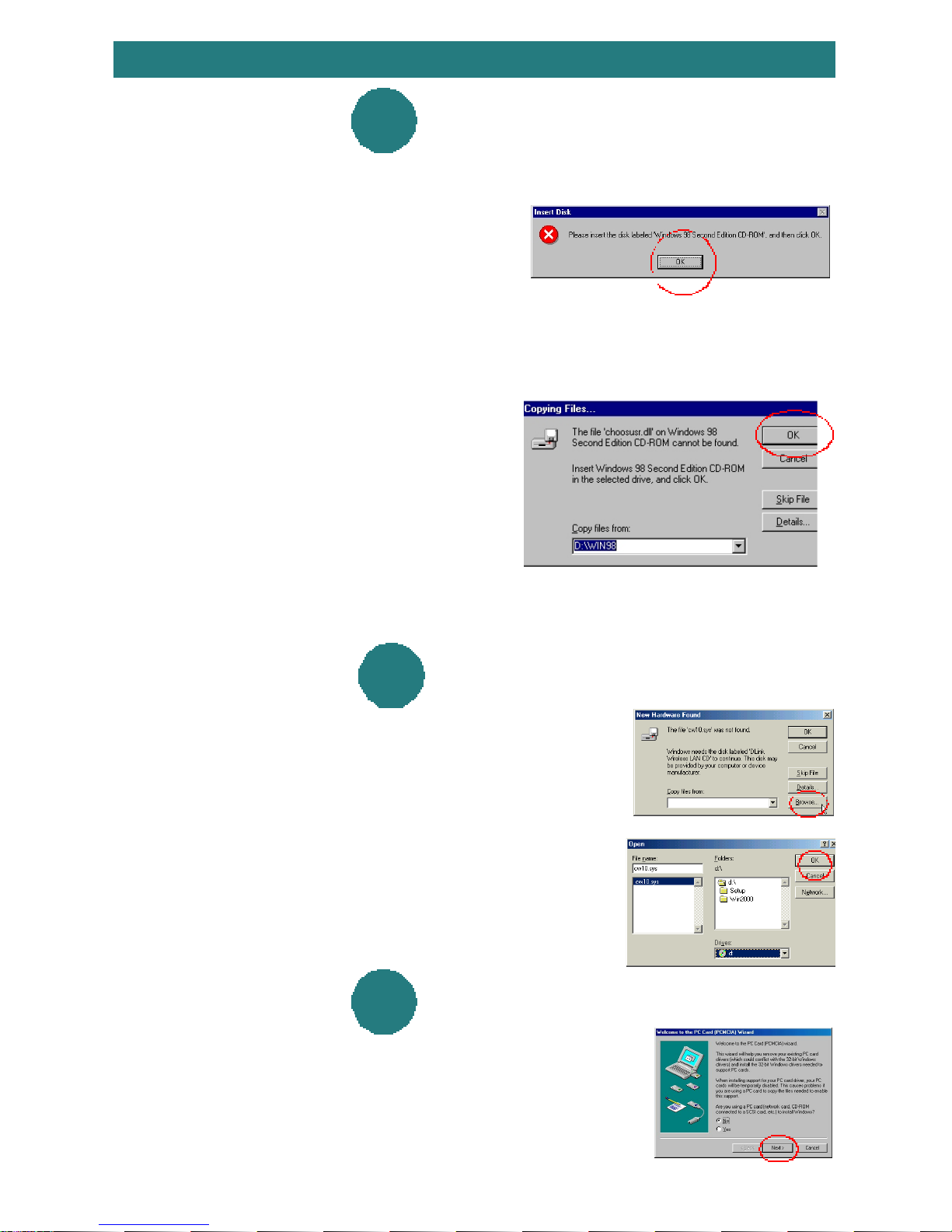

Providing Windows 98 FilesProviding Windows 98 Files

Loading the PC CARD Wizard

Providing Driver FilesProviding Driver Files

Specify the correct location in the “Copy files from:” box. If the CD-ROM

drive is the D: drive, then type D:\Win98 in the box.

(Some computers will have the

Windows 98 files available in the

C:\Windows\options\cabsdirectory).

After typing in the location,

Click OK.

Windows will copy the necessary system files.

If prompted for the Driver files, insert Driver CD.

Click Browse.

Click OK.

Select the CD-ROM drive.

Windows will copy the necessary files.

If the PC Wizard appears,

Click Next at first screen.

Click Next at the second screen,

Finally, Click Finish at the third screen.

APPENDIXAPPENDIX

Rev. dwl-500.98-12-7-00,8am
