D-Link Air DWL-520 User manual

Contents of Package:

•DWL-520 11Mbps Wireless PCI Adapter

•Printed Quick Installation Guide

•CD with Manual and Drivers

If any of the above items are missing, please contact your reseller.

Turn “On” your computer. Insert the driver CD for the DWL-520 Wireless PCI

Adapter into the CD-ROM drive. The screen shown below will appear.

Click “Install Config Utilities.”

Installing the Driver

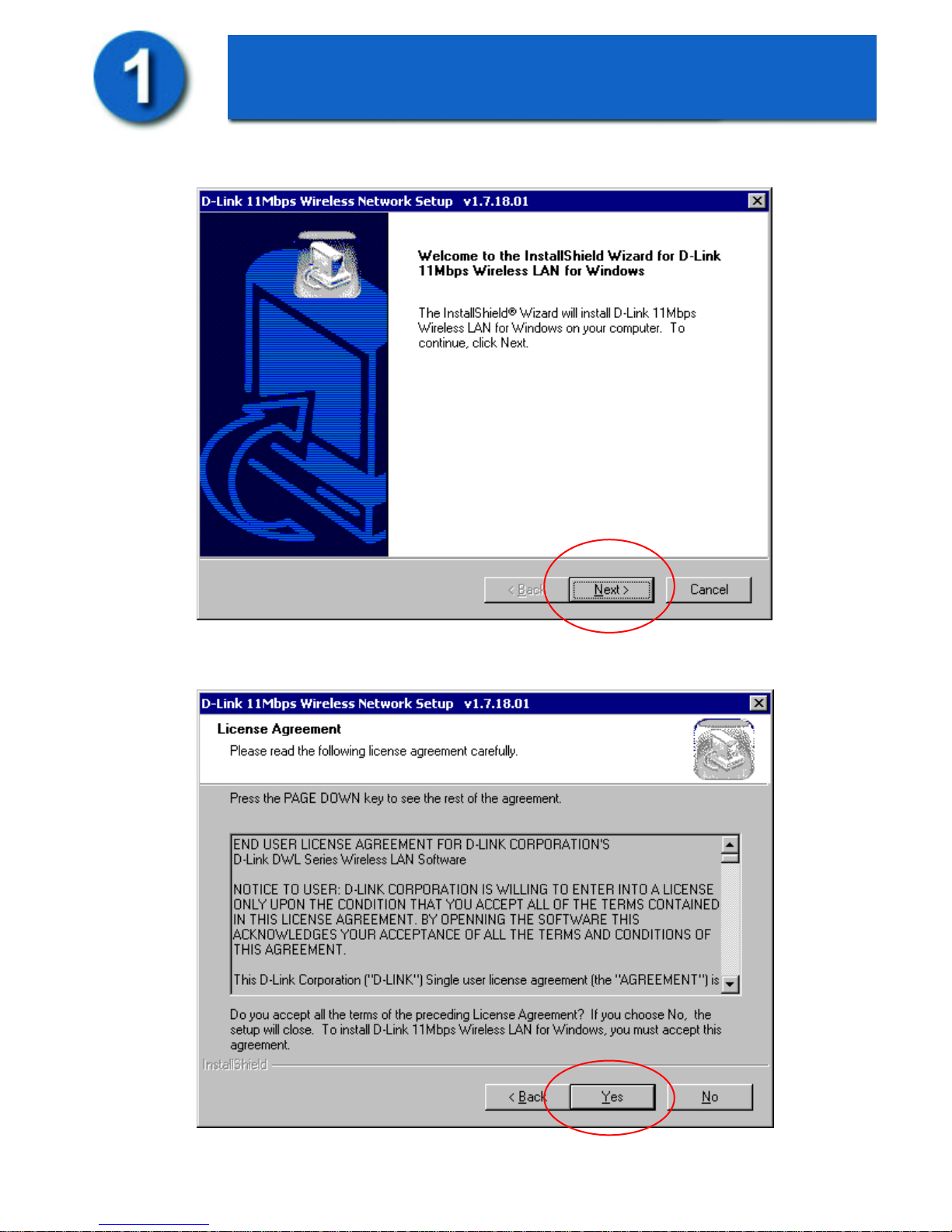

The “Welcome” screen, shown below, will appear.

Click “Next.”

Click “Yes” to accept the License Agreement.

-2-

Installing the Driver (continued)

The driver installation is complete. Click “Finish.”

(Important: Please TURN OFF the computer and unplug the

power cord before proceeding to Step 2.)

(Please make sure that your computer is turned off and the

power cord is unplugged.)

Note: To avoid damage caused by static electricity, make sure to properly ground

yourself by first touching a metal part of your computer to discharge any static

electricity before installing the DWL-520 Wireless PCI Adapter.

-3-

Installing the DWL-520 PCI Adapter

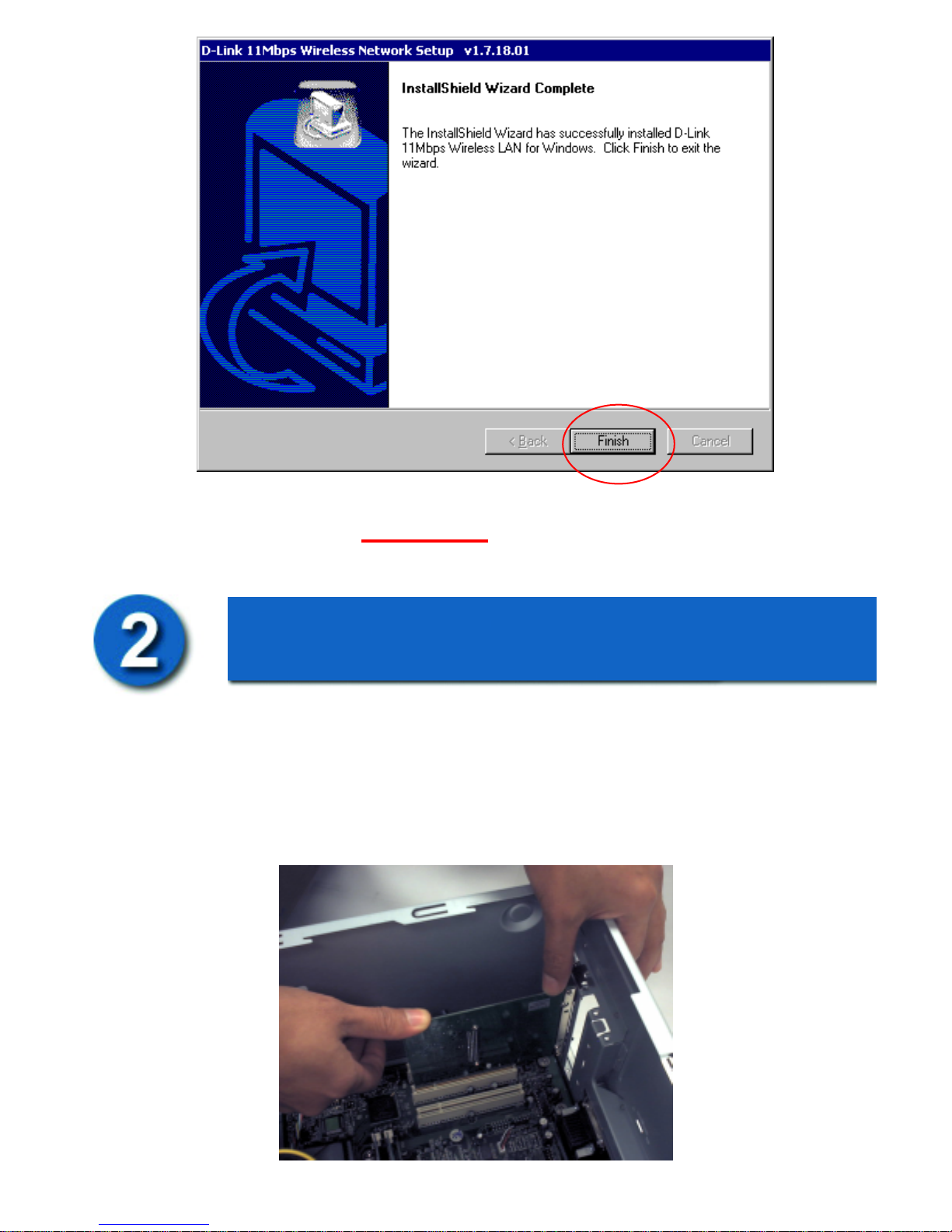

•Remove the back cover of the computer.

•Install the DWL-520 carefully and firmly into an available PCI slot which is

usually “white” or “cream” colored

•Secure the DWL-520 with a screw.

•Replace the computer’s cover.

•Plug in the power cord and turn on your computer.

Windows will recognize the PCI adapter and automatically detect the driver.

(If Windows does not automatically recognize the driver, please install the driver

manually. Please see Appendix A in this guide for more information.)

The installation of the DWL-520 Wireless PCI Adapter is complete.

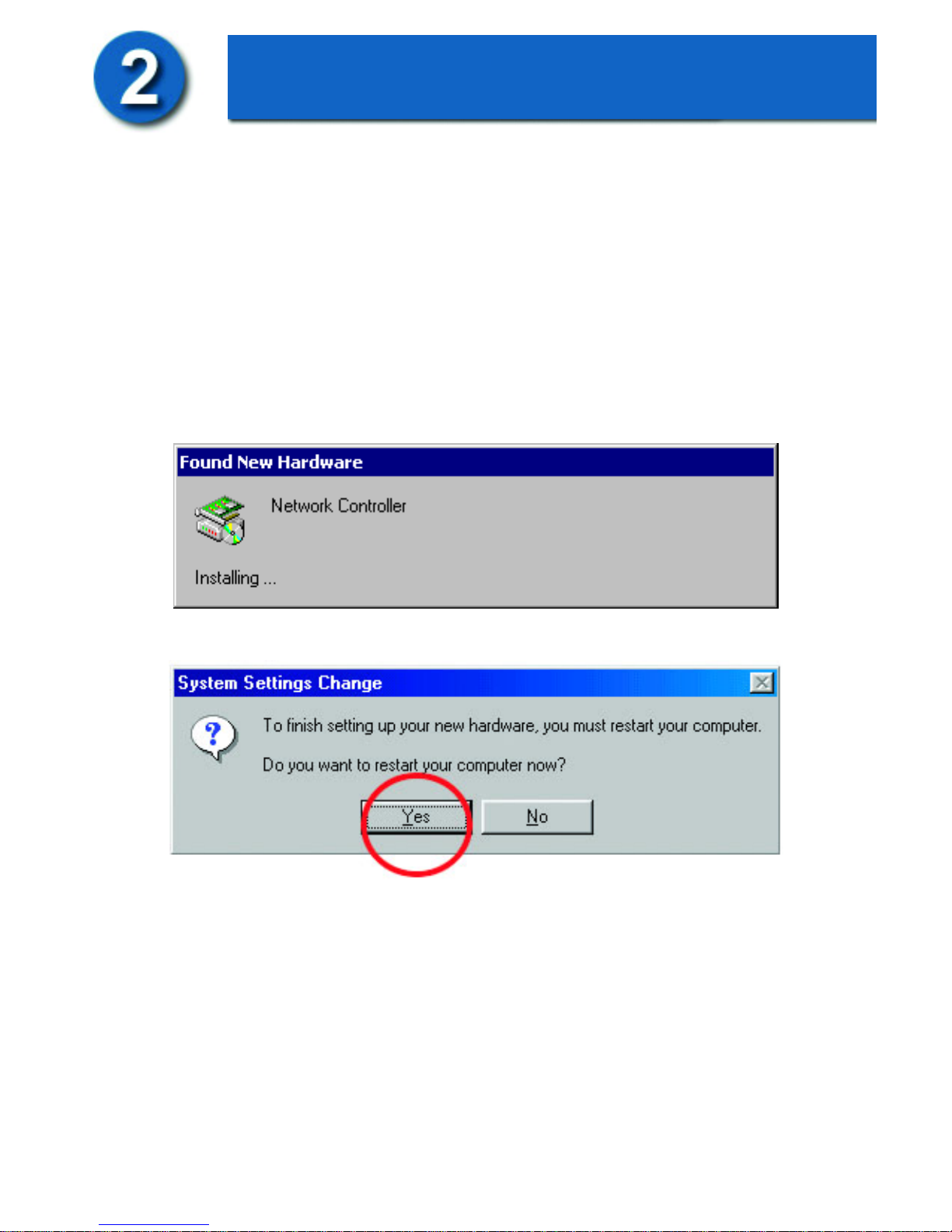

Windows ME and Windows 98 users will be prompted to restart the computer.

Click “Yes.”

Windows 2000 users, please restart your computer.

-4-

Installing the DWL-520 PCI Adapter

(continued)

Go to Start > Settings > Control Panel > System > Device Manager

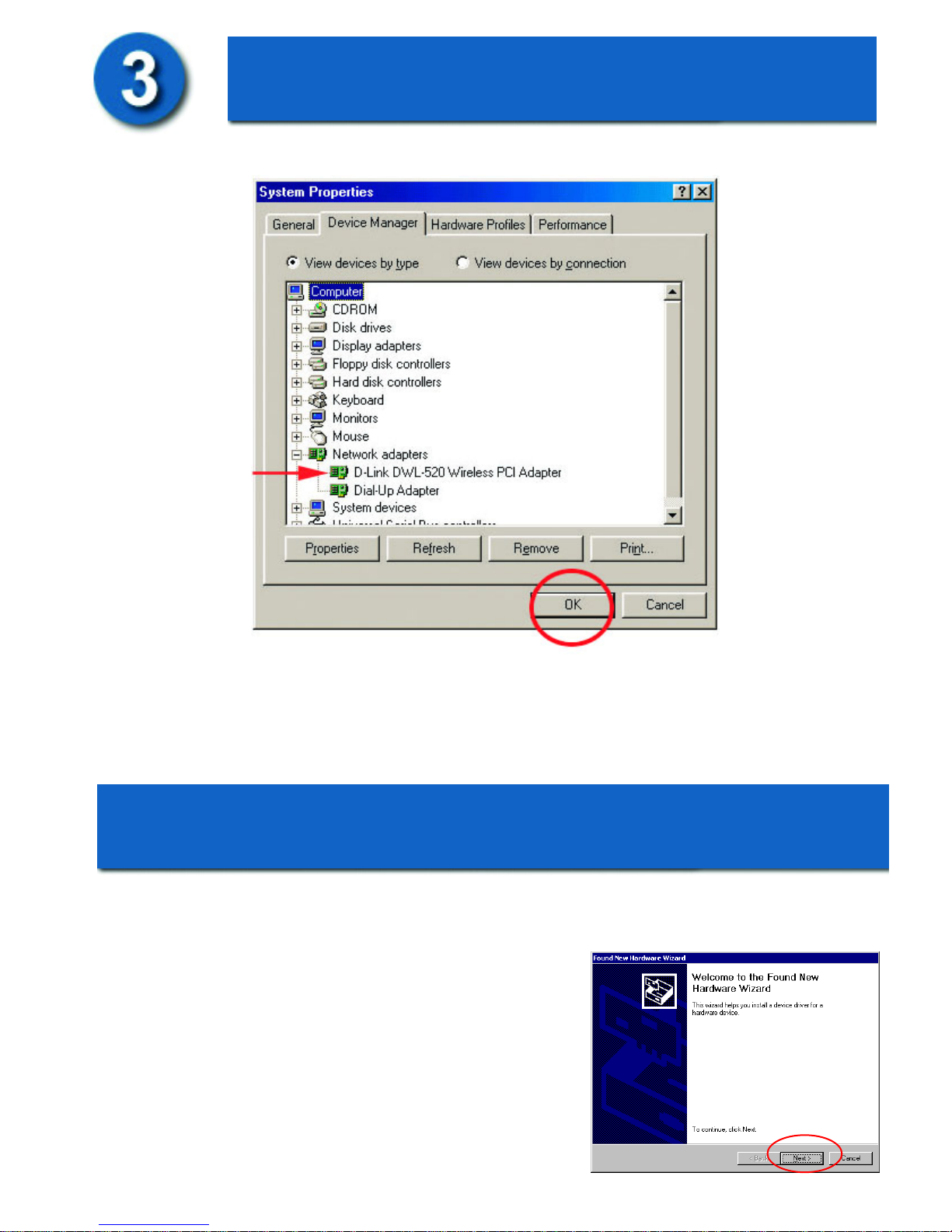

To check that the installation of the DWL-520 was successful, scroll down in the

“Device Manager” window and click on “Network Adapters.” You have a

successful installation when “D-Link DWL-520 Wireless PCI Adapter” appears

as shown above.

Manually Installing the Drivers

Click “Next.”

Checking the Installation

Appendix A

-5-

If Windows does not automatically recognize

the drivers, go to Control Panel > select

Add/Remove New Hardware. The screen

to the right will appear.

Manually Installing the Drivers (continued)

Click “Next.”

Select the CD-ROM drive (e.g., D:\if Dis the letter representing the CD-ROM drive.)

-6-

Appendix A (continued)

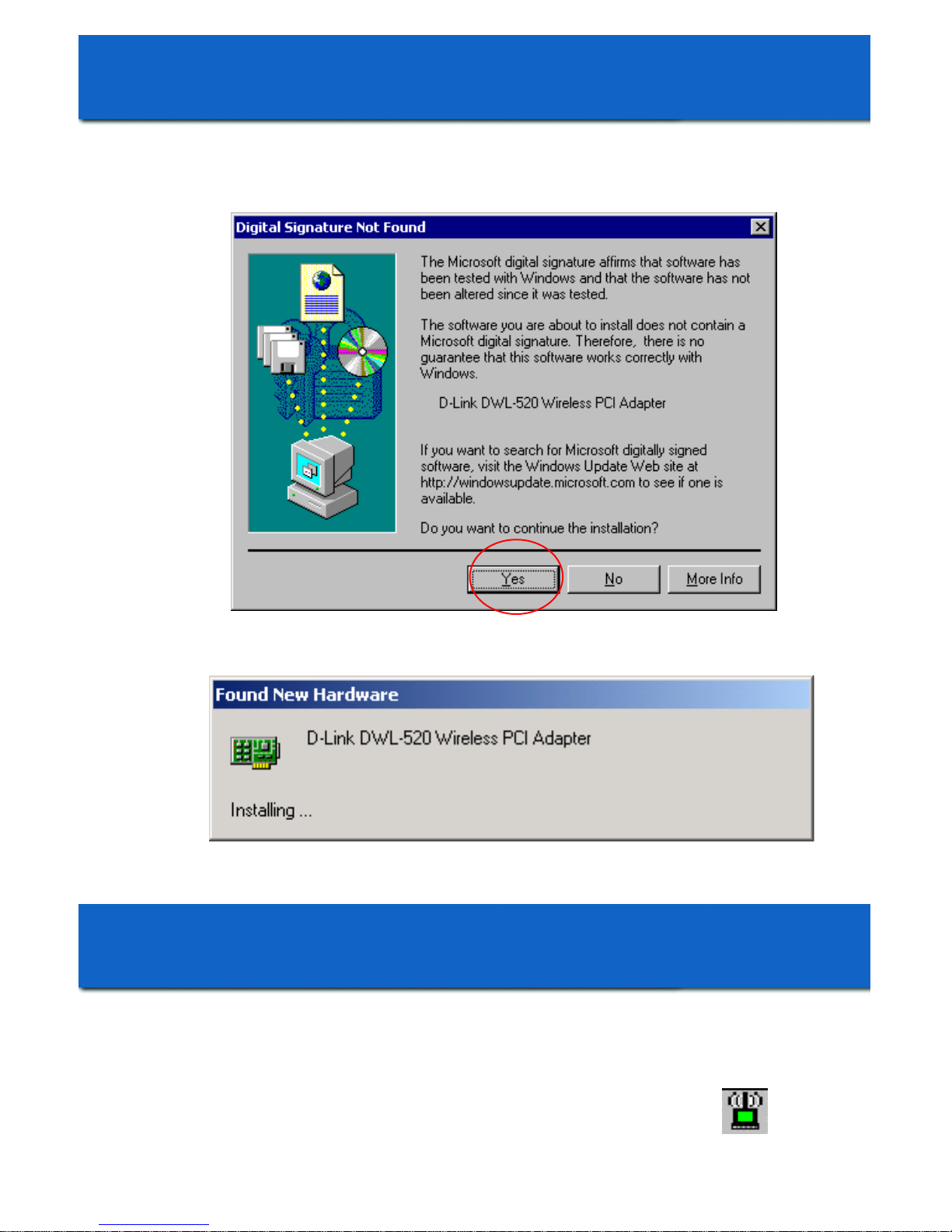

When Windows 2000 and ME locate the correct drive, the following screen will

appear.

Click “Yes” to complete the installation.

Restart your computer.

Uninstalling the DWL-520 Wireless PCI Adapter

1. Please quit the Configuration Utility and other open applications.

(Right-click on the icon in the lower right corner of the tray bar . Quit the

Configuration utility when prompted.) -7-

Appendix B

Appendix A (continued)

2. Go to Start > Settings > Control Panel > Add/Remove Programs.

Remove “D-Link 11Mbps Wireless LAN for Windows.”

You can find the most recent software and user documentation on theD-Link website.

D-Link provides free technical support for customers within the United States for the duration of the

warranty on this product. U.S. customers can contactD-Link technical support through our web site, by

e-mail, or by phone.

United States technical support is available Monday through Friday from 6:00 a.m. to 6:00 p.m. (PST.)

Technical Support Website: http://www.support.dlink.com

Email: [email protected]

Phone: 949-790-5290

If you are a customer residing outside of the United States, please refer to the list of D-Link locations that

is included in the User’s manual.

BUILDING NETWORKS FOR PEOPLE

Technical Support

Appendix B (continued)

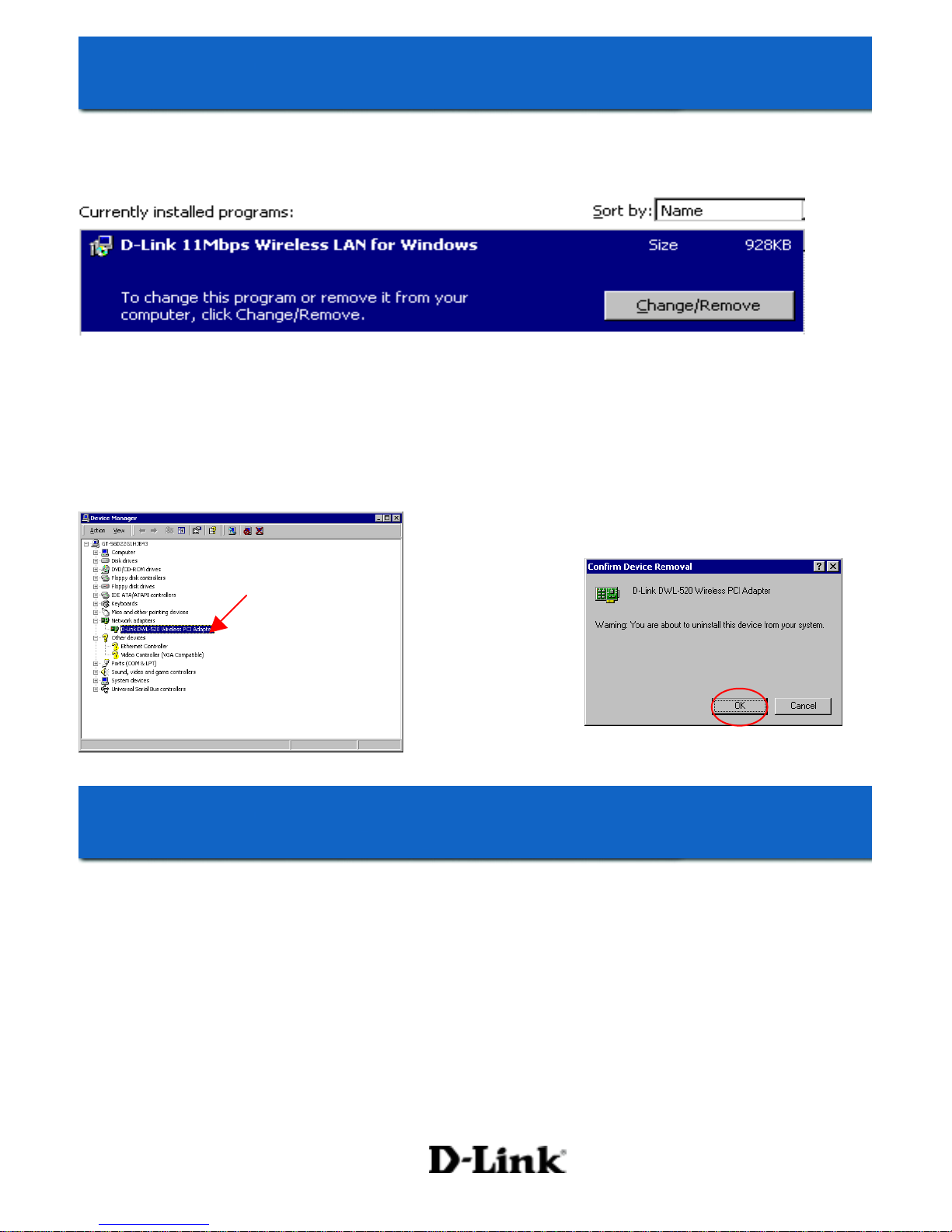

3. Click “Change/Remove.”

4. Go to System Properties > Hardware > Device Manager > Network Adapters.

Right-click on “D-Link DWL-520 Wireless PCI Adapter.”

Select “Uninstall.”

Finally,

click “OK.”

The Uninstall is complete.
