D-Link Verizon DSL-2750B User manual

Support –call 1300 850 462

D-Link DSL-2750b set up guide for NBN

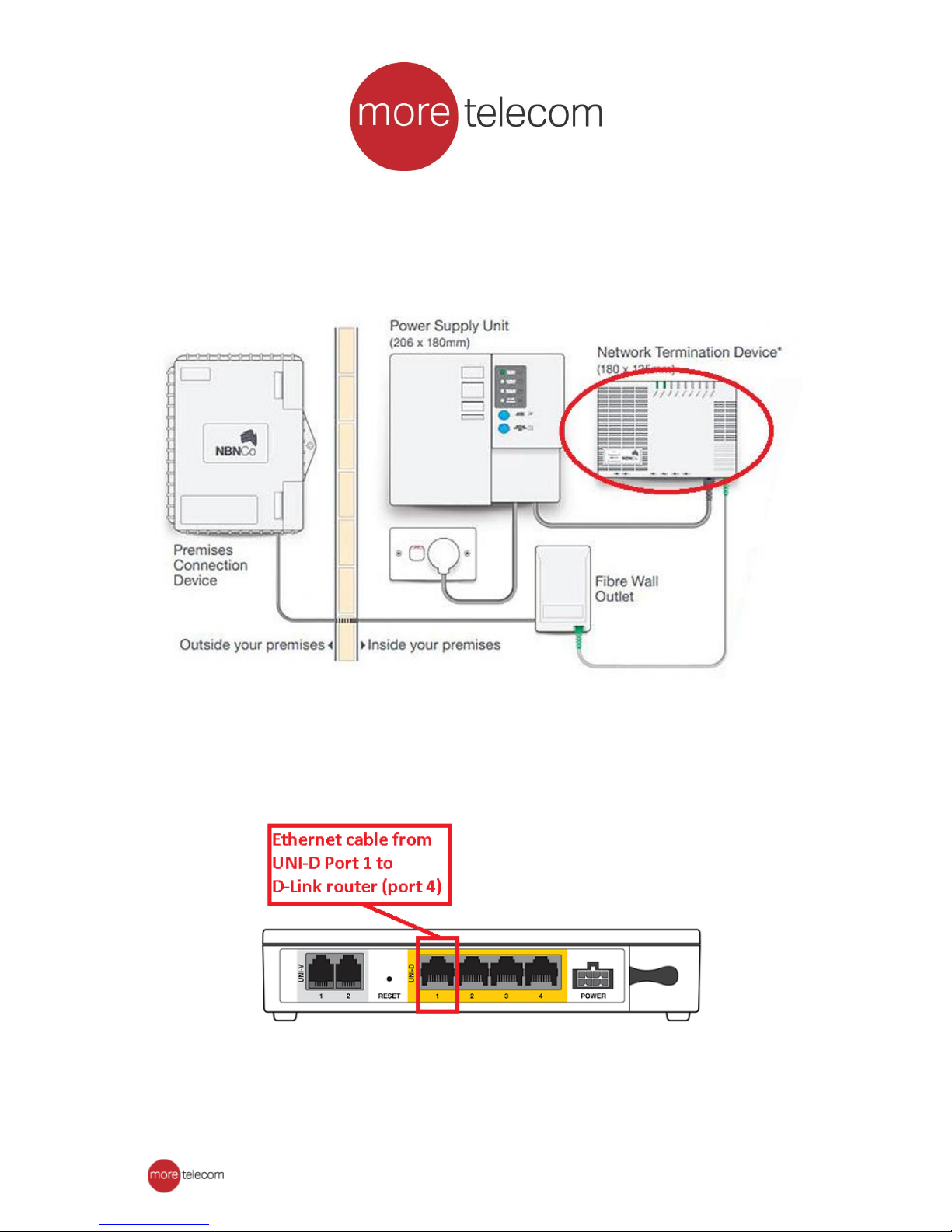

1. Locate the NBN Network Termination Device inside your home/business.

2. At the bottom of the Network Termination Device plug an Ethernet cable into UNI-D Port 1.

Please note: If you already have an NBN delivered using UNI-D port 1, our NBN service will be delivered in the next UNI-D

port.

Support –call 1300 850 462

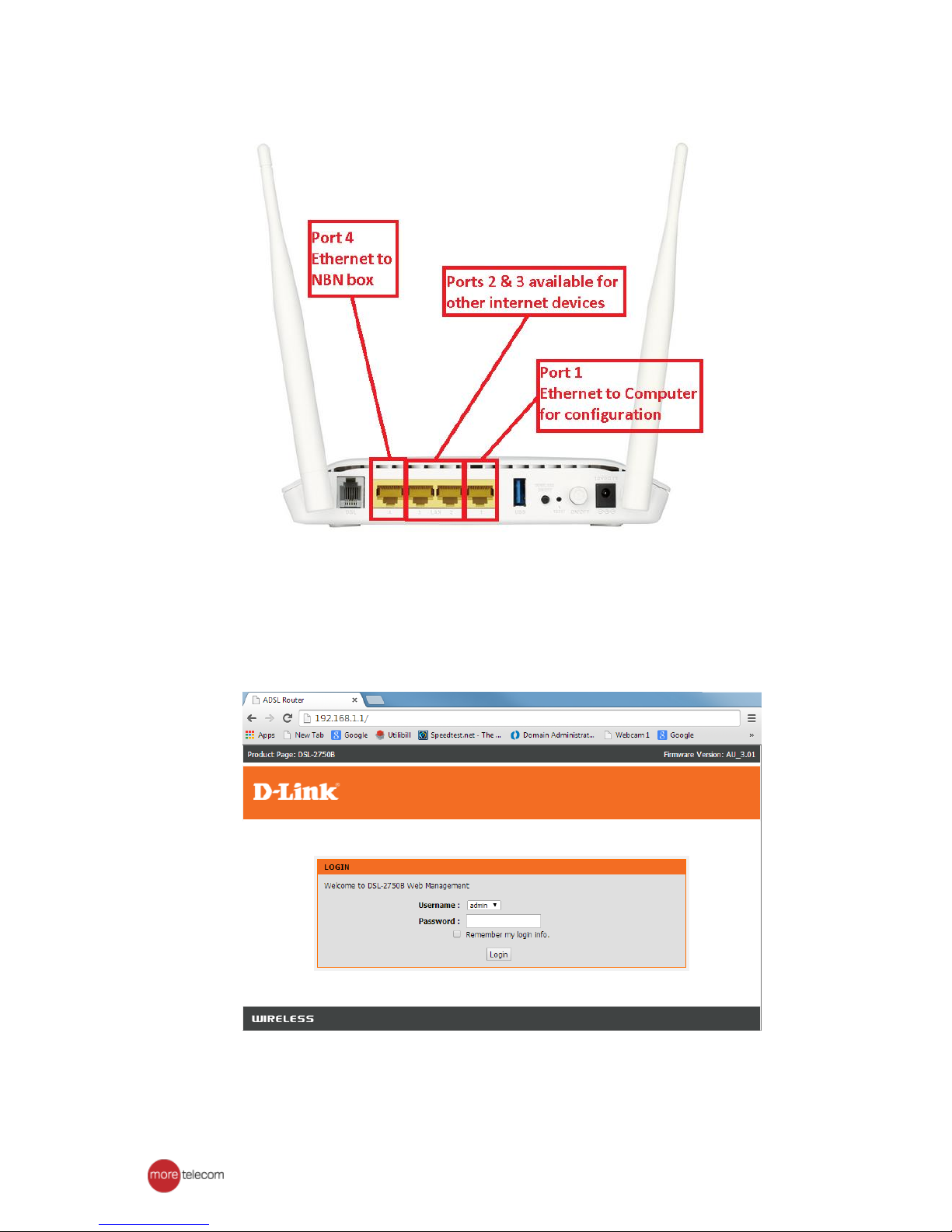

3. Plug the power cable into the D-Link router and then plug the cable coming from the Network

Termination Device into Port 4 of the supplied D-Link router.

4. Plug an Ethernet cable into Port 1 of the D-Link router. This should then plug into your computer

or laptop.

5. Turn on your computer and open a web browser.

In the address bar go to: 192.168.1.1

6. Enter the default username and click LOGIN.

Username: admin

Password: admin

Support –call 1300 850 462

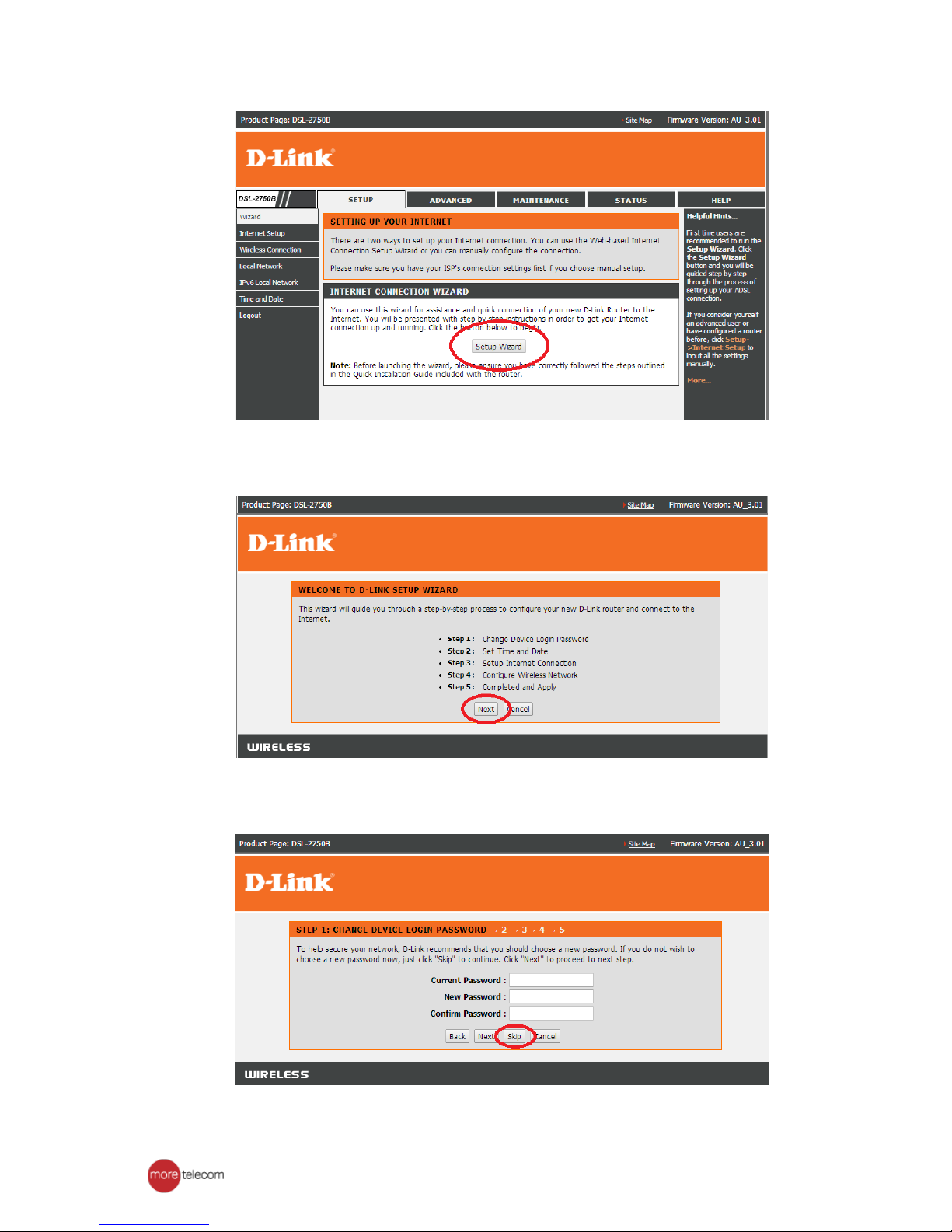

7. Click on Setup Wizard

8. Click Next

9. At Step 1 –Click Skip

Support –call 1300 850 462

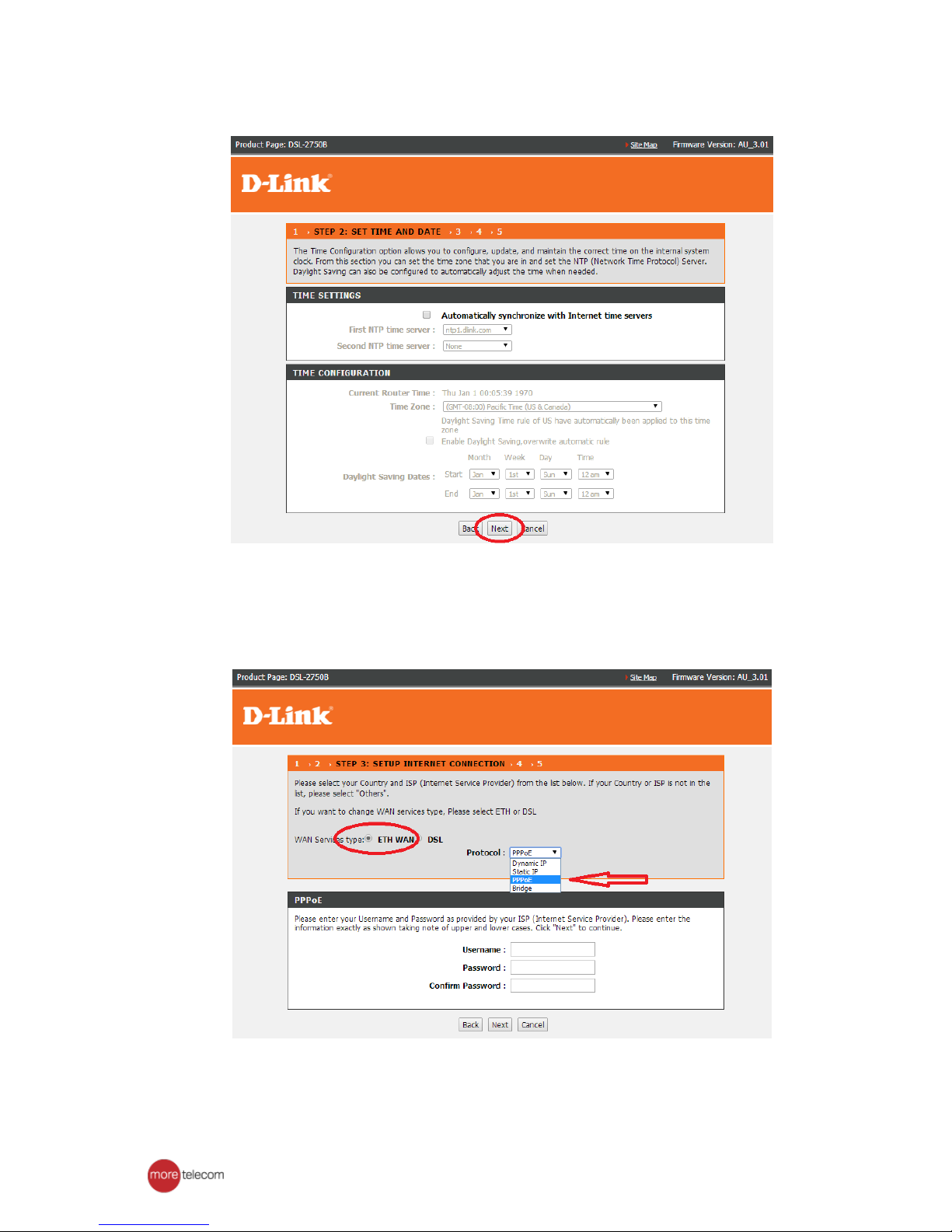

10. At Step 2 –Click Next

11. At STEP 3 –Select: WAN Services type: ETH WAN

Then select: Protocol –PPPoE

Support –call 1300 850 462

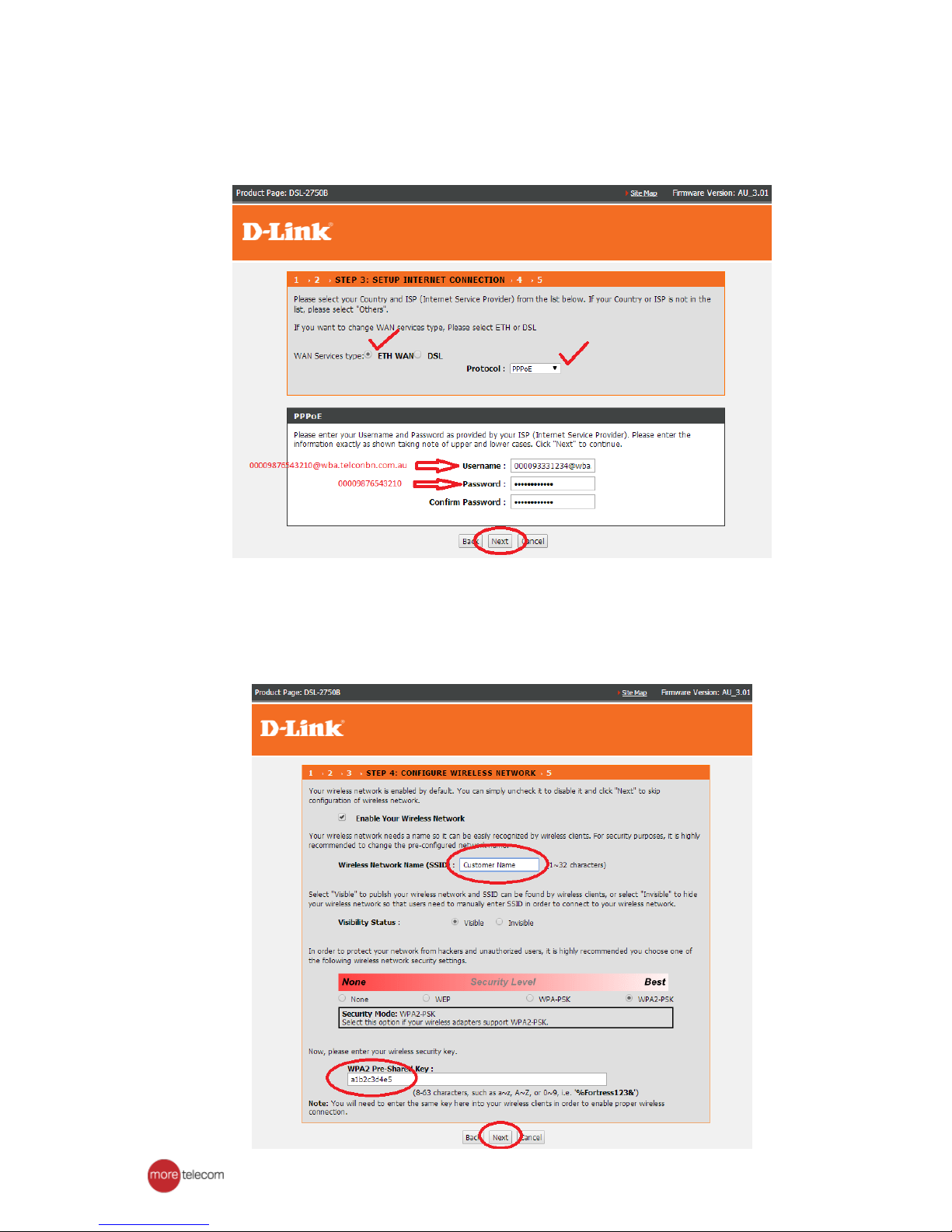

12. Enter your More Telecom NBN Username and Password and click NEXT.

Username format is always XXXXXXXXX[email protected]

13. Set up your Wifi and click NEXT.

Change your Wireless Network name to a name of your choice.

Set your WPA2 Pre-Shared Wifi Key. We recommend: a1b2c3d4e5

Support –call 1300 850 462

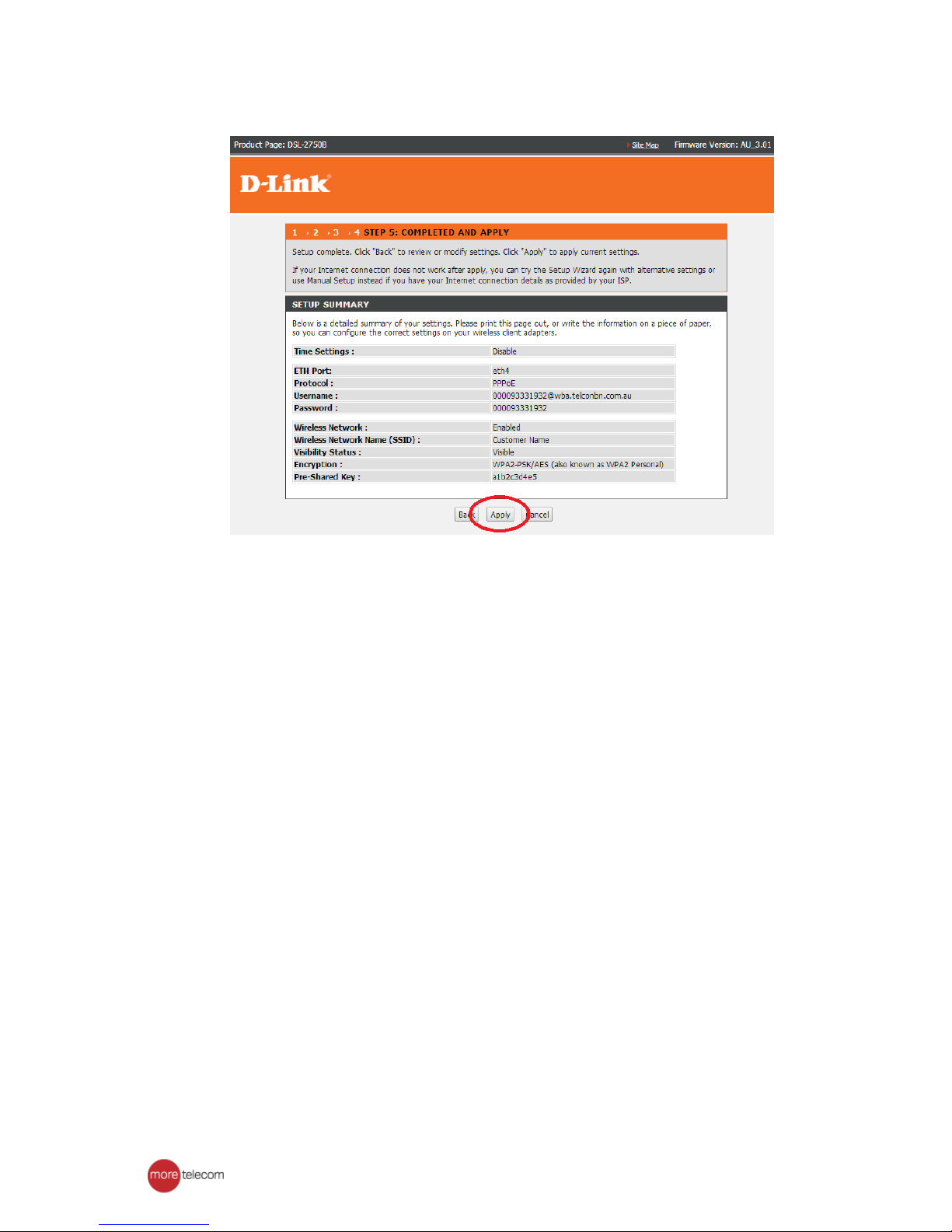

14. Click APPLY.

15. Congratulations –you should now be online with More Telecom and the NBN.

16. If you have any difficulties or to find out your username and password please call our support

team on 1300 850 462.
