D-Link DWR Series User manual

CONFIGURATION GUIDE

For DWR Series Routers

www. d l i n k.co.in

UNBOXING & CONNECTING

SETUP

WIRELESS SETUP

Conﬁguration Guide

for DWR series routers

Conﬁguration Guide

for DWR series routers

HOW TO ACCESS THE ROUTER

4) If you have the computer with Wi-Fi

then, go to wireless utility to display

available Wireless networks & select

the Wi-Fi name of device. (Default

Wi-Fi name is dlink_DWR_113). By

default there is no security /

password for this network.

5) If you don’t have Wi-Fi enabled

computer then you can connect

the lan cable provided in the box

between any lan port of the router

and computer lan port.

3) Connect the power adaptor to

device and power on the device.

Power LED should be green.

Connect the Wi-Fi Antenna to

the router.

Unbox the router.

HOW TO ACCESS THE ROUTER

8) You will be prompt for username

and password. By default Username

is admin and password is blank.

9) You will get the conﬁguration page

of the DWR serier router

After getting connected to router.

Open the browser (such as Internet

Explorer, Mozilla, Crome etc.)

Type http://192.168.0.1 in address

bar and press enter to get the

conﬁguration page of the router.

CONFIGURING INTERNET

10) To setup the internet connection click

on Setup. You will see the multiple

options on Left side main conﬁguration

menus. Click on Internet.

11) In DWR series routers multiple types of

internet connections are supported.

12) To connect the router with wired

internet connection, kindly connect

the internet cable to WAN port of

the router, which is at the back side.

13) Now click on Internet Connection

Setup Wizard.

14) This Wizard will guide you through

step by step conﬁg. There are 4 main

steps as follows. Click next to proceed.

Wired Connection:-

a. DHCP Connection

b. Static IP Connection

c. PPPoE Connection

d. PPTP Connection

e. L2TP Connection

3G/4G USB Connection

CONFIGURING INTERNET

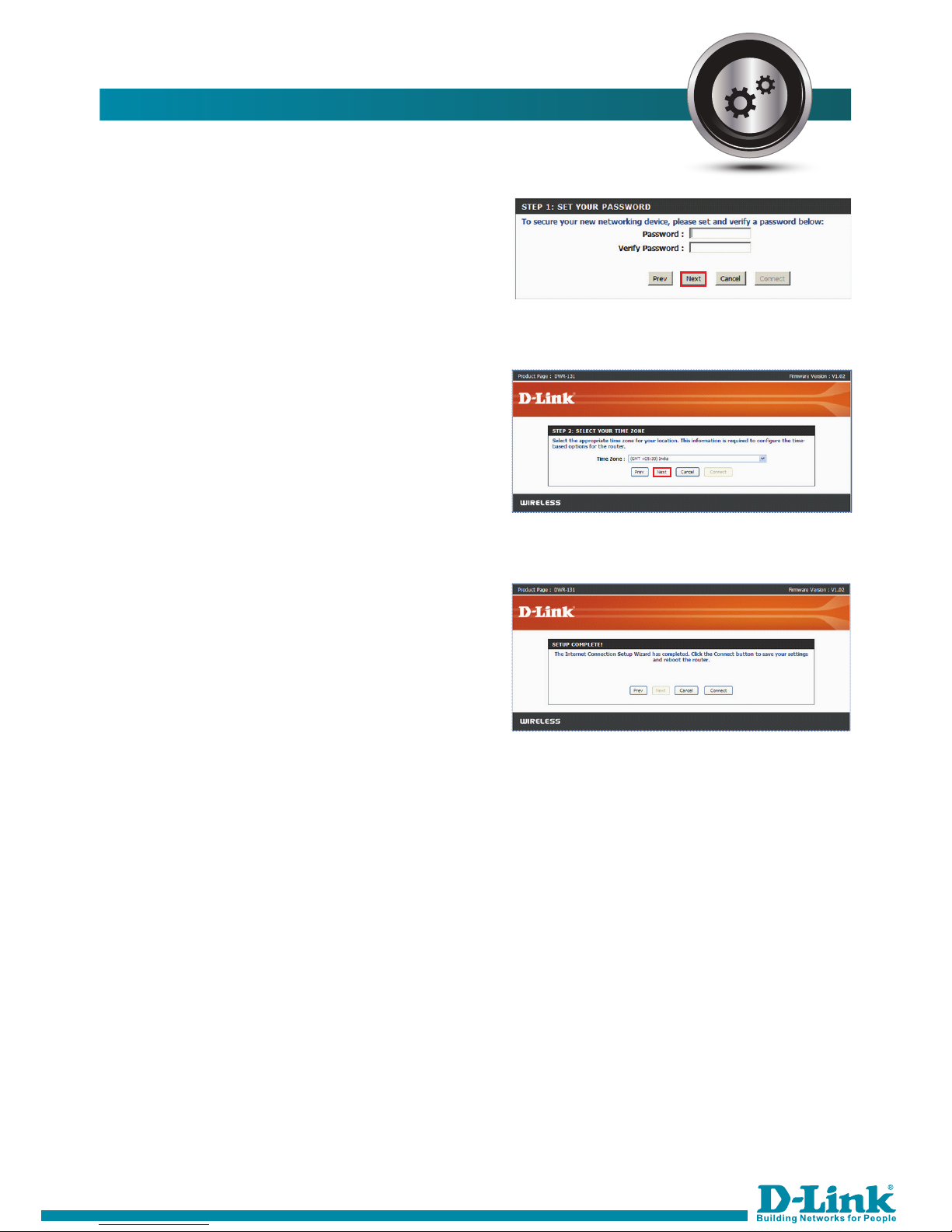

15) At ﬁrst step Device administration

password needs tobe conﬁgured. After

password is provided Click on Next.

16) Setup the Time Zone, For India set

the time to GMT+05.30 INDIA and

Press Next.

19) Now Internet Setup is complete

with DHCP type of connection.

CONFIGURING INTERNET

20) PPPoE connection:- It is an dial Up

connection Type, in this ISP provides

an Username and Password for the

connection. Click Next.

21) Put the Username and password

provided by ISP. IP address is optional.

Service Name will be your ISP name

this is also Optional Click Next.

22) Now Internet Setup is complete

with PPPoE type of connection.

23) DWR series supports PPTP and L2TP

clients as Internet connection.

CONFIGURING INTERNET

24) Connection Type 3G :- In this

connection type, you can use your USB

internet dongle to get the internet.

25) For this type of connection select

3G as option in step 3 & Click Next.

27) Now Internet Setup is complete

with internet type as 3G Dongle.

26) Select Dial-Up Proﬁle:- Manual

Select Country: - Others

Select Telecom: - Others

Select 3G Network:- Let it be Default.

Select Username: - Refer the Table.

Select the password:- Refer the Table.

Dial Number:- Refer the Table.

Select Authentication:- Auto.

APN:- Refer the table.

Press NEXT.

ISP APN

Access

Username Password

Airtel

airtelgprs.com

*99#

blank

Aircel

aircelgprs

*99#

blank

Vodafone

www

*99#

blank

Tata Docomo

tata.docomo.internet

*99#

blank blank

Reliance 3G

rcomnet / smartnet

*99#

blank

BSNL

bsnlnet

*99#

blank

MTNL

mtnl.net

*99#

blank

Idea

internet

*99#

blank

Uninor

uninor

*99#

blank

Tata CDMA

blank

#777

internet

Reliance

CDMA

blank #777

10 digit dongle no

10 digit dongle

MTS

blank

#777

[email protected]

mts

28) Static Ip Connection:- In static IP

connection Service Provider provides

an IP address, subnet mask default

gateway details. For this in Step 3

Select Connection type as Static IP.

29) In next step provide all details and

press Next.

30) After providing all the details Click

on next or Connect.

31) To verify the internet connection

status , kindly click on StatusTab.

CONFIGURING INTERNET
