D-Link DSL-G604T User manual

their respective holders. Software and specifications subject to change without notice. DSL-G604T

Wireless ADSL Router 1

•ADSL Cable (standard telephone cable)

•DSL-G604T

shown with antenna and stand

•Ethernet Cable

(CAT5 UTP Straight-Through)

•12V, 1.2A

Power Adapter

Before You Begin

1. If you purchased this Router to share your high-speed Internet connection with other

computers, you must have an established Internet account from an Internet Service

Provider (ISP).

2. It’s best to use the same computer that is connected to your router for configuring the

DSL-G604T Wireless ADSL Router. The DSL-G604T acts as a DHCP server and will

assign all the necessary IP address information on your network. See atthe Quick

Installation Guide or the Manual on the CD-ROM for setting each network adapter to

automatically obtain an IP address.

Check Your Package Contents

If any of the above items is missing, please contact your reseller.

This product can be setupusing

any current web browser, i.e.,

InternetExplorer6orNetscape

Navigator 6.2.3. DSL-G604T

Wireless ADSL Route

Using a power adapter with

a different voltage rating will

damage and void the

warranty for this product.

•CD-Rom

containing Manual and Warranty

Connecting the Router to your Computer

A. First, connect the power adapter to the power input at the back

panel of the DSL-G604T and then plug the other end of the

power adapter to a wall outlet or power strip. On the front of the

device, the Power LED will turn ON to indicate proper operation.

B. Insert one end of the Ethernet cable into an Ethernet (LAN) port

on the back panel of the DSL-G604T and the other end of the

cable to an Ethernet Adapter or available Ethernet port on your

computer.

C. Insert the telephone cable included with the Router into the

ADSL port, then connect the cable to your telephone line.

D. Check the LED display on the front of the Router to confirm that

the connections have been made.

Power Input

Connect to AC

Adapter

Reset

Push to return to

factory settings

LAN Ports

Connect to the

LAN and other

computers

DSL Port

Connect to your

ADSL provider

ntenna

Ensures good

wireless reception

Configure IP Settings

For Microsoft Windows XP

To connect to the network, make sure the network adapter in

your computer is configured properly. Here’s how to configure

the network adapter to obtain an IP address automatically for

the DSL-G604T Wireless ADSL Router.

Go to Start > select

Settings > click

Control Panel >

Double-click on the

Network

Connections icon

Double-click on

Network Connections

Right-click the

Local Area

Connection icon,

and then select

Properties.

Select Properties

The dialog box displays with a

list of currently installed

network items.

Click Internet Protocol

(TCP/IP)

Make the choice to get IP

settings assigned

automaticall

Select Obtain an IP address

automatically

Click OK

Click Properties

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-

equipped computers to the LAN ports on the back panel of the DSL-

G604T.

When you have completed the steps in this Quick Installation Guide,

your connected network should look similar to this:

Connecting Additional Computers

To The DSL-G604T

Wireless ADSL Router

Configuring the Router

To use your Web browser to access the web pages used to setup the

Router, your computer must be configured to “Obtain an IP address

automatically”, that is, you must change the IP network settings of your

computer so that it is a DHCP Client. If you are using Windows XP and

do not know how to change your network settings, skip ahead to

Appendix at the back and read the instructions provided. You may also

read the User Manual for instructions on changing IP settings for

computers running Windows operating systems.

The Login page appears

Open your Web browser and type

http://10.1.1.1 into the URL address

box. Press Enter or Return.

When you first log in, your Login Name

is admin; your password is also

admin. These may be changed later.

Configuring the Router cont…

Once you have logged in, the Home directory tab is prominent with the

Setup Wizard menu displayed. Most users will be able to use the Setup

Wizard to establish the ADSL connection to your ADSL Internet Service

Provider (ISP). To begin using the Setup Wizard, click on the Run

Wizard button in the middle of the web page. A pop-up menu will appear.

This pop-up menu is the Setup Wizard. The Setup Wizard procedure

consists of five general steps:

1. Set your new password

2. Choose your time zone

3. Set Internet connection

4. Set Wireless LAN

5. Save & Restart

When you setup the Internet connection, you will need to enter the

information provided to you from your ISP. The type of information you

need depends on the type of connection you are setting up.

Click the Run Wizard button.

Configuring the Router cont…

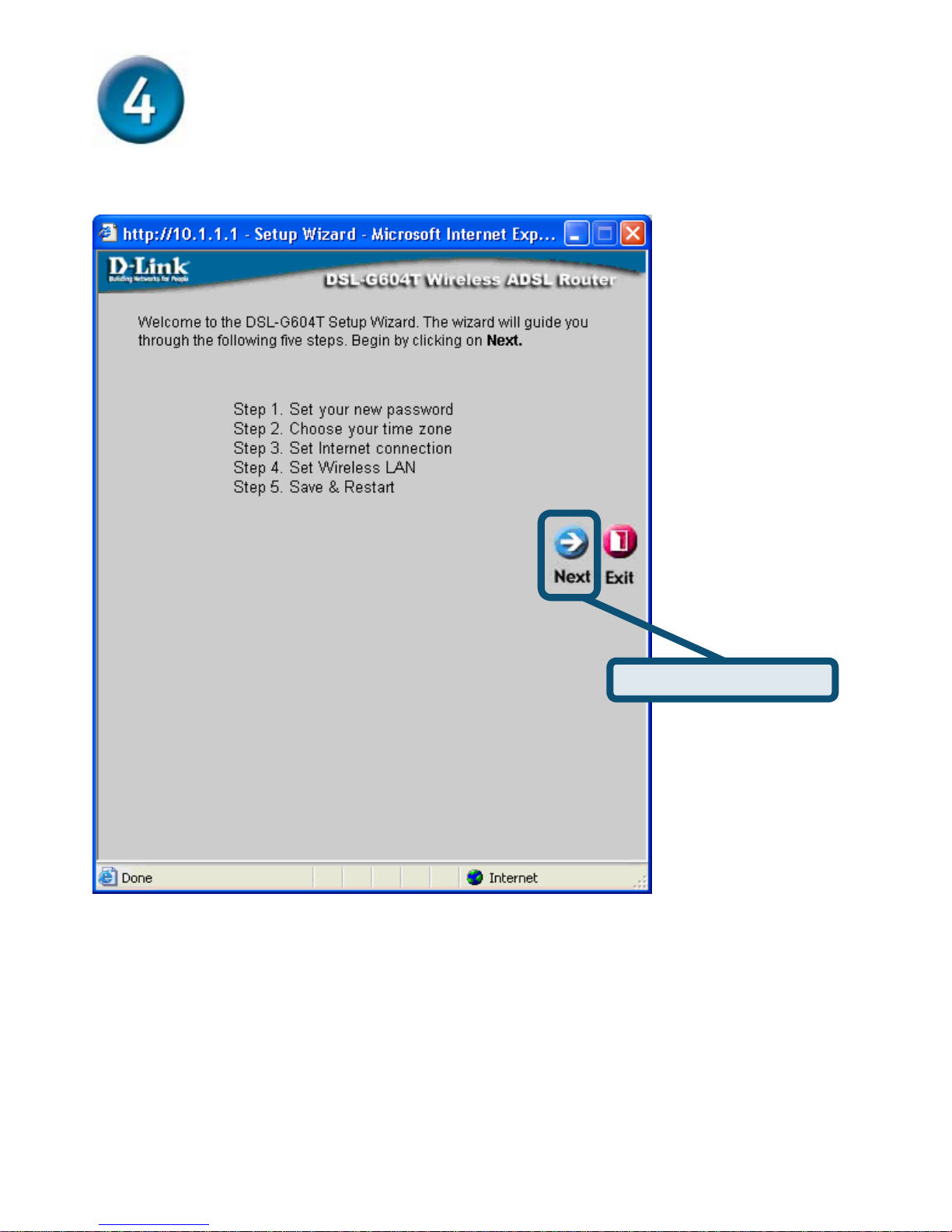

The first Setup Wizard menu lists a summary of the steps required to

complete the setup. Click the Next button to begin setup.

Click the Next button.

Configuring the Router cont…

Set the new Password used by the administrator to configure the Router.

You have already used the default Password “admin” to access the web

manager. You can choose another Password. The login User Name

“admin” cannot be changed. Type in the new Password and type it a

second time to Verify Password. Click Next to continue.

Type the new Password used by

the Router administrator and type

it again in Verify Password.

Click the Next button.

Configuring the Router cont…

Now configure the Time Zone used for the Router’s system clock. Select

the appropriate time zone and Daylight Saving Time setting for your

location.

Next you will Set the Internet Connection Type for the WAN interface.

Your ISP should have given this information to you. If you do not know

what type of connection to use, exit the Setup Wizard and contact your

ISP for the information. The Setup wizard menu that appears when you

click the Next button depends on what connection type you select.

Select the Time Zone you are

located and set the appropriate

Daylight Savings Time (On/Off).

Click the Next button.
