D-Link DSL-224 User manual

Setup Guide for the DSL-224

Step 1: Open your Internet browser (ex. Internet Explorer, Mozilla, Google Chrome, Safari) and

type in the Routers IP address in the address bar and press enter. (Default IP 10.0.0.2).

Step 2: Type in the User Account Credentials for the router. By default the Username is: admin and

the Password is: admin

Step 3: Click on Internet setup, Channel Config. Select the WAN Physical type as “Ethernet WAN”

Note: once interface has been selected, unit will restart to load correct interface.

Setup Guide for the DSL-224

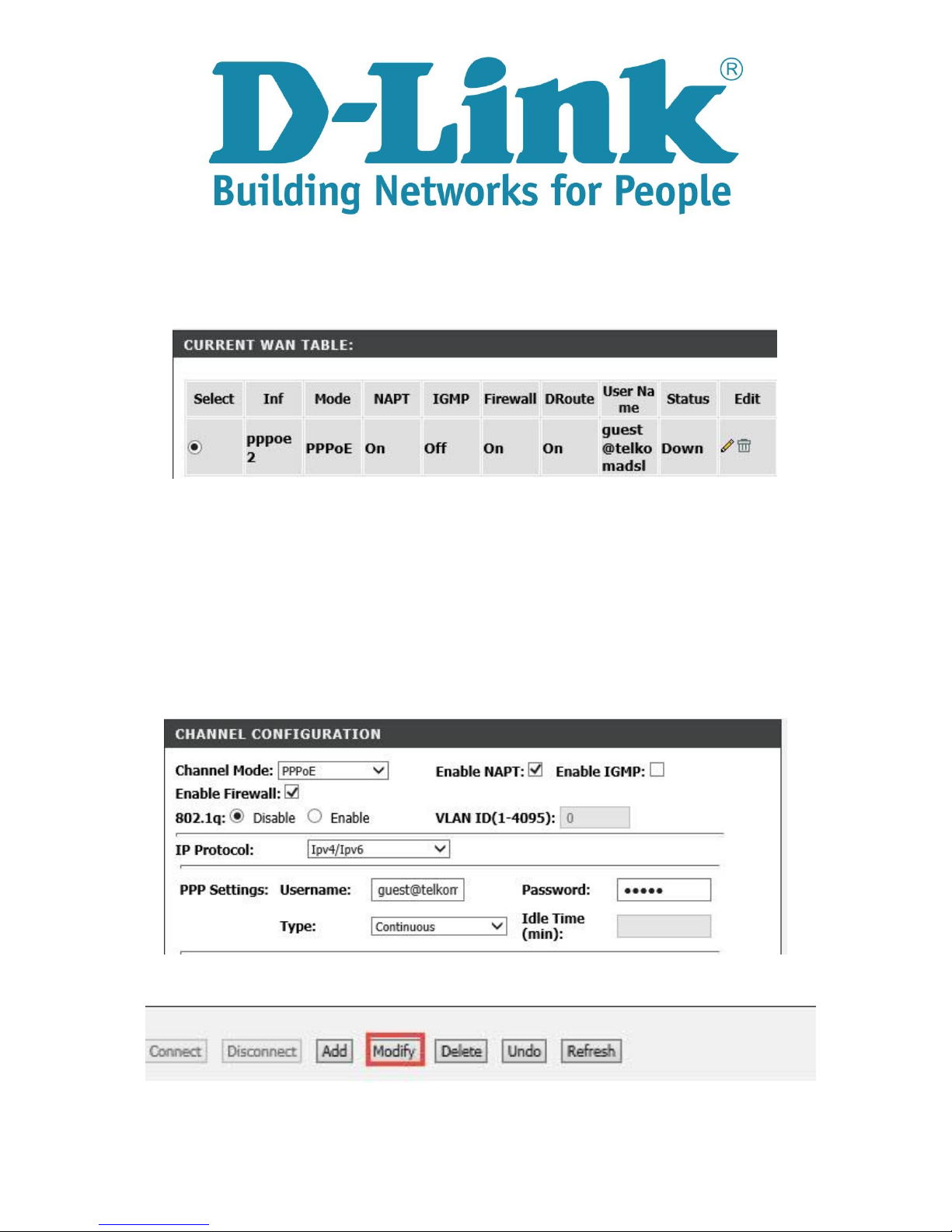

Step 4: After the unit has loaded the correct interface, Scroll down to the WAN table. Select the

circular tick box to edit the default account.

Step 5: Scroll up to the Channel configuration and modify the default configuration with

the username and password provided by your ISP

Channel mode: PPPoE

Enable NAPT: Enabled by default

Enable Firewall: Enabled by default

802.1q: Disable (Enabled by default)

IP Protocol: IPv4/IPv6

PPP setting Username and Password. Please enter details provided by ISP (Default is

guest@telkomadsl and guest).

Step 6: Click on modify to apply the new settings.

Setup Guide for the DSL-224
