D-Link DI-804V User manual

Before you begin…

Make sure that any existing Firewall Software/Devices are disabled and/or shutdown

before beginning installation of your new D-Link DI-804V Broadband Router.

• DI-804V Broadband Router

• Manual on CD

• Quick Install Guide

• Power Adapter – 5V DC, 2A*

• CAT5 UTP Cable

*Using a power supply with a different voltage rating will damage and void the warranty for this product. If any of the

above items are missing, please contact your reseller.

When you have completed the steps in this installation guide, your connected

network may look similar to this:

Connecting the DI-804V Broadband

Router to your network

Contents of Package

Connect

to Power

Adapter

-2-

• First, plug in the power supply. The Power LED will turn ON to indicate

proper operation.

• Using CAT5 UTP cables*, connect computers that are equipped with

Ethernet adapters to one of the four Ethernet LAN ports on the DI-

804V.

*All ports on the DI-804V are Auto-MDIX, meaning it will work with

either a straight through or cross-over cable.

The LED for the specific Local Ethernet Port will light up to indicate

proper connection. Check the front panel of the DI-804V to make sure

that the appropriate LEDs come on when you plug any cable in.

• Next, using a CAT5 UTP cable*, connect the Broadband (WAN) port to the

Cable or DSL modem.

The Broadband LED will light up to indicate proper connection.

Connecting the DI-804V Broadband

Router to your network

WAN Port: Connect to

Broadband Cable/DSL

Modem

LAN Ports: Connect to

Computers

Checking the IP Address of the computer being used to

configure the DI-804V Broadband Router

Note: If you are manually assigning a static IP, please refer to Appendix A.

-3-

Installing the DI-804V

using the Setup Wizard

Go to Start>Run

Type “cmd”

Type “ipconfig” at

the prompt in this

window.

The current IP

settings will be

displayed.

The IP address of the

computer must be

between 192.168.0.2

and 192.168.0.254 in

order to configure

the router.

If your IP address is within this range, then continue

to the next page.

If the IP address is not within the range, type

“ipconfig /release”, then type “ipconfig /renew”.

Your network adapter will now receive an IP address

within the desired range.

-4-

Click on Start the

Setup Wizard at the

bottom of the Main

menu.

Installing the DI-804V

using the Setup Wizard (continued)

Open the web browser and

type “http://192.168.0.1”

into the URL address box.

Note: Please disable any

roxy server setting for the

web browser.

When the login screen

appears, type “admin”

in the User name box,

and leave the Password

field blank.

Click OK.

-5-

At this window, select

your local time zone.

Click Next, to

continue.

The default IP address of the

LAN port is set to 192.168.0.1

Subnet mask is

255.255.255.0

Click Next to accept the

default settings.

Installing the DI-804V

using the Setup Wizard (continued)

By default, the DI-804V is

set to obtain an IP address

automatically. If you are

assigned a static IP address

by your ISP provider,

remove the check mark in

the window at the right and

enter the static IP

information provided to you

by your ISP.

Click Next.

-6-

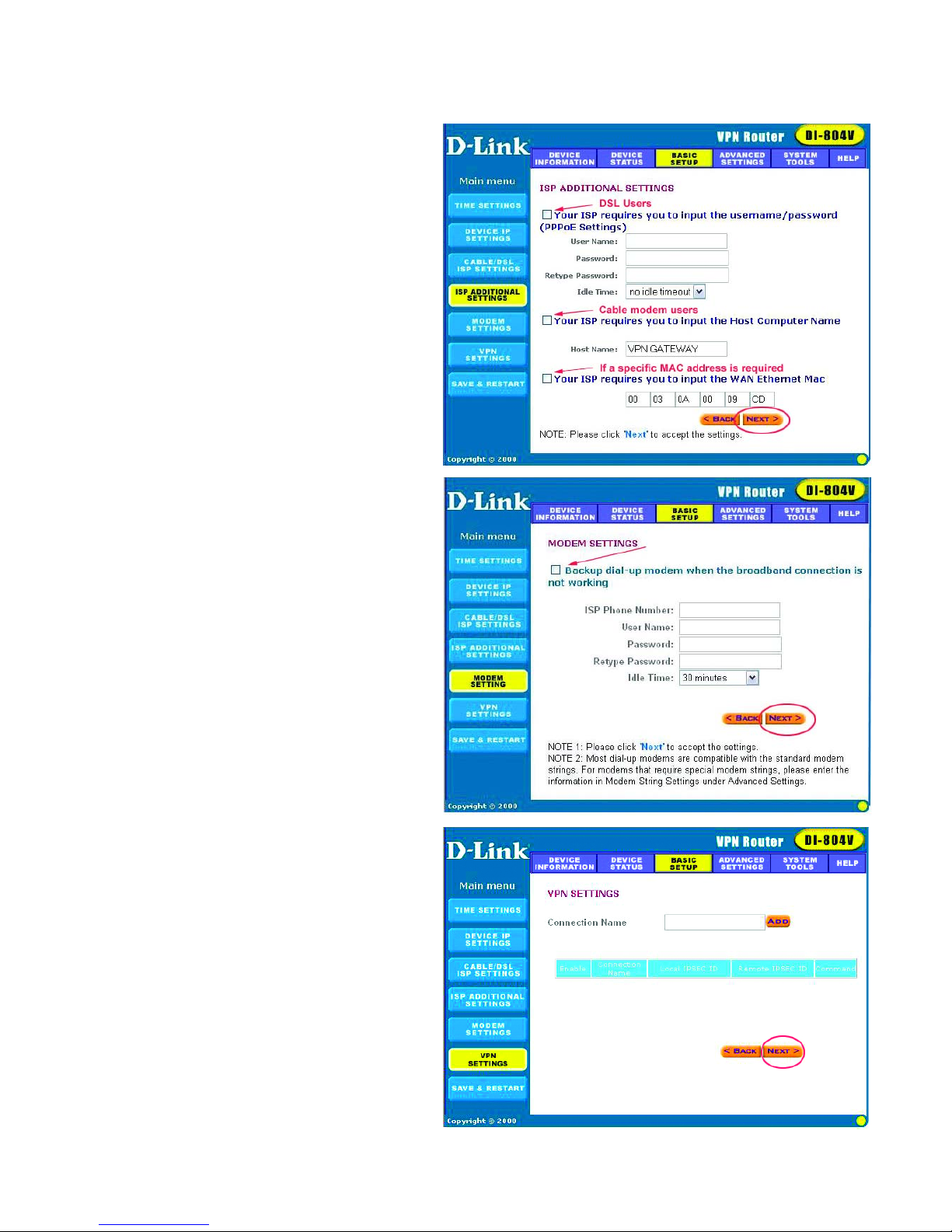

Installing the DI-804V

using the Setup Wizard(continued)

Cable modem users:

If your ISP requires you to enter a host

name, then place a checkmark in the

second box and enter the appropriate

information.

If you are using a backup dial-up

modem with the Broadband router,

place a checkmark in the box, as

shown, and enter the settings for the

dial-up connection.

Click Next

A specific MAC address is required:

If your ISP requires you to use a

specific WAN Ethernet MAC address,

place a checkmark on the third box

and enter the appropriate information.

Click Next

DSL users:

If you are using a PPPoE client to

connect to your DSL provider, place

a checkmark on the first box, and

enter the User Name and Password

in the appropriate box.

We will skip this section for now.

Please refer to Appendix C for a

VPN setup example.

Click Next

-7-

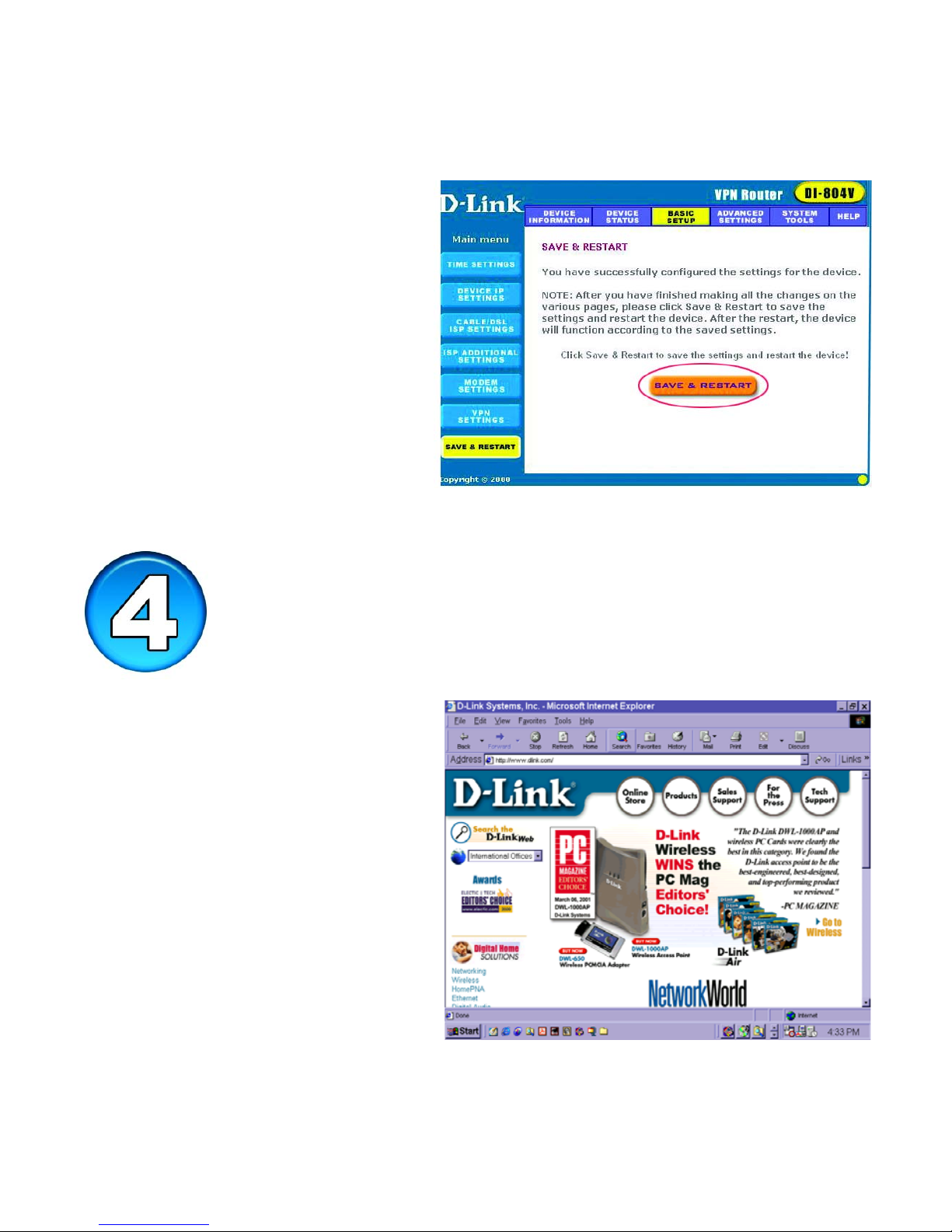

To complete the Setup Wizard,

Click Save and Restart

To check the connection,

open the web browser

and go to your favorite website.

If you are unable to browse, please do

the following:

1. Refer to Appendix B to check your

connection to the wireless router.

2. Use “Help” on the

Main Menu.

3. Refer to the “Troubleshooting”

section in the user’s manual.

Installing the DI-804V

using the Setup Wizard (continued)

Checking the connection

to the Internet

Assigning a Static IP

Address

If the network adapter is unable to

obtain an IP address automatically

from the Broadband Router, then go

to: START>SETTINGS>

CONTROL PANEL>

NETWORK CONNECTIONS

Then right-click on the “Local Area

Connection” icon corresponding to

your network adapter, click on

Properties.

Highlight “Internet Protocol

(TCP/IP)”

Click on “Properties.”

Choose “Use the following IP

address” and input an IP address

between 192.168.0.2 to

192.168.0.99 in the IP Address box.

Enter the “Subnet mask” of

255.255.255.0

Enter the “Default Gateway” of

192.168.0.1

Enter the “Preferred DNS server”

of 192.168.0.1

Click OK on all screens to save

the changes.

endix A

-8-

Checking Your Network Connections

Use “Ping” to check your network connections.

Go to START>RUN

Type “cmd” in the box.

Click “OK”

If cmd does not work, try command

Type “ping 192.168.0.1” which is the IP address

of the LAN port of the Broadband Router. Hit

the “Enter” key.

A successful connection will show four replies,

as shown.

What is a Virtual Private Network (VPN)?

A VPN is the extension of a private network across public or shared networks such as the

Internet. A VPN allows data to be sent between two computers across the Internet in a manner

that emulates a point-to-point private link.

Sample VPN Tunnel Setup

This example will demonstrate how to create a Virtual private Network (VPN) between two

remote locations through the Internet. The VPN policy will use 3DES IPSec to securely

send/receive encrypted data over the Internet. When the VPN tunnel is enabled, the two offices

will virtually appear to be on the same local network.

This example will consist of two DI-804V VPN Routers with a simple setup. The two remote

offices in this example will be known as Office A and Office B. Both VPN Routers must

already be set up and able to access each other. This is only an example, your setup will vary

using the WAN IP address provided by your ISP.

Please note the differences in the IP addresses for each office.

-9-

endix B

endix C

We will begin by configuring the DI-804V at Office A. Start by going into VPN Settings

under the Basic Setup menu. In the Connection Name field, type in OfficeA.

Click ADD.

A properties screen will

appear for the new

connection you have

made. Fill in the

appropriate information

for Office A.

Connection Name: OfficeA

Local IPSEC Identifier: Local

Remote IPSEC Identifier: Remote

Remote IP Network: 192.168.1.0

Remote IP Netmask: 255.255.255.0

Remote Gateway IP: 192.170.0.2

Network Interface: WAN

ETHERNET

Secure Association: IKE

Perfect Forward Secure: Enabled

PreShared Key: 123456

Key Life: 28800

IKE Life Time: 3600

Click SAVE

There should now be a VPN policy created for Office A. Now you will want to Save & Restart

the DI-804V.

Note: 123456 is an example of a preshared key, please fill in any secret preshared key you

desire. Keep in mind that both sites require the same preshared key.

-10-
