D-Link DI-704GU User manual

Wireless G USB 2.0 Adapter

Wireless Internet Camera

with 3G Mobile Video

2D-Link DI-704GU Quick Install Guide

System Requirements

• Ethernet-based Cable or DSL Modem

• Computers with Windows®, Macintosh®, or Linux-based operating

systems with an installed Ethernet adapter

• Internet Explorer 6.x and above, or Netscape®Navigator 7.0 and

above

Package Contents

D-Link DI-704GU

Gigabit QoS Router

System Requirements

If any of the above items are missing, please contact your reseller.

CAT5 Ethernet Cable Power Adapter

CD-ROM with

Manual

3 D-Link DI-704GU Quick Install Guide

Hardware Overview

Power LED

A solid light indicates a

proper connection to the

power supply.

USB LED

A solid light indicates a connection

to the USB port. This LED blinks

during data transmission.

Status LED

A blinking light indicates that

the DI-704GU is functioning

properly.

Local Network LEDs

A solid light on each port

indicates a connection to an

Ethernet enabled device.

These LEDs blink during data

transmission.

WAN LED

A solid light indicates a connection

on the WAN port. This LED blinks

during data transmission.

4D-Link DI-704GU Quick Install Guide

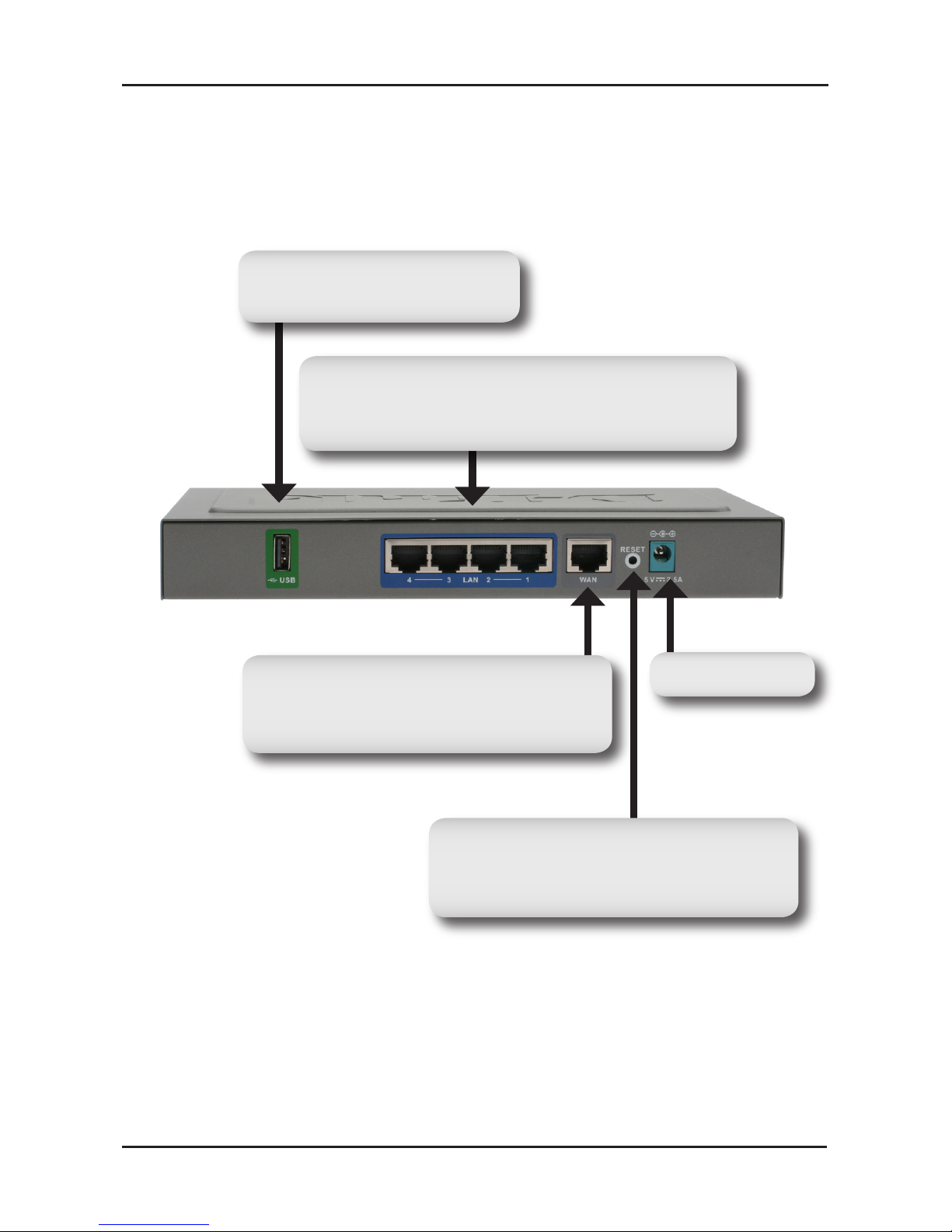

Hardware Overview

USB Port

Connection for a USB printer.

LAN Ports

These are the connections for Ethernet cables to

Ethernet-enabled computers.

Power Receptor

WAN Port

This is for the connection of an Ethernet

cable to your Cable or DSL modem.

Reset Button

Pressing this button restores the Router to

its original factory default settings.

5 D-Link DI-704GU Quick Install Guide

Hardware Installation

First, connect the power adapter to the receptor at the back panel

of the DI-704GU and then plug the other end of the power adapter

to a wall outlet or power strip. The Power LED will turn ON to

indicate proper operation.

B.1.Power off your Cable or DSL modem; some devices may not have

a on/off switch and will require you to unplug the power adapter.

Now, the DI-704GU should be powered on and the Cable/DSL

modem should be turned off.

2.Cable/DSL modem (Power Off) – DI-704GU (Power On) Connect

an Ethernet cable to the Ethernet jack located on the Cable/DSL

modem. After the Ethernet cable is securely connected, power on

the Cable/DSL modem by turning on the unit or plugging in the

power adapter.

3. Cable/DSL modem (Power On) – DI-704GU (Power On) Insert

the other end of the Ethernet cable to the WAN PORT on the

back panel of the DI-704GU. The WAN LED light will illuminate

to indicate proper connection. If the WAN LED is not illuminated,

please go back to step B1 and repeat the instructions.

C.Insert an Ethernet cable to LAN port 1 on the back panel of the

DI-704GU and an available Ethernet port on the network adapter

in the computer you will use to conﬁgure the DI-704GU. The LED

light for LAN Port 1 will illuminate to indicate proper connection.

Note: The LAN Ports on the DI-704GU are Auto-MDI/MDIX.Which

means you can use straight-through or crossover Ethernet cables

to connect to the LAN Ports.

D.Computers equipped with Ethernet or Gigabit Ethernet adapters

will be able to connect to the DI-704GU.The DFE-530TX or DGE-

530T PCI Adapters (as examples) will be able to connect with the

router without any additional conﬁguration required.

6D-Link DI-704GU Quick Install Guide

Getting Started

Getting Started Conﬁguration

7 D-Link DI-704GU Quick Install Guide

Conﬁguration

This section will show you how to conﬁgure your new D-Link Gigabit

QoS Router using the D-Link Setup Wizard.

Conﬁguration

Click Log In

Click Run Wizard

Open your Web browser and type

“http://192.168.0.1” into the URL

address box.Then press the Enter

or Return key.

Select “Admin” from the

User Name drop down menu

and leave the password ﬁeld

blank.

8D-Link DI-704GU Quick Install Guide

Conﬁguration

Click Next

You have the option to establish

a password for the User Name

“Admin”.

Choose your time zone from the

drop down list.

9 D-Link DI-704GU Quick Install Guide

Conﬁguration

You will be prompted to select the type of Internet connection for your

router. If you are unsure of which setting to select, please contact

your Internet Service Provider.

Static IP Address - page 10

PPPoE - page 11

PPTP - page 12

L2TP - page 13

Big Pond - page 14

If you selected Dynamic IP Address, this screen will appear: (Used

mainly for Cable Internet service).

Click Next

Dynamic IP Address

Click Next

Continue to page 15

Click the “Clone MAC Address”

button to automatically copy the

MAC address of the network

adapter in your computer. You

can also manually type in the

MAC address.

10D-Link DI-704GU Quick Install Guide

Conﬁguration

If your ISP requires a Static

IP Address, please select the

corresponding radio button.

Enter the IP address that

was originally provided to you

by your ISP. You will need to

complete all of the required

ﬁelds.

Click Next

Static IP Address

Click Next

Continue to page 15
