D-Link DHP-W310AV User manual

Quick Installation Guide

DHP-W310AV

Powerline AV 500

Wireless N Mini Extender

Installationsanleitung

Guide D’installation

Guía de Instalación

Guida di Installazione

Installatiehandleiding

Instrukcja Instalacji

Instalační příručka

Telepítési Segédlet

Installasjonsveiledning

Installationsvejledning

Asennusopas

Installationsguide

Guia de Instalação

Οδηγο Γρηγορη Εγκατασταση

Vodič za Brzu Instalaciju

Kratka Navodila za Uporabo

Ghid de Instalare Rapidă Version 1.00 | November 29, 2012

DHP-W310AV

ENGLISH

Package Contents

Wi-Fi Conguration Note

CAT5 Ethernet Cable

Powerline AV 500 Wireless N Mini Extender

Installations-CD

Hardware Installation

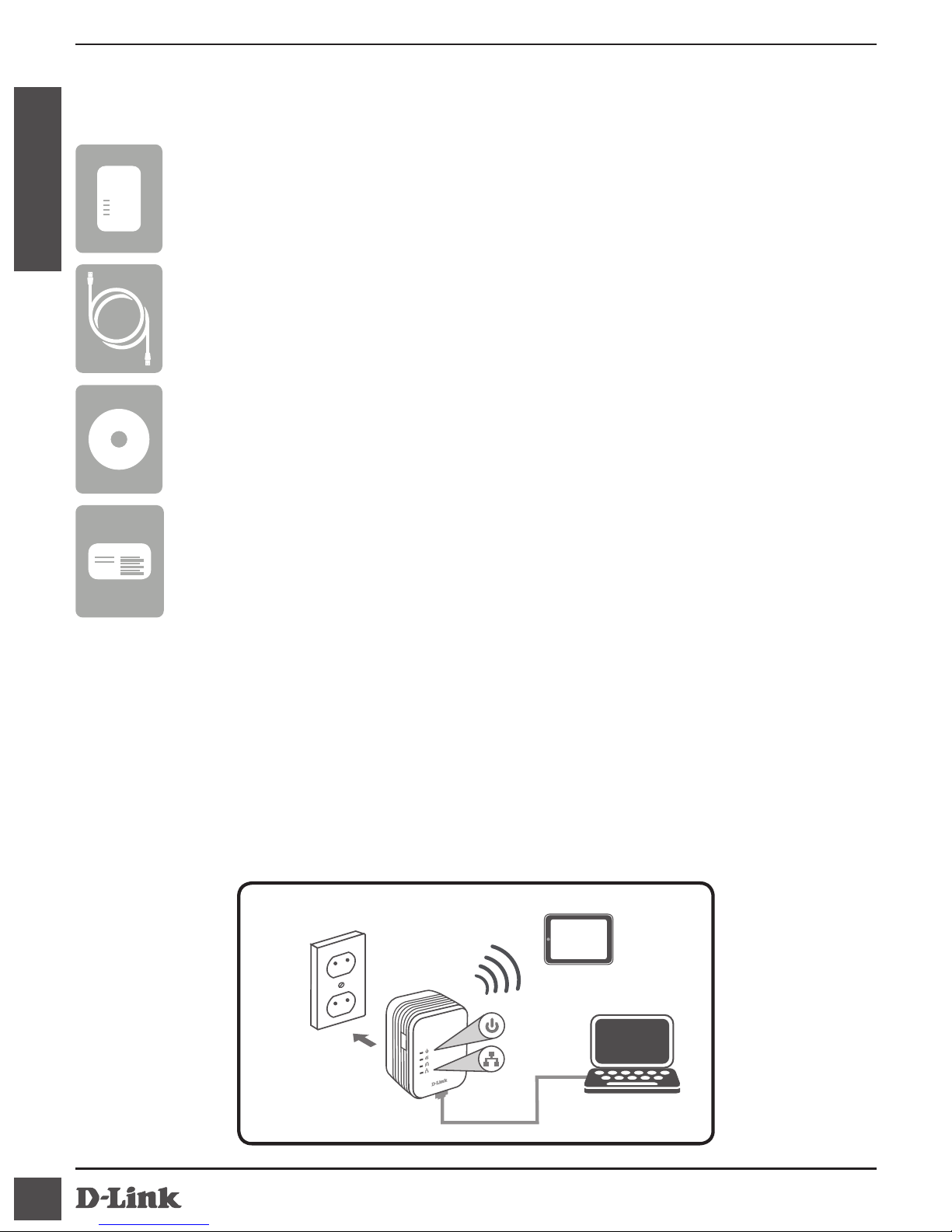

1. Plug the DHP-W310AV Powerline AV 500 Wireless N Mini Extender

into a wall outlet in a place you want to extend your network.

ROOM C

DHP-W310AV

iPad

Notebook

Wi-Fi Conguration Card

DHP-W310AV

ENGLISH

Hardware Installation

2. Connect the included Ethernet cable to your DHP-W310AV and

computer. You may also connect to the DHP-W310AV over Wi-Fi

with the information on the Wireless Conguration Card.

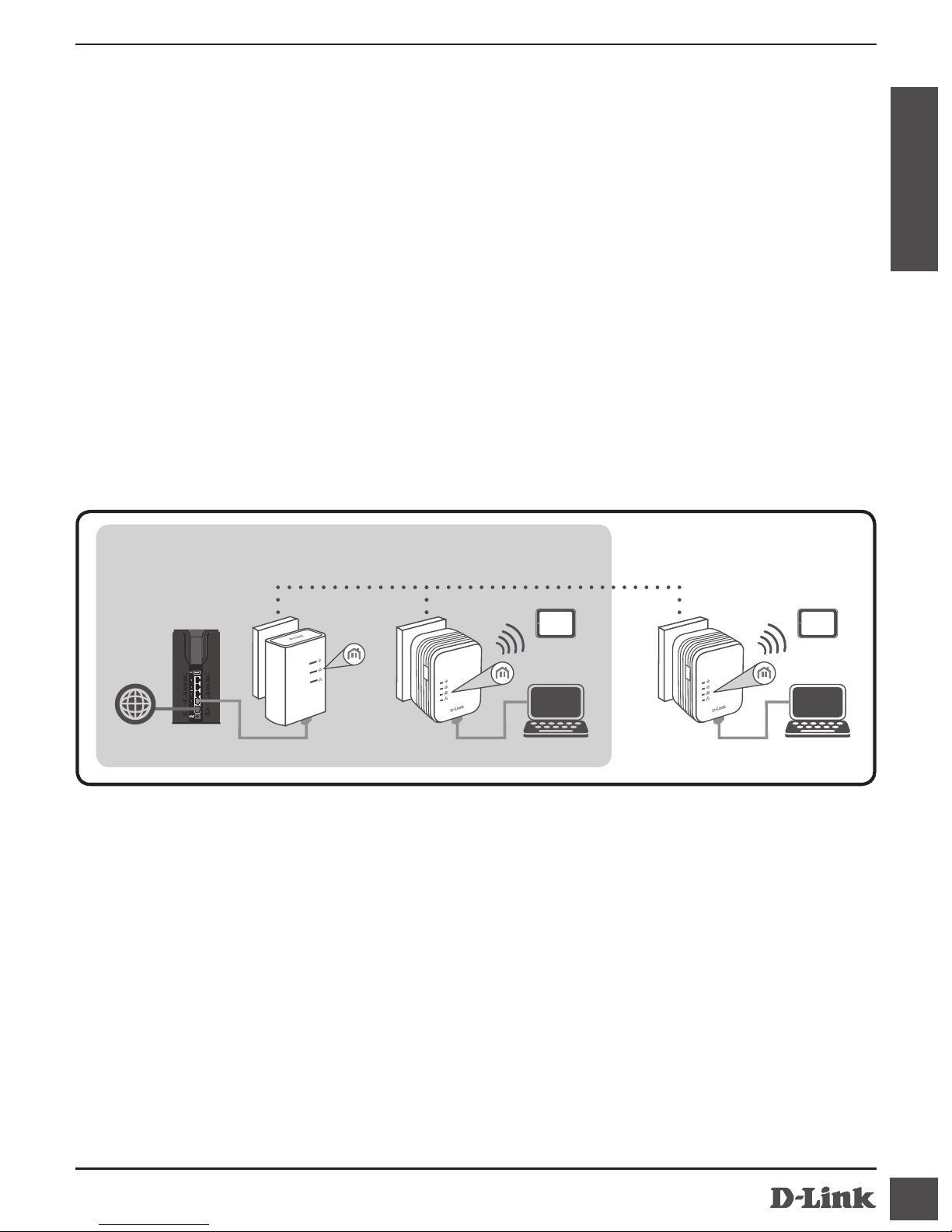

3. Your computer and DHP-W310AV are now connected. Please re-

fer to “First-time Conguration” on the next page to connect your

DHP-W310AV with your existing Powerline network.

ROOM A ROOM B ROOM C

DHP-W310AV DHP-W310AV

DHP-308AV

RouterInternet Notebook Notebook

iPad iPad

DHP-W310AV

ENGLISH

First-time Conguration

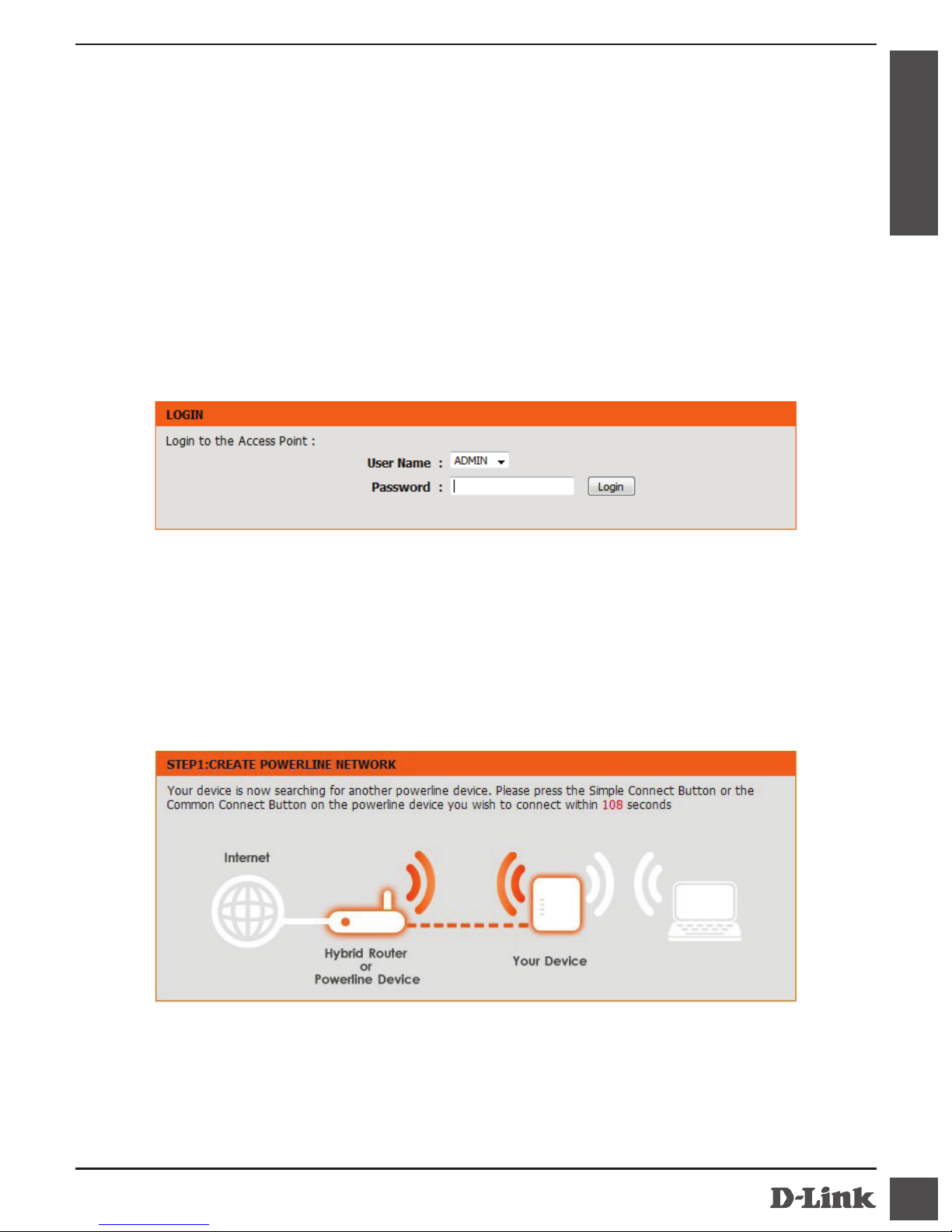

1. Use your web browser to go to:

http://dlinkapWXYZ.local. or http://dlinkap.local.

where WXYZ is the last 4 digits of the MAC Address. The MAC Ad-

ress and device name are listed on the Wireless Conguration Card.

2. Select ADMIN for the User Name and leave the Password blank.

3. From the landing page, start the Setup Wizard for Powerline Con-

nection.

4. When prompted, press the Common Connect Button for 2 sec-

onds on your existing device to connect it to the DHP-W310AV.

5. Follow the wizard’s steps to set up your Powerline network. For

more detailed support, please refer to the User Manual.

DHP-W310AV

ENGLISH

Frequently Asked Questions

Q: Why can’t my DHP-W310AV nd my Powerline network?

• Be sure you are plugging directly into a wall outlet. Plugging into

anything else may slow or stop the connection.

• The electrical wiring must have a direct connection. For example,

Powerline connections may not be available across a street or to

dierent units in an apartment building.

Q: My connection is erratic and sometimes cuts out or is slow, why?

• Try to keep nearby outlets free of other devices, especially chargers

and hair dryers, to minimize electrical interference.

Q: How do I nd my wireless network? Why does it have such a weird

name? Can I change it?

• You can nd the Wi-Fi name (SSID) and password on the Wireless

Conguration Card. Common names and passwords like dlink or

password are avoided for security purposes.

• You can change your wireless settings by navigating a web brows-

er to http://dlinkapWXYZ.local. then Setup then Wireless Settings.

WXYZ is an example, the real address is on your conguration card.

Q: Can I use only the DHP-W310AV to get online?

• At least two Powerline devices work together to create a network.

They communicate over your electrical wiring, but you still need an

Internet connection from a router and/or modem.

Q: Can I use more than one DHP-W310AV device at a time?

• Yes you can! D-Link oers a host of Powerline devices that include

adapters, extenders, and routers.

DHP-W310AV

ENGLISH

United Kingdom (Mon-Fri) website: http://dlink.com

Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm)

Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am- 05.30pm)

(BT 10ppm, other carriers may vary.)

Ireland (Mon-Fri)

All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm)

Phone rates: €0.05ppm peak, €0.045ppm o peak times

Technical Support

DHP-W310AV

DEUTSCH

Packungsinhalt

Wi-Fi-

Kongurationshinweis Wireless Conguration Card

(Kongurationskarte)

Kat.5 Ethernet-Kabel

Powerline AV 500 Wireless N Mini Extender

IInstallations-CD

Hardware-Installation

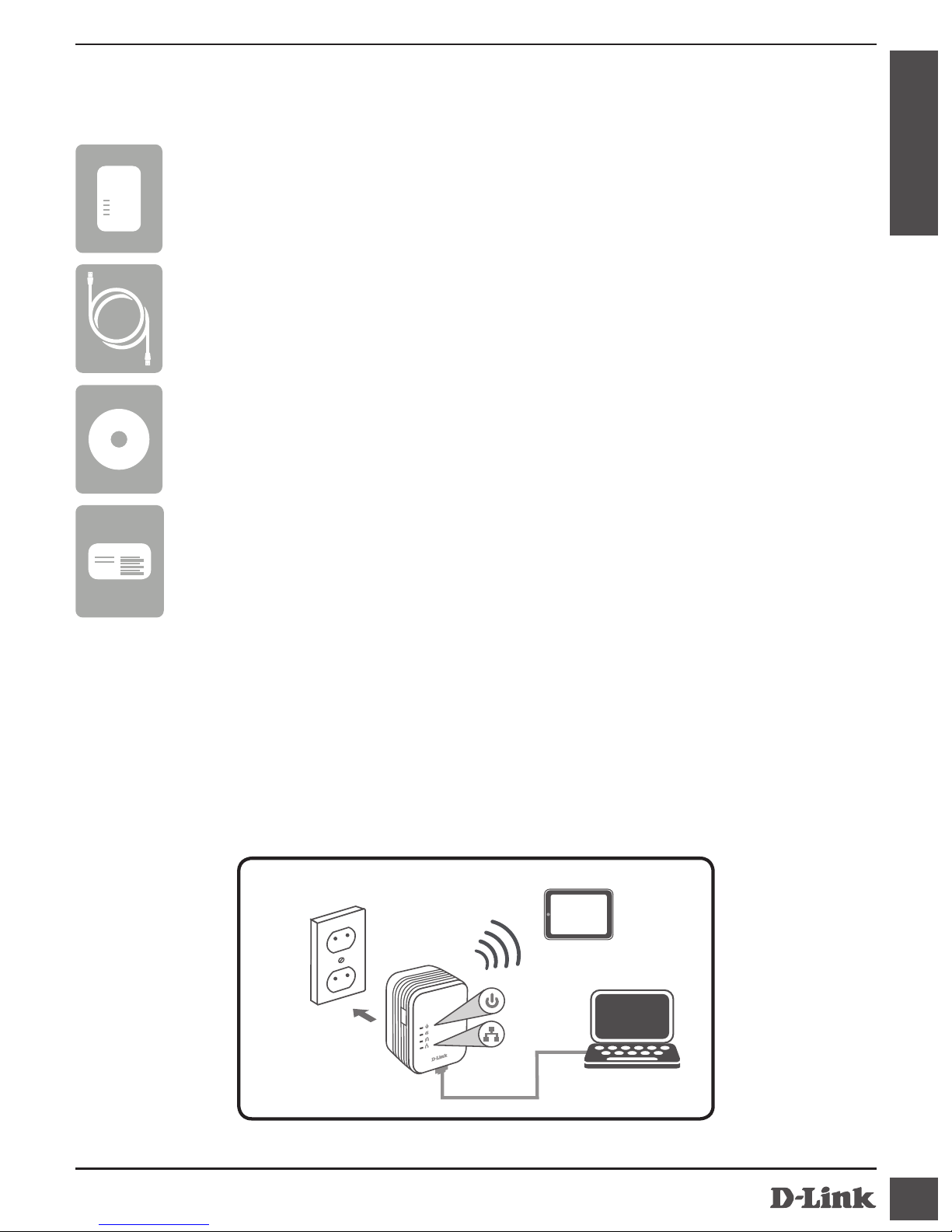

1. Schließen Sie den DHP-W310AV Powerline AV 500 Wireless N Mini

Extender dort an eine Wandsteckdose an, wo Sie Ihr Netzwerk

erweitern möchten.

RAUM C

DHP-W310AV

iPad

Notebook

DHP-W310AV

DEUTSCH

Hardware-Installation

2. Schließen Sie das mitgelieferte Ethernet-Kabel an Ihrem DHP-

W310AV und am Computer an. Sie können auch eine Verbindung

zum DHP-W310AV über Wi-Fi herstellen. Nutzen Sie dazu die Infor-

mationen auf der Wireless Conguration Card (Kongurationskar-

te für drahtlose Verbindungen).

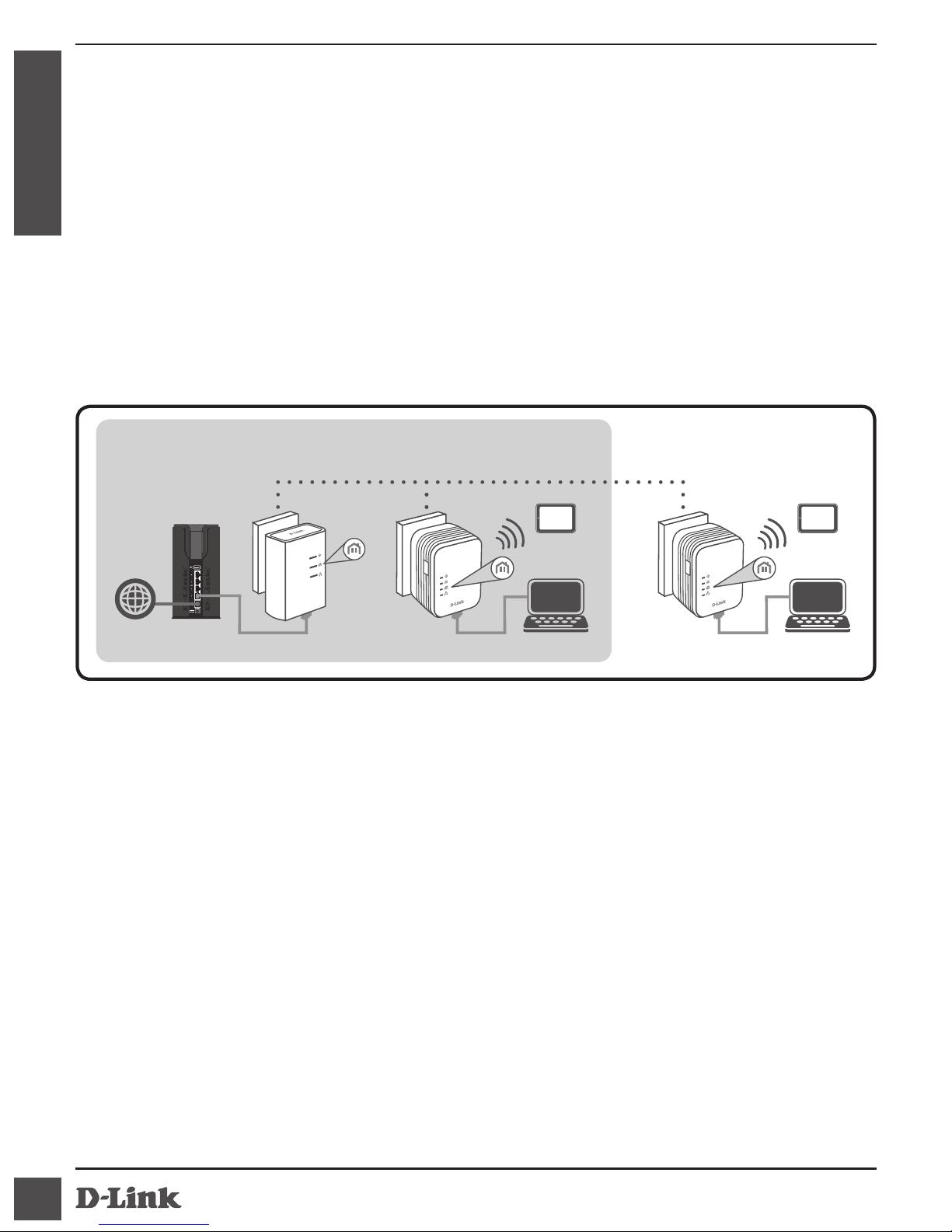

3. Ihr Computer und Ihr DHP-W310AV sind nun miteinander verbun-

den. Informationen zur Verbindung Ihres DHP-W310AV mit Ihrem

bestehenden Powerline-Netzwerk nden Sie unter “Erstkongura-

tion” auf der nächsten Seite.

RAUM A RAUM B RAUM C

DHP-W310AV DHP-W310AV

DHP-308AV

RouterInternet Notebook Notebook

iPad iPad

DHP-W310AV

DEUTSCH

Erstkonguration

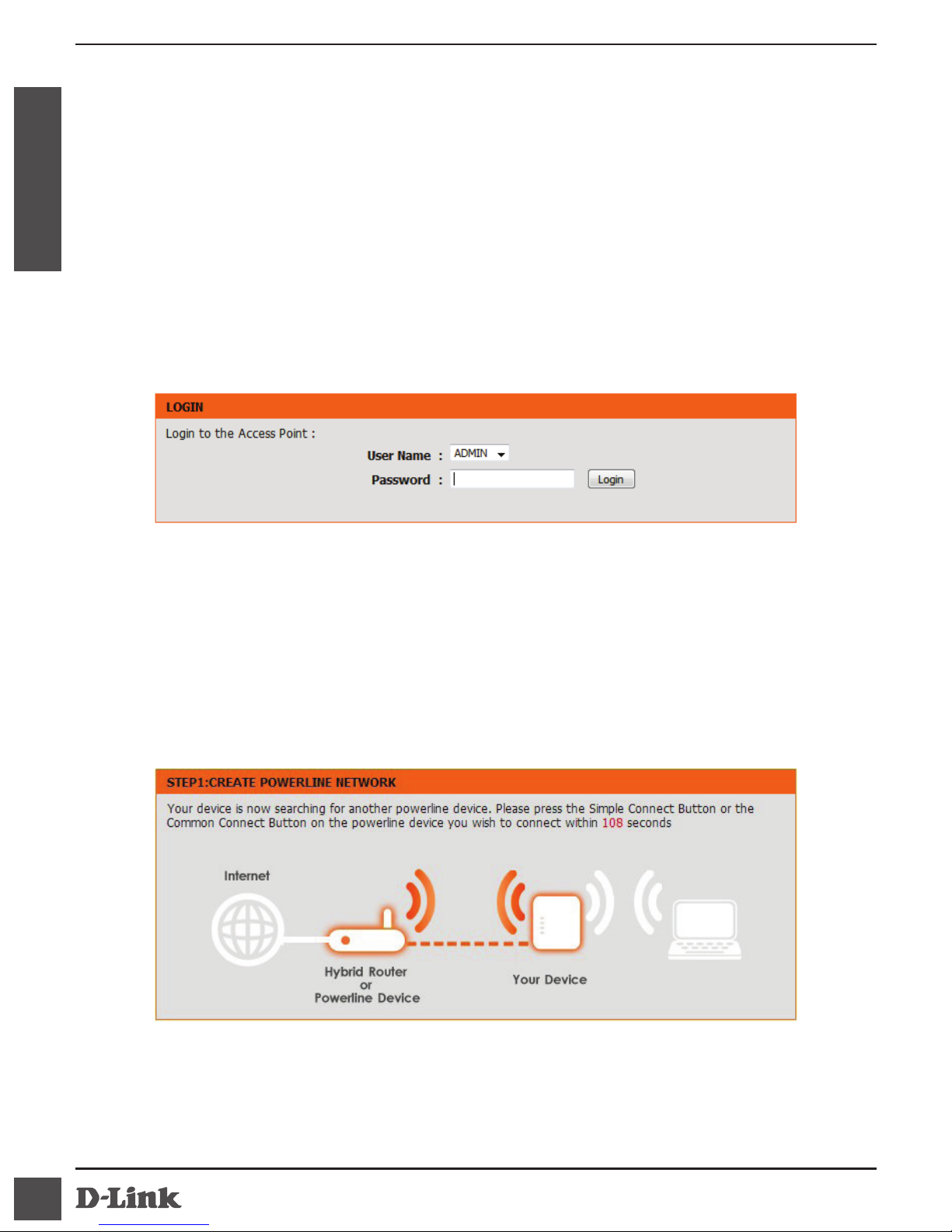

1. Verwenden Sie Ihren Webbrowser, um folgende Seite aufzurufen:

http://dlinkapWXYZ.local. oder http://dlinkap.local.

wobei WXYZ die letzten vier Zeichen der MAC-Adresse sind. Die

MAC-Adresse und der Gerätename sind auf der Wireless Congu-

ration Card angegeben.

2. Geben Sie als Benutzernamen ADMIN ein und lassen Sie das Kenn-

wortfeld leer.

3. Starten Sie den Einrichtungsassistenten für die Powerline-Verbin-

dung (Setup Wizard for Powerline Connection) von der Startseite.

4. Sobald Sie dazu aufgefordert werden, drücken Sie 2 Sekunden

lang auf die Taste 'Common Connect' auf Ihrem vorhandenen

Gerät, um eine Verbindung zwischen diesem Gerät und dem DHP-

W310AV herzustellen.

5. Folgen Sie der schrittweisen Anleitung des Assistenten, um Ihr

Powerline-Netz einzurichten. Ausführlichere Informationen nden

Sie im Benutzerhandbuch.
