Cypress CP-260D User manual

YPbPr to DVI-I

Format Converter

Operation Manual

CP-260D

The YPbPr to DVI-I format conveter converts analog

YPbPr signal to digital DVI signal.

It allows you to connect the YPbPr output from Video equipments

to the DVI input of the monitors or projectors.

Its high bandwidth capability supports a wide range of PC and

HDTV resolutions.

Features:

* It enables you to connect DVD or set top box with YPbPr

output to the DVI input of your new monitors or projectors.

* You can select digital output format between RGB and YPbPr.

* Supports up to 1600 x 1200 @ 60 for PC input and

1920 x 1080p @ 60 for HD input.

* Supports DDWG standard for DVI complaint monitors.

Operation Controls and Functions

Front Panel Rear Panel

1. Analog YPbPr input connector:

Connects to the YPbPr or YCbCr output of your DVD or set top box.

2. DC power supply 5V 500mA~2A center-positive.

3. LED light.

4. DVI-I output connector:

Connects to the DVI input of your TV, Monitor, or Projector.

5. Out Switch: Switch output format between YPbPr and RGB.

Set the switch to YPbPr to get digital YPbPr output;

Set the switch to RGB to get digital RGB output.

DVI-I OUTPUT OUTPUT

RGB

YPbPr

DC 5V 2A

Pr Pb Y

HD INPUT

1 2 45

What is included

1. The CP-260D unit.

2. DC adaptor 5V 500mA~2A center-positive.

3. User manual.

Specifications

* Input: Analog YPbPr on 3 RCA connectors

* Input signal:

Y : 1 Vp-p 75 ohm,

Pb/Pr: 0.7 Vp-p, 75 ohm

* Output: DVI-I connector

* Output signal: Digital RGB or YPbPr data bitstream

* Compliant with DVI Rev 1.0

* Operation frequency: up to 165MHz

* Input/ Output resolution:

PC：VGA@60、VGA@72、VGA@75、VGA@85

SVGA@60、SVGA@72、SVGA@75、SVGA@85

XGA@60、XGA@70、XGA@75、XGA@85

SXGA@60、SXGA@75、SXGA@85、UXGA@60

1152@70、1152@75、1152@85

HD/RGB：480i@60、576i@50、480p@60、576p@50、720p@60、

720p@50、1080i@60、1080i@50、1080p@60、

1080p@50、1080p@30、1080p@25、1080p@24

* Dimension (WxHxD)：76 * 30 * 105mm

* Power：5V 500mA~2A Center-positive

DVI-I Pin Configuration

1 8 C1 C2

17 24

Combined Analog and Digital Connector Pin Assignments

Pin Signal Assignment Pin Signal Assignment

T.M.D.S Data2-

T.M.D.S. Data2+

T.M.D.S. Data2/4 Shield

T.M.D.S. Data4-

T.M.D.S. Data4+

DDC Clock

DDC Data

Analog Vertical Sync

Analog Red

Analog Horizontal Sync

T.M.D.S Data1-

T.M.D.S. Data1+

T.M.D.S. Data1/3 Shield

T.M.D.S. Data3-

T.M.D.S. Data3+

+5V Power

Ground

(Return for +5V, Hsync, and Vsync)

Hot Plug Detect

Analog Green

Analog Ground

(Analog R,G,&B return)

Pin Signal Assignment

T.M.D.S Data0-

T.M.D.S. Data0+

T.M.D.S. Data0/5 Shield

T.M.D.S. Data5-

T.M.D.S. Data5+

T.M.D.S. Clock Shield

T.M.D.S. Clock+

T.M.D.S. Clock-

Analog Blue

DVI-Integrated(DVI-I): Supports both analog and digital connections to the display.

This 29-pin connector can carry single or dual-link all-digital video/data signals

on 24 pins and uses 5 pins to carry analog video/data signals and ground.

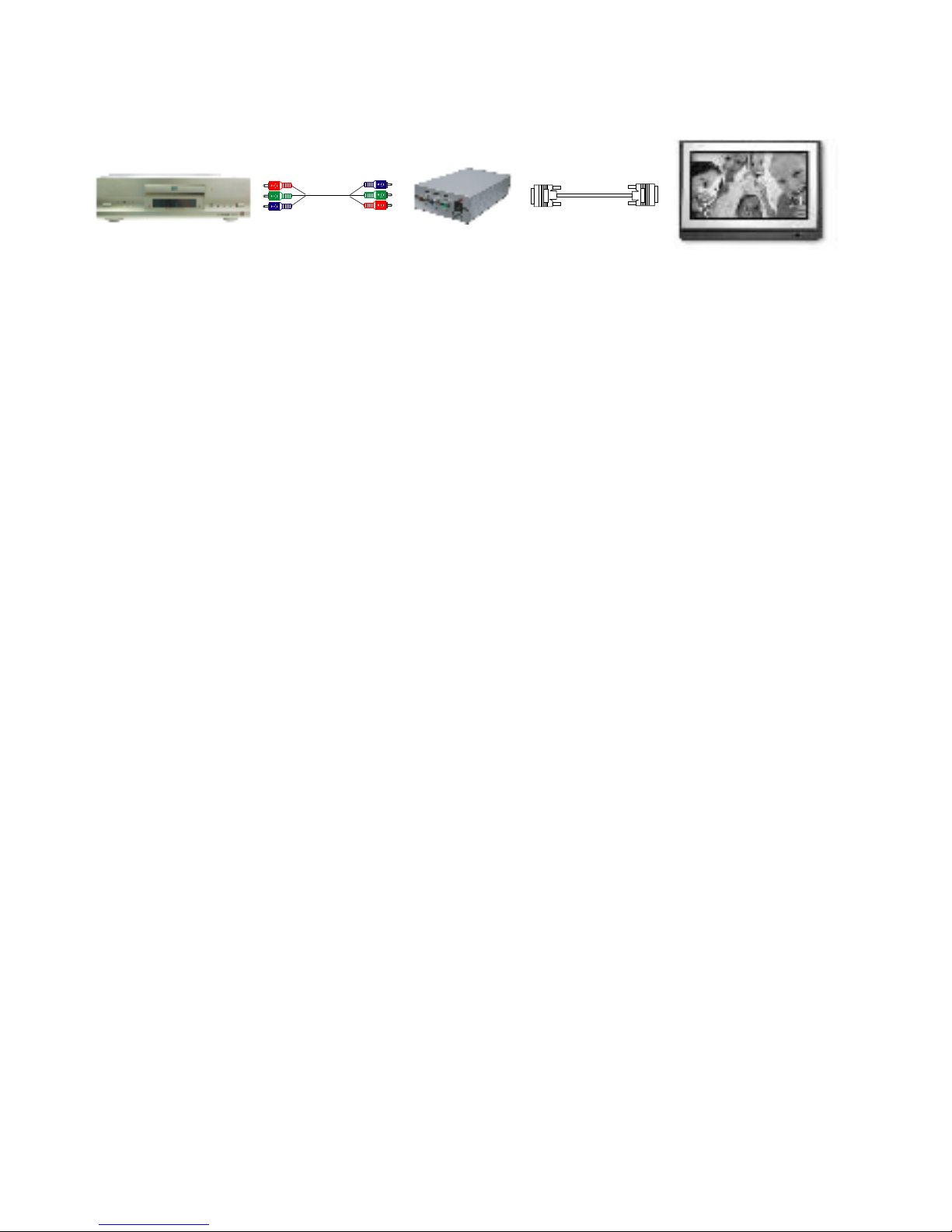

Connection and Installation

LCD Monitor

DVD, Set-Top box

YPbPr/YCbCr DVI

YPbPr to DVI-I

Format converter

D-Sub to 3 RCA Cable
