Cub Cadet Yanmar Sx3100 Datasheet

Form No. 769-05939

(04/10)

Sx3100

Sx Series Sx3100

NOTES:

Sx Series Sx3100

FIG. NO.

GROUP NAME

1CYLINDER BLOCK

2GEAR HOUSING

3MOUNTING FLANGE & OIL SUMP

4CYLINDER HEAD & BONNET

5SUCTION MANIFOLD & AIR CLEANER

6EXHAUST MANIFOLD & MUFFLER

7CAMSHAFT & DRIVING GEAR

8CRANKSHAFT & PISTON

9HYDRAULIC PUMP

10 LUBRICATING OIL SYSTEM

11 COOLING WATER SYSTEM

12 FUEL INJECTION PUMP

13 GOVERNOR

14 FUEL INJECTION VALVE

15 STARTING MOTOR

17 GENERATOR

18 GASKET SET

19 SHORT BLOCK

TRACTOR SECTION STARTS ON PAGE 38

ENGINE SECTION INDEX

Sx Series Sx3100

NOTES:

Sx Series Sx3100

REF

NO. PART NUMBER DESCRIPTION QTY

1CY-129232-01560 Cylinder Block Cmp 1

4CY-124060-01050 Plug PT1/8 1

5CY-129001-01250 Plug 50 1

6CY-124160-01910 Plug PT1/4 2

7CY-124160-01910 Plug PT1/4 1

8CY-171051-01921 Plug 1

9CY-129150-02020 Bolt, Metal Cap 8

12 CY-129795-02412 Bush, CamShaft 1

13 CY-27241-120000 Plug 12 2

14 CY-27243-300000 Plug 30 6

15 CY-129100-01580 Parallel Pin 8X16 2

16 CY-129100-01580 Parallel Pin 8X16 2

17 CY-129795-01950 Pipe, Knock L=18 2

21 CY-129150-02931 Metal, Thrust 2

24 CY-119803-25050 Shaft, Idle Gear 1

25 CY-22351-060012 Spring Pin 6X12 2

26 CY-26106-080402 Bolt M 8X 40 Plated 3

27 CY-129150-01200 Stud, Cylinder Head 14

28 CY-129001-01340 Gasket, (Non-Asb.) 1

29 CY-129001-02931 Main Bearing Set 4

32 CY-129150-02871 Main Metal Us=0.25 4

35 CY-129150-02941 Metal,Thrust.25(4Pie 1

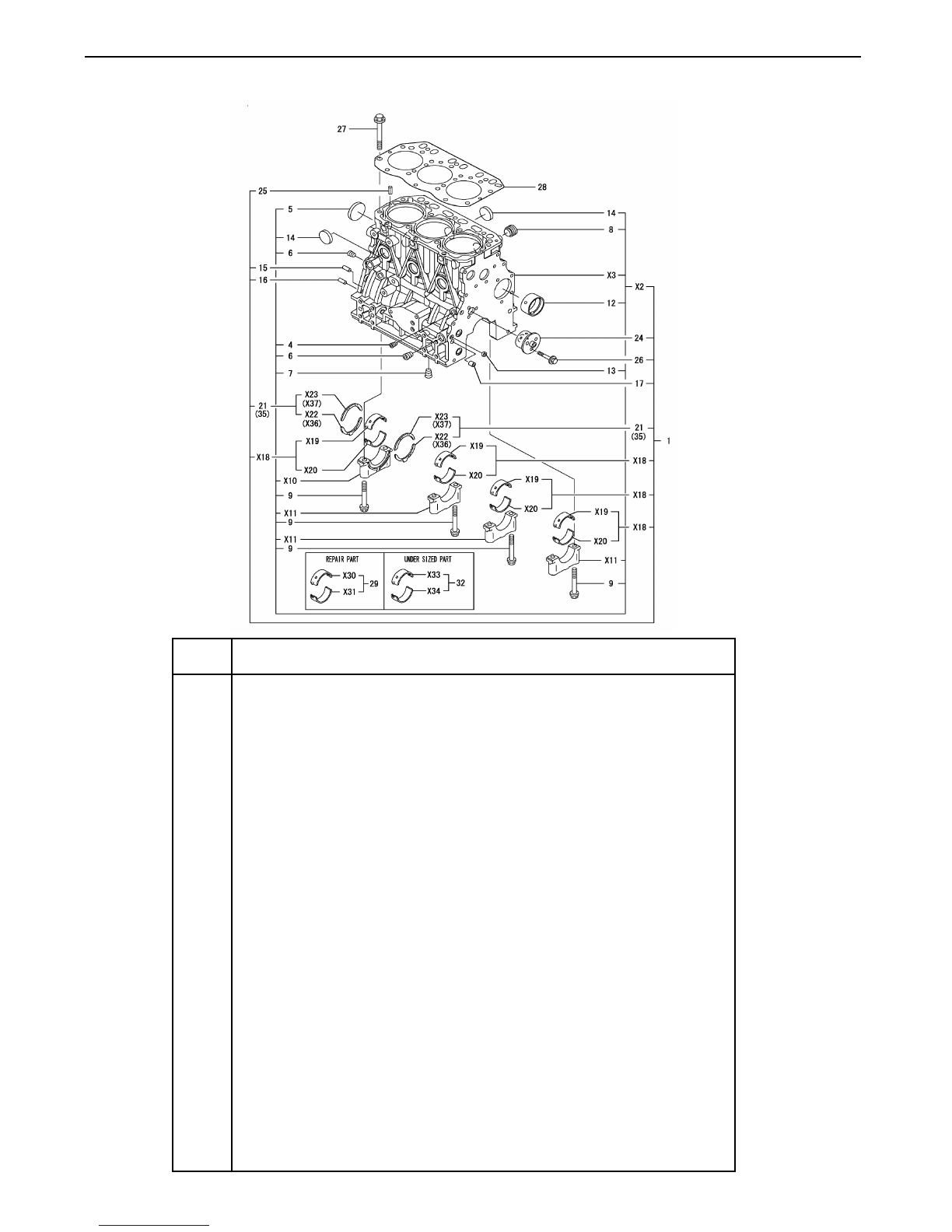

FIG. 1 CYLINDER BLOCK

Sx Series Sx3100

FIG. 2. GEAR HOUSING

Sx Series Sx3100

REF

NO.

PART NUMBER DESCRIPTION QTY

REF

NO.

PART NUMBER DESCRIPTION QTY

1CY-729008-01500 Gear Case Assy 114 CY-24311-000320 O-Ring 1A P-32.0 1

3CY-119934-01800 Seal, Oil 115 CY-26106-080162 Bolt M 8X 16 Plated 4

4CY-129008-01520 Flange, Gear Case 116 CY-26106-080162 Bolt M 8X 16 Plated 3

5CY-119802-01561 Stud, M8X25 317 CY-26106-080302 Bolt M 8X 30 Plated 1

6CY-129150-01580 Stud 8 X 30 118 CY-26106-080552 Bolt M 8X 55 Plated 10

7CY-124160-01751 Cover,Filler 119 CY-26306-080002 Nut 3

8CY-124240-01871 Cover, Ho-P 120 CY-124240-01871 Cover, Ho-P 1

9CY-119609-32040 O-Ring P16 221 CY-124240-01883 Gasket, (Non-Asb.) 1

10 CY-121850-51960 O-Ring, F.I.Pump 122 CY-26106-080122 Bolt M 8X 12 Plated 4

11 CY-26106-080852 Bolt M 8X 85 Plated 323 CY-129150-91400 Gear Unit,Tachometer 1

12 CY-22190-080002 Seal Washer 8S 425 CY-24341-000240 O-Ring 1A S-24.0 1

13 CY-22190-080002 Seal Washer 8S 126 CY-26106-060162 Bolt M 6X 16 Plated 2

FIG. 2. GEAR HOUSING

Sx Series Sx3100

THIS PAGE INTENTIONALLY LEFT BLANK

Sx Series Sx3100

Cub Cadet Yanmar LLC

REF

NO.

PART NUMBER DESCRIPTION QTY

1CY-129232-01600 Flange, Mounting 1

2CY-26206-100202 Bolt M10X20 8

3CY-129052-01692 Sump Assy, Lub Oil 1

5CY-124160-01910 Plug Pt1/4 1

6CY-129232-01710 Cover, Oil Pan 1

7CY-129054-01640 Drain Plug 1

9CY-22190-120002 Seal Washer 12 1

10 CY-129555-01750 Pipe, Knock 1

11 CY-129001-91870 Bolt M 8X100 10

12 CY-129001-91910 Bolt M 8X120 4

13 CY-26106-080122 Bolt M 8X 12 Plated 6

14 CY-26106-080252 Bolt M 8X 25 Plated 6

15 CY-26106-080502 Bolt M 8X 50 Plated 2

16 CY-729402-01650 Case Assy, Oil Seal 1

18 CY-129120-01780 Seal, Oil 1

19 CY-129486-01670 Bolt M8X30,Collar Hd 9

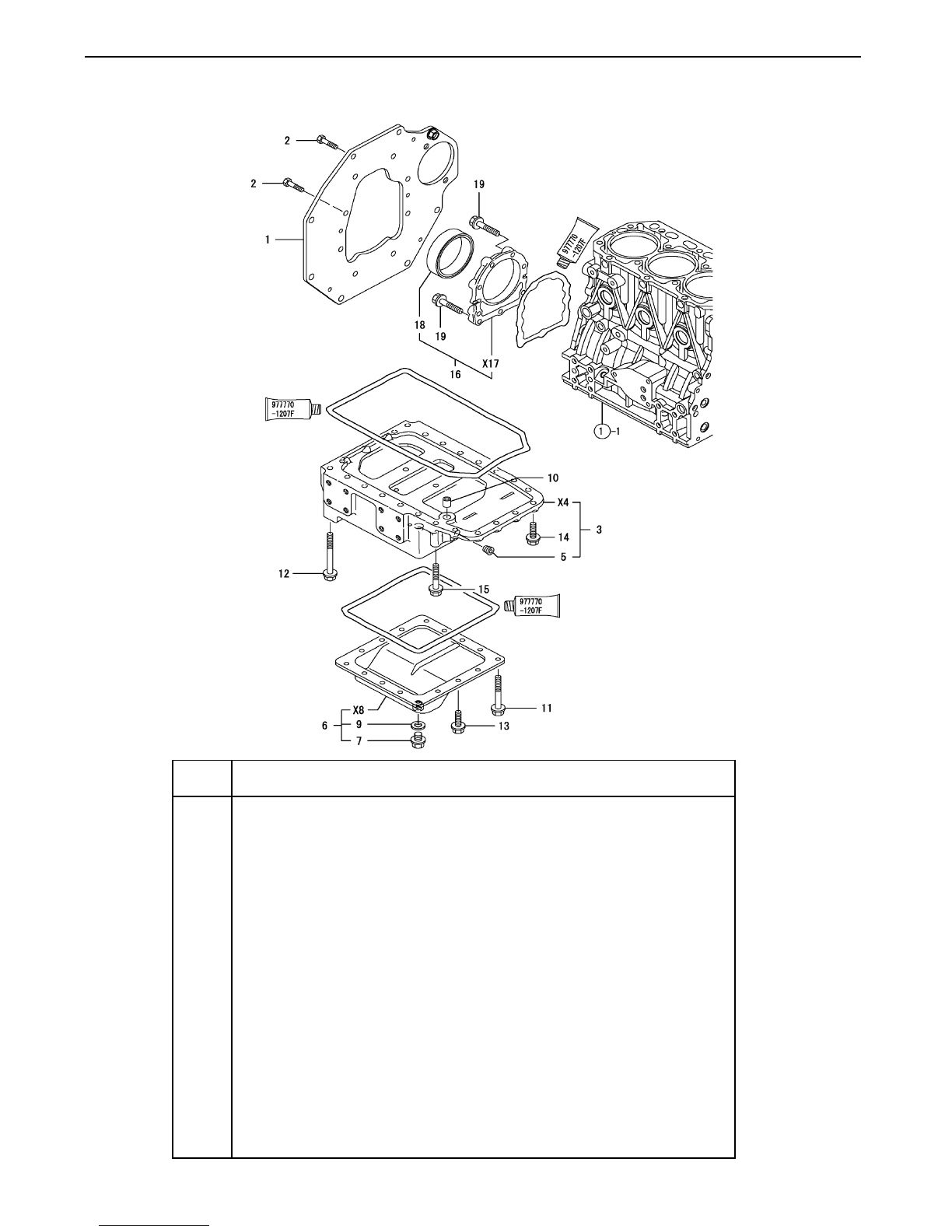

FIG. 3. MOUNTING FLANGE & OIL SUMP

Sx Series Sx3100

FIG. 4. CYLINDER HEAD & BONNET
