Crystal Vision Introduction

SW803 3G User Manual R1.4 301/09/2016

1 Introduction

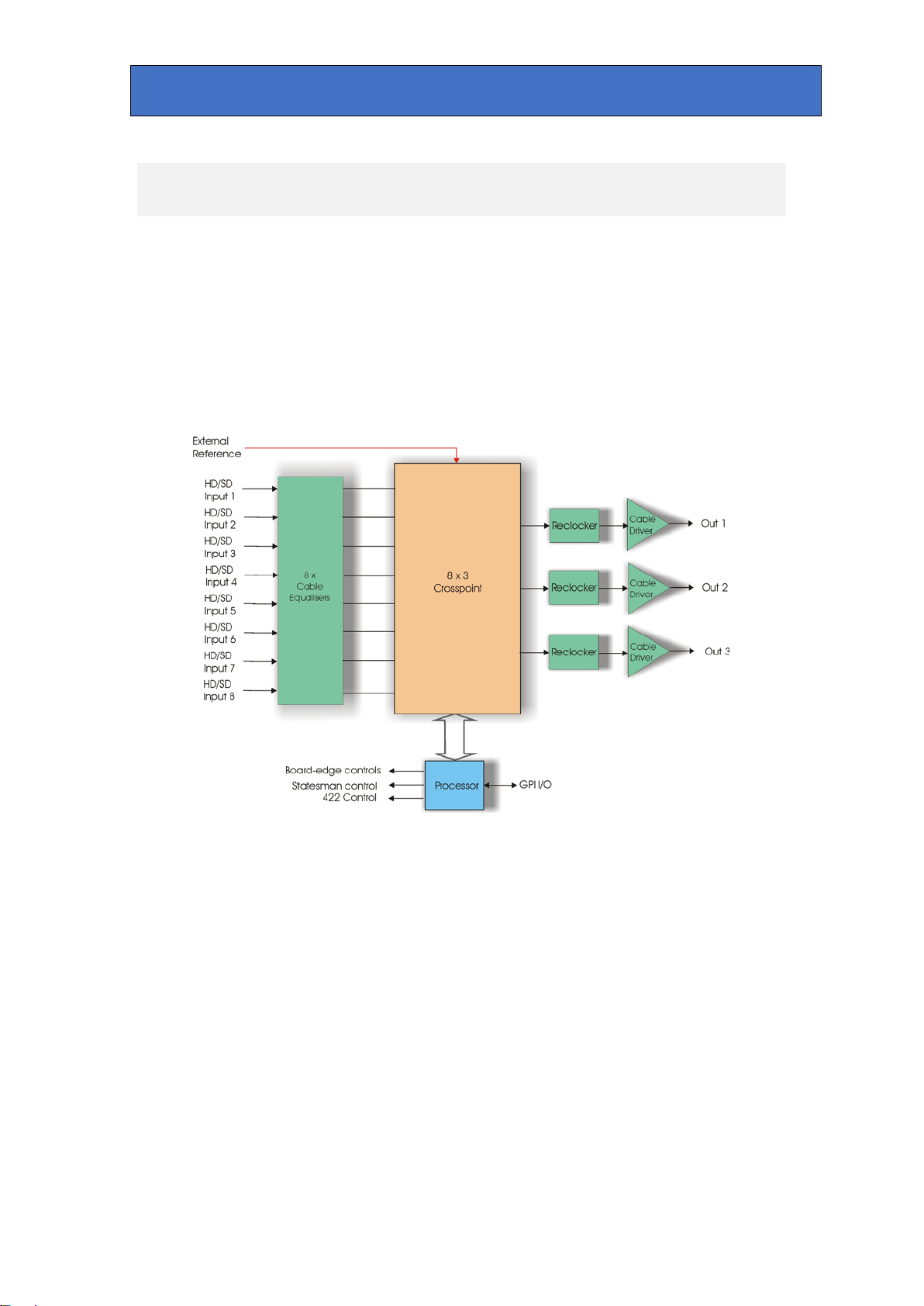

The SW803 3G is a 3G/HD/SD 8 x 3 crosspoint routing switcher.

Switch synchronisation is provided by either obtaining timing information from a selected

SDI input or external analogue references, allowing the SW803 3G to switch in the

vertical blanking interval so avoiding picture disturbance.

There is also provision to switch immediately for cases where there is no common

reference although this is likely to result in a brief picture disturbance.

Individual switches can be set and multiple switch salvos can be created to change a

number of crosspoint switches simultaneously. Up to 15 macros or custom routing table

assignments may be stored and recalled, and up to 15 snapshots of the router table may be

captured as presets for later recall.

Control is available from the SW808 Controller panel, Statesman PC control Software, an

active control panel or the card edge. Names may be assigned to inputs and outputs from

Statesman and active control panels.

The main features are as follows:

•3G/HD/SD 8 x 3 routing switch

•Timed switching from either an SDI input or external analogue reference

•Salvos, macros and router ‘snapshot’ presets

•Names may be assigned to inputs and outputs

•GPI selection of macros and presets

•Control and status monitoring via dedicated controller, Statesman,

frame/remote control panels or the card edge

Crystal Vision Hardware installation

SW803 3G User Manual R1.4 401/09/2016

2Hardware installation

The SW803 3G double height module is used with a pair of RM50 rear connectors, which

will fit into all Crystal Vision rack frames. All modules can be connected or removed

while the frame is powered, without damaging the board.

The SW803 3G control lines can be configured for either GPI control or serial control

from a SW808 button panel. Jumper links determine which control interface is enabled.

2.1 Module configuration

Link

positions

↔

SW803 3G

Link configuration and LEDs

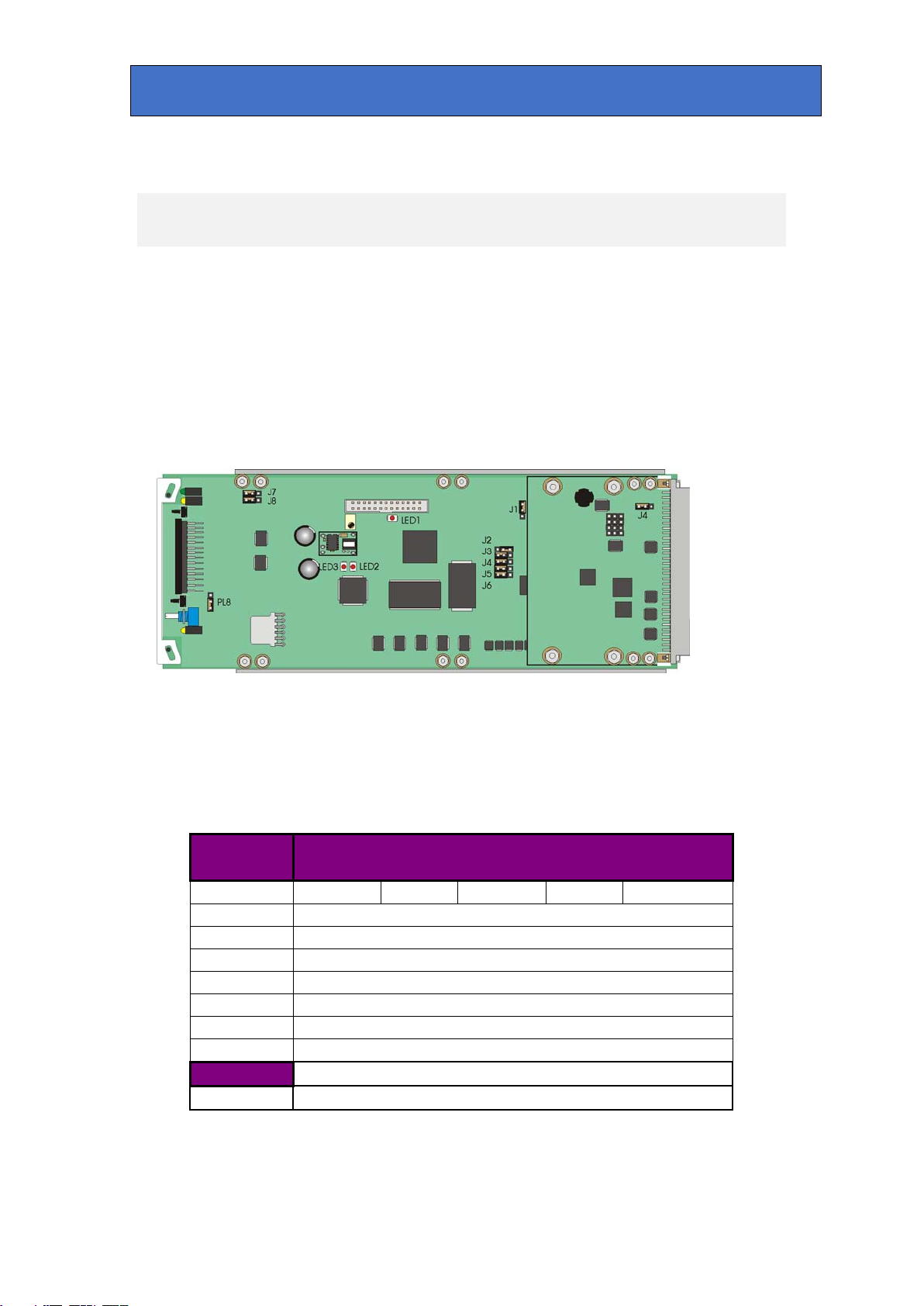

There are 13 jumper links and three surface-mounted LEDs on the SW803 3G. The

surface-mounted LEDs are not visible from the front of the frame and are included for

diagnostic purposes only.

Lower PCB Comments

J3-6 GPI control

←

422 comms

→

J1 No function

J2 Leave in position

→

J7 J8 Spare (leave set to front

←

)

PL8 ↑(User selected IP address). ↓(Forced IP address 10-0-0-201)

LED1 CPU configuration in progress

LED2 Ethernet Data

LED3 Ethernet Link

Upper PCB

J4 External reference input termination.

←

(75R),

→

(Hi Z)

Crystal Vision Hardware installation

SW803 3G User Manual R1.4 501/09/2016

2.2 Rear modules and signal I/O

The 4U Indigo 4 frame will house up to 12 double height modules with up to three power

supplies. The 2U Indigo 2 frames will house up to six double height modules and dual

power supplies. The 1U Indigo 1 frames will house three double height modules and a

single power supply. The Indigo DT desktop box has a built-in power supply and will

house one double height module.

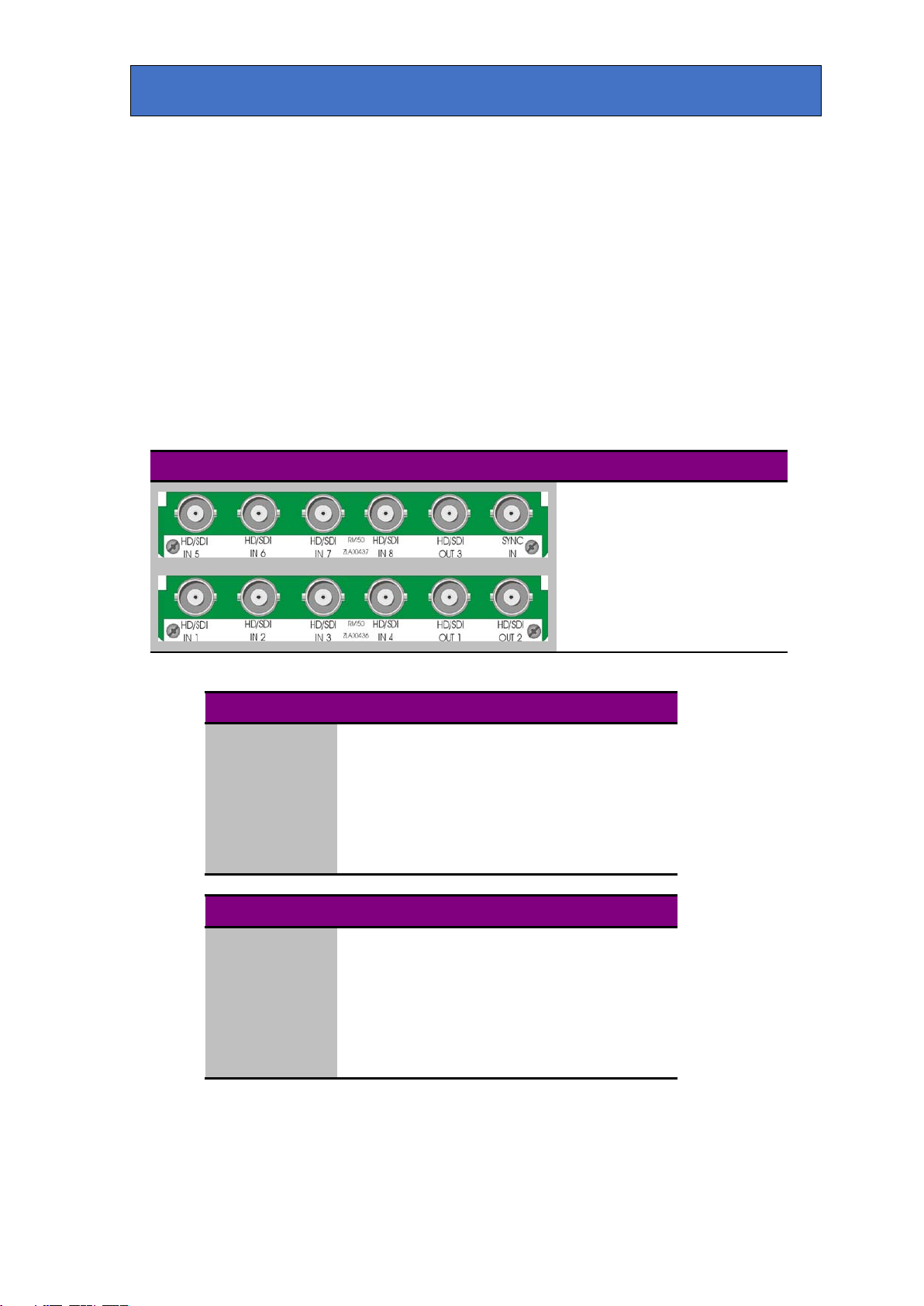

The rear modules used by the SW803 3G are an RM50 in both upper and lower positions.

Note:

For details of fitting rear connectors please refer to the appropriate frame manual

Rear module connections with RM50

RM50 fits in all frames Description

RM50

•12 SW803 3G modules per

Indigo 4 frame

•Six per Indigo 2 frame

•Three per Indigo 1 frame

•One per Indigo DT

•Slots 1-2, 3-4, 5-6, 7-8,9-10,

11-12, 13-14, 15-16, 17-18,

19-20, 21-22 and 23-24 used.

Upper BNCs I/O assignment

HD/SDI IN 5 Serial Digital Input 5

HD/SDI IN 6 Serial Digital Input 6

HD/SDI IN 7 Serial Digital Input 7

HD/SDI IN 8 Serial Digital Input 8

HD/SDI OUT 3 Reclocked SDI output 3

SYNC IN External reference input

Lower BNCs I/O assignment

HD/SDI IN 1 Serial Digital Input 1

HD/SDI IN 2 Serial Digital Input 2

HD/SDI IN 3 Serial Digital Input 3

HD/SDI IN 4 Serial Digital Input 4

HD/SDI OUT 1 Reclocked SDI output 1

HD/SDI OUT 2 Reclocked SDI output 2

Crystal Vision Hardware installation

SW803 3G User Manual R1.4 601/09/2016

2.3 General Purpose Interface (GPI)

Each frame slot has up to six connections ‘a-f ‘for GPI control and monitoring. These

connections are available at the rear of the frame on the 26-way D-Type remote

connectors. GPI connections are available on the lower board’s remote connectors.

The following table shows the binary weighted code required to recall presets or macros 1

to 15 according to the state of GPI ‘e’. A ‘H’ is an open GPI input and a ‘L’ is a grounded

GPI input.

Recall

Preset

No change 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

GPI ‘a’

GPI ‘b’

GPI ‘c’

GPI ‘d’

OPEN (+5V)

GROUND

‘a’, ‘b’, ‘c’, ‘d’

See table above

‘e’

Selects Stored Presets

Selects stored Macros

‘f’

Reference source selected

No valid signal on selected source

GPI input assignment

GPI input connections have 10k Ωpull-up resistors to +5V. Closed-contact switches or

+5V to +24V logic levels can be used.

GPI output connections have 330Ωseries resistors fitted to drive LEDs and 10k Ω pull-up

to +5V (to drive a remote input).

4U frame GPI connections

GPI lines ‘a’ to ‘f’ of each card connect to one of eight rear remote connectors as follows:

Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin

7 (1)

16 (1)

17 (1)

25 (1)

10 (2)

11 (2)

7 (3)

16 (3)

17 (3)

25 (3)

10 (4)

11 (4)

4 (1)

14 (1)

13 (1)

23 (1)

3 (2)

4 (2)

4 (3)

14 (3)

13 (3)

23 (3)

3 (4)

4 (4)

10 (1)

11 (1)

19 (1)

20 (1)

21 (2)

22 (2)

10 (3)

11 (3)

19 (3)

20 (3)

21 (4)

22 (4)

Upper

Crystal Vision Hardware installation

SW803 3G User Manual R1.4 701/09/2016

Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin

7 (5)

16 (5)

17 (5)

25 (5)

10 (6)

11 (6)

7 (7)

16 (7)

17 (7)

25 (7)

10 (8)

11 (8)

4 (5)

14 (5)

13 (5)

23 (5)

3 (6)

4 (6)

4 (7)

14 (7)

13 (7)

23 (7)

3 (8)

4 (8)

10 (5)

11 (5)

19 (5)

20 (5)

21 (6)

22 (6)

10 (7)

11 (7)

19 (7)

20 (7)

21 (8)

22 (8)

Table shows pin number (Remote number)

Note:

Remote 1, Remote 3, Remote 5 and Remote 7 are 26-way high-density D-Type female

sockets. Frame ground is pin 2 and +5V @500mA is pin 1 in each case.

Remote 2, Remote 4, Remote 6 and Remote 8 are 26-way high-density D-Type male plugs

and frame ground is pin 6 in each case and +5V @500mA is pin 15 on Remote 2 and Remote

The +5V output is protected by self-resetting thermal fuses, which limit the total output

current available from Remotes 1-4 to approximately 1amp. Remotes 5-8 are similarly

protected.

2U frame GPI connections

GPI lines ‘a’ to ‘f’ of each card connect to one of four rear remote connectors as follows:

Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin

7 (1)

16 (1)

17 (1)

25 (1)

10 (2)

11 (2)

7 (3)

16 (3)

17 (3)

25 (3)

10 (4)

11 (4)

4 (1)

14 (1)

13 (1)

23 (1)

3 (2)

4 (2)

4 (3)

14 (3)

13 (3)

23 (3)

3 (4)

4 (4)

10 (1)

11 (1)

19 (1)

20 (1)

21 (2)

22 (2)

10 (3)

11 (3)

19 (3)

20 (3)

21 (4)

22 (4)

Table shows pin number (remote number)

Note: Remote 1 and Remote 3 are 26-way high-density D-Type female sockets. Frame ground is

pin 2 and +5V @500mA is pin 1 in each case.

Remote 2 and Remote 4 are 26-way high-density D-Type male plugs and frame ground is pin

6 in each case and +5V @500mA is pin 15 on Remote 2.

The +5V output is protected by self-resetting thermal fuses, which limit the total output

current available from Remotes 1-4 to approximately 1amp.

Lower

Crystal Vision Hardware installation

SW803 3G User Manual R1.4 801/09/2016

1U frame GPI connections

GPI lines ‘a’ to ‘f’ of each card connect to one of two rear remote connectors as follows:

Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin

7 (1)

16 (1)

17 (1)

25 (1)

10 (2)

11 (2)

4 4 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)

10 (1)

11 (1)

19 (1)

20 (1)

21 (2)

22 (2)

Table shows pin number (remote number)

Note: Remote 1: 26-way high-density D-Type female socket. Frame ground is pin 2 and +5V

@500mA is pin 1.

Remote 2: 26-way high-density D-Type male plugs and frame ground is pin 6 and +5V

@500mA is pin 15.

The +5V output is protected by self-resetting thermal fuses, which limit the total output

current available from Remotes 1-2 to approximately 1amp.

Indigo DT desk top box GPI connections

GPI lines ‘a’ to ‘f’ of each card connect to the rear remote connector as follows:

Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin

7 (1)

16 (1)

17 (1)

25 (1)

10 (2)

11 (2)

Table shows pin number (remote number)

Note:

Remote 1: 26-way high-density D-Type female socket. Frame ground is pin 2 and +5V

@500mA is pin 1.

Remote 2: 26-way high-density D-Type male plugs and frame ground is pin 6 and +5V

@500mA is pin 15.

Note. The +5V output is protected by self-resetting thermal fuses, which limit the total output

current available from Remotes 1-2 to approximately 1amp.

Crystal Vision Card edge operation

SW803 3G User Manual R1.44 901/09/2016

3 Card edge operation

The card front is provided with a 10-digit display and push switches to navigate the

control and status menus. LEDs are provided to give indication of power rail monitoring

and the switch configuration.

3.1 Card edge controls

SW803 3G card front edge view

3.2 Card edge buttons

The two tactile push button switches allow the operator to navigate within the menu

structure.

Button Function Normal state Up, Action Down



Up Menu Push to jump up a menu level or cancel a selection

ENTER Select/Action Push to select a menu and to action and confirm a change

Card edge rotary control

The board edge rotary encoder is used to navigate through the menu categories and adjust

parameter values.

Control Function

SCROLL

/ADJUST

Rotate SCROLL to identify a menu category. In combination with the ENTER button

select and ADJUST to change the current level or select a further option.

Notes: The rotary control can access menus and parameter values by clockwise or anti-clockwise

rotation.

Table of contents

Other Crystal Vision Switch manuals

Crystal Vision

Crystal Vision M-SAFESWITCH-2 User manual

Crystal Vision

Crystal Vision Indigo ViViD 3G User manual

Crystal Vision

Crystal Vision Safe Switch 3G User manual

Crystal Vision

Crystal Vision Smart Switch User manual

Crystal Vision

Crystal Vision Indigo Smart Switch 3G User manual

Crystal Vision

Crystal Vision Indigo ViViD 3GT-20 User manual

Crystal Vision

Crystal Vision Indigo SW221 3G User manual

Crystal Vision

Crystal Vision SW808 User manual

Crystal Vision

Crystal Vision SW222 User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
