Crestron IM-WCVP Quick start guide

Crestron IM-WCVP

iMedia Wall Plate Computer Center with

Video Control Panel

Operations & Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron IM-WCVP iMedia Wall Plate Control Panel

Contents

iMedia Wall Plate Computer Center with Video Control

Panel: IM-WCVP 1

Introduction......................................................................................1

Features and Functions ..........................................................1

Application ............................................................................3

Specifications.........................................................................4

Physical Description ..............................................................5

Industry Compliance..............................................................7

Setup.................................................................................................8

Network Wiring.....................................................................8

Installation .............................................................................8

Hardware Hookup..................................................................9

System Configuration ............................................................9

Operation........................................................................................10

Problem Solving.............................................................................11

Troubleshooting...................................................................11

Reference Documents..........................................................13

Further Inquiries ..................................................................13

Future Updates.....................................................................13

Return and Warranty Policies ........................................................14

Merchandise Returns / Repair Service ................................14

CRESTRON Limited Warranty ..........................................14

Operations & Installation Guide – DOC. 6489 Contents •i

Crestron IM-WCVP iMedia Wall Plate Control Panel

iMedia Wall Plate Computer

Center with Video Control Panel:

IM-WCVP

Introduction

Features and Functions

• Control panel for use with the IM-WCVI iMedia Wall Plate

Computer Center with Video Interface1

• Connects to IM-WCVI to create IM-WCCV-S Wall Plate

Computer Center with Video using CresCAT™-IM iMedia cable

or other high quality CAT5 cable (up to 40 feet) 2

• Controls volume, source selection, and power for iMedia systems

• Mounts in a standard, 2½ inch deep, single-gang electrical box

1. The IM-WCVP is part of the IM-WCCV-S. It must be used with the IM-WCVI.

2. For more information on CresCAT-IM cable, refer to the latest version of the

IM-WCVI guide (Doc. 6488), available from the Crestron website

(www.crestron.com/manuals).

The iMedia Transport

The iMedia transport utilizes a single CAT5e* type cable to transmit

computer RGB, video, and stereo audio signals to a single projector or

plasma display. A typical XGA signal (1024 X 768 pixels at 60Hz) can

be transmitted up to 84 feet using iMedia, while higher resolutions up to

1600 x 1200 can be handled over shorter distances. Composite video

signals can be transmitted up to 218 feet. Audio is transmitted digitally at

Operations & Installation Guide – DOC. 6489 iMedia Wall Plate Control Panel: IM-WCVP •1

iMedia Wall Plate Control Panel Crestron IM-WCVP

20-bit, 48 kHz resolution. Control and power signals are also contained

on the same wire, eliminating the need for separate control or power

cables.

* For iMedia use CresCAT-IM cable, or quality CAT5e/CAT6 cable having a

maximum delay skew of 15ns per 100m.

2-Piece Wall Plate Multimedia Interface

The IM-WCCV-S is an iMedia (IM) transmitter featuring separate wall

plates for interface and control. The interface panel (IM-WCVI) is

designed to install in a standard 2-gang electrical box, providing video,

RGB, and stereo audio inputs for connection to the output of a computer

or AV source. The control panel (IM-WCVP) is a separate 1-gang wall

plate, which may be installed up to 40 feet from the interface panel.

Installing wiring for the IM-WCCV-S is extremely simple using

CRESCAT-IM cable. Up to three IM-WCCV-S's, or other IM

transmitters, may be installed as part of a complete system to provide

multiple input locations within the room.

Foolproof Operation

Every iMedia system is easy and intuitive to use. A simple press of the

VIDEO or PC buttons on the control panel selects the appropriate input,

turns on the projector (or plasma, etc.), lowers the screen or lift, and

routes all the signals where they need to go. The volume control affords

easy adjustment of the audio level, and the entire system can be turned

off at any time by simply holding down either button for five seconds.

For systems having more than one IM transmitter, selecting an input at a

given input location overrides the previously selected input at any other

location. The audio level for each input location is controlled individually

by its respective volume control.

2 •iMedia Wall Plate Control Panel: IM-WCVP Operations & Installation Guide – DOC. 6489

Crestron IM-WCVP iMedia Wall Plate Control Panel

Application

The IM-WCVP is part of the IM-WCCV-S iMedia transmitter. As shown

in the following diagram, iMedia transmitters provide input points for

video and PC sources on an iMedia receiver.

iMedia System Diagram

iMedia Receiver Display Device

iMedia

Transmitter

IM-TCC

IM-WCC

IM-FTCC-B

IM-RXV1

IM-RXV3

CresCAT-IM

Screen/Lift

Room Sensor

Audio Amplifier

or Speakers

LAN

Control

RS-232 Control

IM-TCCV

IM-WCCV

IM-WCCV-S

IM-FTCCV*

Computer

Video

*IM-FTCCV available 3Q 2006

Operations & Installation Guide – DOC. 6489 iMedia Wall Plate Control Panel: IM-WCVP •3

iMedia Wall Plate Control Panel Crestron IM-WCVP

Specifications

Specifications for the IM-WCVP are listed in the following table.

IM-WCVP Specifications

SPECIFICATION DETAILS

Power Requirements Power is provided by the iMedia

receiver via the IM transport

Environmental

Temperature

Humidity

41° to 104°F (5° to 40°C)

10% to 90% RH

(non-condensing)

Enclosure Requires 2.5 inch deep single-

gang electrical box

Dimensions

Height

Width

Depth

4.50 in (11.43 cm)

2.75 in (6.99 cm)

2.70 in (6.86 cm)

Weight 6.2 oz (176 g)

4 •iMedia Wall Plate Control Panel: IM-WCVP Operations & Installation Guide – DOC. 6489

Crestron IM-WCVP iMedia Wall Plate Control Panel

Physical Description

This section provides information on the connections, controls, and

indicators available on your IM-WCVP.

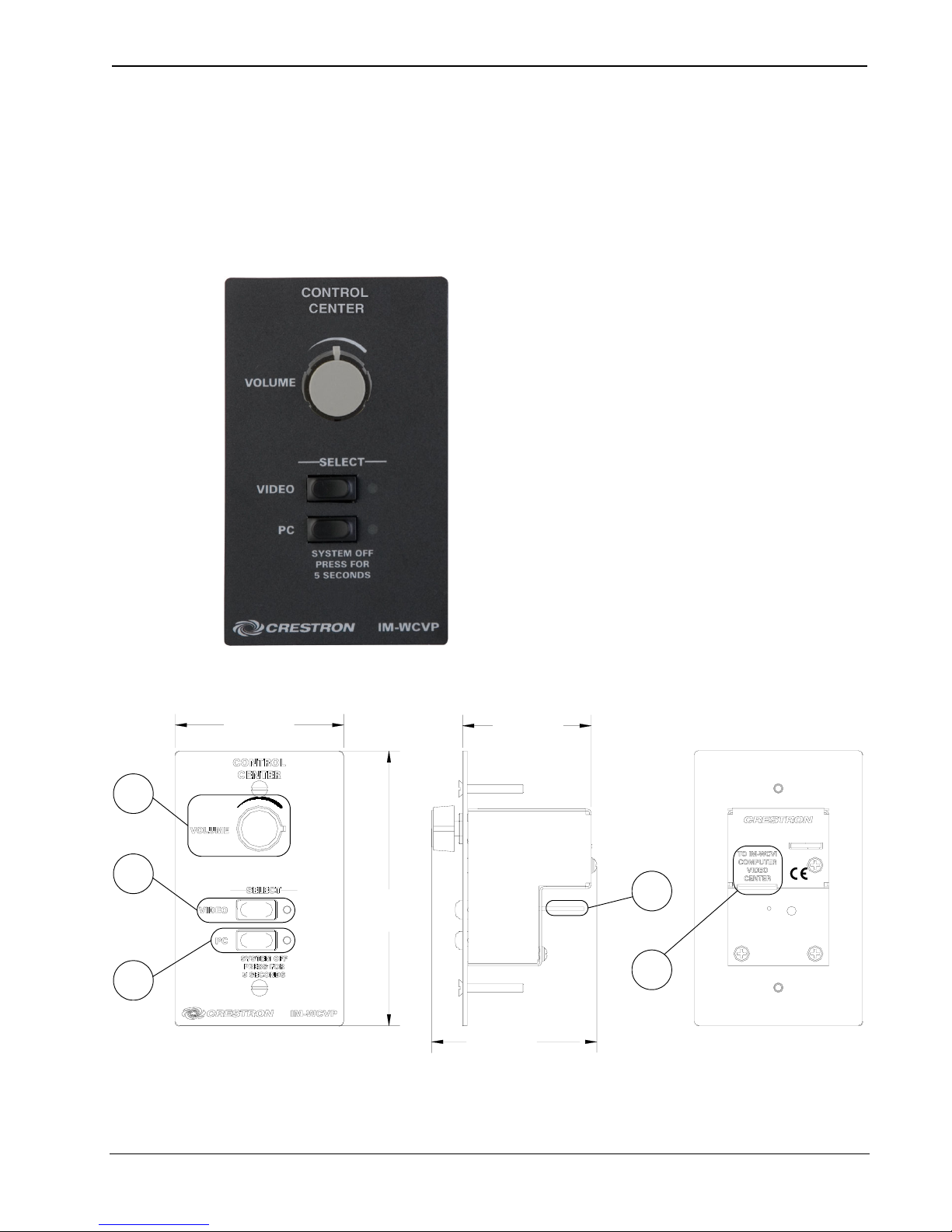

IM-WCVP Physical View

IM-WCVP Overall Dimensions

FRONT REAR

2.10 in.

(5.34 cm)

2.70 in

(6.85 cm)

4.50 in.

(11.43 cm)

2.75 in.

(6.99 cm)

Operations & Installation Guide – DOC. 6489 iMedia Wall Plate Control Panel: IM-WCVP •5

iMedia Wall Plate Control Panel Crestron IM-WCVP

Connectors, Controls, & Indicators

# CONNECTORS,

CONTROLS, &

INDICATORS

DESCRIPTION

1 VOLUME

CONTROL KNOB

Turn clockwise to raise the volume of

the selected input; turn

counterclockwise to lower the volume

of the selected input.

2 VIDEO BUTTON Turns on the system and selects the

source connected to the VIDEO input

of the IM-WCVI.*

3 PC BUTTON

Turns on the system and selects the

source connected to the PC input of

the IM-WCVI.*

4 GROUND WIRE Connect the flying lead to earth

ground.

5 TO IM-WCVI

Female RJ-45 port to connect to

IM-WCVI over CresCAT-IM wire or

other high-quality CAT5 wire (40 feet

maximum).

* Refer to “Operation” on page 10 for more information.

6 •iMedia Wall Plate Control Panel: IM-WCVP Operations & Installation Guide – DOC. 6489
