GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT

Introduction

CRESTRON GREEN LIGHT EXPRESS power switching cabinets come pre-configured with GLXX switching

modules already installed. The cabinets only require installation and wiring of feed and load circuits.

Regulatory Compliance

The cabinet and modules are Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.

Application

The following diagram shows CRESTRON GREEN LIGHT EXPRESS power switching cabinets in a lighting

application that is controlled by an IPAC system.

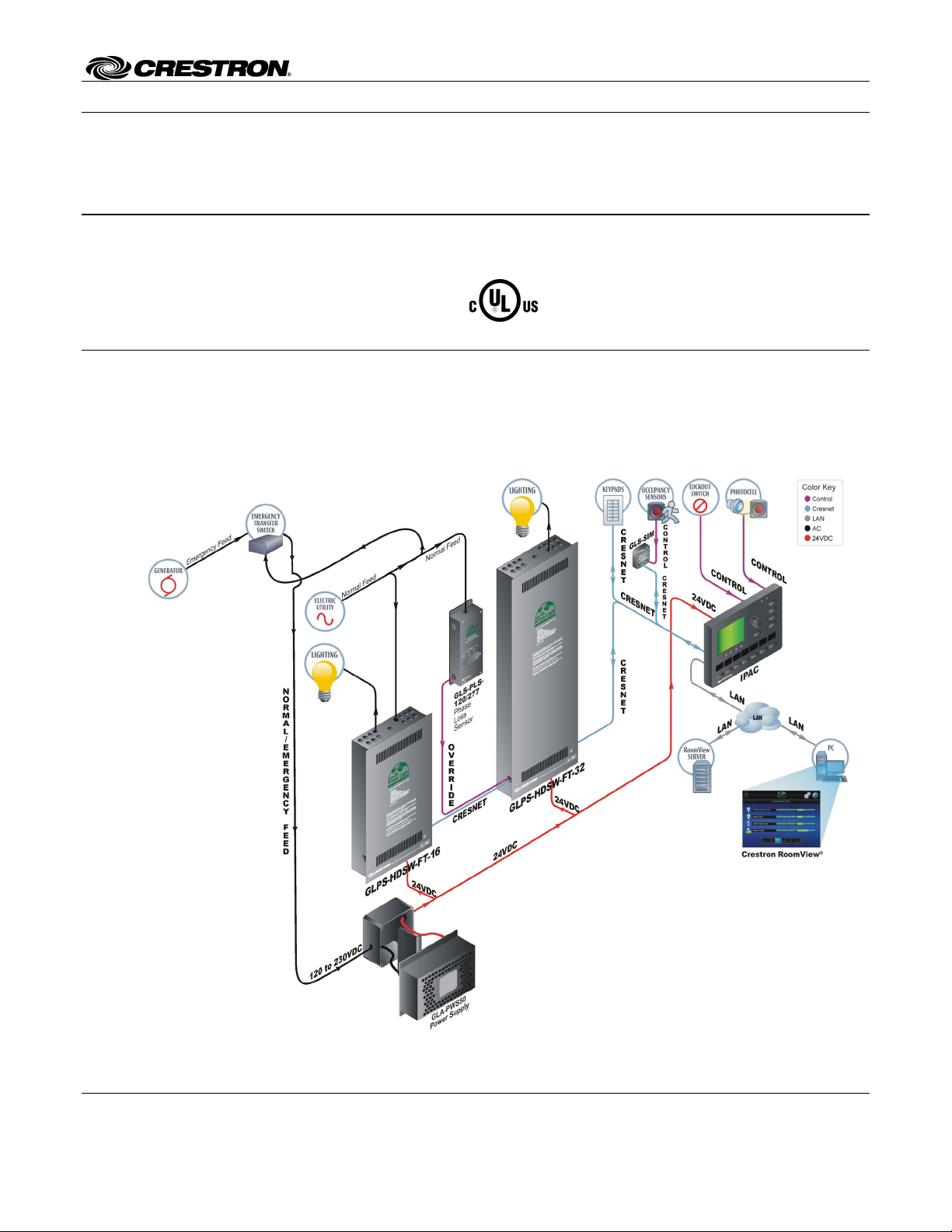

CRESTRON GREEN LIGHT EXPRESS Power Switching Cabinets in a Typical Lighting Application

Crestron Electronics, Inc. Installation Guide – DOC. 6887A

15 Volvo Drive Rockleigh, NJ 07647 (2025418)

Tel: 888.CRESTRON 04.10

Fax: 201.767.7576 Specifications subject to

www.crestron.com change without notice.

Power Switching Cabinet GLPS-HDSW-FT CRESTRON GREEN LIGHT®EXPRESS

Physical Description

This section shows the dimensions of the CRESTRON GREEN LIGHT EXPRESS power switching cabinets.

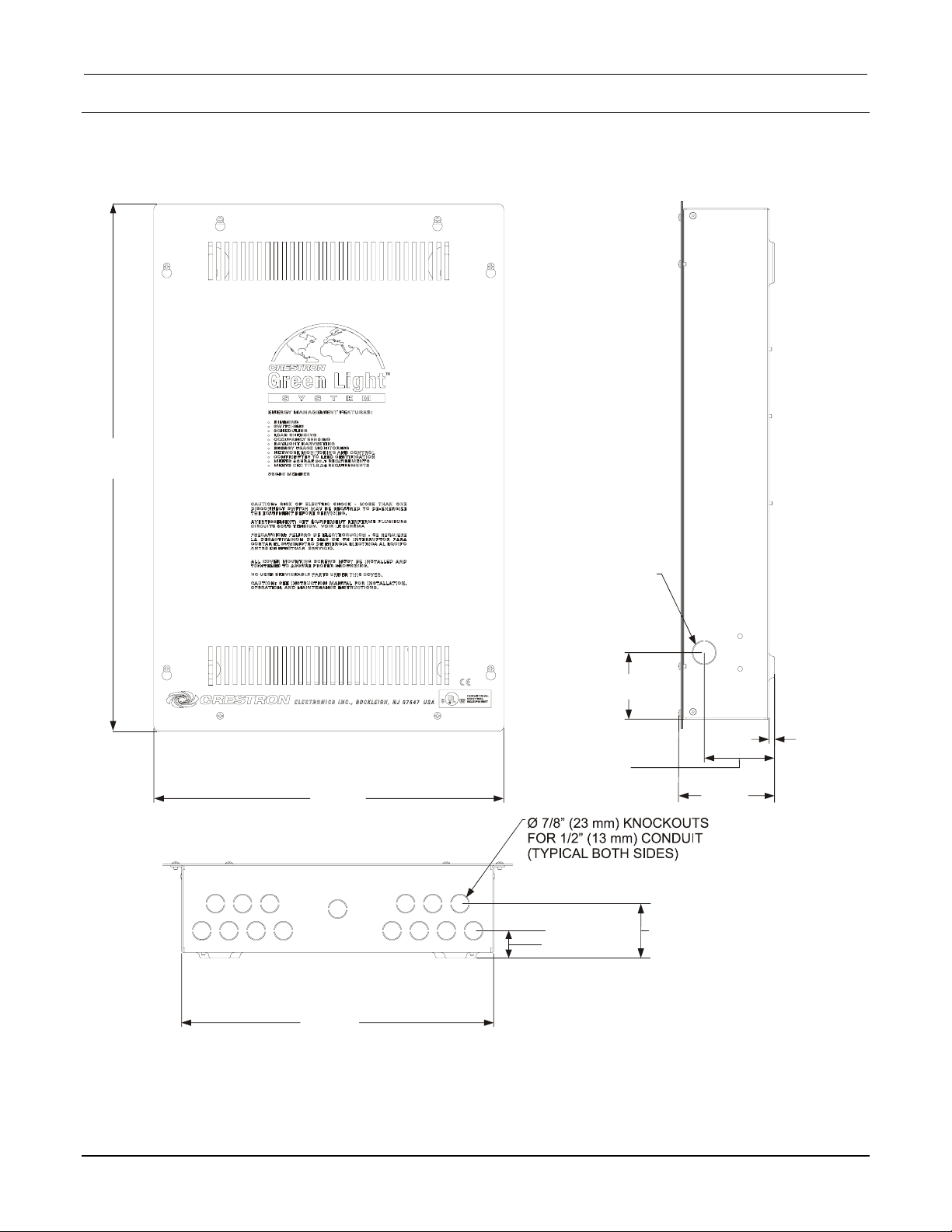

Dimensions of GLPS-HDSW-FT-8 ,-12, -16, -20, -24 Power Switching Cabinets (Front, Side and Bottom View)

24 1/4"

(616 mm)

16 1/8”

(409 mm)

3 1/16”

(78 mm)

KNOCKOUT FOR 3/4”

(20 mm) CONDUIT

(TYPICAL BOTH

SIDES)

4 7/16”

(113 mm)

1/4” (7 mm)

3 1/4”

(83 mm)

2 1/2” (64 mm)

14 3/8"

(365 mm)

1 1/4” (32 mm)

2 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT Installation Guide – DOC. 6887A

CRESTRON GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT

Dimensions of GLPS-HDSW-FT-8, -12, -16, -20, -24 (shown below) Power Switching Cabinets (Internal View)

23 1/2"

(597 mm) 18 15/16”

(481 mm)

(2X) Ø 7/16 ( 12 )

MOUNTING HOLE

Ømm

(2x) 11/16”

(19 mm)

2 1/8” (55 mm)

(2x) Ø 5/8”

(Ø 16 mm)

(2X) Ø 5/16”

(Ø 8 mm)

MOUNTING HOLES

2 1/4”

(58 mm) 10 7/8”

(276 mm)

* TIE WRAP

HOLDERS (MAY

BE MOVED TO

OTHER HOLES

AS REQUIRED)

SERVICE

SCREWDRIVER

* Installed GLXX modules come with additional tie wrap holders.

Installation Guide – DOC. 6887A GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT •3

Power Switching Cabinet GLPS-HDSW-FT CRESTRON GREEN LIGHT®EXPRESS

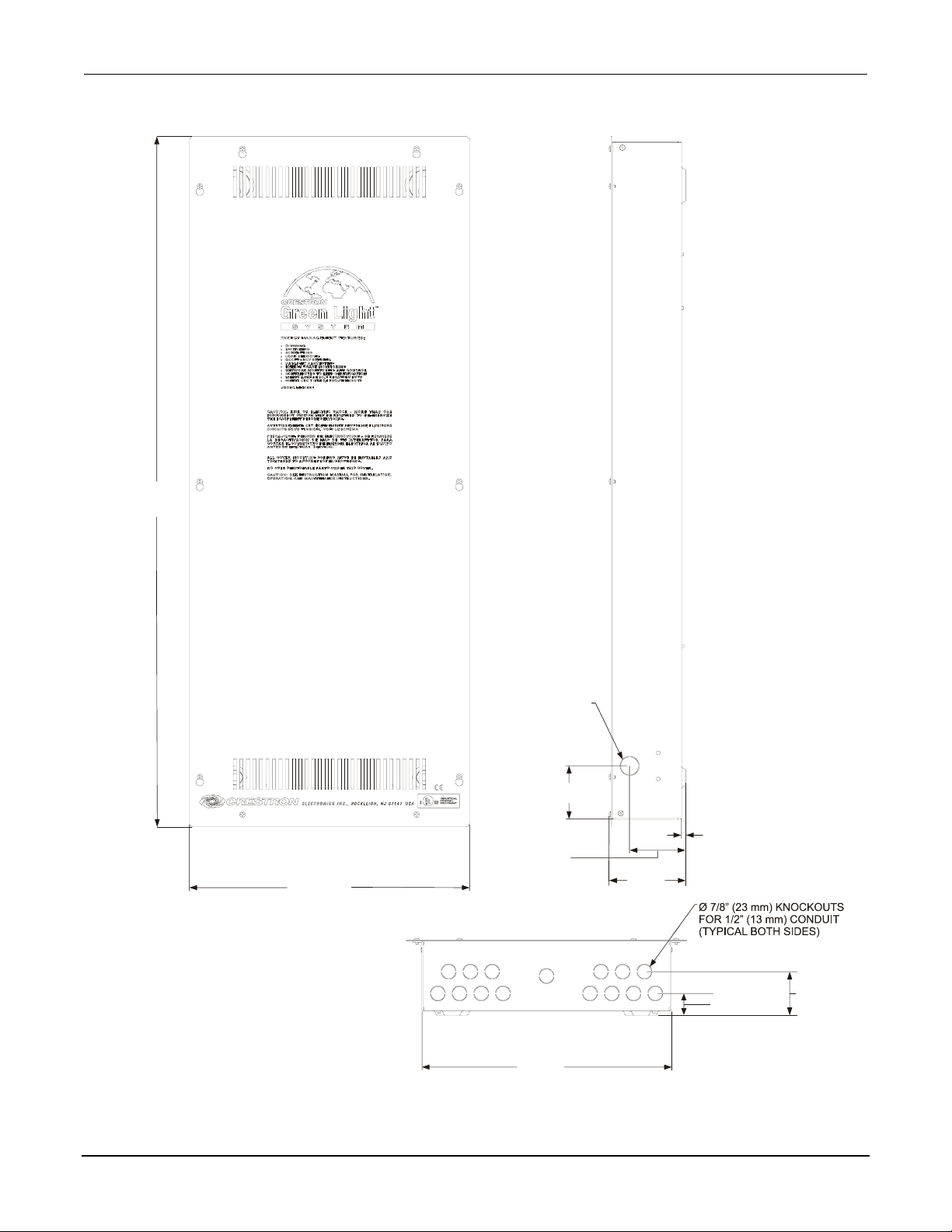

Dimensions of GLPS-HDSW-FT-28, -32, -36, -40, -48, -52, -56 Power Switching Cabinets (Front, Side and Bottom View)

16 1/8”

(409 mm)

39 5/8”

(1 m)

3 1/16”

(78 mm)

KNOCKOUT FOR 3/4”

(20 mm) CONDUIT

(TYPICAL BOTH

SIDES)

4 7/16”

(113 mm)

1/4” (7 mm)

3 1/4”

(83 mm)

2 1/2” (64 mm)

14 3/8"

(365 mm)

1 1/4” (32 mm)

4 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT Installation Guide – DOC. 6887A

CRESTRON GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT

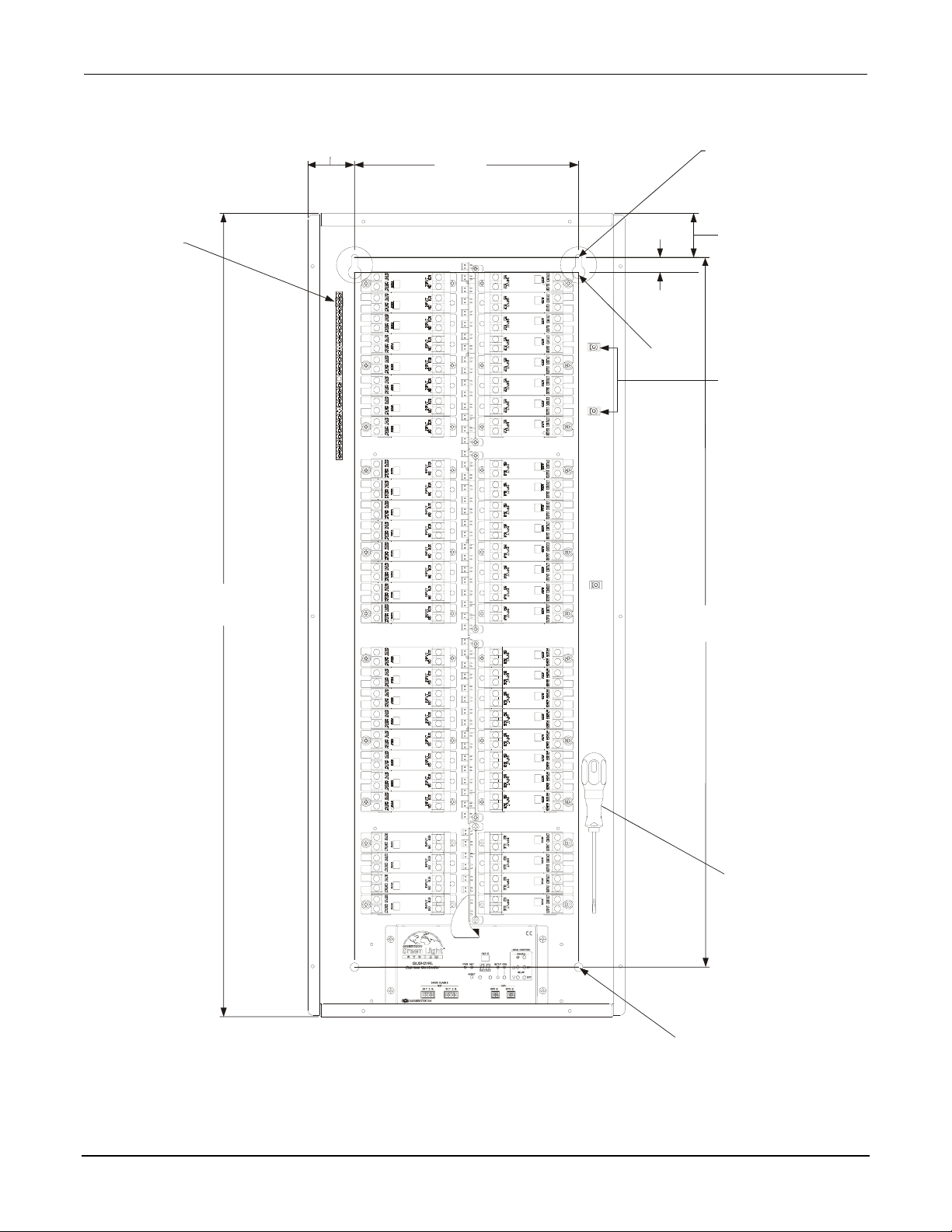

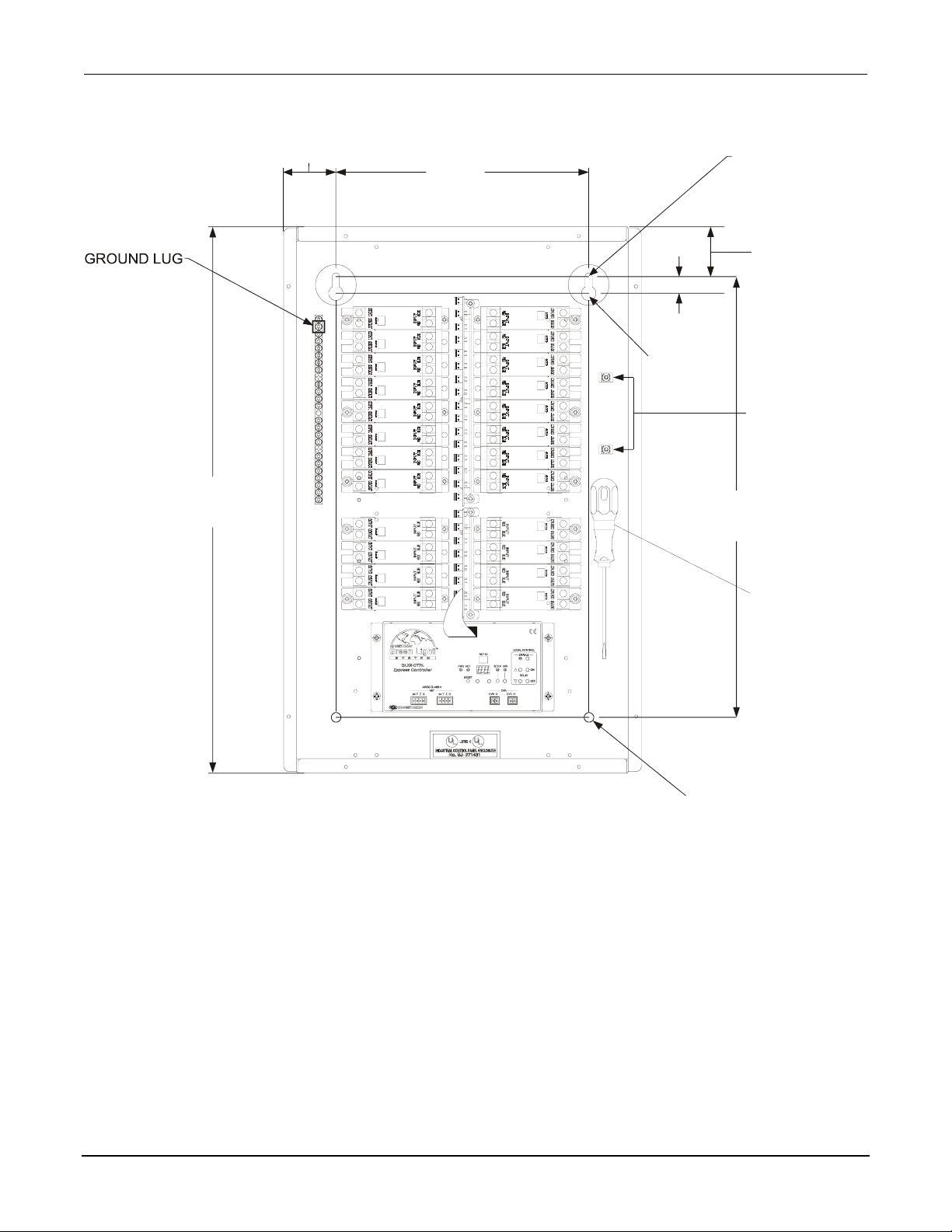

Dimensions of GLPS-HDSW-FT–28, -32, -36, -40, -48,-52, -56 (shown below) Power Switching Cabinets (Internal View)

2 1/8” (55 mm)

(2X) Ø 5/16”

(Ø 8 mm)

MOUNTING HOLES

(2x) 11/16”

(19 mm)

10 7/8”

(276 mm)

2 1/4”

(58 mm)

GROUND

LUG

38 7/8”

(998 mm) 34 3/8”

(873 mm)

(2X) Ø 7/16

(Ø 12 mm)

MOUNTING HOLES

(2x) Ø 5/8”

(Ø 16 mm) * TIE WRAP

HOLDERS (MAY

BE MOVED TO

OTHER HOLES

AS REQUIRED)

SERVICE

SCREWDRIVER

* Installed GLXX modules come with additional tie wrap holders.

Installation Guide – DOC. 6887A GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT •5

Power Switching Cabinet GLPS-HDSW-FT CRESTRON GREEN LIGHT®EXPRESS

Installation

Observe the following when installing the cabinet:

• The cabinet must be mounted by a licensed electrician in accordance with all national and local codes.

Refer to the diagram below for specific requirements.

• The cabinet is designed for surface mounting on a wall.

• Cabinets are intended for indoor use only.

• The ambient temperature range should be 32°F to 104°F (0°C to 40°C). The relative humidity should range

from 10% to 90% (non-condensing). Allow adequate clearance in front of the cover for servicing.

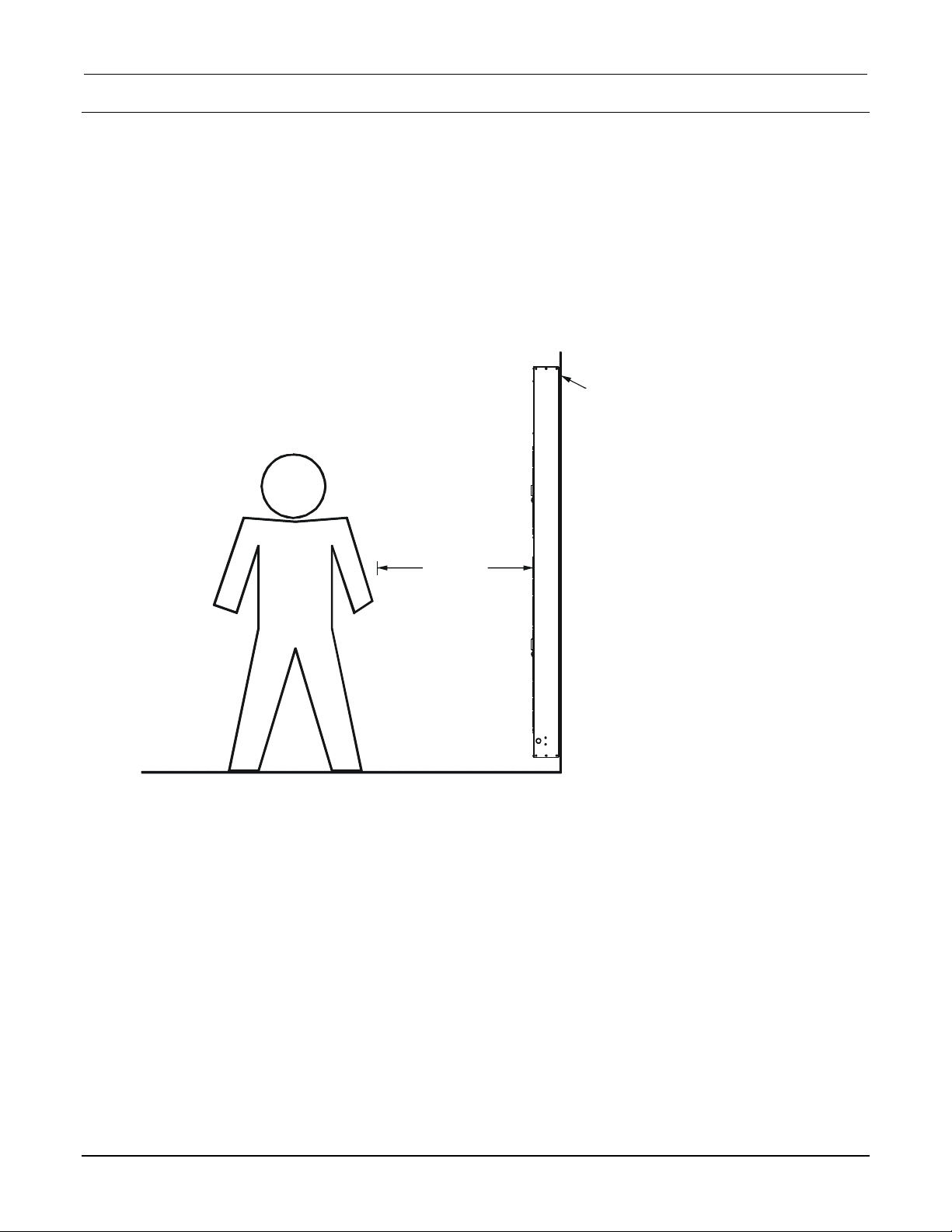

Mounting Location

3 ft

(0.9 m)

Minimum

Required

Clearance

Wall

6 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT Installation Guide – DOC. 6887A

CRESTRON GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT

Wiring

NOTE: All wiring must be installed in accordance with all local and national electrical codes.

NOTE: Refer to the torque settings specified on pages 8 and 9.

CRESTRON GREEN LIGHT EXPRESS power switching cabinets come pre-configured with GLXX-HDSW

switching modules already installed. The cabinets only require installation and wiring of feed and load circuits.

The following must be performed after mounting the cabinet:

• Connect incoming feed conductors to the input terminals and connect loads to contact terminals (section A

of the following diagram)`

• Connect control wiring (section Bof the following diagram)

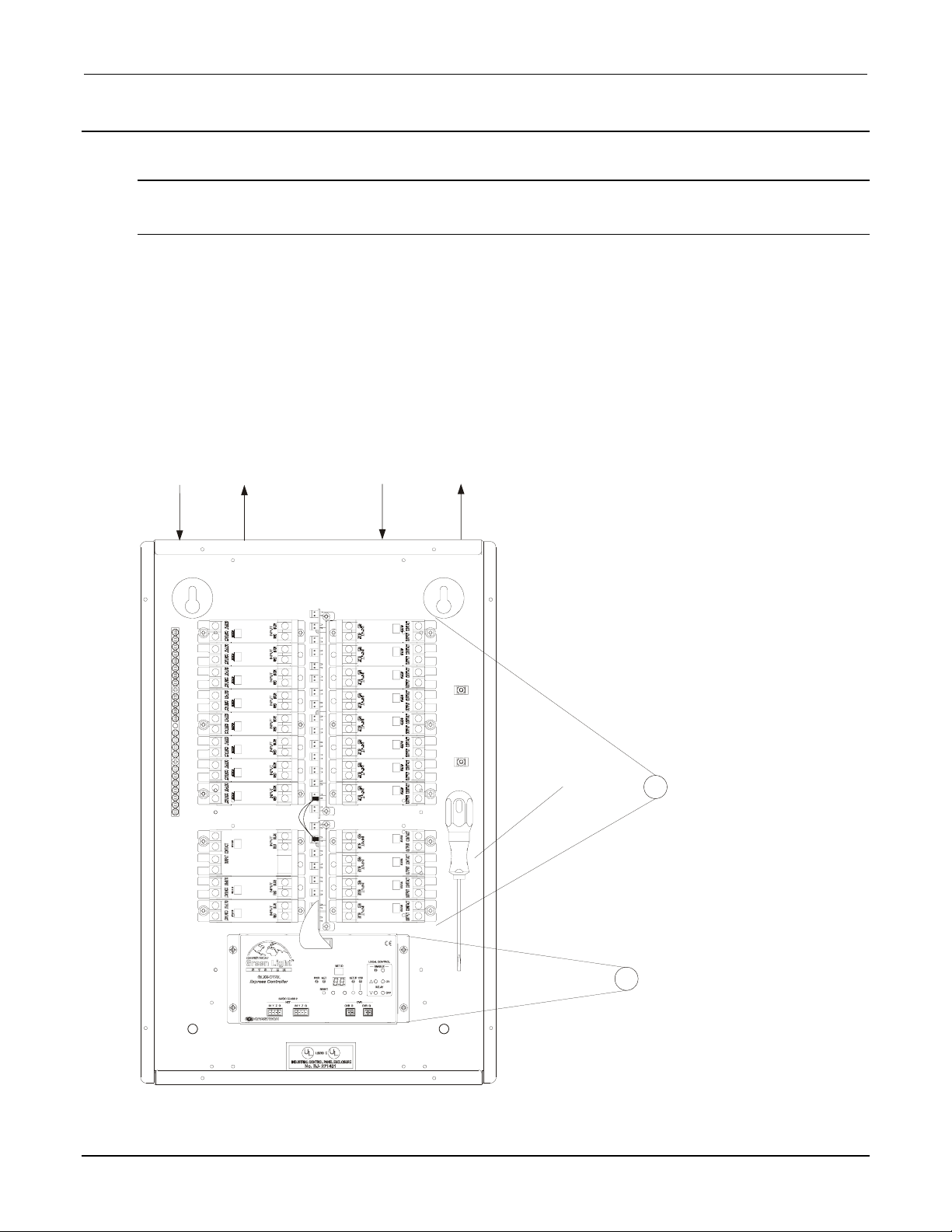

Feed-Through and Load Wiring

SERVICE

SCREWDRIVER

CLASS 2

WIRING ONLY

FEEDS

FROM

BREAKER

PANEL TO

LOADS

FEEDS

FROM

BREAKER

PANEL TO

LOADS

Installation Guide – DOC. 6887A GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT •7

Power Switching Cabinet GLPS-HDSW-FT CRESTRON GREEN LIGHT®EXPRESS

Feed-Through and Load Wiring (Section A)

NOTE: Use copper conductors only – rated 75°C.

Wire Gauge and Torque Values

TERMINAL CONNECTOR MAX

WIRE RANGE TORQUE STRIP

LENGTH

INPUT 26-10 AWG 5.31 lb-in (0.6 Nm) to

7.08 lb-in (0.8 Nm) max 3/8”

(9 mm)

OUTPUT/CONTACT 26-10 AWG 5.31 lb-in (0.6 Nm) to

7.08 lb-in (0.8 Nm) max 3/8”

(9 mm)

GROUND LUG 14-4 AWG 25-45 lb-in

(2.8-5.1 Nm) 3/4"

(19 mm)

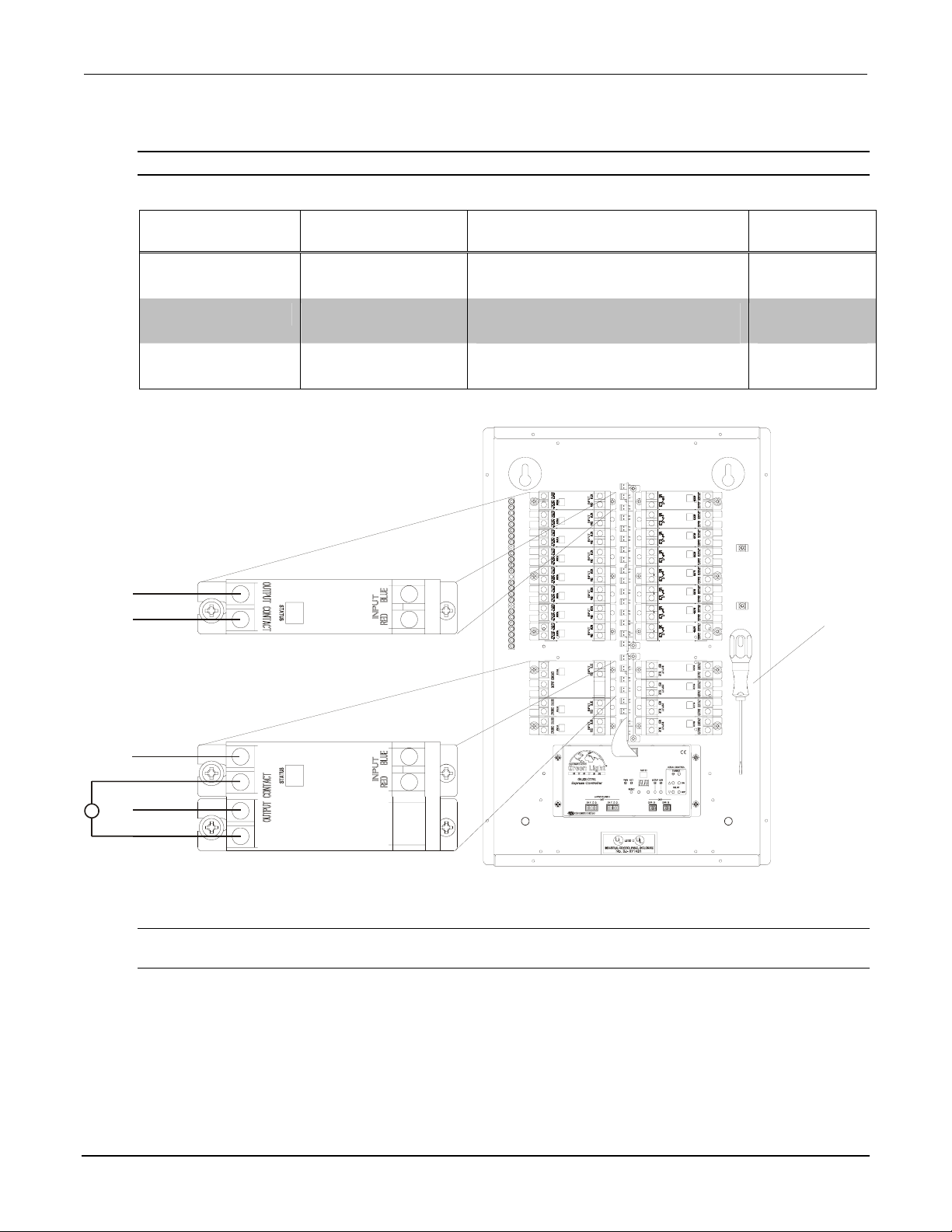

Load Wiring for GLXX -HDSW8 and GLXX- HDSW16

SERVICE

SCREWDRIVER

LINE 1*

TO LOAD

LINE 2*

TO LOAD

SINGLE-POLE

DOUBLE-POLE

LINE

TO LOAD

* Lines 1 and 2 must be on different phases.

NOTE: All GLXX-HDSW8 or GLXX-HDSW16 modules must be connected together in series to the

GLXX-CNTRL Express Controller using the quick-connect jumper wires provided.

8 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT Installation Guide – DOC. 6887A

CRESTRON GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT

Control Wiring (Section B)

The bottom of the cabinet contains Cresnet®connections for interfacing to the rest of the Crestron®control system.

It also provides overrides input which can be tied to devices such as the GLS-PLS-120/277 phase-loss sensor, or

other devices that provide a dry contact closure (manual switch, fire alarm relay, etc.).

To ensure optimum performance over the full range of your installation topology, use Crestron certified wire.

Failure to do so may incur additional charges if support is required to identify performance deficiencies because of

using improper wire.

NOTE: Interface connectors for NET (x2), and OVERRIDE (x3) ports are provided.

Wire Gauge and Torque Values

TERMINAL CONNECTOR MAX

WIRE RANGE TORQUE STRIP

LENGTH

NET 26-12 AWG 4.43 lb-in

(0.5 Nm) 1/4”

(6 mm)

OVERRIDE 26-12 AWG 4.43 lb-in

(0.5 Nm) 1/4”

(6 mm)

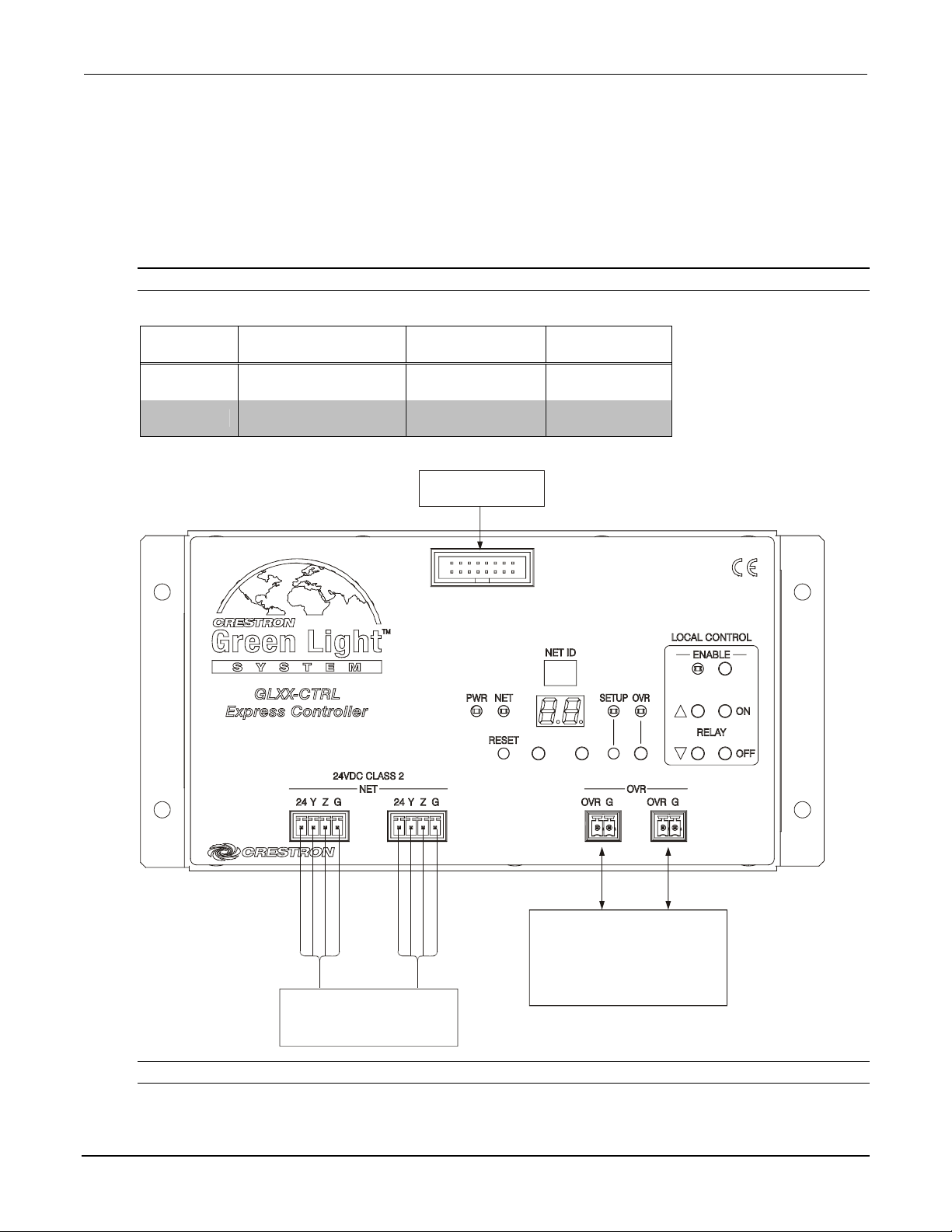

Connector Wiring

NET:

TO CONTROL SYSTEM AND

OTHER CRESNET DEVICES

OVERRIDE:

FROM GLS-PLS-120/277, FROM

OTHER CABINET,

FROM ALARM, ETC.

(OPTIONAL); TO OTHER

CABINET(S) IF NECESSARY

RED

WHITE

BLUE

BLACK

RED

WHITE

BLUE

BLACK

MODULES:

TO HDSW MODULES

NOTE: For instructions on network wiring, refer to “Appendix C: Network Wiring” on page 18.

Installation Guide – DOC. 6887A GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT •9

Power Switching Cabinet GLPS-HDSW-FT CRESTRON GREEN LIGHT®EXPRESS

NET Port Wiring

When wiring the supplied NET connectors for connection to a Crestron control system or other device on the

Cresnet network, use Crestron certified wire such as CRESNET-NP or CRESNET-P. For instructions on

network wiring, refer to “Appendix C: Network Wiring” on page 18.

When daisy-chaining connections between NET ports, strip the ends of the wires carefully to avoid nicking the

conductors. Twist together the ends of the wires that share a pin on the network connector, insert the connection

into the Cresnet connector, tighten the retaining screw. Repeat the procedure for the other three conductors.

OVERRIDE Port Wiring

When a connection is applied between the override terminals, the modules will enter Override mode. The

Crestron GLS-PLS-120/277 phase-loss sensor or any device that provides a dry contact closure can be

connected to the supplied OVERRIDE connector on the bottom of the cabinet.

Mechanical Override

1. Locate the mechanical override rocker switch labeled STATUS on the top of the relay.

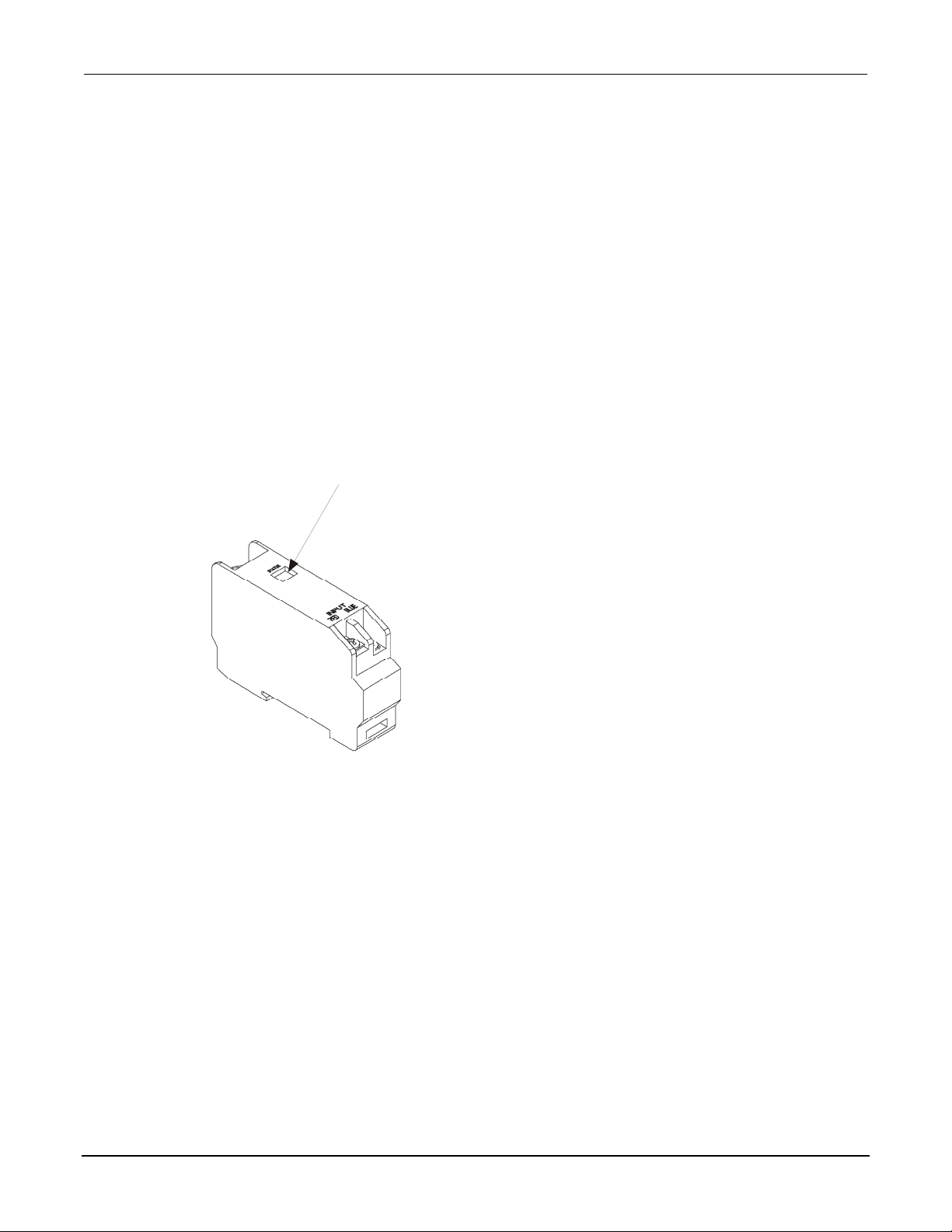

Mechanical Override Switch

MECHANICAL

OVERRIDE

2. Place the tip of a screwdriver on the switch and push against the indentation.

3. The rocker switch will toggle into either an “ON or OFF” position, overriding the current state.

10 •GREEN LIGHT®EXPRESS Power Switching Cabinet GLPS-HDSW-FT Installation Guide – DOC. 6887A
