Crestron MMK-3000L & WMKM-3000L

Mud Mount Kits

Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron MMK-3000L & WMKM-3000L Mud Mount Kits

Mud Mount Kits: MMK-3000L &

WMKM-3000L

Description

Mud Mount Kits are the preferred mounting option for the Crestron Isys™

TPS-3000L series of lectern/wall-mounted video touchpanel when cutouts made for

the touchpanel are too large. These kits fill in the gaps with additional plastering and

provide the support to hide large irregularities in the touchpanel cutout.

There are two Mud Mount Kits. The MMK-3000L is a pre-construction accessory.

Pre-construction refers to framed walls prior to hanging drywall. This accessory is

designed be used with the optional Pre-Construction Mount Kit (PMK-3000L) or

Back Box Kit (BB-3000L).

The WMKM-3000L is a post-construction kit. Post-construction refers to framed

walls with drywall hung. This accessory is designed with a mounting plate so that it

can be placed anywhere on a wall without the support from a stud.

NOTE: If necessary, consult the latest revision of the TPS-3000L Operations Guide

(Doc. 6077) for a complete list of mounting options.

Supplied Hardware

The MMK-3000L consists of three parts. These parts produce an assembly that

attaches to the PMK-3000L or BB-3000L. The WMKM-3000L consists of the same

three parts that make up the MMK-3000L as well as one mounting plate. The

mounting plate is the part that provides the necessary support for post-construction

applications.

Supplied Hardware of the MMK-3000L and WMKM-3000L

DESCRIPTION PART NUMBER QUANTITY

Metal Plate, Mounting

(WMKM-3000L only)

MTPL02848-1 1

Metal Plate, Mud Ring MTPL02850-1 1

Metal Plate, Fastener MTPL02874-1 2

Hardware, Push-On Fastener MMHO-11 4

Installation Guide – DOC. 6021 Mud Mount Kits: MMK-3000L & WMKM-3000L •1

Mud Mount Kits Crestron MMK-3000L & WMKM-3000L

The dimensions of the MMK-3000L/WMKM-3000L are shown below.

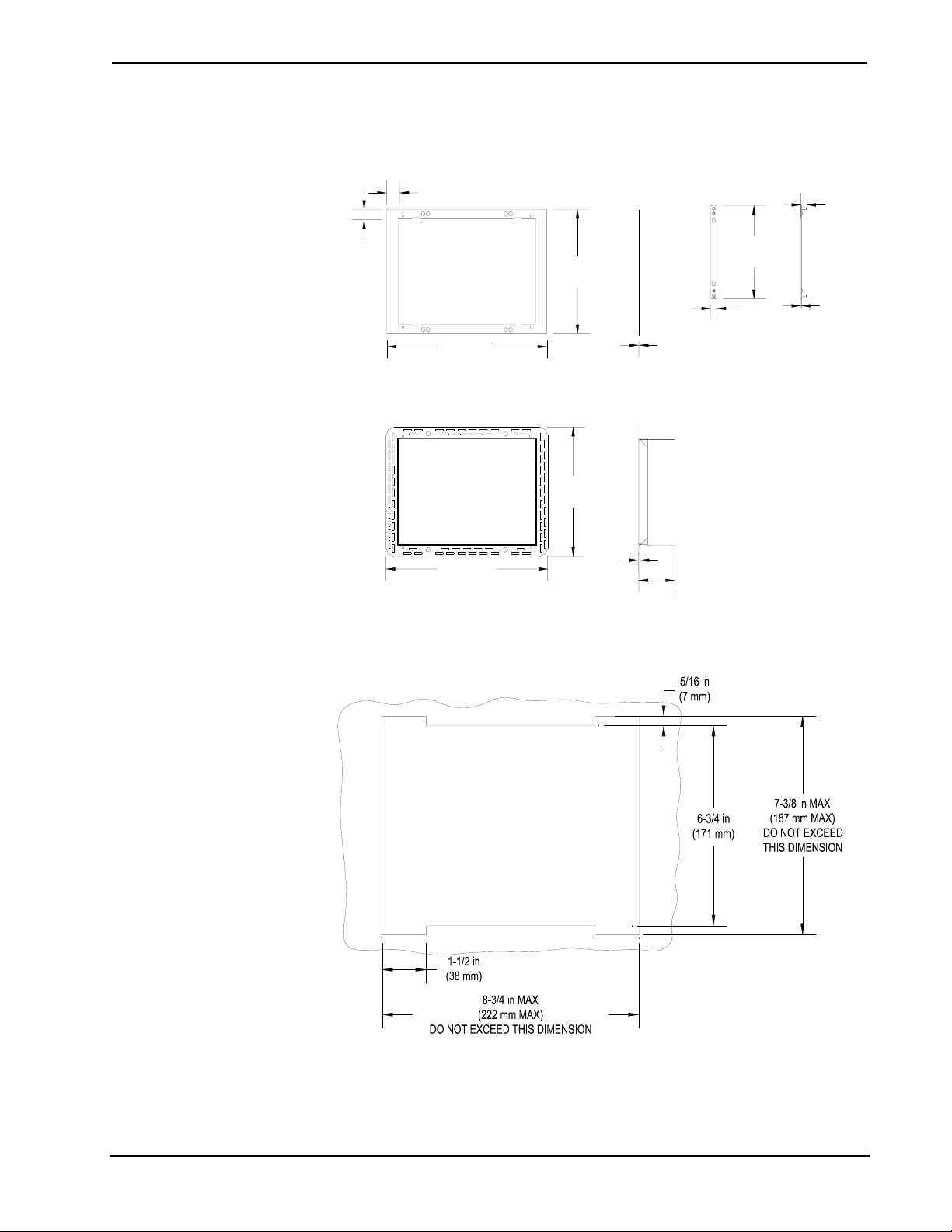

Dimensional Drawing

10.06 in

(25.55 cm)

7.84 in

(19.91 cm)

0.06 in

(0.15 cm)

8.13 in

(20.65 cm)

10.16 in

(25.81 cm)

2.26 in

(5.73 cm)

0.07 in

(0.18 cm)

MOUNTING PLATE FOR

WMKM-3000L

MUD RING PLATE FOR

WMKM-3000L & MMK-3000L

0.70 in

(1.78 cm)

0.61 in

(1.54 cm)

5.90 in

(14.99 cm)

0.38 in

(0.95 cm)

0.05 in

(0.12 cm)

0.38 in

(0.95 cm)

FASTENER PLATE FOR

WMKM-3000L AND MMK-3000L

Drywall Cutout Dimensions

2 •Mud Mount Kits: MMK-3000L & WMKM-3000L Installation Guide – DOC. 6021

Crestron MMK-3000L & WMKM-3000L Mud Mount Kits

Installation

This section provides an installation procedure for each Mud Mount Kit. The

procedure for the MMK-3000L starts below and the “WMKM-3000L Procedure”

starts on page 5.

MMK-3000L Procedure

The procedure in this section provides the necessary steps for the assembly of the

MMK-3000L to either the PMK-3000L or BB-3000L. It is assumed that the

PMK-3000L or BB-3000L has been secured to the stud according to the procedures

in the latest revisions of their respective Installation Guides (Doc. 6024 and Doc.

6022, respectively). Also, it is assumed that drywall is in place and a rectangular

cutout for the touchpanel is made in the drywall (refer to the Drywall Cutout

dimensions on the previous page for cutout dimensions).

Complete the steps in the order provided. The only tools or materials required and

not supplied are a drywall saw or equivalent, four standard drywall screws, #2

Phillips screwdriver, a level, and tools/material to apply drywall joint compound.

NOTE: The illustrations in this procedure show the installation of the MMK-3000L

with the PMK-3000L. Even though the illustrations only show the PMK-3000L, they

are identical for the BB-3000L as well.

1. Pass a fastener plate through the opening and align its two center holes

with the top two pins on the PMK-3000L. Verify that the pins on the

fastener plate are not between the fastener plate and the PMK-3000L.

Refer to the illustration after this step for visual guidance.

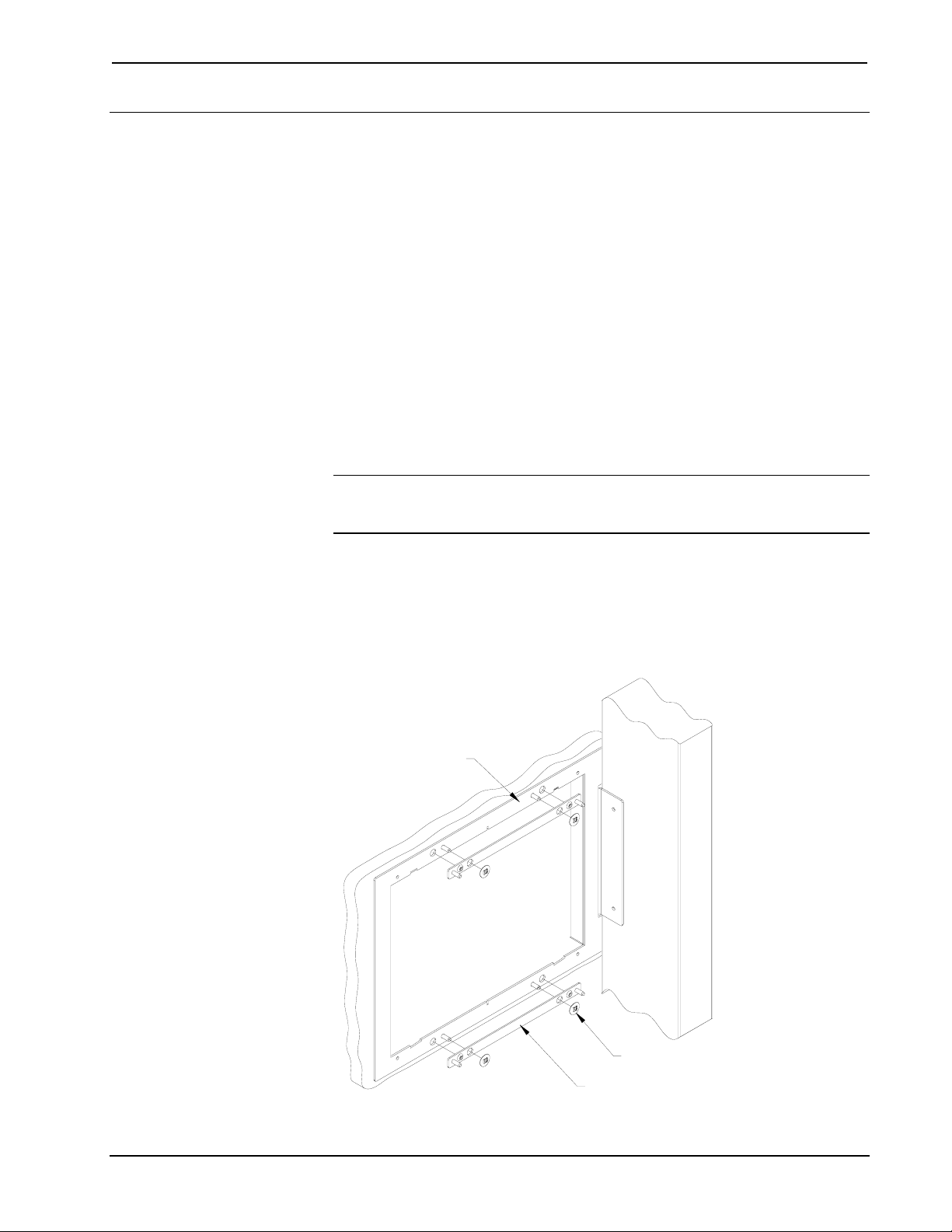

Secure Fastener Plates to PMK-3000L (or BB-3000L)

PMK-3000L

(2) FASTENER PLATE

(4) PUSH-ON FASTENER

Installation Guide – DOC. 6021 Mud Mount Kits: MMK-3000L & WMKM-3000L •3

Mud Mount Kits Crestron MMK-3000L & WMKM-3000L

2. Slide a push-on fastener over each pin of the PMK-3000L (or

BB-3000L) to loosely secure the fastener plate and the mounting plate.

Do not push the push-on fasteners all the way down onto the pins. Slide

them on enough to keep the fastener plate and mounting plate as one

fastener/mounting plate assembly.

3. Use the second fastener plate and repeat steps 1 and 2 using the lower

two PMK-3000L (or BB-3000L) pins.

NOTE: When installing into the PMK-3000L, verify that the 18 AWG bus wire

securing the cables for the touchpanel remain attached.

4. Verify that the drywall cutout meets the measurements specified on

page 2.

5. Insert the symmetrical mud ring plate into the opening, as shown in the

illustration after this step.

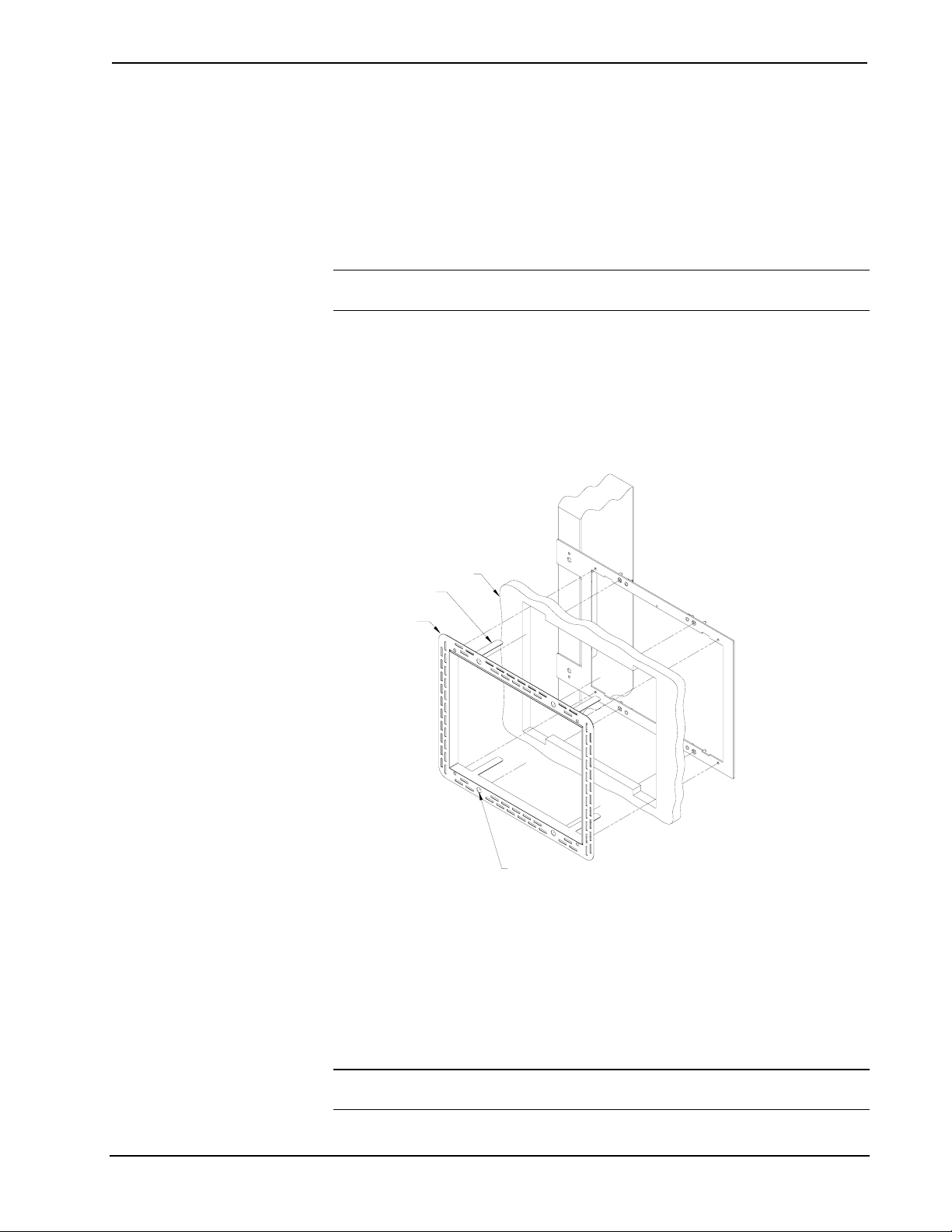

Insert and Secure Mud Ring Plate into PMK-3000L (or BB-3000L)

MUD RING PLATE

FLANGE

DRYWALL

HOLES FOR DRYWALL SCREWS (PROVIDED BY

OTHER, SCREW LENGTH SHOULD NOT EXCEED

DRYWALL THICKNESS BY MORE THAN 1/2")

6. When the mud ring plate is in position, bend the top two flanges of the

plate upward and the bottom two flanges downward.

• If mounting into the PMK-3000L, bend the flanges

approximately 90 degrees.

• If mounting into the BB-3000L, bend the flanges back as far

as they can go.

NOTE: If using BNC connectors (supplied by others), the flanges may need to be

bent out of the way

4 •Mud Mount Kits: MMK-3000L & WMKM-3000L Installation Guide – DOC. 6021

Crestron MMK-3000L & WMKM-3000L Mud Mount Kits

7. Use four standard drywall screws (length should not exceed drywall

thickness by more than ½ inch) to secure the mud ring plate to the rest

of the assembly. The screws pass through the clearance holes in the

PMK-3000L (or BB-3000L) and are secured in the extruded holes of

the fastener plates.

8. Verify that the mud ring plate is level.

NOTE: Do not over tighten screws. Doing so may over-dimple or rip the mud ring

plate.

9. Use a #2 Phillips screwdriver and tighten the drywall screws by hand

so that they slightly dimple into the holes in the mud ring plate.

10. Apply drywall joint compound as needed to finish the cutout. Avoid

covering the 4 tapped mounting holes.

11. Run the necessary cables for the touchpanel and secure them behind the

drywall.

12. When dry, the TPS-3000L can be installed using the four tapped holes

in the PMK-3000L. Refer to the latest revision of the TPS-3000L

Operations Guide (Doc. 6077) for details.

WMKM-3000L Procedure

The procedure in this section provides the necessary steps for the assembly and

installation of the WMKM-3000L into a wall. Complete the steps in the order

provided. The only tools or materials required and not supplied are a drywall saw or

equivalent, a level, four standard drywall screws, #2 Phillips screwdriver, and

tools/material to apply drywall joint compound.

1. Insert the two pins on one fastener plate into the top two outer holes on

the mounting plate, as shown in the illustration after this step.

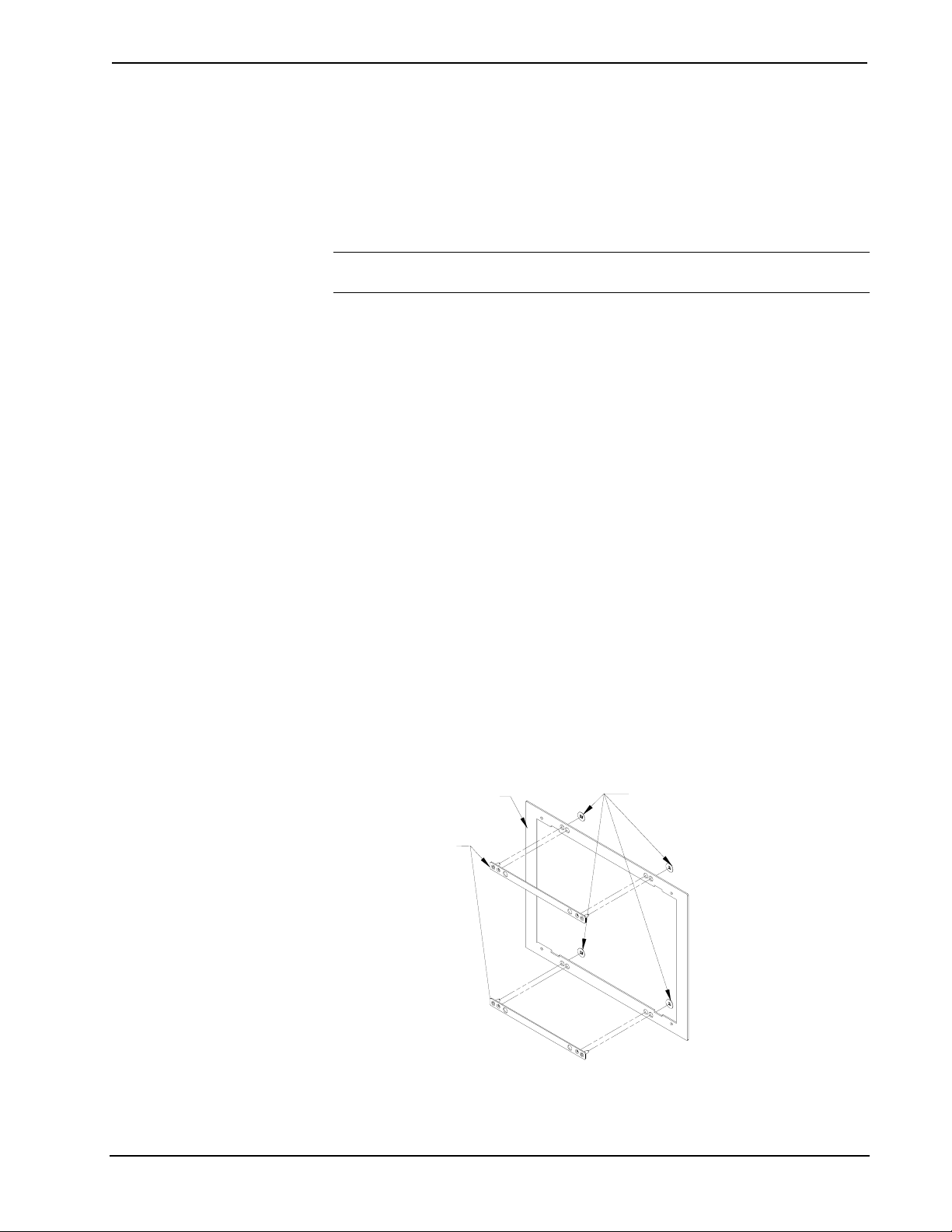

Create the Fastener/Mounting Plate Assembly

Installation Guide – DOC. 6021 Mud Mount Kits: MMK-3000L & WMKM-3000L •5

MOUNTING PLATE

FASTENER PLATE

(4) PUSH-ON FASTENER

Mud Mount Kits Crestron MMK-3000L & WMKM-3000L

2. Slide a push-on fastener over each pin on the fastener plate to loosely

secure the fastener plate and the mounting plate. Do not push the push-

on fasteners all the way down onto the pins. Slide them on enough to

keep the fastener plate and mounting plate as one fastener/mounting

plate assembly.

3. Use the second fastener plate and repeat steps 1 and 2 using the lower

two PMK-3000L pins.

4. Locate an area on the wall that is free of miscellaneous wiring and

studs.

5. Make a small hole near the middle of the designated site; verify that the

location is suitable.

NOTE: Make the cutout as level as possible. The mounting plate allows for only

minor leveling adjustments.

6. Use the drywall saw or equivalent to produce a level, rectangular cutout

in the drywall as shown on page 2.

7. Insert the symmetrical mud ring plate into the opening, as shown in the

illustration after this step.

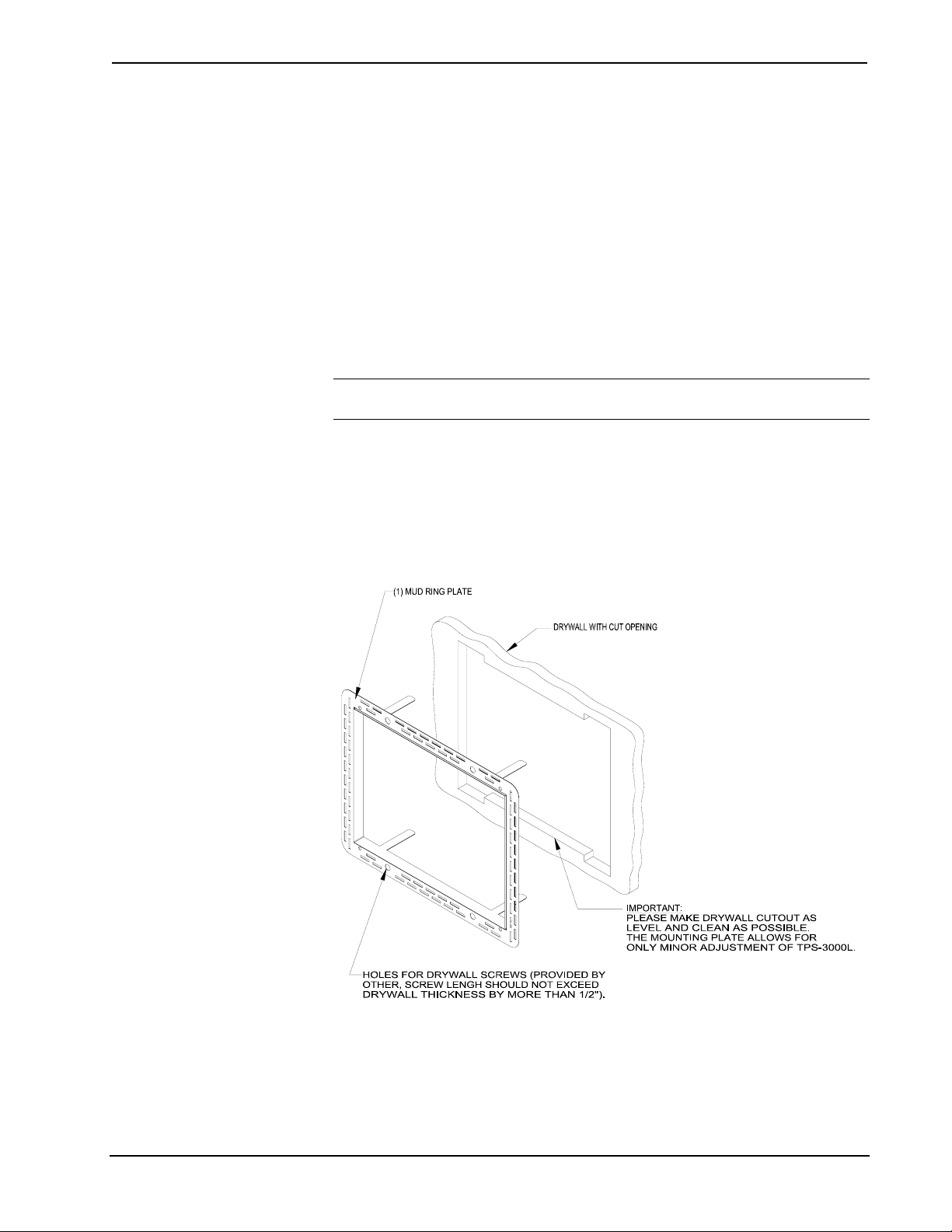

Insert the Mud Ring Plate into the Opening

8. Carefully pass the fastener/mounting plate assembly through the

opening and rest the assembly against the interior surface of the

drywall. Verify that the fastener plates are between the mounting plate

and the drywall.

6 •Mud Mount Kits: MMK-3000L & WMKM-3000L Installation Guide – DOC. 6021

Crestron MMK-3000L & WMKM-3000L Mud Mount Kits

9. When the fastener/mounting plate assembly is in position, bend the top

two flanges of the mud ring upward (approximately 90 degrees) and the

bottom two flanges downward (approximately 90 degrees). Refer to the

illustration after this step.

NOTE: Fastener/mounting plate assembly will have slight play; this is normal. It

allows for minor adjustments to the TPS-3000L during installation.

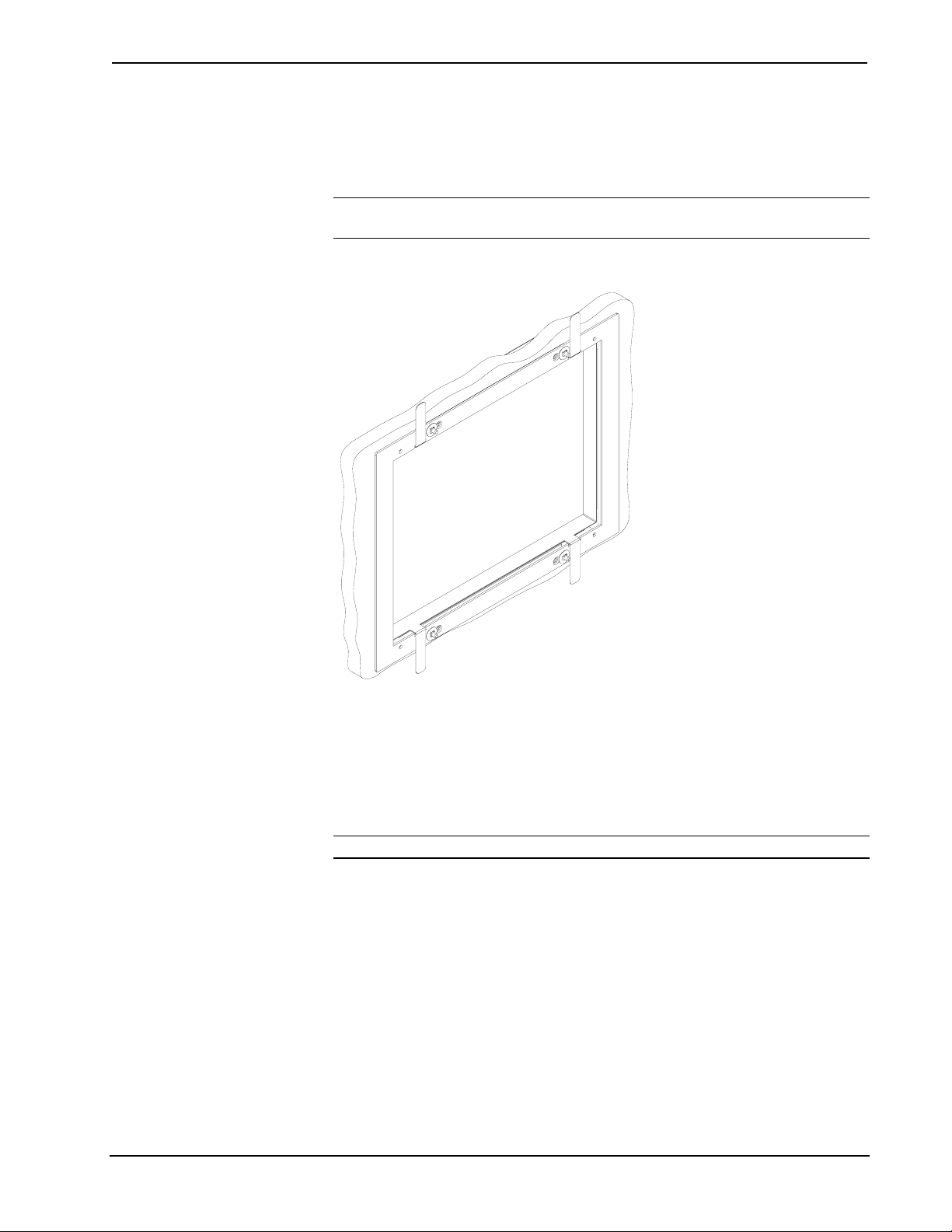

Bend Flanges

10. Use four standard drywall screws (of adequate length) to secure the

plate to the fastener/mounting plate assembly. The screws pass through

the clearance holes in the plate and are secured in the extruded holes of

the fastener plates.

11. Verify that the plate is level before tightening.

NOTE: Do not over tighten screws. Doing so may over-dimple or rip the plate.

12. Use a #2 Phillips screwdriver and tighten the drywall screws by hand

so that they slightly dimple into the holes in the mud ring plate.

13. Run the necessary cables for the touchpanel and secure them behind the

drywall.

14. Apply drywall joint compound as needed to finish the cutout. Avoid

covering the 4 tapped mounting holes.

15. When dry, the TPS-3000L can be installed using the four tapped holes

in the mounting plate. Refer to the latest revision of the TPS-3000L

Operations Guide (Doc. 6077) for details.

Installation Guide – DOC. 6021 Mud Mount Kits: MMK-3000L & WMKM-3000L •7

Mud Mount Kits Crestron MMK-3000L & WMKM-3000L

Further Inquiries

If after reviewing this Installation Guide, you cannot locate specific information or

have questions, please take advantage of Crestron's award winning customer service

team by calling:

• In the US and Canada, call Crestron’s corporate headquarters at

1-888-CRESTRON [1-888-273-7876].

• In Europe, call Crestron International at +32-15-50-99-50.

• In Asia, call Crestron Asia at +852-2341-2016.

• In Latin America, call Crestron Latin America at +5255-5093-2160.

• In Australia and New Zealand, call Crestron Pacific at

+613-9480-2999.

As of the date of manufacture, the MMK-3000L and WMKM-3000L have been

tested and found to comply with specifications for CE marking.

Future Updates

As Crestron improves functions, adds new features, and extends the capabilities of

the MMK-3000L or WMKM-3000L, additional information may be made available

as manual updates. These updates are solely electronic and serve as intermediary

supplements prior to the release of a complete technical documentation revision.

Check the Crestron website (www.crestron.com) periodically for manual update

availability and its subjective value. Updates are available from the Download |

Product Manuals section and are identified as an “Addendum” in the Download

column.

8 •Mud Mount Kits: MMK-3000L & WMKM-3000L Installation Guide – DOC. 6021

This manual suits for next models

Table of contents

Other Crestron Rack & Stand manuals

Crestron

Crestron UCA-RMK-1U User manual

Crestron

Crestron RMK-3U User manual

Crestron

Crestron TSW-770-MSMK-ANG User manual

Crestron

Crestron TSW-560 User manual

Crestron

Crestron CCS-UC-200-WSTND User manual

Crestron

Crestron TMK-4L User manual

Crestron

Crestron RMK-12L User manual

Crestron

Crestron UCA-SMK-UC2 User manual

Crestron

Crestron MMK-V12 User manual

Crestron

Crestron PMK-17L User manual

Crestron

Crestron HBK-6000 User manual

Crestron

Crestron MMK-4000L User manual

Crestron

Crestron MP-WP-2XLRO-1G User manual

Crestron

Crestron CPC-WMT How to use

Crestron

Crestron RMK-8L User manual

Crestron

Crestron MK-QM-RMCRX User manual

Crestron

Crestron PMK-4000L User manual

Crestron

Crestron TS-70 Series User manual

Crestron

Crestron RMK-4000L User manual

Crestron

Crestron RMK-17L User manual

Crestron

Crestron PMK-4L User manual

Crestron

Crestron RMK-1500 User manual

Crestron

Crestron CAEN-MK User manual

Crestron

Crestron TSW-550-BBI User manual

Popular Rack & Stand manuals by other brands

Salamander

Salamander Acadia AC/W/L400/WH Assembly instructions

Fohhn

Fohhn VAT-09 Mounting instruction

ricoo

ricoo FS0522 quick start guide

AMSOIL

AMSOIL BMK-22 Installation and service instructions

Kargo Master

Kargo Master 48220 installation guide

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 installation instructions

ricoo

ricoo S1222 installation instructions

Ready-Set-Mount

Ready-Set-Mount RSMCM602 instruction manual

VidaBox

VidaBox VB MNT FFS2 installation guide

Welch Allyn

Welch Allyn 48960 Assembly instructions

Arkon

Arkon CM035-ST-2 installation instructions

PROEL

PROEL PLWIN60C user manual

Agilent Technologies

Agilent Technologies E2609B installation guide

Mustang

Mustang MV-ARM4 installation guide

Mounting Solutions

Mounting Solutions WRM-320 manual

Pyle

Pyle PMKSPAD1 manual

ShelterIt

ShelterIt 21208 installation instructions

SPL

SPL RackPack?4 1040 manual
