Crestron TPCS-4SM User manual

Crestron TPCS-4SM & TPCS-4SMD

4.3” Touch Screen Control Systems

Configuration Guide

This document was prepared and written by the Technical Documentation department at:

The specific patents that cover Crestron products are listed at www.crestronpatents.com.

Crestron, the Crestron logo and Crestron Toolbox are either trademarks or registered trademarks of Crestron Electronics, Inc. in the

United States and/or other countries. Internet Explorer is either a trademark or registered trademark of Microsoft Corporation in the

United States and/or other countries. Other trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others.

Crestron TPCS-4SM & TPCS-4SMD Touch Screen Control Systems

Contents

4.3” Touch Screen Control Systems: TPCS-4SM & TPCS-4SMD 1

Access the Setup Screens........................................................................................................... 1

Configure the TPCS-4SM or TPCS-4SMD...............................................................................3

Ethernet Setup .............................................................................................................3

Audio Setup.................................................................................................................8

Display Setup ..............................................................................................................8

Application Setup ......................................................................................................10

Standby Timeout .......................................................................................................11

Diagnostics ................................................................................................................12

About.........................................................................................................................15

Save & Exit ...............................................................................................................15

Configuration Guide – DOC. 7332A Contents •i

Crestron TPCS-4SM & TPCS-4SMD Touch Screen Control Systems

4.3” Touch Screen

Control Systems:

TPCS-4SM & TPCS-4SMD

Access the Setup Screens

The setup screens are the starting point for configuring the TPCS-4SM and

TPCS-4SMD from Crestron®.

NOTE: If no project has been loaded or if an invalid project has been loaded, the

TPCS-4SM and TPCS-4SMD default to the setup screens.

The setup screens enable basic configuration procedures prior to regular operation of

the TPCS-4SM and TPCS-4SMD.

When power is applied for the first time, the screen shown in the following

illustration appears.

Initial Screen

NOTE: Most screens on the TPCS-4SM and TPCS-4SMD are identical. The few

instances where they differ are noted in the text.

Configuration Guide – DOC. 7332A 4.3” Touch Screen Control Systems: TPCS-4SM & TPCS-4SMD •1

Touch Screen Control Systems Crestron TPCS-4SM & TPCS-4SMD

Touch Setup to display the main “TPMC-4SM Setup” (or TPMC-4SMD Setup”)

menu, shown in the following illustration.

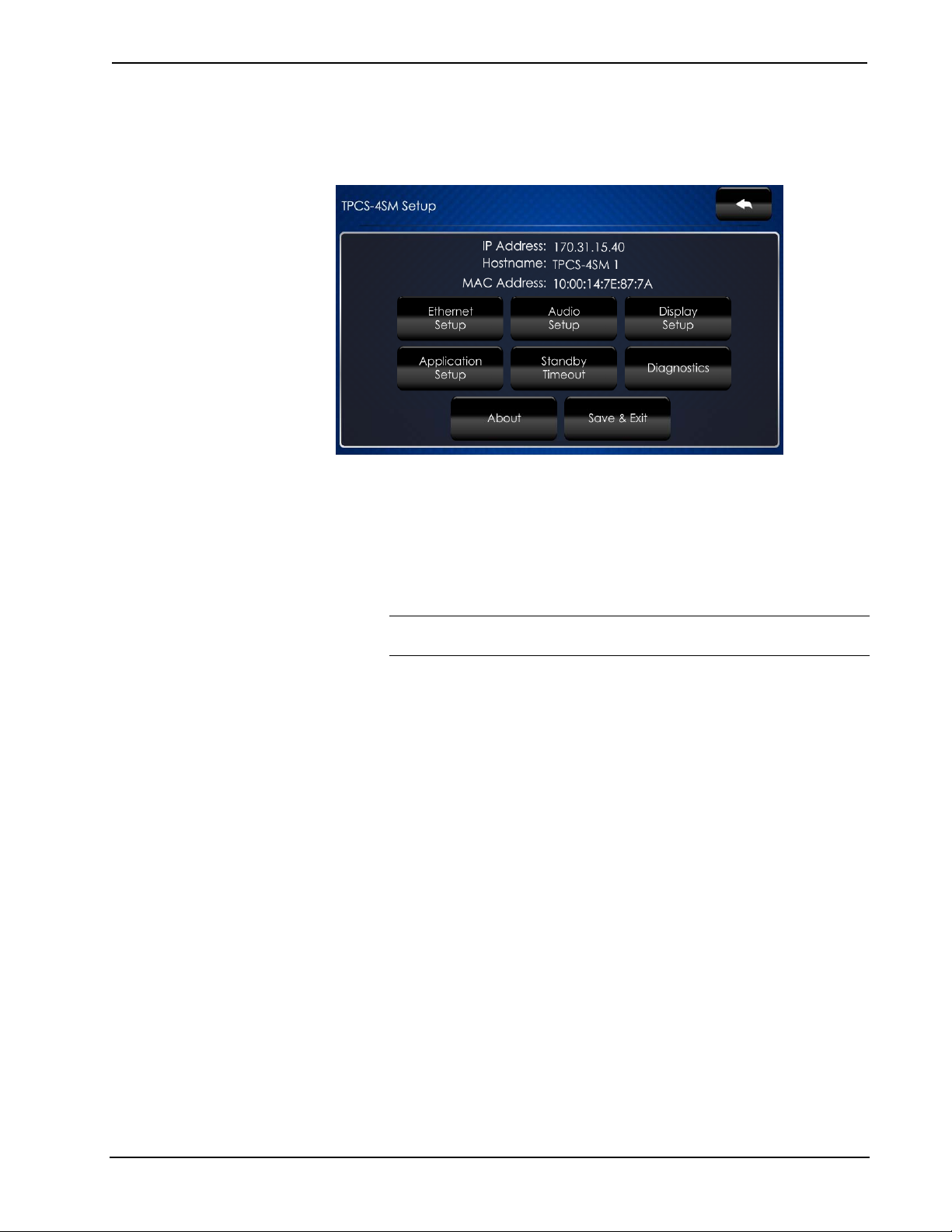

“TPCS-4SM Setup” Menu

During regular operation of the touch screen, there are two ways to activate the setup

functions:

1. Place a button on the project main page and assign the reserved join number

(17242) that activates setup.

2. Press hard keys 1, 2, 3 and 4, on the left side of the touch screen display, in

sequence twice (i.e., press 1, 2, 3, 4, 1, 2, 3, 4) within a five second period.

NOTE: For hard key numbering refer to the “Diagnostic – Keypad”

illustration at the bottom of page 12.

The “TPCS-4SM Setup” (or “TPCS-4SMD Setup”) menu is comprised of buttons for

Ethernet Setup, Audio Setup, Display Setup,Application Setup, Standby

Timeout and Diagnostics. In addition, there are buttons that provide information

about the touch screen and a Save & Exit button. The functions of each are detailed

in the next section of this guide.

2 •4.3” Touch Screen Control Systems: TPCS-4SM & TPCS-4SMD Configuration Guide – DOC. 7332A

Crestron TPCS-4SM & TPCS-4SMD Touch Screen Control Systems

Configure the TPCS-4SM or TPCS-4SMD

Ethernet Setup

On the “TPCS-4SM[D] Setup” menu, touch Ethernet Setup to display the “Ethernet

Setup” menu, shown in the following illustration.

“Ethernet Setup” Menu

The “Ethernet Setup” menu displays current settings, such as whether DHCP is on or

off, the touch screen’s Hostname and its IP Address. There are controls for turning

DHCP On or Off as well as controls which allow editing of the Hostname and IP

Address. This menu also contains Link and Ethernet indicators to show the status and

activity of the Ethernet connection. Other controls on this menu are explained in

paragraphs that follow.

To edit the Hostname, touch Edit on the right side of the menu. The “Edit

Hostname” screen opens with its on-screen keyboard, shown in the following

illustration.

“Edit Hostname” Screen with On-Screen Keyboard

Configuration Guide – DOC. 7332A 4.3” Touch Screen Control Systems: TPCS-4SM & TPCS-4SMD •3

Touch Screen Control Systems Crestron TPCS-4SM & TPCS-4SMD

Use the keyboard to enter the new name. Touch Clear to clear any previous entry,

Save to save a new entry or Cancel to return to the previous screen.

To edit the IP Address, touch Edit on the right side of the “Ethernet Setup” menu.

The “Edit IP Address” screen opens with its on-screen numeric keyboard, shown in

the following illustration.

“Edit IP Address” Screen with On-Screen Numeric Keyboard

Use the keyboard to enter the new IP address. Touch Clear to clear any previous

entry, Backspace to delete the last digit, Enter to save a new entry or Cancel to

return to the previous screen.

Touch the ellipsis (…) at the top of the “Ethernet Setup” menu to display additional

Ethernet parameters and the controls which allow their entry, as shown in the

following illustration.

“Ethernet Setup” Menu (Additional Parameters)

The additional parameters are Subnet Mask, Default Router, Mac Address and

Domain. For Subnet Mask, Default Router or Domain, touch Edit on the right side of

the menu to open on-screen keyboards like the ones described above.

After all new settings have been made, touch Reboot at the bottom of the “Ethernet

Setup” menu to reboot the touch screen, so the new settings can take effect.

Touch Advanced Settings to display the “Advanced Ethernet Setup” menu, shown

in the following illustration.

4 •4.3” Touch Screen Control Systems: TPCS-4SM & TPCS-4SMD Configuration Guide – DOC. 7332A

Crestron TPCS-4SM & TPCS-4SMD Touch Screen Control Systems

“Advanced Ethernet Setup” Menu

The “Advanced Ethernet Setup” menu provides controls for enabling or disabling

SSL (Secure Sockets Layer, a protocol for encrypting information over the Internet)

and for editing the CIP Port, Secure CIP Port, CTP Port and Secure CTP Port.

The SSL controls work as follows:

• Off: Disables the SSL capabilities of the TPMC-4SM (or TPMC-4SMD)

• Self: Sets up self signing certificates

• CA: Uses an authority to assign the SSL certificates

NOTE: For more details on SSL settings, refer to the latest version of the 3-Series

Control Systems Reference Guide (Doc. 7150). It is available from the Crestron Web

site at www.crestron.com/manuals.

To edit the CIP Port, Secure CIP Port, CTP Port or Secure CTP Port, , touch Edit

on the right side of the menu to open an on-screen keyboard like the ones described

earlier in this guide.

Touch DNS Servers to display the “DNS Servers” screen, shown in the following

illustration.

“DNS Servers” Screen

Configuration Guide – DOC. 7332A 4.3” Touch Screen Control Systems: TPCS-4SM & TPCS-4SMD •5

Touch Screen Control Systems Crestron TPCS-4SM & TPCS-4SMD

The “DNS Servers” screen provides controls for adding or deleting the IP addresses

of DNS (Domain Name System) registered computers on the network. To add a

server’s IP address, touch New to open an on-screen keyboard.

Use the keyboard to enter the IP address of the new DNS server. Touch Clear to

clear any previous entry, Backspace to delete the last digit, Enter to save a new

entry or Cancel to return to the previous screen.

On the “Advanced Ethernet Setup” menu, touch the ellipsis (…) at the top to display

the On and Off controls which allow enabling or disabling the Webserver and for

editing the Web Port and Secure Web Port.

The default Webserver setting is On. Touching Off disables access to setup from a

Web browser.

To edit the Web Port or Secure Web Port, touch Edit on the right side of the screen

to open an on-screen keyboard like the ones described earlier in this guide.

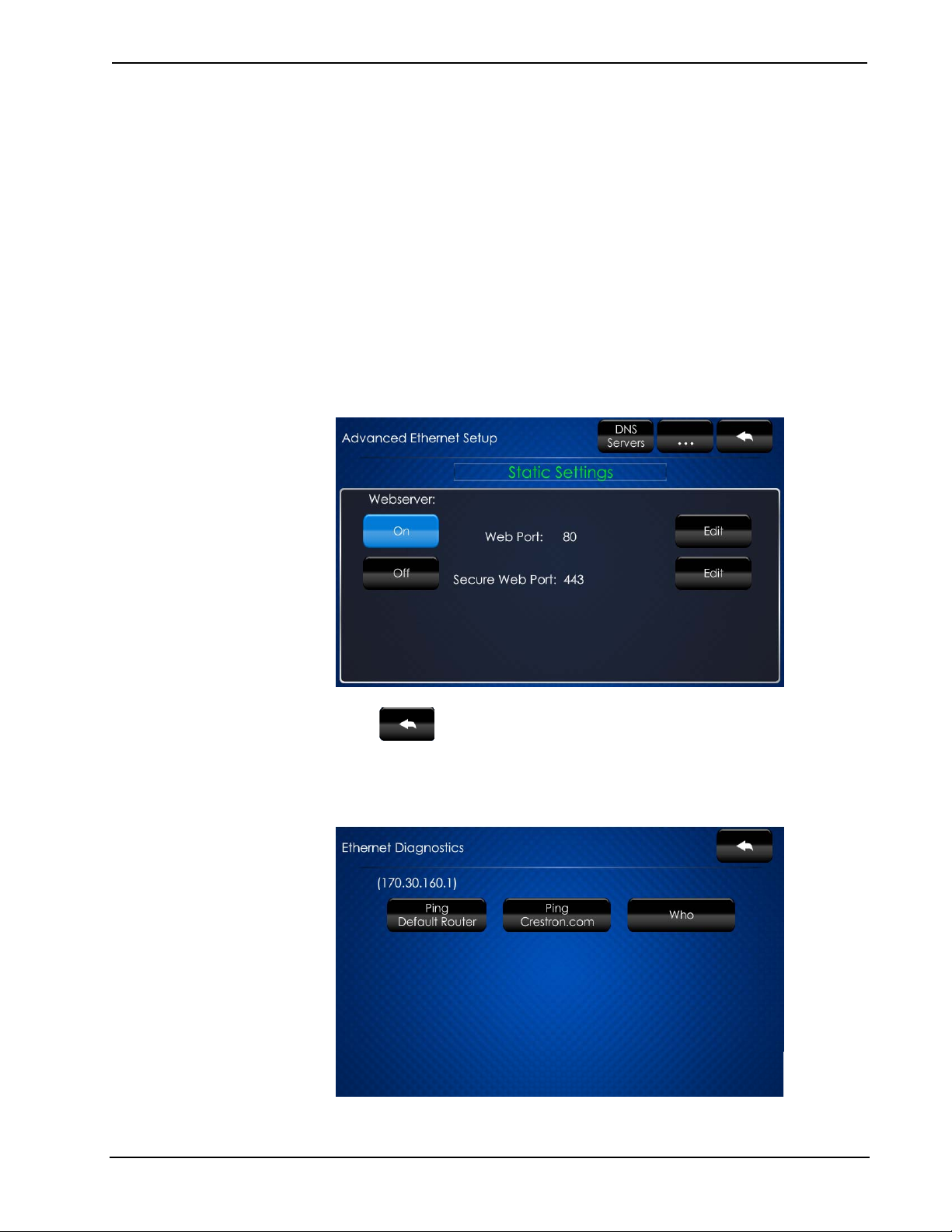

“Advanced Ethernet Setup” Menu (Webserver)

Touch to return to the main “Ethernet Setup” menu.

On the “Ethernet Setup” menu, touch Ethernet Diagnostics to display the “Ethernet

Diagnostics” screen, shown in the following illustration.

“Ethernet Diagnostics” Screen

6 •4.3” Touch Screen Control Systems: TPCS-4SM & TPCS-4SMD Configuration Guide – DOC. 7332A
