CR20 Pro 3D Printer User Manual
This user manual is for standard CR20 Pro.
Please plug the power cable into a three-hole power jack.
Detailed instructions for use are available on the TF card. V1
4.
NOTES
1. Do not use the printer any way other than described herein in order to avoid personal
injury or property damage.
2. Do not place the printer near any heat source or flammable or explosive objects. We
suggest placing it in a well-ventilated, low-dust environment.
3. Do not expose the printer to violent vibration or any unstable environment, as this
may cause poor print quality.
4. Before using experimental or exotic filaments, we suggest using standard filaments
such as ABS or PLA to calibrate and test the machine.
5. Do not use any other power cable except the one supplied. Always use a grounded
three-prong power outlet.
6. Do not touch the nozzle or printing surface during operation as they may be hot.
Keep hands away from machine while in use to avoid burns or personal injury.
7. Do not wear gloves or loose clothing when operating the printer. Such cloths may
become tangled in the printers moving parts leading to burns, possible bodily injury,
or printer damage.
8. When cleaning debris from the printer hotend, always use the provided tools. Do not
touch the nozzle directly when heated. This can cause personal injury.
9. Clean the printer frequently. Always turn the power off when cleaning, and wipe with
a dry cloth to remove dust, adhered printing plastics or any other material off the
frame, guide rails, or wheels . Use glass cleaner or isopropyl alcohol to clean the
print surface before every print for consistent results.
10. Children under 10 years of age should not use the printer without supervision.
CONTENTS
Dear Consumers,
Thank you for choosing our products. For the best experience, please
read the instructions before operating the Printer. Our 3D team will
always be ready to give you the best service. Please contact us via the
phone number or e-mail address provided at the end when you encounter
any problem with the Printer.
For a better experience in using our product, you may learn how to use
the Printer in the following ways:
View the accompanied instructions and videos on the TF card.
Visit our official website at www.creality3d.cn You will find relevant
software/hardware information, contact details and operation and
maintenance instructions on the website.
Introduction.............................1
General List.............................2
Device Installion.....................3
Cable Connection..................4
Screen Information................5
Loading Filament...….........…6
Platform Adjustment..............7
Software Installation..............8
First Printing...........................9
Troubleshooting...................10
Circuit Wiring.......................11
7
5
21 4
3
6
15
14
8
9
13
10
11
12
6. Nozzle Kit
7. Auto leveling（BLTouch）
8. Filament Rack
9. Extruder (E) Stepper
10. Y-axis Limit Switch
11. Y-axis Stepper
12. Coupling
13. Z-axis Stepper
14. X-axis Limit Switch
15. X-axis Stepper
1. TF Card Slot
2. USB Port
3. Platform
4. LCD Display Screen
5. Control Knob
Parameters
Model
CR-20 Pro
Printing Size
220*220*250mm
Molding Tech.
FDM
Nozzle Number
1
Slice Thickness
0.1mm-0.4mm
Nozzle Diameter
Standard 0.4mm
Precision
±0.1mm
Fliament
φ1.75mm PLA
File Format
STL/OBJ/AMF
Working Mode
Online or TF card offline
Slice Software
Creality Slicer/Cura/
Repetier-Host/Simplify3D
Power Supply
Input: AC 100-240V/200-240V 50/60Hz
Output:DC 24V
Total Power
270W
Bed Temp.
≤100℃
Nozzle Temp.
≤250℃
Resume Print
Yes
Auto Leveing
Yes
Filament Detector
NO
Operating System
Windows XP/Vista//7/8/10
MAC/Linux
Printing Speed
≤180mm/s，Normal 30-60mm/s
01/
Introduction

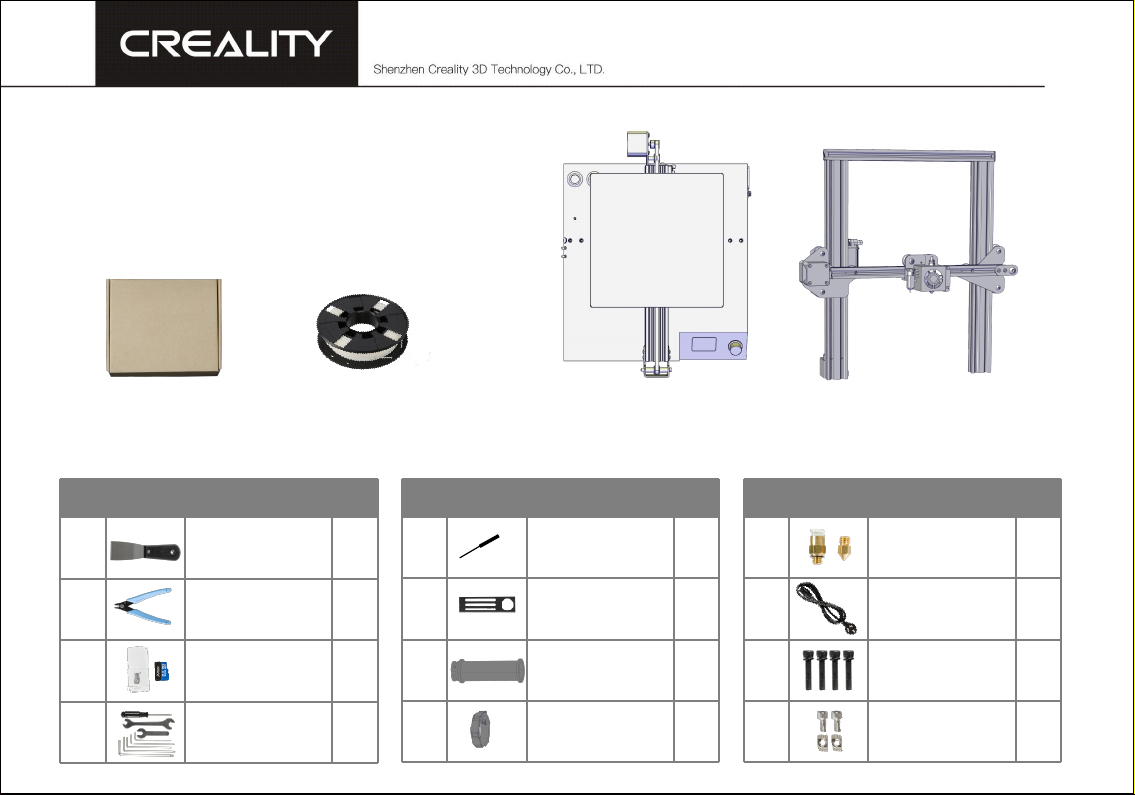

Gantry FrameBase Frame
Tool Box
uTool List
Filament （200g）
No.
Name
Qty
1
Scraper
1
2
Diagonal Pliers
1
3
TF Card & Card
Reader
1set
4
Wrench & Screw
Driver
1set
No.
Name
Qty
5
Nozzle Cleaner
1
6
Rack Bracket
1
7
Rack Tube
1
8
Rack Tube
Nut
1
No.
Name
Qty
9
Spare Parts
1set
10
Power Cable
1
11
M5X25 Black Hex-
Bolt & Lock Washer
4set
12
M4X8 Screw & M4
T-type Screw
2set
02/
General List

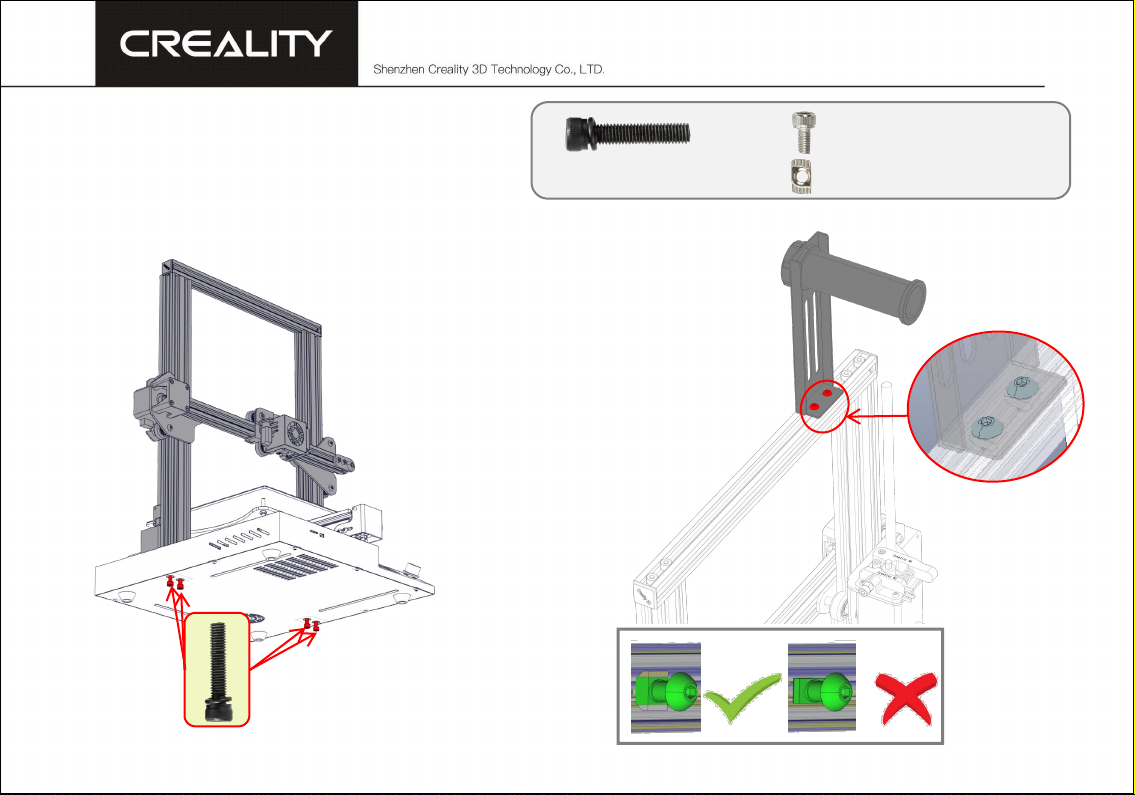

Install the Gantry Frame
M5X25
4pcs
M5X25 4pcs
2pcsM4X8
M4 T-nut 2pcs
2pcs
M4X8 & T-nut
Install the Rack
03/
Device Installtion

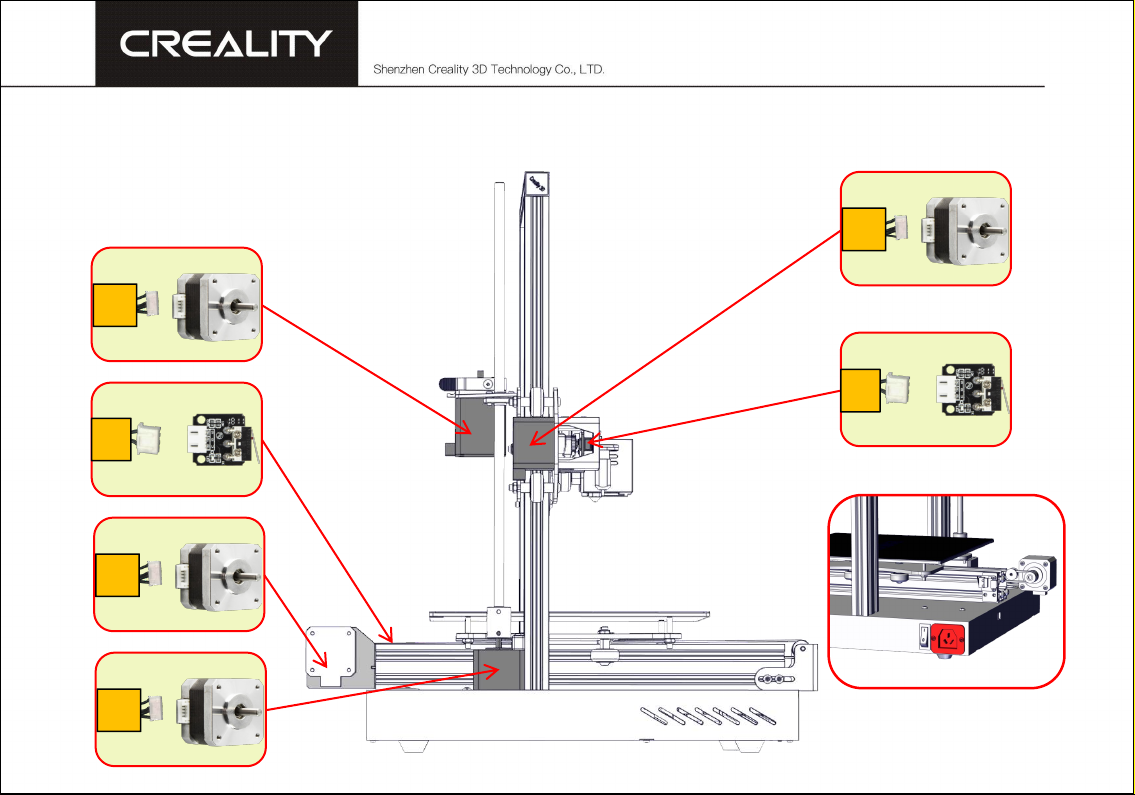

*Please plug the power cable
into a three-hole power jack.
X
X
E
Y
Y
Z
04/
Cable Connection
Model
Cooling Fan Rate
Print Progress
Print Time
Remaining Message
Push:OK/Enter
Sub Menu
Rotate:Change
Option/Value
Set Temperature of
the Nozzle
Current Temperature
of the Nozzle
Set Temperature of
the Hot Bed
Current Temperature
of the Hot Bed
Print Rate
Current Location of
the Nozzle
Screen Options
Menu
Sub Menu
Explanation
Info Screen↑
Main↑
Return
Prepare
Move axis
Moving X Y Z axis or Extruder by
given value
Auto Home
Return to the origin
Bed Leveling
Preheat PLA
Nozzle ：185℃ Bed：45℃
Preheat ABS
Nozzle ：240℃ Bed：70℃
Cool down
Close and cool down the nozzle
Set home offsets
Disable Steppers
Moving X Y Z axis by your hands
Control
Temperature
Heat the nozzle and the bed or
change fan speed by given value
Motion
Filament
BLTouch
Stroe settings
Load settings
Language
English/Chinses
No TF card/Print from TF
Printing
Tune
Speed
Adjust percentage of printing speed
Nozzle
Adjusting extrusion head
temperature
Bed
Adjusting hot bed temperature
Fan speed
Adjust fan speed
Flow
Adjust consumable flow percentage
Change Filament
Replace filament
Pause Printing
Stop printing
05/
Screen Information
Preheat
Method 1
Feeding
Method 2 Press and hold the extruder lever then insert the 1.75mm
filament through the small hole of the extruder. Continue
feeding until you see filament come out the nozzle.
Tip：How to Replace the Filament？
1、Cutting filament near the Extruder and slowly feed new
filament until they are feed into the new filament.
2、Preheating the nozzle and withdraw the filament quickly
and feed the new filament.
06/
Loading Filament

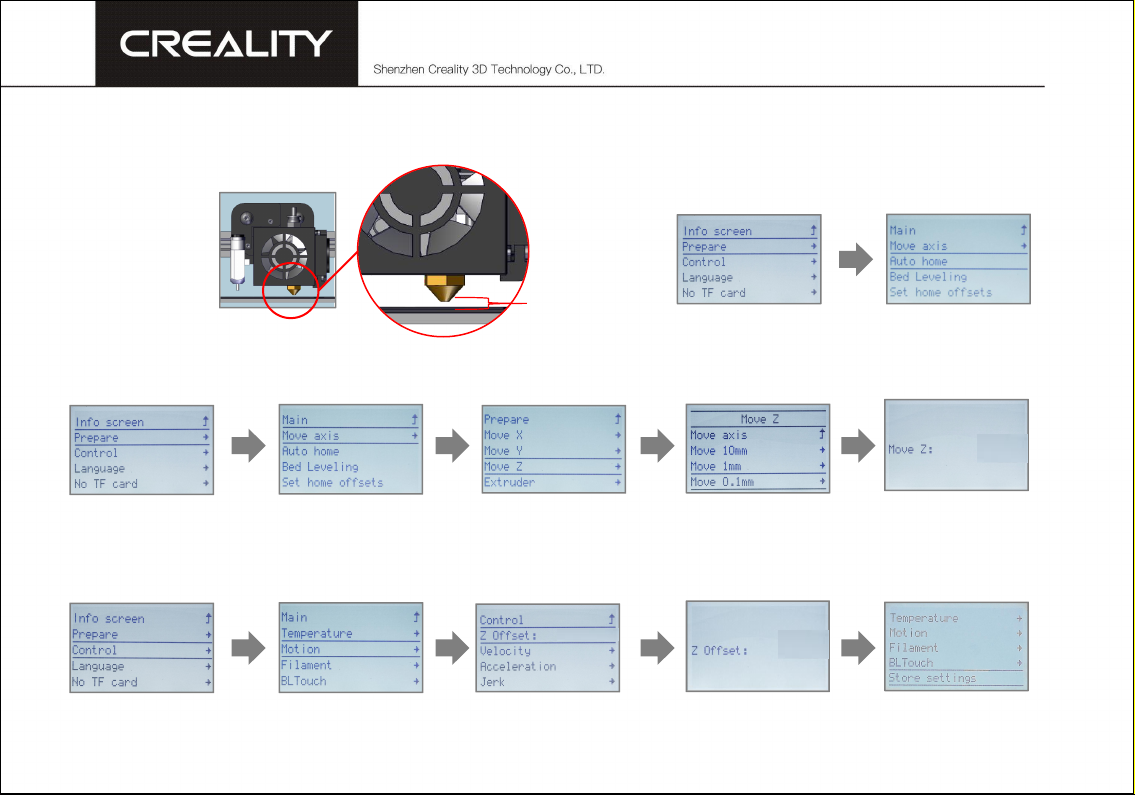

1.Prepare→Auto home，and wait to stop.
3.Control→Motion→Z Offset→write down the value of B，then rotate the knob until it comes out as: C=B+A. Return Control and Select Store settings.
2. Prepare→Move axis→Move Z→Move 0.1mm→Rotate the knob until the distance between them is about 0.2mm（as a sheet of A4 paper），write
down the value of A.
0.2mm
（ A4 paper）
A
BC
07/
Bed Levelling
A<0
B<0 C<0
