Craftsman INCREDI.PULL 316.79204.0 User manual

Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.

Visit our website: www.craftsman.com

CAUTION: Before using this

product, read this manual and

follow all safety rules and

operating instructions.

Operator’s Manual

2-Cycle

GAS TRIMMER

Model No. 316.79204.0

• SAFETY

• ASSEMBLY

• OPERATION

• MAINTENANCE

• PARTS LIST

• ESPAÑOL, P. 13

P/N 769-06002 P01 4/10

FOR ANSWERS TO QUESTIONS ABOUT THIS PRODUCT, CALL 1-800-235-5878

Power Start or Power Start Bit Optional!

This unit has a separately sold alternative starting method that many find easier than pulling a

rope. For more information, contact a local Craftsman outlet, call 1-800-4-MY-HOME®, or go to

www.craftsman.com

PARTS LIST

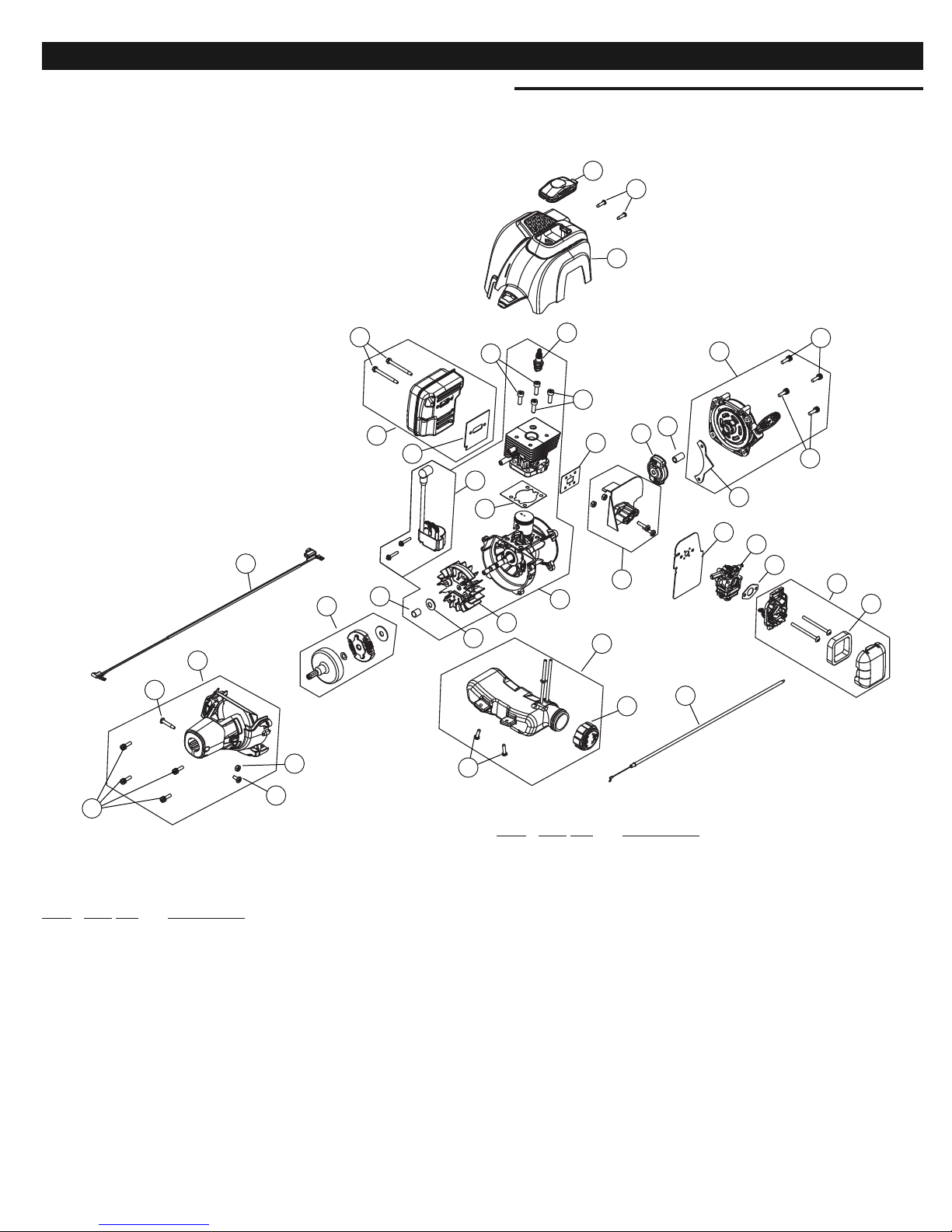

REPLACEMENT PARTS - MODEL 316.792040

2-CYCLE TRIMMER

225

Item Part No. Description

1 753-06349 Muffler Assembly

2 753-04294 Mufler Bolts

3 753-06352 Muffler Gasket

4 753-06353 Gasket

5 753-06354 Insulator Assembly (includes 4)

6 753-06355 Heat Shield

7 753-06356 Carburetor

8 753-06253 Carburetor Gasket

9 753-05725 Aircleaner Assembly (includes 10)

10 791-181757 Aircleaner Filter

11 753-06357 Lead Wire

12 753-05420 Module Assembly

13 753-05805 Clutch Cover Screws

14 753-06358 Clutch Cover Assembly (includes 13, 34-36)

15 753-06281 Clutch Assembly

16 753-06359 Spacer

Item Part No. Description

17 753-06247 Washer

18 753-06246 Flywheel Assembly

19 753-06360 Cylinder Gasket

20 753-06091 Pawl Assembly

21 753-06104 Electric Starter Adapter

22 753-06364 Starter Cover Guard (includes 25)

23 753-06361 Starter Assembly (includes 22 & 25)

24 791-181345 Screw

25 753-05805 Screw

26 753-06362 Spark Plug Cover

27 753-06363 Engine Cover

28 753-06193 Spark Plug

29 753-05703 Cylinder Screws

30 753-06250 Fuel Tank Assembly (includes 31 & 32)

31 791-181930 Fuel Tank Screws

32 791-182612 Fuel Cap

33 753-05883 Throttle Cable

34 753-04003 Screw

35 791-180217 Nut

36 791-182516 Anti-Rotation Screw

37 753-06365 Shortblock (includes 12, 16-19 & 28-29)

15 37

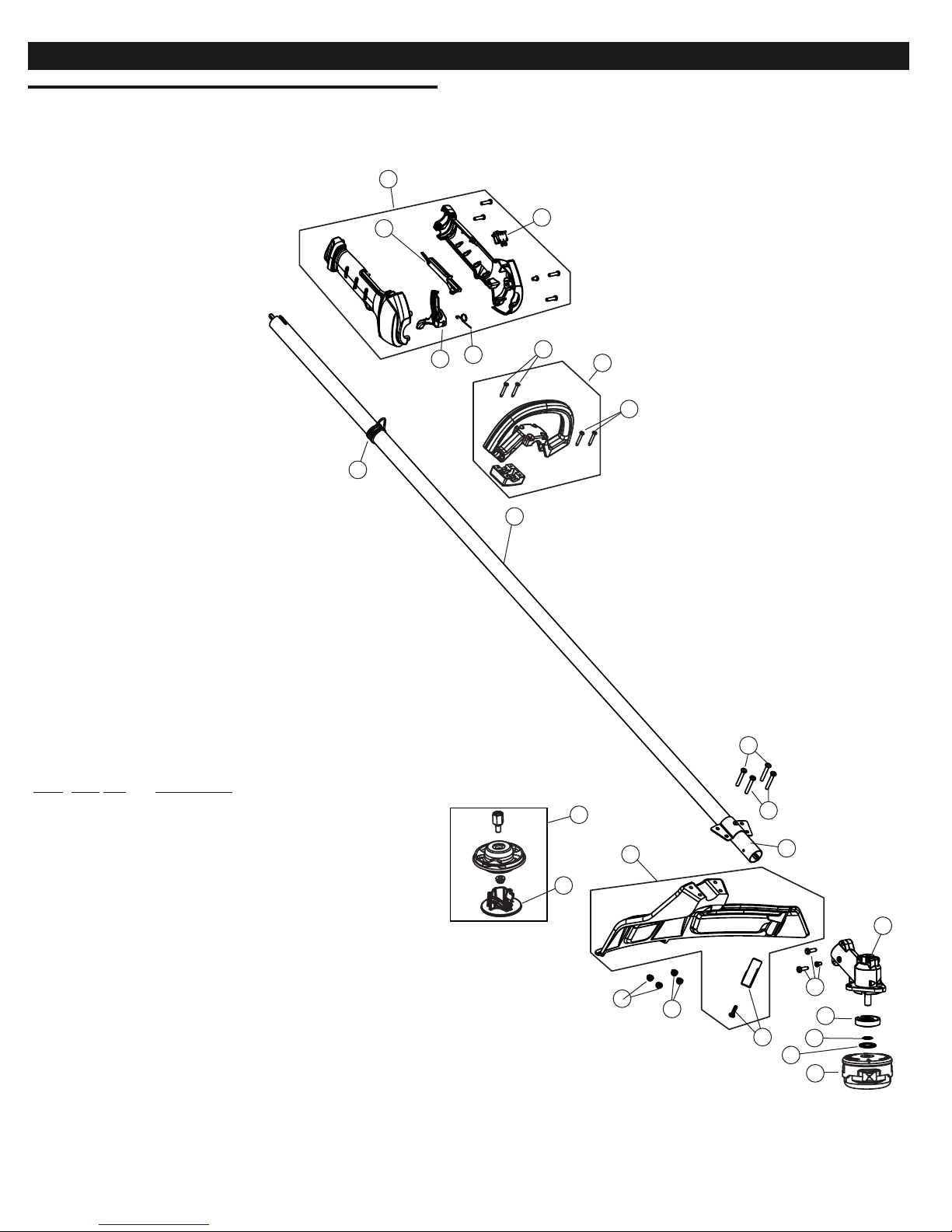

Item Part No. Description

1 753-05296 Throttle Housing Assembly (includes 2-5)

2 753-05393 Throttle Trigger

3 753-05007 Spring

4 753-05171 Throttle Lock-Out

5 791-182405 Switch

6 791-610327 Shoulder Strap Clip

7 753-05747 Driver Shaft Housing

8 753-05008 D-Handle Assembly (includes 9)

9 791-181070 Screw

10 753-06098 Flexible Drive Shaft

11 753-05820 Shield Assembly (includes 12)

12 753-05821 Blade Assembly

13 753-06125 Screw & Nut

14 791-182193 Gearbox

15 791-182196 Gearbox Spacer

16 753-06102 Cutting Head Assembly

17 753-04348 Palnut

18 753-05779 Fixed Line Head

19 753-05780 Glide Plate

20 753-06395 Washer

* 791-613226 Locking Rod Tool

* 753-05038 Fixed Line

* 753-05898 Shoulder Strap

* Items Not Shown

PARTS LIST

REPLACEMENT PARTS - MODEL 316.792040

2-CYCLE TRIMMER
