Craftsman 706.153410 User manual

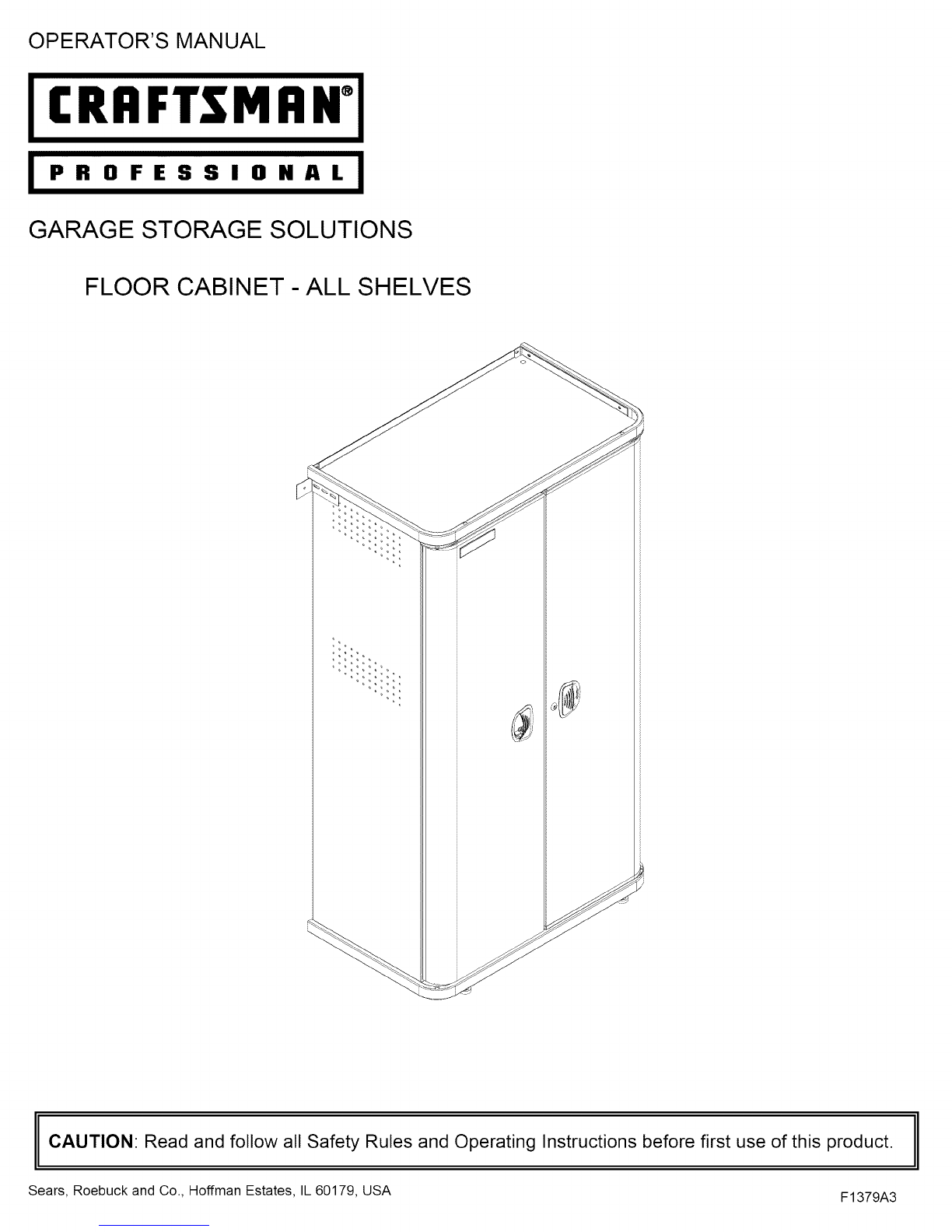

OPERATOR'S MANUAL

(RRFT$1VlRN°

iPROFESSiONAL i

GARAGE STORAGE SOLUTIONS

FLOOR CABINET- ALL SHELVES

°::i!i!i!::

CAUTION: Read and follow all Safety Rules and Operating Instructions before first use of this product.

Sears, Roebuck and Co., Hoffman Estates, IL 60179, USA F1379A3

SAFETY WARNINGS AND CAUTIONS:

Use appropriate safety equipment when using power and hand tools. Failure to do so may cause personal injury or product damage.

Use adequate manpower when assembling and moving this unit. Failure to do so may cause personal injury or product damage.

DO NOT stand on this product. You may fall which may cause personal injury.

DO NOT mount this product on a truck bed or any other moving object. This may cause personal injury or product damage.

Appropriately secure this product before moving it with a forklift.

DO NOT tow with power equipment. The product could tip, which may cause personal injury or product damage.

DO NOT alter this product in any manner. This may cause product damage or personal injury.

Keep the product on level surfaces. The product may become unstable and tip if stored or moved on an un-level surface, which may

cause personal injury or product damage.

The maximum weight for each shelf in a door is 7 pounds.

The maximum weight allowed on each half shelf of the Floor Cabinet is 50 pounds.

The maximum weight allowed on each full width shelf of the Floor Cabinet is 100 pounds.

Be sure to secure the Floor Cabinet to a studded or concrete wall. Failure to do so may cause the Floor Cabinet to become unstable

and tip. This may cause personal injury or product damage.

DO NOT step on the shelves. You may fall which may cause personal injury.

Tools Required Hardware Included

7/16" Socket

3/8" Socket AA(11 )

3" Socket Extension

Square

Drill

1/8" Drill Bit BB(7)

Pliers

CC(11)

,? DD(4)

EE(8)

GG(4)

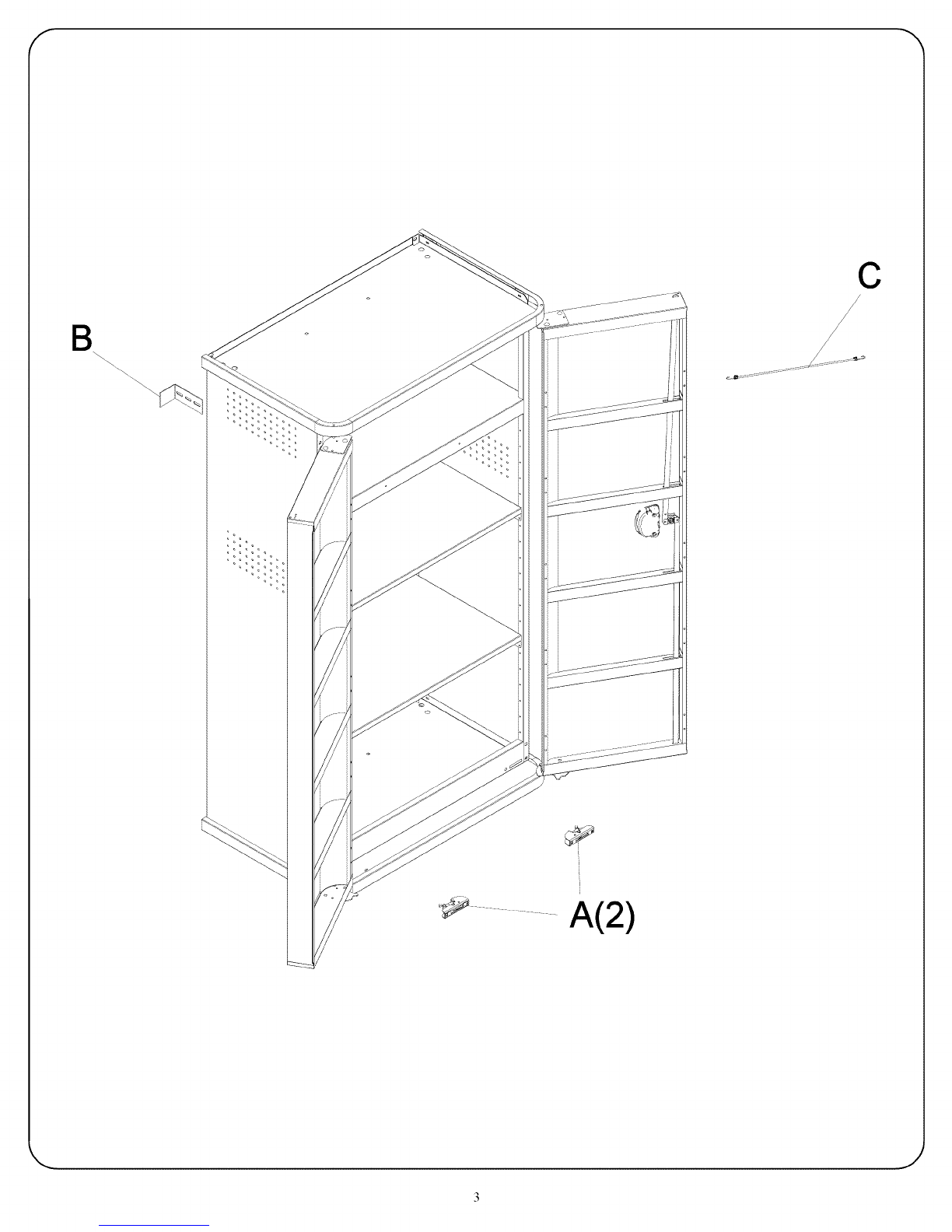

Call 1-800-4MY-HOME (1-800-469-4663) for Service Parts. Refer to Service Parts

Drawing for full listing of Service Parts.

ooo

A(2)

STEP 1: AA(4)

CC(4)

•Install A(2) as shown, using AA(4) and CC(4).

• Finger tighten.

Note: Ensure A is oriented correctly on each side.

CC(4)

/A(2)

AA(4)

STEP 2: AA(6)

BB(6)

cc(6)

• Install AA(6) with BB(6) and CC(6).

• Finger tighten.

AA(6)

Square unit and wrench tighten all bolts.

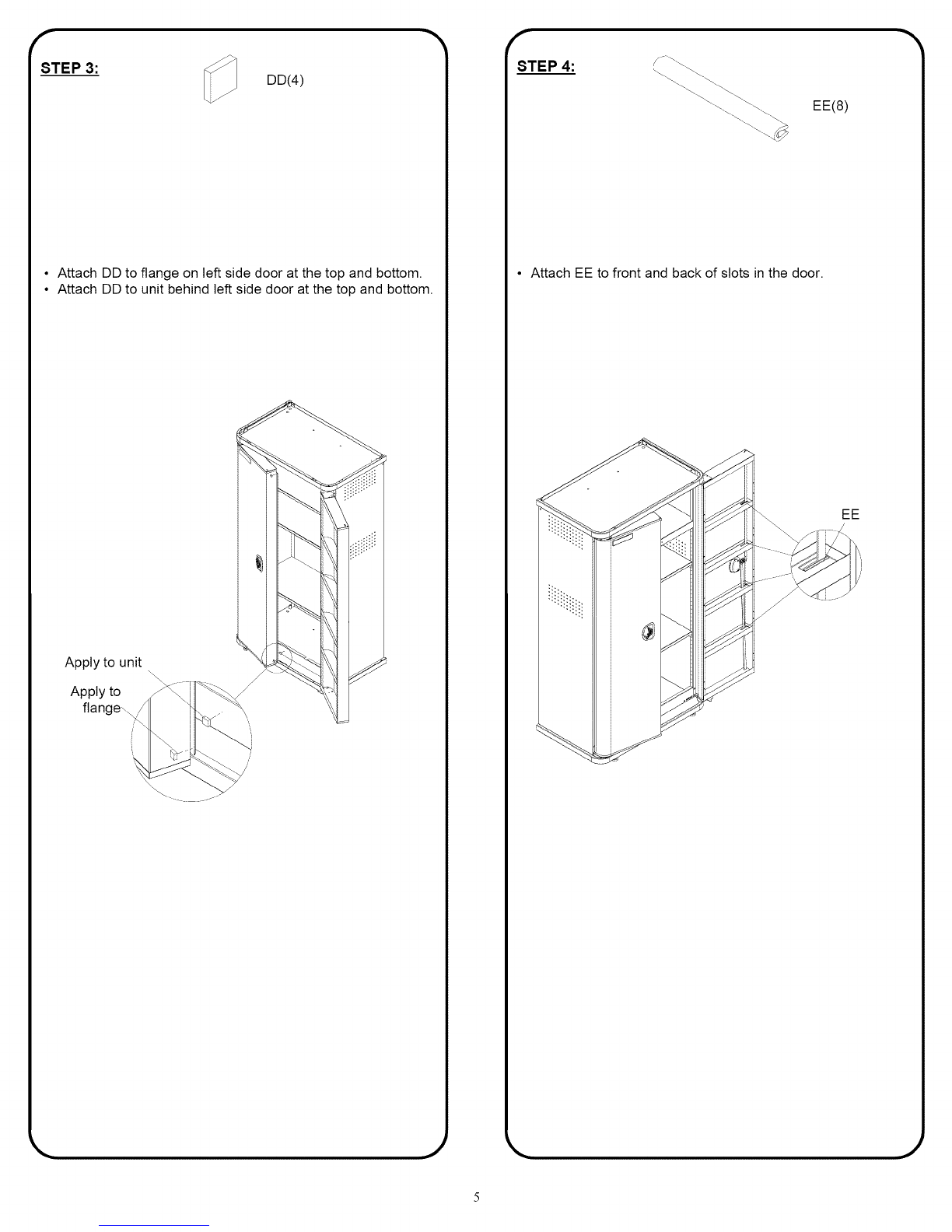

STEP 3: DD(4)

• Attach DD to flange on left side door at the top and bottom.

• Attach DD to unit behind left side door at the top and bottom.

Apply to unit

Apply to

flange\, /

STEP 4:

EE(8)

• Attach EE to front and back of slots in the door.

J,J

STEP 5: I_i[i!ilTi-[i¸¸i¸¸Tii¸¸i_ GG(4)

• Lay the cabinet on its back. Use packaging material to

protect the finish.

• Install GG(4)

• Return the cabinet to its upright position.

NOTE: Adjustments may need to be made once the Cabinet is

in the desired location.

GG(4)

STEP 6: AA(1)

BB(1)

CC(1 )

• Install B to unit using AA, BB, and CC.

Note: The part has multiple slots to enable it to be flush with

the wall when aligned with a stud.

• Wrench tighten.

B. /

STEP 7:

Cabinet MUST be attached to a stud in a wood frame

walt. Failure to do so may cause personal injury or

)roduct damage.

Hardware provided for wood frame wall use only.

Concrete or other surfaces will require other

hardware (not provided). Use appropriate hardware

per your local building codes. Failure to do so may

cause personal injury or product damage.

.....' ¸

•Align Floor Cabinet with a stud Adjust leveler feet if needed

• Drill 1/8" pilot hole

• Attach Floor Cabinet to stud using FF

RETAINING CORD ATTACHMENT:

• Attach C to door where desired

SHELF ADJUSTMENT:

• Remove Screws.

• Position Shelf

• Reattach Shelf

DOOR ALIGNMENT:

• Loosen bolts.

• Align door.

• Tighten bolts.

,Loosen

J J

fDETENT ADJUSTMENT:

Adjust detent when needed.

NOTE: Turn clockwise to tighten, counterclockwise to loosen.

HINT: The more weight in the door the tighter the detent will need

to be to work properly.

Adjust

"\\\\

\\ \,',,,

Leveling Foot Adjustment

• Adjust leveling foot to /

desired position with fiat '

head screwdriver as shown,

/-Ji ] ....

/i \\

/I/ /\,,

MANUAL DE USUARIO

ICRFIFTSM FIN°I

SOLUCIONES PARA ALMACENAMIENTO EN EL GARAJE

ARMARIO DE PIE- TODAS LAS BALDAS

°°::i!i!i!::

ATENClON: Lea y siga todas las Normas de Seguridad y las Instrucciones de Funcionamiento antes

de utilizar por primera vez este producto.

Sears, Roebuck and Co., Hoffman Estates, IL 60179, Estados Unidos F1379A3

ADVERTENCIAS Y PRECAUCIONES DE SEGURIDAD:

•Utilice un equipo de seguridad apropiado cuando use herramientas electricas y manuales. De Io contrario podria ocasionarse lesiones personales o

daSar el producto

• Utilice el personal adecuado para el montaje y el traslado de esta unidad. De Io contrario podria ocasionarse lesiones personales o daSar el producto

• NO se ponga de pie encima de este producto. Podria caerse y causarse lesiones personales.

• NO monte este producto en la plataforma de un cami6n ni en ningQn objeto en movimiento. Esto podria causarle lesiones )ersonales o daSar el

producto.

• Asegure de forma adecuada este producto antes de moverlo con una carretilla elevadora.

• NO Io remolque con equipo electrico. El producto podria volcar Io que podria causarle lesiones personales o daSar el producto.

• NO altere este producto de modo alguno. Esto podria daSar el producto o causarle lesiones personales.

• Mantenga el producto sobre superficies planas. El producto puede desestabilizarse y volcar si se almacena o se mueve en superficies no lianas, Io cual

podria causar lesiones personales o daSar el producto.

• El peso maximo para cada balda de una puerta es de 7 libras (3,t7 kilos).

• El peso maximo permitido en cada media balda del Armario de Pie es de 50 libras (22,68 kilos).

• El peso maximo permitido en cada balda completa del Armario de Pie es de 100 libras (45,36 kilos).

• AsegQrese de afianzar el Armario de Pie a una pared de cemento o tachonada. De Io contrario el Armario de Pie podria desestabilizarse y caer. Esto

podria causarle lesiones personales o daSar el producto

NO se ponga de pie sobre las baldas. Podria caerse y causarse lesiones personales. .)

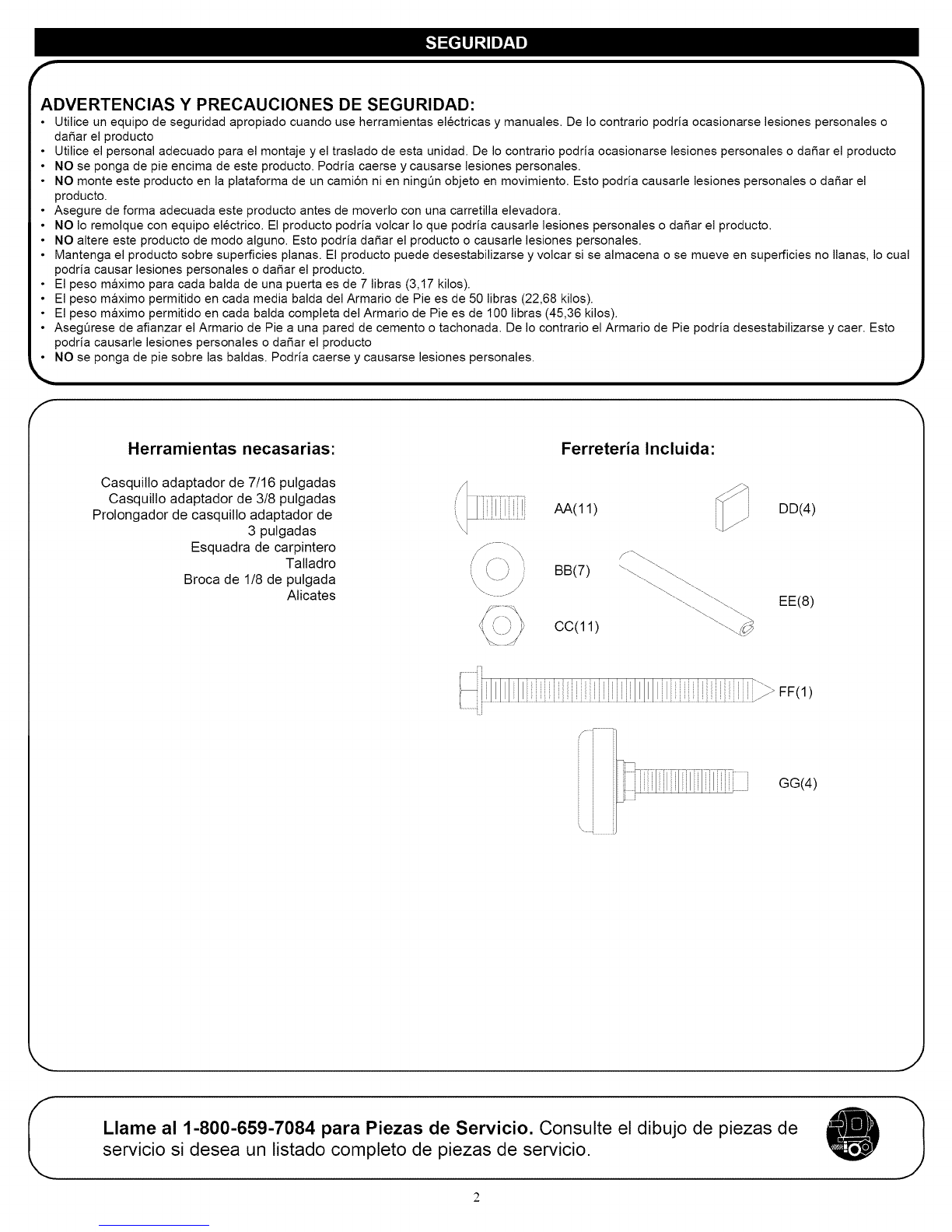

Herramientas necasarias:

Casquitto adaptador de 7/16 pulgadas

Casquitto adaptador de 3/8 pulgadas

Prolongador de casquillo adaptador de

3 pulgadas

Esquadra de carpintero

Taltadro

Broca de 1/8 de pulgada

Alicates

Ferreteria Incluida:

AA(11)

BB(7)

CC(11)

DD(4)

EE(8)

GG(4)

Llame al 1-800-659-7084 para Piezas de Servicio. Consulte el dibujo de pJezas de

servicio si desea un listado completo de piezas de servicio.
