Craftsman 247.29933 User manual

Sears Brands Management Corporation, Hoffman Estates, IL 60179, U.S.A.

Visit our web site: www.craftsman.com

CAUTION: Before using

this product, read this

manual and follow all

safety rules and operating

instructions.

Operator’s Manual

205cc Engine

Rear Tine Tiller

Model No. 247.29933

• SAFETY

• ASSEMBLY

• OPERATION

• MAINTENANCE

• PARTS LIST

• ESPAÑOL

10/14/2010

FORM NO. 769-05527A

PARTS LIST

Craftsman Tiller — Model No. 247.29933

31 39

121

PARTS LIST

Ref. No. Part No. Description

1747-1152 Shift Rod

2649-0034-0691 Lower Handle Tube Assembly

3 649-0041-0691 Upper Handle Assembly

4 710-0946 Screw, 1/4-20 x 0.625

5 710-3005 Hex Head Screw, 3/8-16:1.25

6 710-3056 Hex Head Screw, 5/16-18 x 3.25

7911- 0415 Clevis Pin, .375 X 1.75

8712-0324 Hex Lock Nut, 1/4-20

9 712-0379 Flange Lock Nut, 3/8-24

10 912-0429 Hex Lock Nut, 5/16-18

11 714-0147 Cotter Pin, .125 X 1.75 Internal

12 720-0210A Small Tee Knob

13 720-0278A Foam Grip, .970 x 11.0

14 720-0313 Grip, .1875 x 1.00

15 726-0273 Battery Clamp, 5/16

16 726-0317 Cable Tie, 8.5 LG

17 735-0246A End Plug

18 936-0117 Washer, Flat, .385 x .620 x .033

19 736-0242 Washer, Bell, .340 x .872 x .060

20 736-3090 Washer, Flat, .260 x .720 x .060

21 938-0958 Spacer, .50 x .190 x .360 LG

22. 747-1219-0637 Clutch Bail

23 784-0190 Handle Adjustment Crank

24 784-0191 Hex Nut Retainer Bracket

25 786-0120-0637 Tiller Depth Control

26 786-0181-0691 Shaft Rod Lever

27 735-0127 Washer, .33 ID x .87 OD x .125

Ref. No. Part No. Description

28 914-0104 Cotter Pin, .072 x 1.12 LG

29 686-0044B-0691 End Cover Assembly

30 710-0176 Hex Head Screw, 5/16-18 x 2.75

31 710-3008 Hex Head Screw, 5/16-18 x .75

32 710-3022 Hex Head Screw, 3/8-16 x 2.75

33 710-04482 Hex Head Flange, 3/8-16 x .875

34 712-04063 Flange Lock Nut, 5/16-18

35 712-04065 Flange Lock Nut, 3/8-16

36 712-0421 Wing Nut, 5/16-18 w/ Bell Washer

37 926-0106 Speed Nut Cap, 1/4 ROD

38 736-0204 Washer, Flat, .344 x .62 x .033

39 938-0849 Screw, Hex, 5/16-18 x .75

40 747-0432 Tiller Flap Rod

41 750-0885A Spacer, .322 x .625 x 2.00

42 786-0090A-0691 Side Shield

43 786-0113A-0691 Rear Tine Shield

44 786-0176-0691 RH Handle Mount Bracket

45 786-0177-0691 LH Handle Mount Bracket

46 786-0178A-0691 Tine Shield

47 786-0179-0637 FRT Tine Shield Bracket

48 786-0180-0637 FRT Tine Shield Spacer Bracket

49 710-0382 Hex Head Screw, 1/2-20 x 5.50

50 712-0206 Hex Nut, 1/2-20

51 936-0921 Washer, Lock, 1/2

52 731-1595 Counterweight

53 936-0179 Washer, Flat, 1/2 x 1.25 x .100

54 710-0376 Hex Head Screw, 5/16-18 x 1.00

Craftsman Tiller — Model No. 247.29933

PARTS LIST

Craftsman Tiller — Model No. 247.29933

14 17 4

23 7

36 34

PARTS LIST

Ref. No. Part No. Description

1 686-0111-0637 Belt Cover Bracket Assembly

2710-1039 Hex Head Screw, 3/8-24 x 1.00

3710-0237 Hex Head Screw, 5/16-24 x .625

4710-0412 Hex Head Screw, 1/4-28 x .75

5 710-0502A Screw, 3/8-16 x 1.250

6 710-0599 Screw, 1/4-20 x 0.500

7 710-3005 Hex Head Screw, 3/8-16 x 1.25

8731-07556 Cap

9712-0266A Jam Lock Nut, 3/8-16

10 742-0305A-0637 Articulating Tine

11 914-0104 Cotter Pin, .072 DIA. x 1.13 LG

12 936-0104 Washer, Lock, 5/16

13 936- 0119 Washer, Lock, 5/16

14 936-0176 Washer, Flat, .265 x .938 x .120

15 784-0160-0637 Tine Adaptor Assembly

16 936-0271 Washer, Spring, .317 x .625 x .020

17 936-0329 Washer, Lock, 1/4

18 936-0452 Washer, Bell, .396 x 1.140 x .095

19 938-0876 Shoulder Nut, 7/16-20

20 746 -1117 Clutch Cable

21 747-1159 Idler Pulley Rod

22 954-0434 Belt, 4L x 58.16 LG

23 756-0405 Flat Idler Pulley w/ Flanges, 3.75 O.D.

24 756-0971 Engine Pulley, Inner Half

25 756-0972 Engine Pulley, Outer Half

26 756-1162 Input Pulley, 4L x 8.594

27 786-0064A Idler Pulley Bracket

Ref. No. Part No. Description

28 786-0185A-0637 Belt Keeper Bracket

29 786-0187-0637 Shift Cover Bracket

30 786-0193-0637 Idler Belt Keeper

31 686-0109A Shift Crank Assembly

32 710-0653 Screw, 1/4-20:0.375

33 710-0896 Hex Washer Screw, 1/4-14 x .625

34 712-0392 Lock Nut ,Cap, 1/4-28

35 915-0120 Spiral Pin, 3/16 x 1.00

36 936-3020 Washer, Flat, .271 x .630 x .065

37 784-0158A-0691 Belt Cover

38 784-0208D-0691 Shift Cover

39 634-04654 Wheel, 16 x 4.6 x 8

40 710-05289 Hex Screw, 1/4-20 x 1.50

41 712-04064 Flange Lock Nut, 1/4-20

42 911- 0415 Clevis Pin, .375 x 1.75

43 714-04043 Cotter Pin, Bow Tie

44 986-04074B Complete Gear Case Assembly

45 712-3054 Hex Lock Nut, 3/8-24

46 936-0169 Washer, Lock, 3/8

47 936-0208 Washer, Flat, .51 x 1.5 x 0.07

48 936-0253 Washer, Bell, .525 x 1.00 x .050

49 938-0688 Screw, Shoulder, 3/8-24 x 1/2 x .325

50 938-0689 Screw, Shoulder, 3/8-24 x 1/2 x .180

51 710-0805 Hex Head Screw, 5/16-18 x 1.50

52 736-0242 Washer, Bell, .340 x .872 x .060

53 912-3010 Hex Nut, 5/16-18

54 BS-12S412-0523-B8 Replacement Engine

Craftsman Tiller — Model No. 247.29933

PARTS LIST

Craftsman Tiller — Model No. 247.29933

3435

1637

16 37

24 38

3351

25 39

22 7

23 44

30 37 16

PARTS LIST

Craftsman Tiller — Model No. 247.29933

Ref. No. Part No. Description

1 611-0021 Shaft Assembly, Tine, 18T

2611- 0128 Shaft Assembly, Jack

3611- 0129 Shaft Assembly, Shift Input

4 611-04074A Shaft Assembly, Wheel, 33T

5 617-0058 Gear Assembly, 30T Reverse Idler

6617-0059 Gear Assembly, 30T Tine Idler

7 617-0060 Sprocket Assembly, 9T Tine Input

8617-0061 Sprocket Assembly, 10T Wheel Input

9617-0062 Gear Assembly, 11T

10 686-0108A-0637 RH Chain Case Housing Assembly

11 710-0376 Hex Head Screw, 5/16-18 x 1.00

12 710-0599 Screw, 1/4-20 x 0.500

13 710-0604A Screw, :5/16-18 x 0.625

14 710-3008 Hex Head Screw, 5/16-18 x .75

15 711-1349 Input Shaft, .75

16 712-0378 Nut, Hex, 7/16-20

17 712-3004A Flange Lock Nut, 5/16-18

18 913-0367 Endless Chain, #420 x 50 Links

19 913-0484 Endless Chain, #50 x 54 Links

20 716-0865 Snap Ring, .500

21 717-0853A Clutch Collar

22 717-1582 Gear Spur, 44T

23 717-1583 Gear Spur, 30T

24 717-1584 Gear Spur, 30T

25 717-1585 Gear Spur, 44T

26 717-1587 Gear Spur, 44T

Ref. No. Part No. Description

27 717-1594 Gear Spur, 16T

28 921-0378 Shaft Seal, 1.0

29 721-0379 Shaft Seal, .75

30 786-0238 Positioner Gear Bracket

31 726-0277 Tapered Cap Plug

32 732-04778 Compression Spring, .230 OD

33 936-0163 Washer, Flat, 1.03 x 1.62 x .03

34 936-0171 Washer, Lock, 7/16

35 936-0226 Washer, Flat,.474 x .879 x .064

36 936-0351 Washer, Flat, .760 ID x 1.50 OD

37 736-0407 Washer, Bell,.45 x 1.00 x .062

38 736-0518 Washer, Thrust, .445 x 1.92 x .060

39 736-3088 Washer, Flat,1.595 x .635 x .062

40 686-04129-0637 LH Chain Case Housing

41 750-0664 Spacer, .505 ID x .88 OD x .440

42 738-0645 Shaft Detent, .5 DIA

43 738-0648 Shaft, Jack, .625 x 2.385

44 738-04424A Shaft, Jack, .6250 x 5.0050

45 741-0124 Ball Bearing, 17 x 40 x 12

46 941-0420 Flange Bearing, 1.0 x 2.5 x 1.38

47 741-0421 Flange Bearing, .75 x 2.5 x 1.38

48 941-0563 Ball Bearing, 17 x 40 x 12:6203

49 741-0862 Ball, Detent, .250

50 750-0258 Spacer, .315 x .750 x .375 LG

51 950-0570 Spacer, 1.0 ID x 2.0 OD x.5 LG

PARTS LIST

552

718 15

615

306

307

1616 2

15A

746

742

220

219

32A

25 26

24 146

741

332

1330 REPAIR MANUAL

1058 OPERATOR’S MANUAL

48 SHORTBLOCK 1329 REPLACEMENTENGINE

1026

851

333

415

522

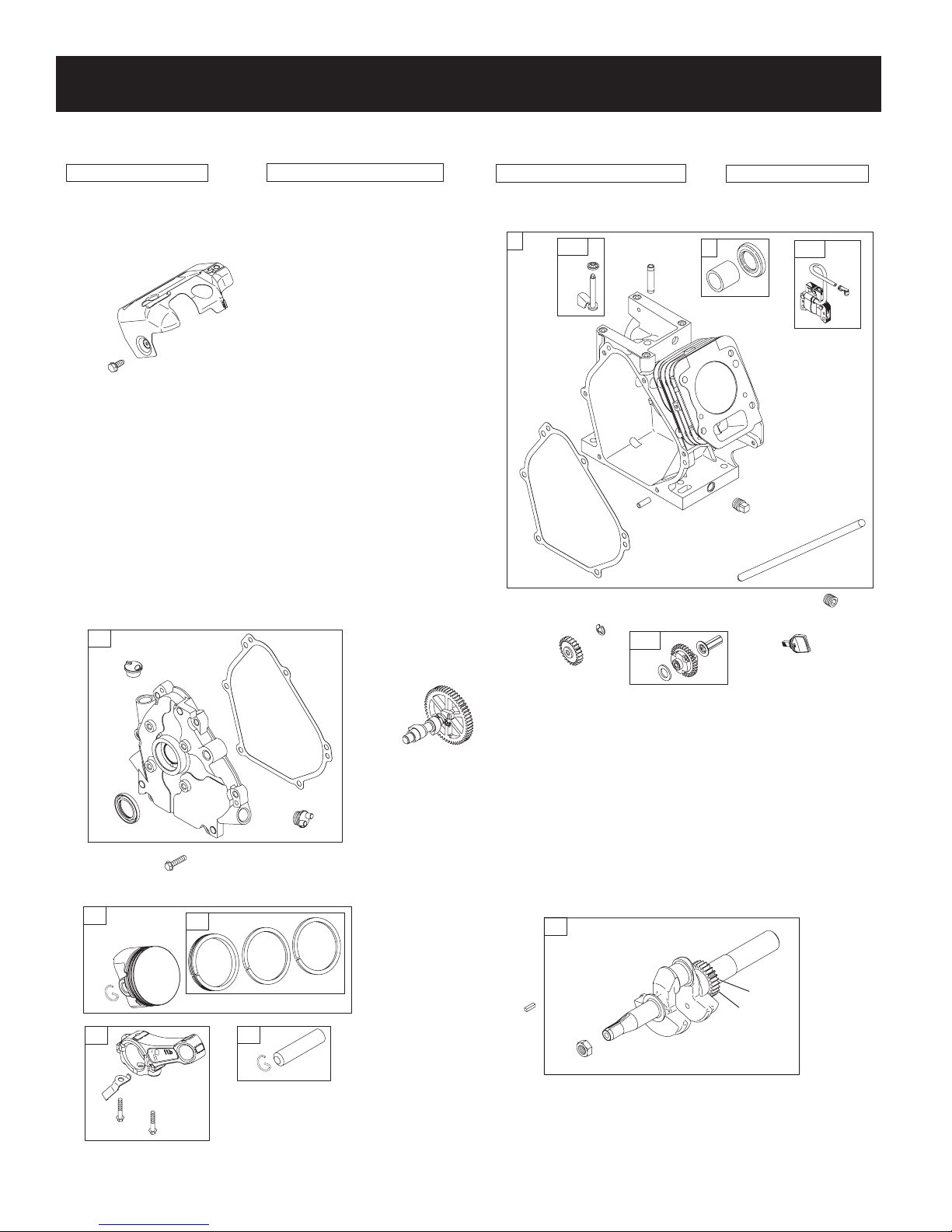

Briggs & Stratton Engine Model 12T102 For Craftsman Tiller Model 247.29933

PARTS LIST

337

635

238

35 238

868 51

993

1022

619

830

1029

1026

1022

155

192

1023

122

1034

914

914A

Briggs & Stratton Engine Model 12T102 For Craftsman Tiller Model 247.29933

PARTS LIST

365

692

104

137

276

633

186

633A

130

108

127

163

276

118

122

117

975

133

134

125

109

190

601

187

951

180

181

1425

825

703

804

1068

601A

240

Briggs & Stratton Engine Model 12T102 For Craftsman Tiller Model 247.29933
