Craftsman 254880 Owner's manual

REPAIR PARTS MANUAL

MODEL NUMBER 254880

1650 Series B&S Engine

30" Two-Stage Power-Propelled

SNOW THROWER

430586 08.26.09 SR Printed in U.S.A.

01.07.024-B

REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880

AUGER HOUSING / IMPELLER ASSEMBLY

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 420478 AUGER BEARING

2 411939 BEARING PLUG

3 179582 SCREW 5/16−18 X 1.00

01.07.019-A

1 420497X479 AUGER ASSEMBLY 30 LH

2 420498X479 AUGER ASSEMBLY 30 RH

01.11.001-A

REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880

AUGER HOUSING / IMPELLER ASSEMBLY

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 174762X479 SKID PLATE LH

2 178777X479 SKID PLATE RH

3 72270506 CARRIAGE BOLT 5/16−18 X .75

4 751153 NUT 5/16−18

3 (5x)

4 (5x)

01.07.003-A 1 404930X615 AUGER HOUSING

2 404933X479 SCRAPPER BAR

3 72270505 CARRIAGEBOLT 5/16−18 X .625

4 155377 NUT 5/16−18

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880

AUGER HOUSING / IMPELLER ASSEMBLY

18 19

01.07.026-C

2(EXPLODED)

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880

AUGER HOUSING / IMPELLER ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 175321X479 IMPELLER

2 427148 GEARBOX ASSEMBLY

3 188909 BEARING

4 427146 IMPELLER PULLEY

5 175322 DISCHARGE BASE

6 178675X008 CORNER BRACKET

7 192199 CLEAN OUT TOOL

8 405400 TOOL CLIP

9 73800400 NUT 1/4-20

10 74780426 SCREW 1/4-20 X .625

11 427942 NUT 5/16-18

12 163183 SCREW 5/16-18 X .625

13 427145 IMPELLER HUB

14 427154 IMPELLER SLEEVE

15 73900600 NUT 3/8-16

16 180355 CARRIAGE BOLT

17 194189 SCREW 13-16 X .625

18 407760 PLUG

19 427302 GEARBOX COVER RH

20 427345 GASKET

21 407770 SEAL

22 407762 BEARING

23 174697 THRUST WASHER 1.00

24 407763 WORM GEAR

25 407764 AUGER SHAFT

26 189282 SQUARE KEY

27 407758 BEARING

28 174683 THRUST WASHER

29 427147 IMPELLER SHAFT

30 7836M ROLL PIN

31 174681 THRUST WASHER

32 174684 THRUST BEARING

33 407769 BEARING

34 407768 O-RING

35 407767 SCREW 5/16-18 X .750

36 427317 GEARBOX COVER LH

37 192090 SHEAR BOLT

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880

AUGER HOUSING / IMPELLER ASSEMBLY

01.16.001-A

1 181160X479 DRIFT CUTTER BAR

2 72270506 CARRIAGEBOLT 5/16−18 X .750

3 179246 PLASTIC WASHER

4 10040500 LOCKWASHER 5/16

5 128638 NUT 5/16−18

*4 *5

01.09.010-A

REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880

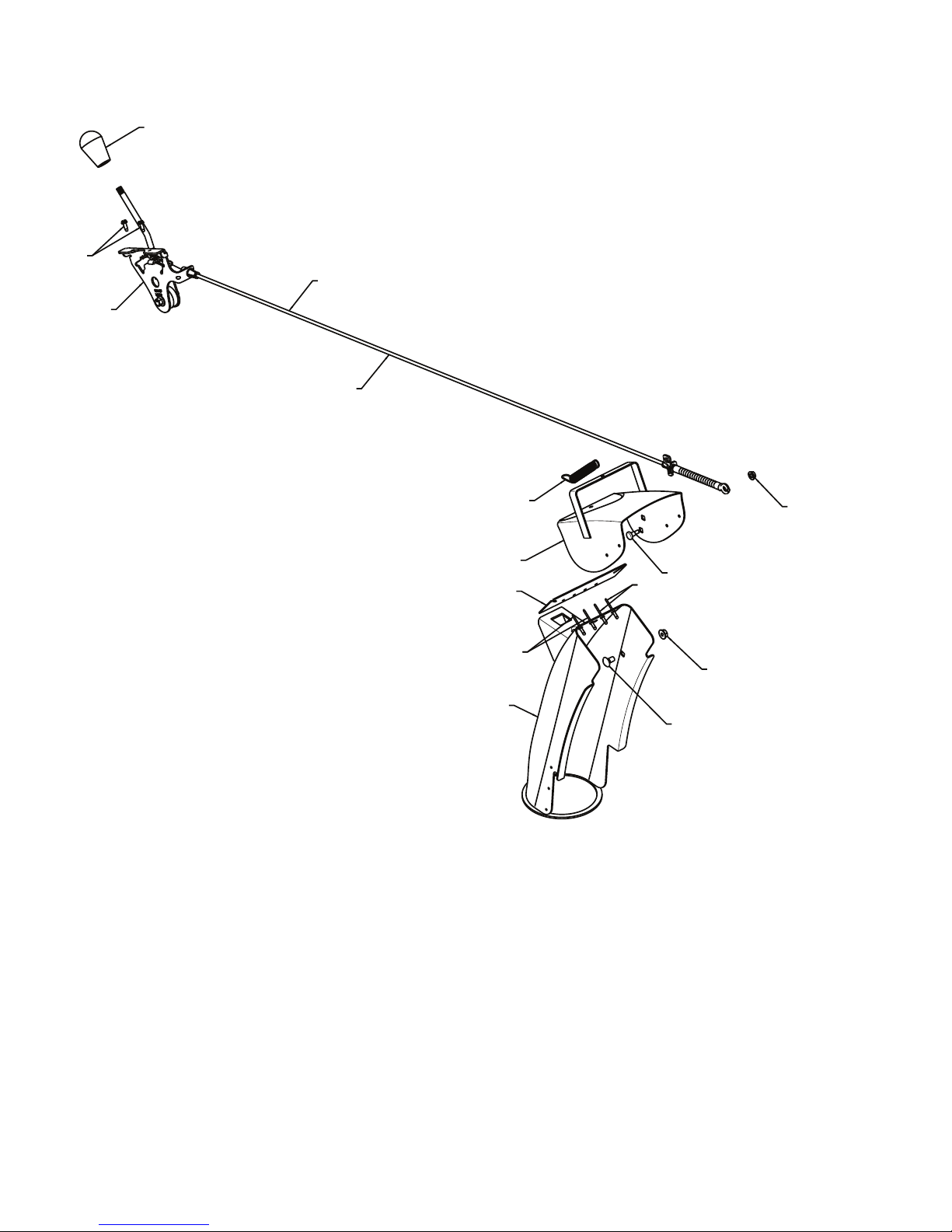

CONTROL PANEL / DISCHARGE CHUTE

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

01.15.005-A

1 188303 STEER CABLE

2 74041024 SCREW 10−24 X 1.50

1 428272 LEVER/CABLE ROTATOR ASSEMBLY

2 17501010 SCREW 10-24 X .625

*3 420678 ROTATOR HEAD

*4 405932 ROTATOR PIVOT BRACKET

*5 420675 PULLEY PIVOT

*6 428273 CABLE ASSEMBLY ADJUSTABLE

*7 428310 CABLE ASSEMBLY HEAT SHIELD

NOTES:

1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.

REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880

CONTROL PANEL / DISCHARGE CHUTE

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

*10

*11

*12

01.09.002-D

KEY PART

NO. NO. DESCRIPTION

1 420315X615 CHUTE WELDMENT

2 178633X615 DEFLECTOR WELDMENT

3 420673 DEFLECTOR CONTROL ASSEMBLY

4 420325 DEFLECTOR SEAL

5 414280 KNOB BLACK

6 128415 POP RIVET

7 17501010 SCREW 10-24 X .625

*8 179829 SHOULDER SCREW

*9 191730 NUT 1/4-20

*10 72250505 CARRIAGE BOLT 5/16-18 X .50

*11 751153 NUT 5/16-18

*12 184505 DEFLECTOR SPRING

13 420679 (SERVICE PART) DEFLECTOR CONTROL HEAD

14 420672 (SERVICE PART) DEFLECTOR CONTROL CABLE

NOTE:

1. ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.

2. ITEMS 13 AND 14 ARE SERVICE PART NUMBERS TO ALLOW PURCHASE OF INDIVIDUAL ITEMS IF NECESSARY.

REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880

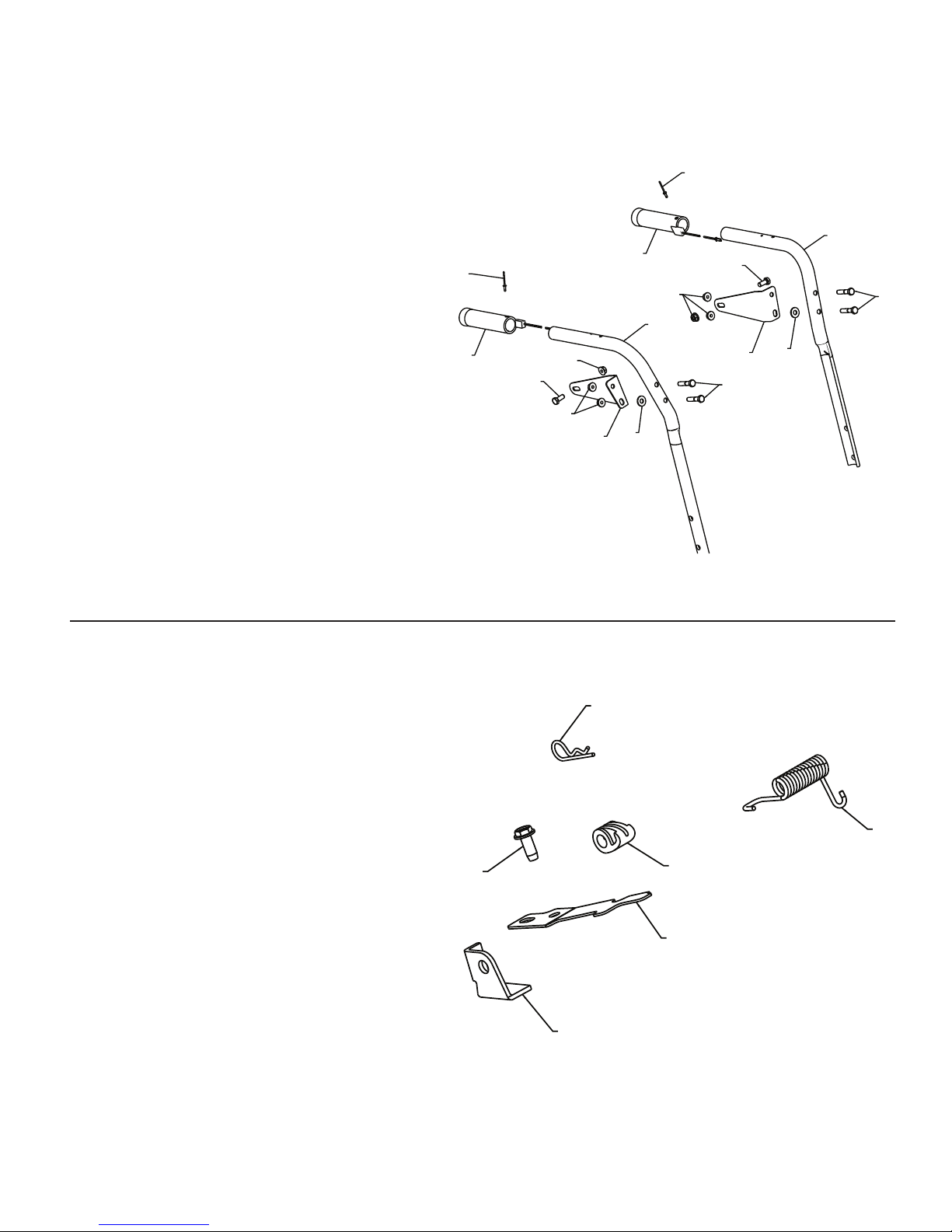

HANDLES

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

601.08.007-B

1 412675X004 INTERLOCK SPRING

2 414572 INTERLOCK CAM

3 178831 TORSION SPRING

4 169675 RETAINER

5 17060410 SCREW 1/4−20 X .625

6 421252X004 INTERLOCK STOP

01.08.005-A

1 419800X479 PLOW HANDLE LH

2 419801X479 PLOW HANDLE RH

3 196944X007 PANEL BRACKET LH

4 196943X007 PANEL BRACKET RH

5 414515 HEATED HANDLE GRIP

6 74780512 CREW 5/16−18 X .750

7 74780524 SCREW 5/16−18 X 1.50

8 751153 NUT 5/16−18

9 155415 WASHER

10 178775 POP RIVET 1/8

REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880

HANDLES

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

01.05.003-C

01.10.004-D

1 413927 CONSOLE PANEL BLACK

2 178668 HEADLIGHT BEZEL

3 178666 HALOGEN HEADLIGHT

4 184471 SHOULDER SCREW 10-24 X .625

5 175262 SCREW 10-24 X 1.25

6 417760 GRIP SWITCH

7 405699 WIRE HARNESS

8 401620 BULB

1 419796X479 LOWER TUBE

2 418313X479 PIVOT SUPPORT

3 428867 BOLT 5/16-18 X .750

4 17000616 SCREW 3/8-16 X 1 .00

KEY PART

NO. NO. DESCRIPTION
