Craftsman 113.197511 User manual

Save ThisManual

For Future Reference

owner's

manual

MODEL NO.

113.197411

10-1NCH ELECTRONIC

RADIAL SAW WITH

4_,-INCH CABINET

AND 2 DOORS

113.197511

10-1NCH ELECTRONIC

RADIAL SAW

WITH 44-1NCH CABINET

AND 2 DOORS AND

CASTERS

113.197611

10-1NCH ELECTRONIC

RADIAL SAW WITH

44-1NCH CABINET

AND 6 DRAWERS

Serial

Number

Model :]nd serial numbers

may be found on the left

hand side of the base.

You shculd record both

model and serial number in

asafe place for future use.

FORYOUR

SAFETY:

READ ALL

INSTRUCTIONS

CAREFULLY

113.19761

113.197411

SEARS /r.RRFT$IViRN

10-1NCH RADIALSAW

• assembly

• operating

•repair parts

\ Y\

Sold by SEARS, ROEBUCK AND CO., Chicago, IL60684 U.S.A.

Part No. SP5539 Printed in U.S.A,

Table of Contents

Section Title .......................... Page

Safety ......................................... 3

Assembly ...................................... 10

Controls ....................................... 34

Alignment and Adjustment ............................ 37

Digital Display ................................... 48

Electrical Connections ............................... 54

Crosscutting ..................................... 57

Ripping ....................................... 61

Cutting Aides .................................... 69

Accessories ..................................... 72

Maintenance .................................... 75

Troubleshooting .................................. 79

Repair Parts ..................................... 84

Index ......................................... 103

FULL ONE YEAR WARRANTY ON CRAFTSMAN RADIAL ARM SAW

If within one year from the date of purchase, this Craftsman Radial Saw fails due

to a defect in material or workmanship, Sears will repair it, free of charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE

NEAREST SEARS SERVICE CENTER/DEPARTMENT THROUGHOUT THE

UNITED STATES.

This warranty applies only while this product is used in the United States.

This warranty gives you specific legal rights and you may also have other rights

v,hich vary from state to state.

SEARS, ROEBUCK AND CO. DEPT. 698/731A SEARS TOWER,

CHICAGO, IL 60684

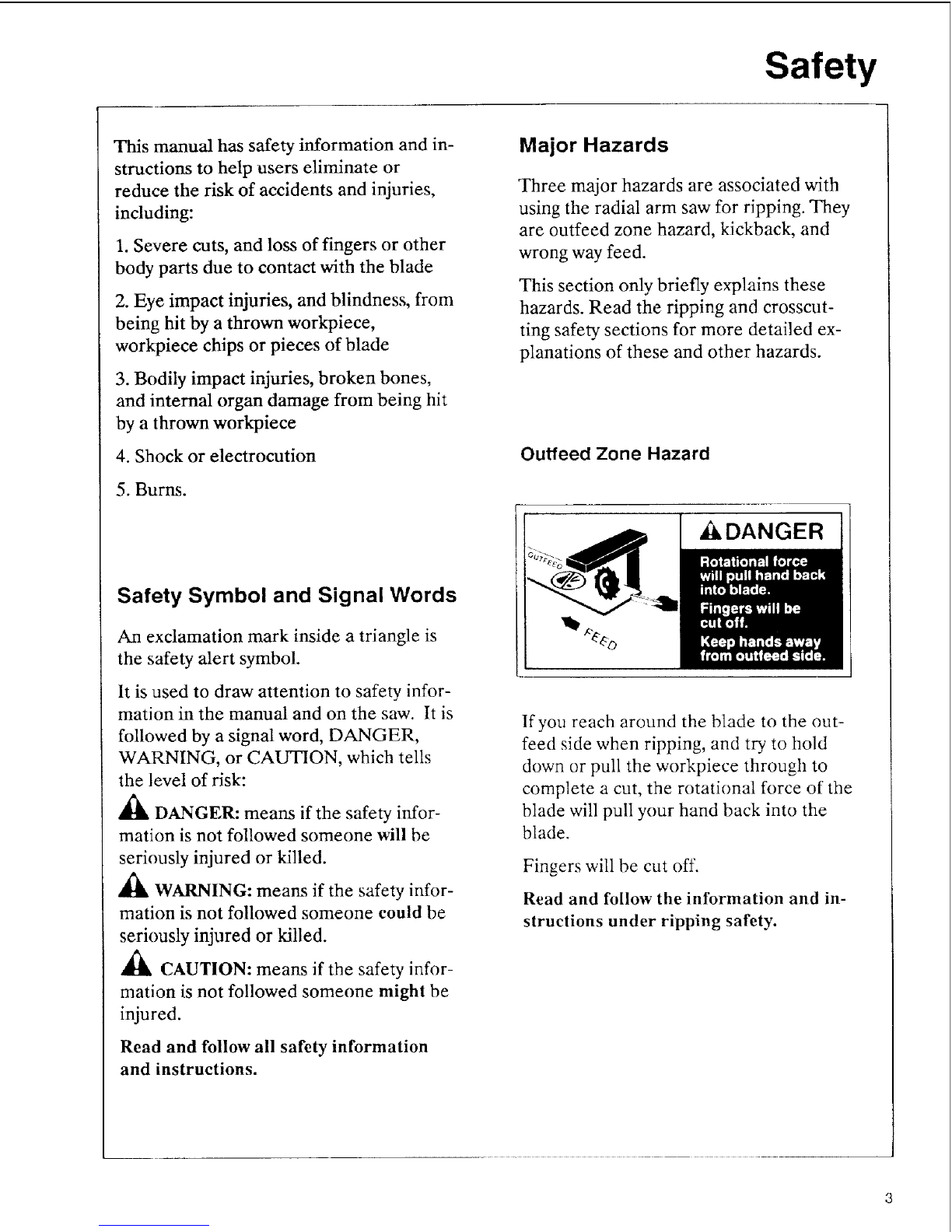

Safety

This manual has safety information and in-

structions to help users eliminate or

reduce the risk of accidents and injuries,

including:

1. Severe cuts, and loss of fingers or other

body parts due to contact with the blade

2. Eye impact injuries, and blindness, from

being hit by a thrown workpiece,

workpiece chips or pieces of blade

3. Bodily impact injuries, broken bones,

and internal organ damage from being hit

by a thrown work'piece

4. Shock or electrocution

5. Burns.

Safety Symbol and Signal Words

An exclamation mark inside a triangle is

the safety alert symbol.

It is used to draw attention to safety infor-

mation in the manual and on the saw. It is

followed by a signal word, DANGER,

WARNING, or CAUTION, which tells

the level of risk:

_h, DANGER: means if the safety infor-

mation is not followed someone will be

seriously injured or killed.

WARNING: mearks if the safety infor-

mation is not followed someone could be

seriously injured or killed.

_ CAUTION: means if the safety infor-

mation is not followed someone might be

injured.

Read and follow all safety information

and instructions.

Major Hazards

Three major hazards are associated with

using the radial arm saw for ripping. They

are outfeed zone hazard, kickback, and

wrong way feed.

This section only briefly explains these

hazards. Read the ripping and crosscut-

ting safety sections for more detailed ex-

planations of these and other hazards.

Outfeed Zone Hazard

_DANGER

If you reach around the blade to the out-

feed side when ripping, and try to hold

down or pull the workpiece through to

complete a cut, the rotational force of the

blade will pull your hand back into the

blade.

Fingers will be cut off.

Read and follow the information and in-

structions under ripping safety.

Safety

Kickback Hazard

Kickback is the uncontrolled propelling of

the workpiece back toward the user

during ripping.

The cause of kickback is the binding or

pinching of the blade in the workpiece.

Several conditions can cause the blade to

bind or pinch.

When a workpiece kicks back, it could hit

hard enough to cause internal organ in-

juu, broken bones, or death.

Read and follow the information and in-

structions under ripping safety.

WARNING

KICKBACKItI_

Wrong Way Feed Hazard

Wrong way feed is ripping by feeding the

workpiece into the outfeed side of the

blade.

The rotational force of the blade can grab

and pull the workpiece.

Before you can let go or pull back, the

force could pull your hand along with the

workpiece into the blade. Fingers or hand

could be cut off.

The propelled workpiece could hit a by-

stander, causing severe impact injury or

death.

Read and follow the information and in-

structions under ripping safety.

kWARNING

Wrong Way Feed

Safety Instructions

Read and follow all safety instructions.

Personal Safety Instructions

1. Wear safety goggles labeled "ANSI

Z87.1" on the package. It means the gog-

gles meet impact standards set by the

American National Standards Institute.

Regular eyeglasses are not safety goggles.

2. Wear close fitting clothes, short

sleeved shirts, and non-slip shoes. Tie up

long hair. Do not wear gloves, ties, jewel-

ry, loose clothing, or long sleeves. These

can get caught in the spinning blade and

pull body parts into the blade.

3. Wear dust mask to keep from inhaling

fine particles.

4. Wear ear protectors, plugs or muffs if

you use saw daily.

5. Keep good footing and balance; do not

over-reach.

Work Area Safety Instructions

1. Keep children, pets, and visitors out of

work area; they could be hit by a thrown

workpiece, workpiece chips or pieces of

blade.

2. Turn saw off, remove yellow key, and

unplug before leaving work area. Do not

leave until blade has stopped spinning.

3. Make work area child-proof: remove

yellow key to prevent accidental start-up;

store key out of sight and reach; lock

work area.

4. Keep floors clean and free of sawdust,

wax and other slippery materials.

5. Keep work area well lighted and un-

cluttered.

6. Use saw only in dry area. Do not use in

wet or damp areas.

Safety Goggles

Dust Mask

Ear Protectors

Safety

Saw Safety Instructions

1. Use guard, pawls and spreader accord-

ing to instructions. Keep them in working

order.

2. Routinely check saw for broken or

damaged parts. Repair or replace

damaged parts before using saw. Check

new or repaired parts for alignment, bind-

ing, and correct installation.

3. Unplug saw before doing maintenance,

making adjustments, correcting align-

ment, or changing blades.

4. Do not force saw. Use saw, blades and

accessories only as intended.

5. tlave yellow key out and saw switched

off before plugging in power cord.

6. Before turning on saw, clear table of all

objects except workpiece to be cut and

necessary fixtures, clamps, or feather-

boards.

7. If blade jams, turn saw off immediately,

remove yellow key, then free blade. Do

not try to free blade with saw on.

8. Turn saw off if it vibrates too much or

makes an odd sound. Correct any prob-

lena before restarting saw.

9. Do not layout, assemble, or setup work

with saw on, or while blade is spinning.

10. Keep saw table clean.

11. Store items away from saw. Do not

climb on saw or stand on saw table to

reach items because saw can tip over.

Workpiece Safety Instructions

1. Cut only wood, woodlike or plastic

materials. Do not cut metal.

2. Cut only one workpiece at a time.

Stacking or placing workpieces edge to

edge can cause user to lose control of

workpiece.

Safety

3. Rip only workpieces longer than the

diameter of the blade. Do not rip

workpieces that are shorter than the

diameter of the blade being used.

4. Workpieces that extend beyond the

saw table can shift, twist, rise up from the

table, or fall as they are cut. Support

workpiece with table extensions the same

height as the saw table.

5. To prevent tipping, support outer ends

of extensions with sturdy legs or an outrig-

ger.

6. Do not use another person to help sup-

port workpieces or to aid by pushing or

pulling on workpieces, because these ac-

tions can cause kickback. Use table exten-

sions.

7. Use clamps or vice to hold workpiece.

It's safer than using your hands.

Blade Safety Instructions

I. Use only blades marked for at least

3450 rpm.

2. Use only 10" or smaller diameter

blades.

3. Use blades for their recommended cut-

ting procedures.

4. Keep blade sharp and clean.

5. Do not overtighten blade nut because

blade collar could warp.

6. Do not turn saw on and off in rapid se-

quence because blade can loosen.

7. Blade should stop within 15 seconds

after saw is switched off. If blade takes

longer, the saw needs repair. Contact

Sears Service Center.

Safety

On-Product Safety Labels

There are several safety labels on the saw.

They alert the user to hazards explained in

the manual and remind the user how to

avoid the hazard.

Note where they are located on the saw.

Read and follow the safety information

and instructions in these labels. Refer to

the manual for detailed explanations and

instructions.

On the outfeed side of the guard is this

safety label to alert you to wrong way feed:

ADANGERi

On the infeed side of the guard is this

safety label to alert you to kickback, and

to remind you to lower the guard nose

(hold down) for ripping:

kWARNING

KICKBACKI!II_

Safety

On the side surface of the motor, visible

from the infeed side when the saw is in a

rip position, is this safety label to alert you

to outfeed zone hazard:

DANGER

Near the saw handle is this safety label to

alert you to thrown objects and to remind

you to wear safety goggles: , WARNING

On the bottom surface of the motor,

visible when the cutting tool is horizontal,

is this safety label to alert you use a guard

when edge molding, and to position cut-

ting tool behind fence: (see Accessories

Section)

DANGER

On the front panel is this general safety in-

struction label:

Assembly

Identify Parts

The following parts are included:

Note: Before beginning assembly; check

that atl parts are included. If you are miss-

ing any part, do not assemble saw. Contact

your Sears Service Center to get the missing

part. Sometimes small parts can get lost in

packaging material. Do not throw away' any

packajng until saw is put together. Check

packagirN for missing parts before contact-

bzg Sea_'. A complete parts list (Repair

Parts) is"at the end of the manual. Use the

list to identi_ the number of the missing

part.

A. Basic Saw Assembly ........... 1

B. Rear Table ........................... 1

C. Spacer Table ....................... 1

D. Fence (wooden) ................. 1

E. Front Table ......................... 1

F. Trim Cap .............................. 2

G. Cabinet Box ........................ 1

H. Loose Parts Bags ................ *

Only models with casters include:

I. Caster/Foot Bag or Box ...... 1

Only model with drawers includes;

J. Drawer Box .......................... 1

*Number varies; bags can contain other

smaller bags. Note: To make assembly

easier, keep contents of each bag together,

and separate from contents of other bags.

This manual suits for next models

Table of contents

Other Craftsman Saw manuals

Craftsman

Craftsman 113.29350 Use and care manual

Craftsman

Craftsman 315.171020 User manual

Craftsman

Craftsman 113.241591 User manual

Craftsman

Craftsman 351.214140 User manual

Craftsman

Craftsman table saw User manual

Craftsman

Craftsman 113.24181 User manual

Craftsman

Craftsman 113.244501 User manual

Craftsman

Craftsman 137.218760 User manual

Craftsman

Craftsman 137.212540 User manual

Craftsman

Craftsman 315.271190 User manual

Craftsman

Craftsman 113.248340 User manual

Craftsman

Craftsman 113.248510 User manual

Craftsman

Craftsman 113.234940 User manual

Craftsman

Craftsman CMCS4000 User manual

Craftsman

Craftsman 315.21234 User manual

Craftsman

Craftsman 315.108620 User manual

Craftsman

Craftsman Lithium 320.28127 User manual

Craftsman

Craftsman 113.196380 User manual

Craftsman

Craftsman 124.32607 User manual

Craftsman

Craftsman 315.108356 User manual

Craftsman

Craftsman 113.235140 User manual

Craftsman

Craftsman 10 IN. COMPOUND MITER SAW 315.23538 User manual

Craftsman

Craftsman ACCRA-ARM 113.29003 Quick reference guide

Craftsman

Craftsman 152.221040 User manual

Popular Saw manuals by other brands

RIDGID

RIDGID BS1400 owner's manual

ATIKA

ATIKA BWS 400-2 Original instructions

RGC

RGC FS20 instructions

Makita

Makita M2300 instruction manual

IMET Spa

IMET Spa BASIC 300 PLUS SHI Instructions for use

IMET Spa

IMET Spa SIRIO 370 AF-E User instructions

Optimum

Optimum OPTisaw CS 275 operating manual

Makita

Makita BPB180 instruction manual

Stihl

Stihl MS 462 C-M instruction manual

AEG

AEG TS 250 K Original instructions

Meec tools

Meec tools 004665 operating instructions

Makita

Makita LS1018L instruction manual

Ryobi

Ryobi RCS1400 Original instructions

DeWalt

DeWalt DCS391 instruction manual

Sealey

Sealey SA72 instructions

skilsaw

skilsaw SPT88 Operating/safety instructions

Urrea

Urrea SI810 User manual and warranty

EINHELL

EINHELL BKG 210/1 operating instructions
