Craftsman 351.518580 User manual

Operator's Manual

5" MULTI-JAW BENCH VISE

Model No.

351.51 8580

CAUTION: Read and follow

all Safety Rules and Operating

Instructions before First Use

of this Product.

• Safety

•Assembly

• Operation

•Maintenance

•Parts List

•EspaSol

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com/craftsman

16687.02 Draft (10/01/02)

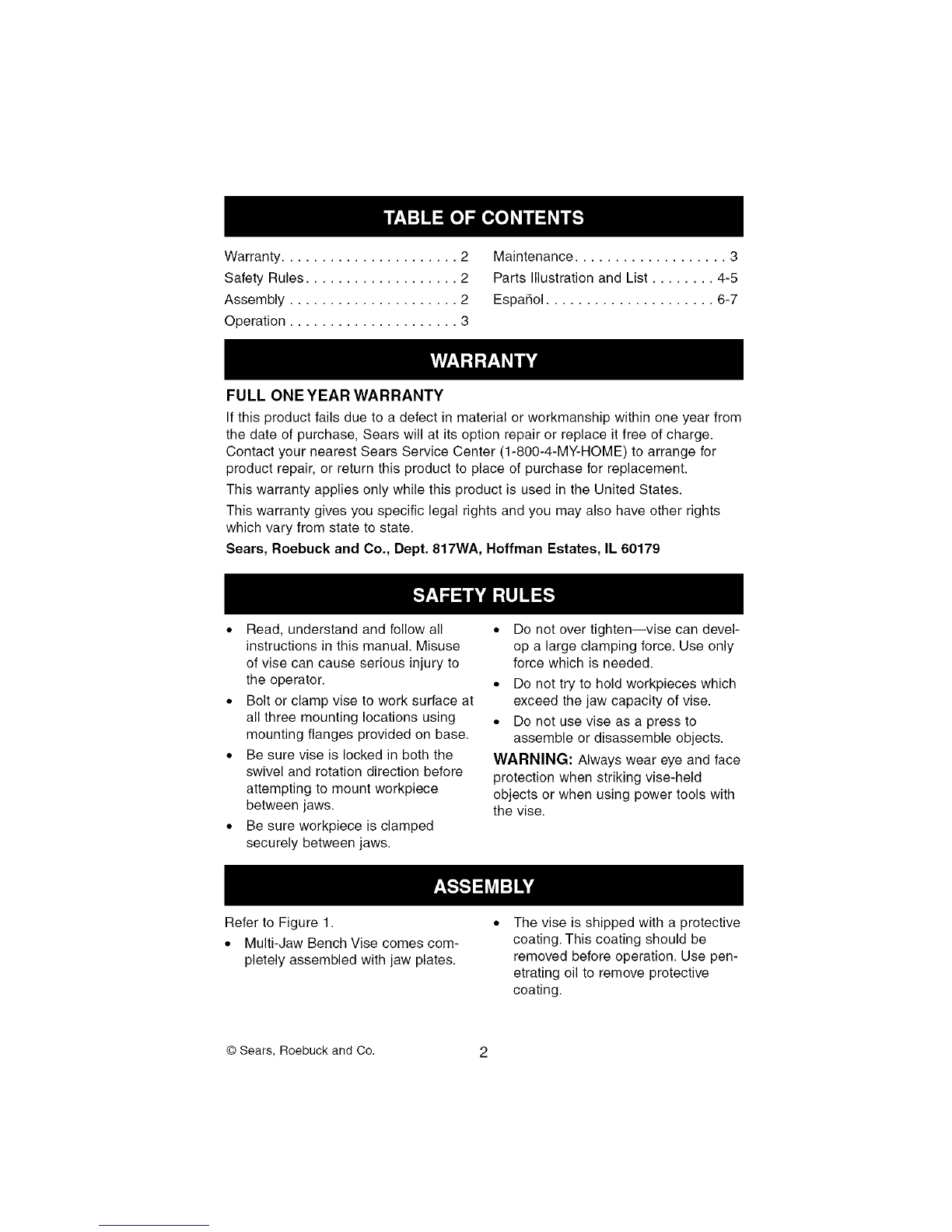

Warranty ...................... 2

Safety Rules ................... 2

Assembly ..................... 2

Operation ..................... 3

Maintenance ................... 3

Parts Illustration and List ........ 4-5

EspaSol ..................... 6-7

FULL ONE YEAR WARRANTY

If this product fails due to a defect in material or workmanship within one year from

the date of purchase, Sears will at its option repair or replace it free of charge.

Contact your nearest Sears Service Center (1-800-4-MY-HOME) to arrange for

product repair, or return this product to place of purchase for replacement.

This warranty applies only while this product is used in the United States.

This warranty gives you specific legal rights and you may also have other rights

which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

• Read, understand and follow all

instructions in this manual. Misuse

of vise can cause serious injury to

the operator.

• Bolt or clamp vise to work surface at

all three mounting locations using

mounting flanges provided on base.

• Be sure vise is locked in both the

swivel and rotation direction before

attempting to mount workpiece

between jaws.

• Be sure workpiece is clamped

securely between jaws.

• Do not over tighten--vise can devel-

op a large clamping force. Use only

force which is needed.

• Do not try to hold workpieces which

exceed the jaw capacity of vise.

• Do not use vise as a press to

assemble or disassemble objects.

WARNING: Always wear eye and face

protection when striking vise-held

objects or when using power tools with

the vise.

Refer to Figure 1.

*Multi-Jaw Bench Vise comes com-

pletely assembled with jaw plates.

The vise is shipped with a protective

coating. This coating should be

removed before operation. Use pen-

etrating oil to remove protective

coating.

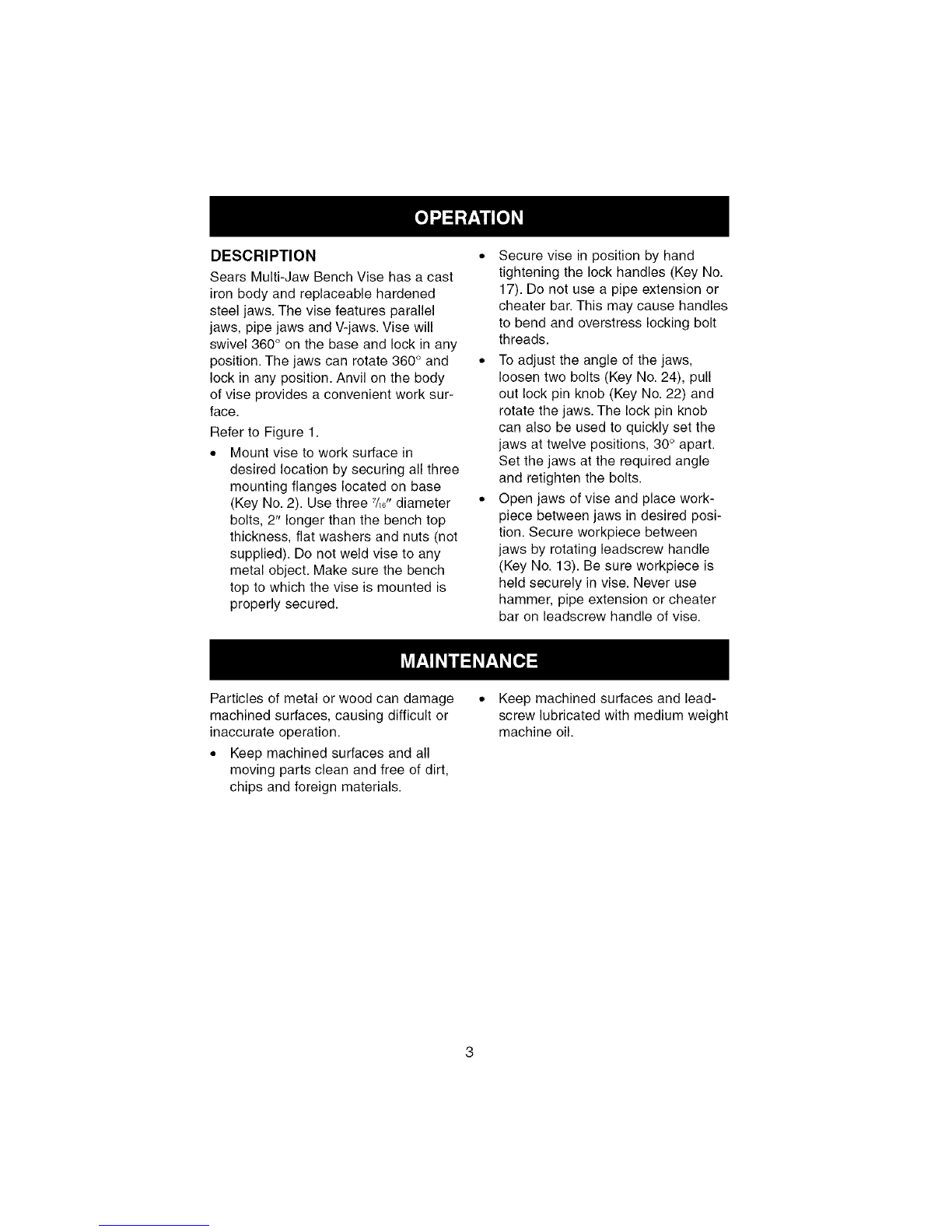

DESCRIPTION

Sears Multi-Jaw Bench Vise has a cast

iron body and replaceable hardened

steel jaws. The vise features parallel

jaws, pipe jaws and V-jaws. Vise will

swivel 360° on the base and lock in any

position. The jaws can rotate 360 ° and

lock in any position. Anvil on the body

of vise provides a convenient work sur-

face.

Refer to Figure 1.

•Mount vise to work surface in

desired location by securing all three

mounting flanges located on base

(Key No. 2). Use three 7/_,,diameter

bolts, 2" longer than the bench top

thickness, flat washers and nuts (not

supplied). Do not weld vise to any

metal object. Make sure the bench

top to which the vise is mounted is

properly secured.

° Secure vise in position by hand

tightening the lock handles (Key No.

17). Do not use a pipe extension or

cheater bar. This may cause handles

to bend and overstress locking bolt

threads.

° To adjust the angle of the jaws,

loosen two bolts (Key No. 24), pull

out lock pin knob (Key No. 22) and

rotate the jaws. The lock pin knob

can also be used to quickly set the

jaws at twelve positions, 30 ° apart.

Set the jaws at the required angle

and retighten the bolts.

° Open jaws of vise and place work-

piece between jaws in desired posi-

tion. Secure workpiece between

jaws by rotating leadscrew handle

(Key No. 13). Be sure workpiece is

held securely in vise. Never use

hammer, pipe extension or cheater

bar on leadscrew handle of vise.

Particles of metal or wood can damage

machined surfaces, causing difficult or

inaccurate operation.

• Keep machined surfaces and all

moving parts clean and free of dirt,

chips and foreign materials.

°Keep machined surfaces and lead-

screw lubricated with medium weight

machine oil.

Model 351.51 8580

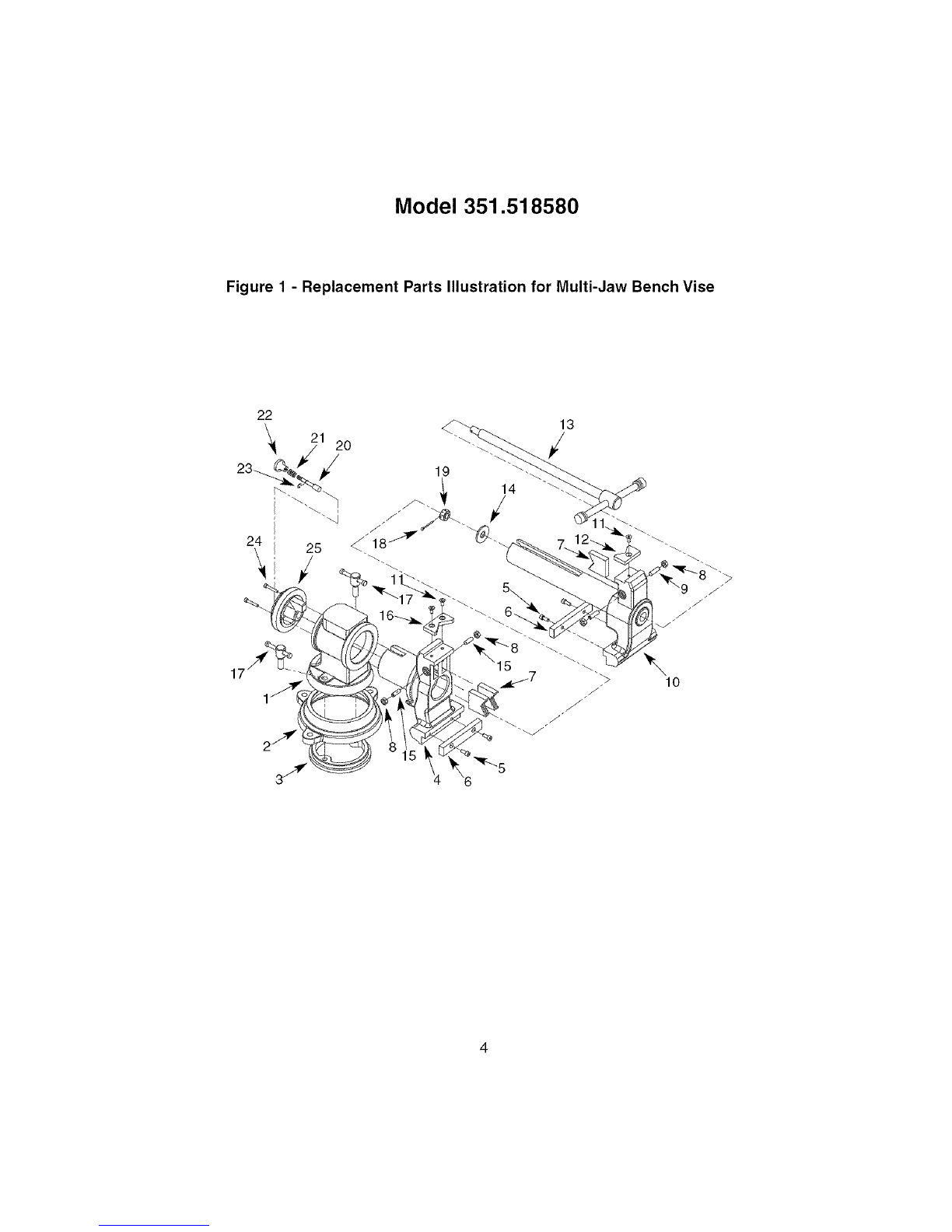

Figure 1 - Replacement Parts Illustration for Multi-Jaw Bench Vise

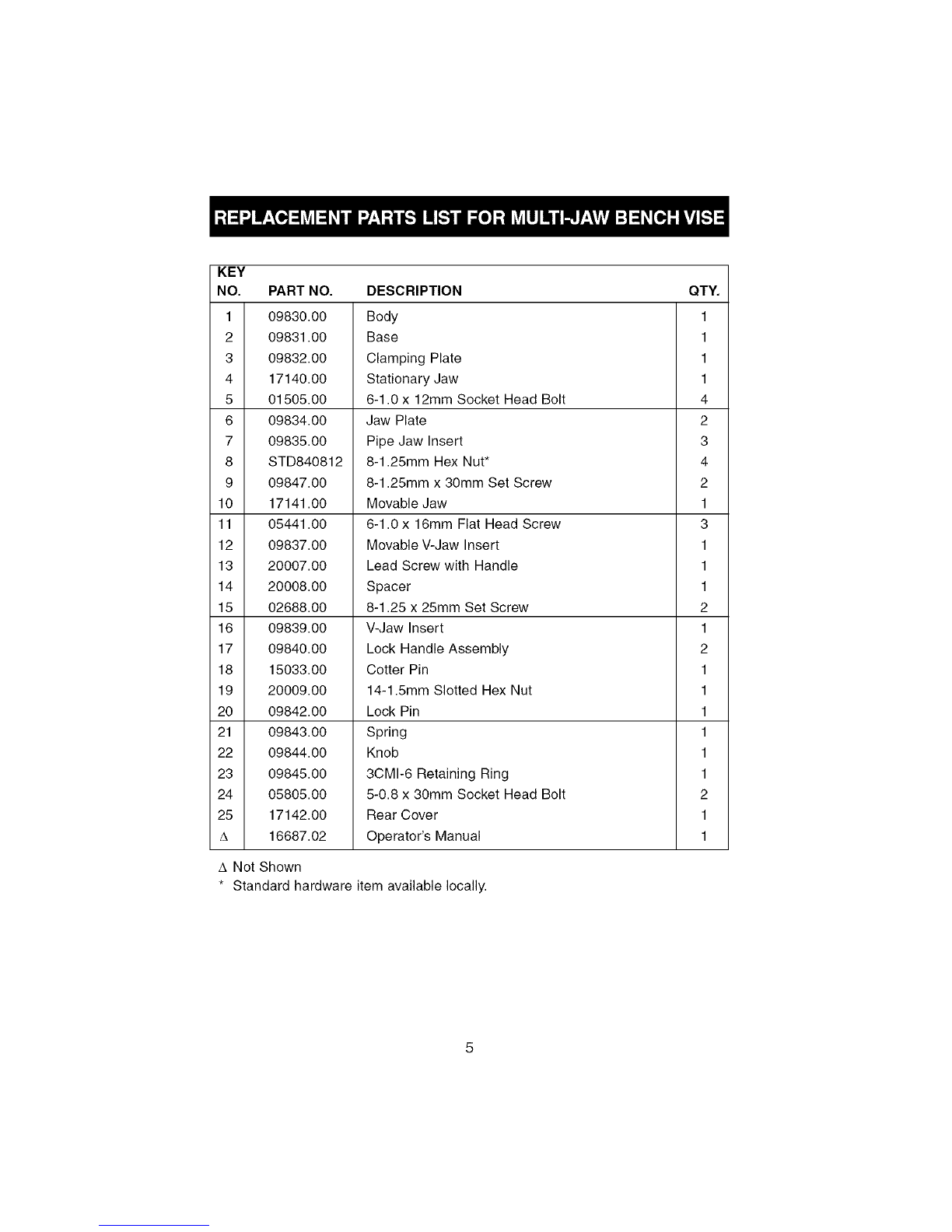

KEY

NO. PART NO.

1 09830.00

2 09831.00

3 09832.00

4 17140.00

5 01505.00

6 09834.00

7 09835.00

8 STD840812

9 09847.00

10 17141.00

11 05441.00

12 09837.00

13 20007.00

14 20008.00

15 02688.00

16 09839.00

17 09840.00

18 15033.00

19 20009.00

20 09842.00

21 09843.00

22 09844.00

23 09845.00

24 05805.00

25 17142.00

A 16687.02

DESCRIPTION

Body

Base

Clamping Plate

Stationary Jaw

6-1.0 x 12mm Socket Head Bolt

Jaw Plate

Pipe Jaw Insert

8-1.25mm Hex Nut*

8-1.25mm x 30mm Set Screw

Movable Jaw

6-1.0 x 16mm Flat Head Screw

Movable V-Jaw Insert

Lead Screw with Handle

Spacer

8-1.25 x 25mm Set Screw

V-Jaw Insert

Lock Handle Assembly

Cotter Pin

14-1.5ram Slotted Hex Nut

Lock Pin

Spring

Knob

3CMI-6 Retaining Ring

5-0.8 x 30ram Socket Head Bolt

Rear Cover

Operator's Manual

A Not Shown

*Standard hardware item available locally.

QTY.

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchasea protectionagreement on a productserviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Parapedirserviciode reparaci6n

a domicilio,yparaordenarpiezas:

1-888-SU-HOGARsM

(1-888-784-6427)

Au Canadapourserviceen fran£;ais:

1-800-LE-FOYERMc

(1-800-533-6937)

www.sears.ca

(c)Sears, Roebuck and Co.

® Registered Trademark /TM Trademark /SM Service Mark of Sears, Roebuck and Co.

® Marca Registrada /TMMarca de F&brica /SM Marca de Servicie de Sears, Roebuck and Co.

Mc Marque de commerce /MD Marque d6pes6e de Sears, Roebuck and Co.
