Costway NP11112BK User manual
NP11112BK
If you're having difficulty, our friendly
customer team is always here to help.
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Portable Propane Grill
Gril Portable au Propane
USA office: Fontana AUS office: Truganina
GBR office: Ipswich FRA office: Saint Vigor d'Ymonville
AUS:cs.au@costway.com
GBR:cs.uk@costway.com
FRA:cs.fr@costway.com
NOTE TO INSTALLER/ASSEMBLER:
SAVE THIS MANUAL FOR FUTURE REFERENCE
FOR OUTDOOR USE ONLY
LP GAS CYLINDER SOLD SEPERATELY
Give this operator’s manual to the consumer so the
consumer may retain it for future reference.
You might be seriously hurt if you do not follow the
instruction in this operator’s manual.
EN
Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the area in
which they will be placed in use, to avoid moving the product unnecessarily once
assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from babies
and children as they potentially pose a serious choking hazard.
FR
Veuillez lire attentivement toutes les instructions.
Conservez les instructions pour vous y référer ultérieurement.
Vérifiez toutes les pièces et les accessoires.
Lisez attentivement chaque étape et suivez l'ordre correct.
Nous recommandons que, dans la mesure du possible, tous les produits
soient assemblés à proximité de la zone où ils seront utilisés, afin d'éviter tout
déplacement inutile du produit une fois assemblé.
Placez toujours le produit sur une surface plane et stable.
Conservez toutes les petites pièces de ce produit et les matériaux d'emballage
hors de portée des bébés et des enfants, car ils pourraient présenter un risque
d'étouffement.
Avant de Commencer
EN
DANGER:
02 03
INTRODUCTION
GENERAL SAFETY RULES
This grill has many features for marking its use more pleasant and
enjoyable. Safety, performance, and dependability have been given
top priority in the design of this product, making it easy to maintain
and operate.
This instruction manual contains important information necessary for
the proper assembly and safe use of the appliance. Read and follow
all warnings and instructions before assembling and using the
appliance. Keep this manual for future reference.
If you smell gas:
• Shut off gas to the appliance
• Extinguish any open flame
• Open firebox hood
• If odor continues, keep away from the appliance and immediately
call gas supplier or your fire department.
Failure to follow these instructions could result in fire or explosion
which could cause property damage, personal injury or death.
DANGER:
Always use outdoors. Using the grill indoors or within an enclosed
area can lead to carbon monoxide poisoning, resulting in serious
injury or death.
DANGER:
▪Do not store or use gasoline or other flammable liquids or
vapors in the vicinity of this or any other appliance.
▪An LP cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
WARNING:
Improper assembly, adjustment, alteration, service, or maintenance
can cause property damage, injury or death. Read the Assembly,
Operation, and Maintenance instructions thoroughly before using,
assembling or servicing this product.
WARNING:
Read and understand all instruction. Failure to follow all instructions
listed below may result in electric shock, fire and/or serious personal
injury.
WARNING:
▪This appliance must be installed in accordance with the latest
local codes. In the absence of local codes, use the :
• United States:
-Nation Fuel Gas Code, ANSI Z223.1/NFPA 54
-LP gas Code,NFPA 58
• Canada:
-Natural Gas and Propane Installation Code, CSA B149.1
-Propane Storage and Handling Code, CSA B149.2
READ ALL INSTRUCTIONS
• Never operate this appliance unattended.
• Never operate this appliance within 25 ft.(7.5 m) of any flammable
liquid.
• If a fire should occur, keep away from the appliance and
immediately call your fire department. Do not attempt to extinguish
an oil or a grease fire with water.
Failure to follow these instructions could result in fire, explosion or
burn hazard which could cause property damage, personal injury or
death.
DANGER:
04 05
▪The grill shall not be used under overhead combustible
construction.
▪The grill is not intended for and should never be used as a
heater.
▪Keep area around this appliance free of combustible materials,
gasoline, and all other flammable vapors and liquids.
▪Do not restrict the flow of combustion and ventilation air.
▪If an accessory is used on the grill that requires an external
electrical powder source, the accessory when installed must be
electrically grounded in accordance with local codes. In the
absence of local codes, use the:
• United States:
-National Electrical Code, ANSI/NIPA 70
• Canada:
-Canadian Electrical Code, CSA C22.1
▪This appliance is for outdoor use only, and shall not be used in a
building, garage, shed, balcony, or any other enclosed area.
▪Do not use or install this appliance in or on boats or recreational
vehicles.
▪This grill must be located away from combustible surfaces by no
less than 36 inches(91.5 cm) from back of grill and 36
inches(91.5 cm) from sides of this grill.
36 inches
(91.5 cm)
Figure 1
36 inches
(91.5 cm)
36 inches
(91.5 cm)
▪Keep ventilation openings of the cylinder enclosure free and
clear from debris.
▪This grill is not intended for commercial use.
▪Never move grill when using or still hot.
▪Never use the grill indoors. Toxic fumes can accumulate.
▪Always remove the LP gas cylinder(liquid propane also called
liquid petroleum gas) when the appliance is not in use or before
storing or lowering the unit.
▪Do not alter the grill in any manner.
▪Do not use the appliance unless it is fully and properly
assembled and all parts are securely fastened.
▪Never attempt to light burner with the firebox hood closed. A
build up of non-ignited gas inside a closed grill is hazardous.
▪When in use, keep children and pets away at all times.
▪Do not leave the grill unattended.
▪Do not use charcoal, ceramic briquettes, or lava rock in a gas
grill.
▪In the event of a grease fire, turn off the burner. Do not attempt
to extinguish with water. Use type BC dry chemical fire
extinguisher or smother with dirt, or baking soda.
▪When cooking with oil or grease, have a type BC or ABC fire
extinguisher readily available.
▪Keep any electrical cord and fuel supply hose away from any
heated surfaces.
▪Do not store a spare LP gas cylinder under or near the grill If not
followed exactly, a fire causing death or serious injury may
occur.
06 07
GENERAL SAFETY RULES
▪If a leak is detected at any time, get away from the LP gas
cylinder and call the fire department.
▪This grill is not intended to be used on a boat, in an RV, camper
trailer, or motor home.
▪Do not use the grill until leak-tested.
▪Periodically check and/or clean the burner/ venturi tubes for
insects and insect nests. A clogged tube can lead to a fire
beneath the grill.
▪LP gas cylinders must be stored outdoors out of reach of
children and must not be stored in a building, garage, or any
other closed in area.
▪Do not operate the grill while under the influence of drugs,
alcohol, or any medication.
▪Stay alert and exercise control. Watch what you are doing and
use common sense. Do not operate a grill when you are tired.
▪Propane cylinder use(1lb disposable):
▪Use only cylinder marked “Propane Fuel”.
▪Cylinder must be constructed and marked in accordance with
the specifications for LP gas cylinders of the U.S. Department of
Transportation (DOT) or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres and Tubes for the
Transportation of Dangerous Goods.
▪Size should be 4 inches (10.1 cm) diameter, 8 inches(20.3 cm)
height, or 3 inches(7.6 cm) diameter, 10 inches(25.4 cm) height.
▪Save cylinder cap and reinstall when not in use.
▪Cylinder supply system must be arranged for vapor withdrawal.
Gas cylinder must be upright in use.
SPECIFIC SAFETY RULES
1.Use grill only with LP gas and the regulator/valve assembly
supplied.
2.Check for leaks prior to grilling operations. Do this even if this grill
was assembled at the store.
3.Do not operate the grill if there is a gas leak present.
4.Never use a flame to check for gas leaks.
5.Should the burner go out while grilling, turn off the gas valve.
Open the firebox hood and wait 5 minutes before attempting to
relight.
6.Never lean over an open grill or place hands or fingers on hot
surfaces.
7.Thoroughly clean the grill regularly.
8.Do not block the ventilation holes in the sides or back of the grill.
9.Never attempt to use the appliance or any components that have
been damaged or exposed to an accidental fire.
10.Propane gas is not natural gas. Do not try to convert this grill to
natural gas as it is extremely dangerous.
11.Place dust cap on cylinder valve outlet whenever the cylinder is
not in use. Only install the type of the dust cap on the cylinder valve
outlet that is provided with the cylinder valve. Other types of caps or
plugs may result in leakage of propane.
12.Do not store or use gasoline or other flammable liquids or vapors
in the vicinity of the grill.
13.Use heat-resistant mitts or gloves, and long-handled utensils
when operating this grill.
14.When cooking, the grill must be on a level, stable
noncombustible surface in an area that is free of combustible
material. An asphalt surface(blacktop) may not be acceptable for
this purpose.
15.Apartment Dwellers: Check with management to learn
requirements and fire codes of using a LP gas grill in your apartment
complex.
16.Save these instructions. Refer to them frequently and use them
to instruct others who may use this grill. If you loan someone this
grill, loan them these instructions also.
08 09
FEATURES
The following signal words and meanings are intended to explain
the levels of risk associated with this product.
Some of the following symbols may be used on this product.
Please study them and learn their meanings. Proper
interpretation of these symbols will allow you to operate the
product better and safer.
Indicates an imminently hazardous
situation, which, if not avoided, will
result in death or serious injury.
BTU rating: 15,000
Total grill surface: 348 sq.in.
Grilling surface height: 31 inches
Fuel source: Propane(not included)
Natural gas convertible: No
Figure 2
ASSEMBLY
SYMBOL SIGNAL
DANGER:
Indicates a potentially hazards
situation, which, if not avoided, could
result in death or serious injury
WARNING:
Indicates a potentially hazardous,
which, if not avoided, may result in
minor or moderate injury
CAUTION:
(Without Safety Alert Symbol)
Indicated important information not
related to an injury hazard, such as a
situation that may result in property
damage.
NOTICE:
MEANING
Indicates a potential personal injury
hazard.
SYMBOL NAME
PRODUCT SPECIFICATIONS

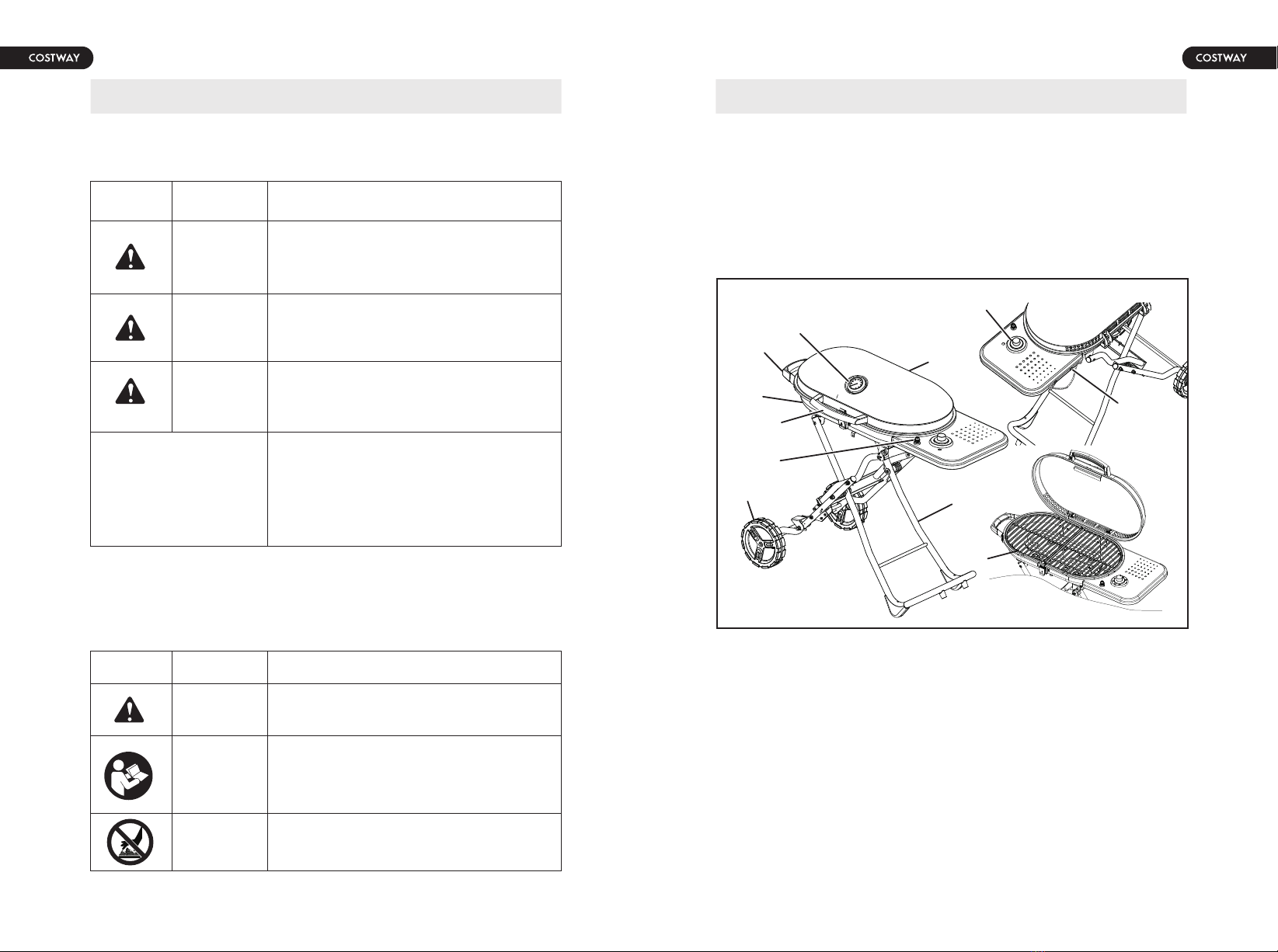

See Figure 2.
The safe use of this grill requires an understanding of the
information on the grill and in this operator's manual. Before use of
this grill, familiarize yourself with all operating features and safety
rules.
Collapsible Stand - The stand can be collapsed for storing or
transporting the grill.
Electric Ignitor -The electric igniter uses a AAA battery(not included)
that lights the gas burner when pushed.

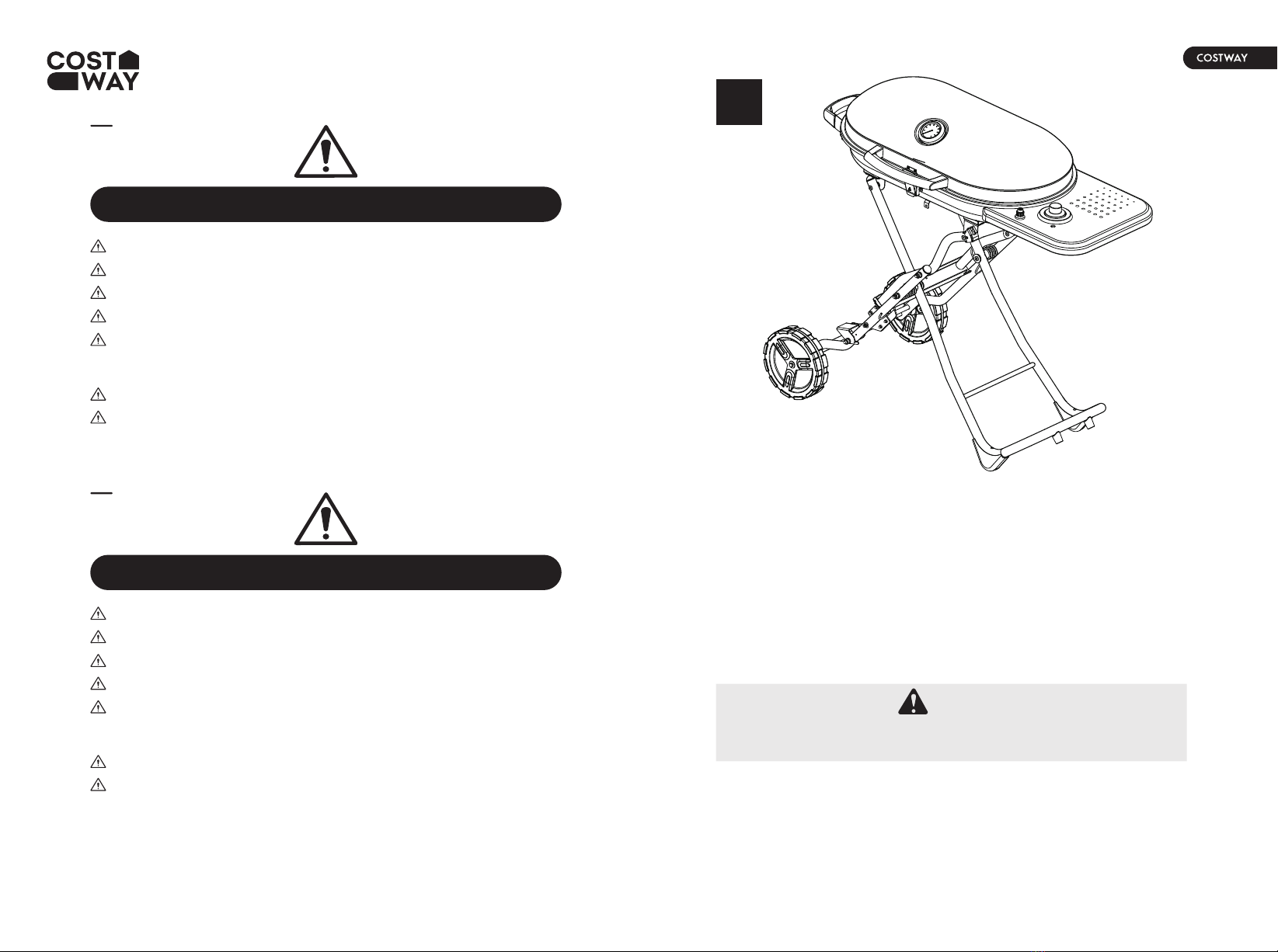

KNOW YOUR GRILL
Safety Alert
To reduce the risk of injury, user must
read and understand operator’s
manual before using this product.
Read
Operator’s
Manual
To reduce the risk of injury or damage,
avoid contact with any hot surface.
Hot Surface
DESIGNATION/EXPLANATION
Temperature Gauge
Firebox Hood
Collapsible Stand
Grate
Match
Holder
Storage
Control Knob
Stand
Front
Handle
Firebox
Firebox
Handle
Electric
Ignitor
Rugged Wheels
10 11
A-Fire box handle x 1
B-Grease cup x 1
C-Grate x 1
D-Wheel x 2
E-Stand front handle x 1
F-Axle x 1
The following tools (not included or drawn to scale) are needed for
assembly and making adjustments:
This product requires assembly.
▪Carefully lift the grill from the carton and place it on a level work
surface.
▪Inspect the grill carefully to make sure no breakage or damage
occurred during shipping.
▪Do not discard the packing material until you have carefully
inspected the grill, identified all loose parts, and satisfactorily
operated the grill.
NOTE: Some loose parts are located inside the grill assembly
beneath the firebox hood.
LOOSE PART
TOOLS NEEDED
ASSEMBLY
Do not use this product if any parts on the Loose Parts List are
already assembled to your product when you unpack it. Parts on this
list are not assembled to the product by the manufacturer and
require customer installation. Use of a product that may have been
improperly assembled could result in serious personal injury.
WARNING:
Figure 3
Figure 4
UNPACKING
Phillips Screwdriver
Firebox Hood - The firebox hood can be locked for easy transport.
Match Holder Storage - Slots in the back of the grill provide
convenient storage for the match holder.
Rugged Wheels - The durable plastic wheels allow you to move the
grill across smooth and rough surfaces.
Temperature Gauge - The temperature gauge measures
temperatures up to 700 ℉(371 ℃).
C
D
E
F
A
B
12 13
If any parts are damaged or missing do not operate this grill until the
parts are replaced. Use of this product with damaged or missing
parts could result in serious personal injury.
WARNING:
Some parts may contain sharp edges that may cause personal
injury. Wear protective gloves if necessary.

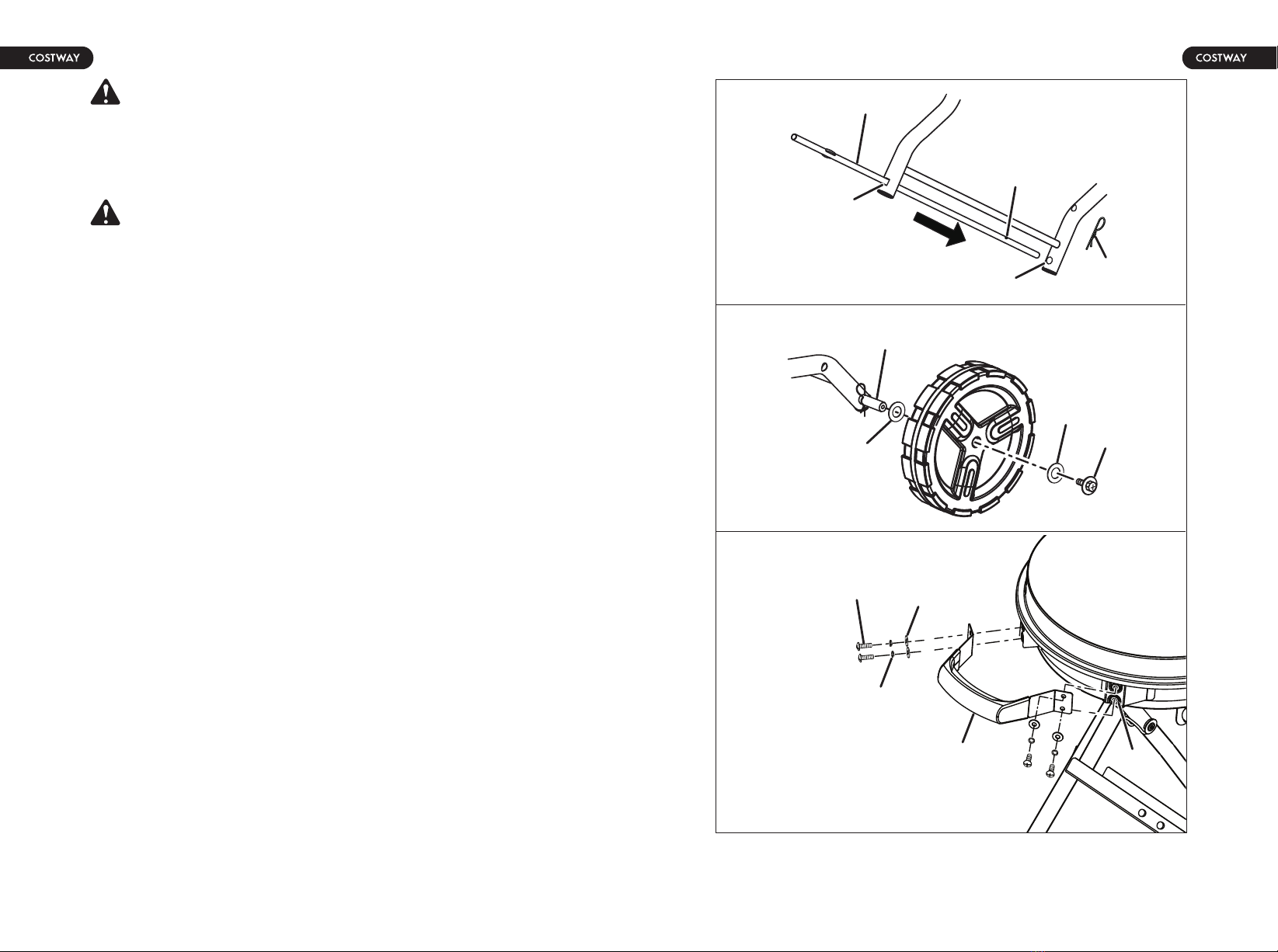

See Figure 5-6.
1.With the grill out of the box and packaging removed, place the grill
right side up on flat surface.
2.Remove the hitch pin, screws, and washers from the axle.
3.Locate the holes in the stand legs.
4.Slide the axle through the square hole in the left stand leg and
then through the round hole in the right stand leg.
5.Install the hitch pin into the hole in the axle to secure it in place.
6.Lift the grill, slide one washer and wheel onto the axle.
7.Using a second washer and screw, secure the wheel to the stand.
Securely tighten screw.
8.Repeat this process to secure the other wheel.
CAUTION:
Step 1: Attaching the Wheels
See Figure 7.
1.Locate the handle mounts on the firebox.
2.Remove the screws, lock washers, and washers from the handle
mounts.
3.Align holes in stand front handle with holes in mounts.
4.Install front handle using Phillips screws. Securely tighten screws.
Step 2: Attaching the Stand Front Handle
Figure 5
Figure 6
Figure 7
Axle
Hole
Square Hole
Round Hole
Axle
Washer
Washer
Screw
Screw Washer
Lock Washer
Mount
Stand Front
Handle
Hitch Pin
14 15
Use the stand front handle to raise the stand. Do not raise by any
part of the grill that is attached to the stand. Failure to heed this
warning can result in possible injury and damage the grill.
WARNING:
Failure to remove the LP gas cylinder or attempting to move the grill
while it is hot could result in serious personal injury.
WARNING:

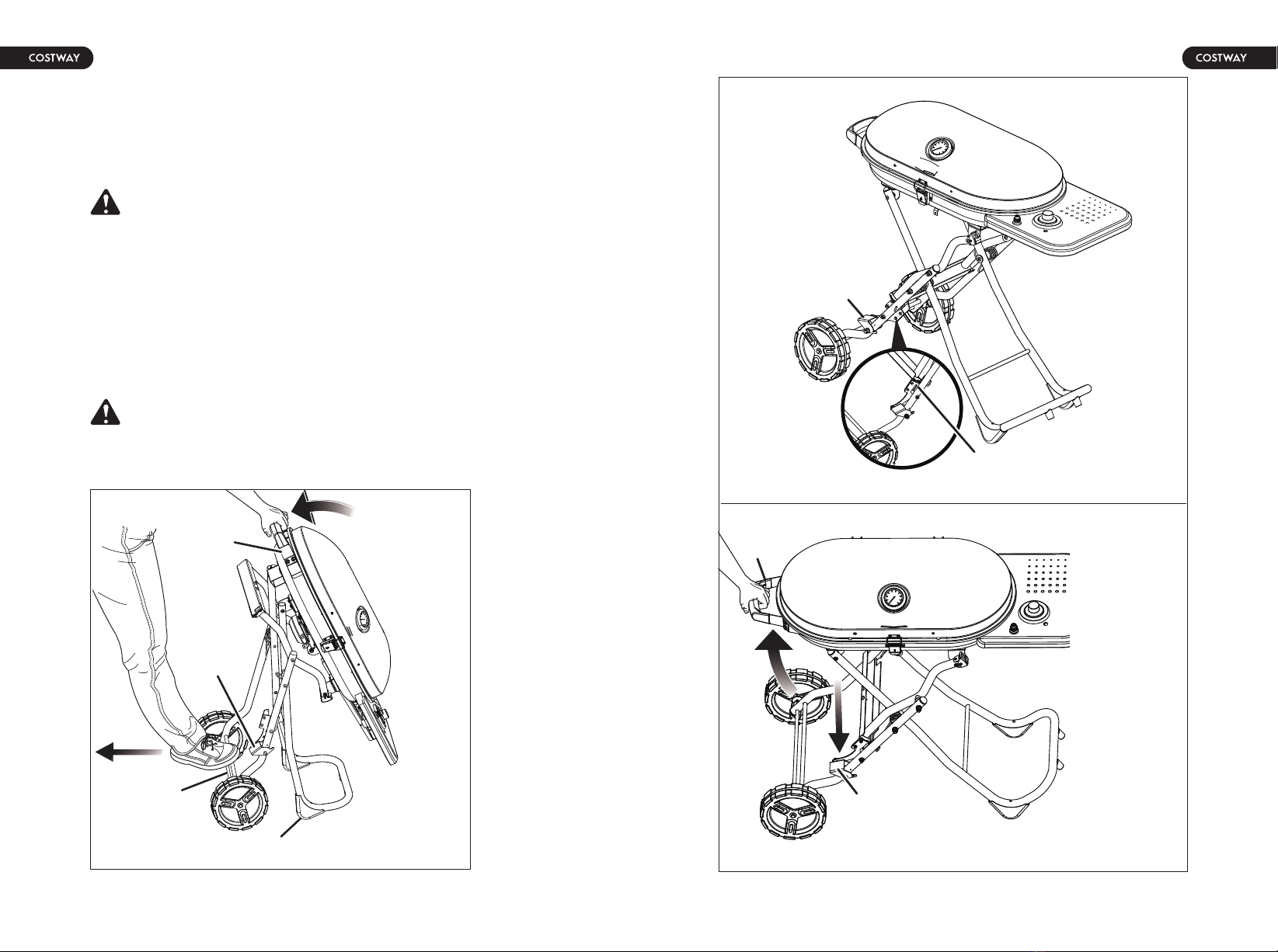

See Figure 8-10.
1.Grasp the stand front handle and raise the stand until it rests on
the wheels and frame support.
2.Step on the release lever and pull the stand front handle toward
you at the same time.
3.Apply slight downward pressure on the stand until the release
lever closes over the center brace, locking the unit in place.
Step 3: Opening the Stand
Figure 8
Figure 9
Figure 10
Stand Front
Handle
Release
Lever
Center
Brace
Release
Lever
Stand Front
Handle
Release
Lever
Foot Brace
Frame Support
16 17
Figure 11
Figure 12
Figure 13
Hood Latch
Firebox
Firebox Hood
Firebox Handle
Wing Nut
Grease Cup
Firebox Hood
See Figures 11-12.
1.Raise and open the stand.
2.Lift the hood latch, then raise the firebox hood.
3.Remove the wing nuts from the studs in the firebox handle.
4.Insert studs in firebox handle through holes in the firebox hood.
5.Install the wing nuts and tighten securely.
Step 4: Attaching Firebox Handle
See Figure 13.
1.Slide the grease cup into the cup holders on the bottom of the grill.
NOTE: Clean the grease cup after each use. Do not remove the
grease cup until after the grill has cooled completely. Do not
transport the grill with a dirty grease cup.
Step 5: Installing the Grease Cup
18 19
