Cosmo UC Series Troubleshooting guide

Installation Guide

& User Manual

IMPORTANT: Read and save these instructions.

NOTICE:

Installer: Leave this guide with the homeowner Homeowner:

Keep this guide for future reference

UnderCabinet Range Hood

UC & UMC series

Under Cabinet

Range Hood

STAINLESS STEEL BAFFLE FILTERS

THANK YOU FOR YOUR PURCHASE

Safety Instructions ..............................................................................3

Parts Diagram ................................................................................ 5-8

Parts Included / Required .................................................................9

Pre-Installation Requirements ........................................................10

Installation Instructions ...............................................................11-12

Important Safety Instructions .........................................................13

Operating Instructions: Push Button Controls .............................14

Operating Instructions: Soft Touch Controls ................................15

Recirculating Charcoal Filters .........................................................16

Maintenance ......................................................................................17

Troubleshooting ................................................................................18

Technical Information ......................................................................19

Warranty & Service .....................................................................21-22

TABLE OF CONTENTS

8 - 3/4"

PARTS DIAGRAM

PARTS DIAGRAM

UC30 / UMC30

8 - 3/4"

PARTS DIAGRAM

UC36 / UMC36

PARTS DIAGRAM

PARTS INCLUDED PRE-INSTALLATION REQUIREMENTS

INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS

OPERATING INSTRUCTIONS

COMPATIBLE MODELS: UC30 / UC36

OPERATING INSTRUCTIONS

COMPATIBLE MODELS: UMC30 / UMC36

RECIRCULATING CHARCOAL FILTERS

Step 3: Twist and lock the filter into place.

Step 4: Repeat Steps 2-3 on the left side of the motor.

Step 5: Reinstall the ARC-FLOW Baffle Filters back into place.

NOTE: Chimney vent holes must be open

and visible for the filtered air to

recirculate.

Chimney

vent holes

MOTOR

Step 1: Remove the ARC-FLOW Baffle Filters.

Step 2: Locate the motor (pictured below) and align one of the filters with the right side of the motor.

It is recommended that the charcoal filter be replaced every 4-6 months. Charcoal filter replacements

are available for purchase at: www.cosmoappliances.com Charcoal Filter Kit Part# CFK1-TM

SCAN QR CODE

FOR INSTALLATION

VIDEO

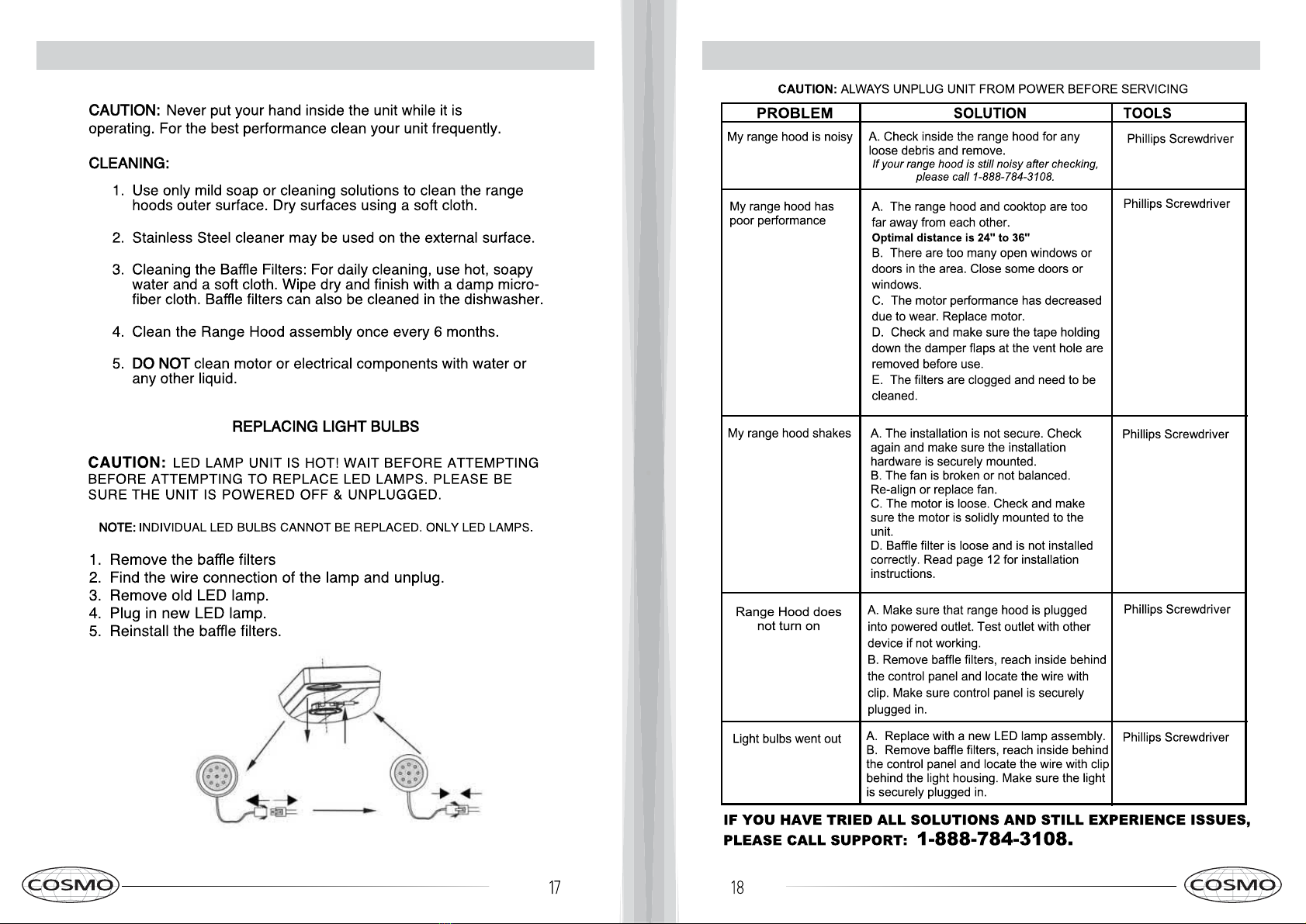

MAINTENANCE TROUBLESHOOTING
