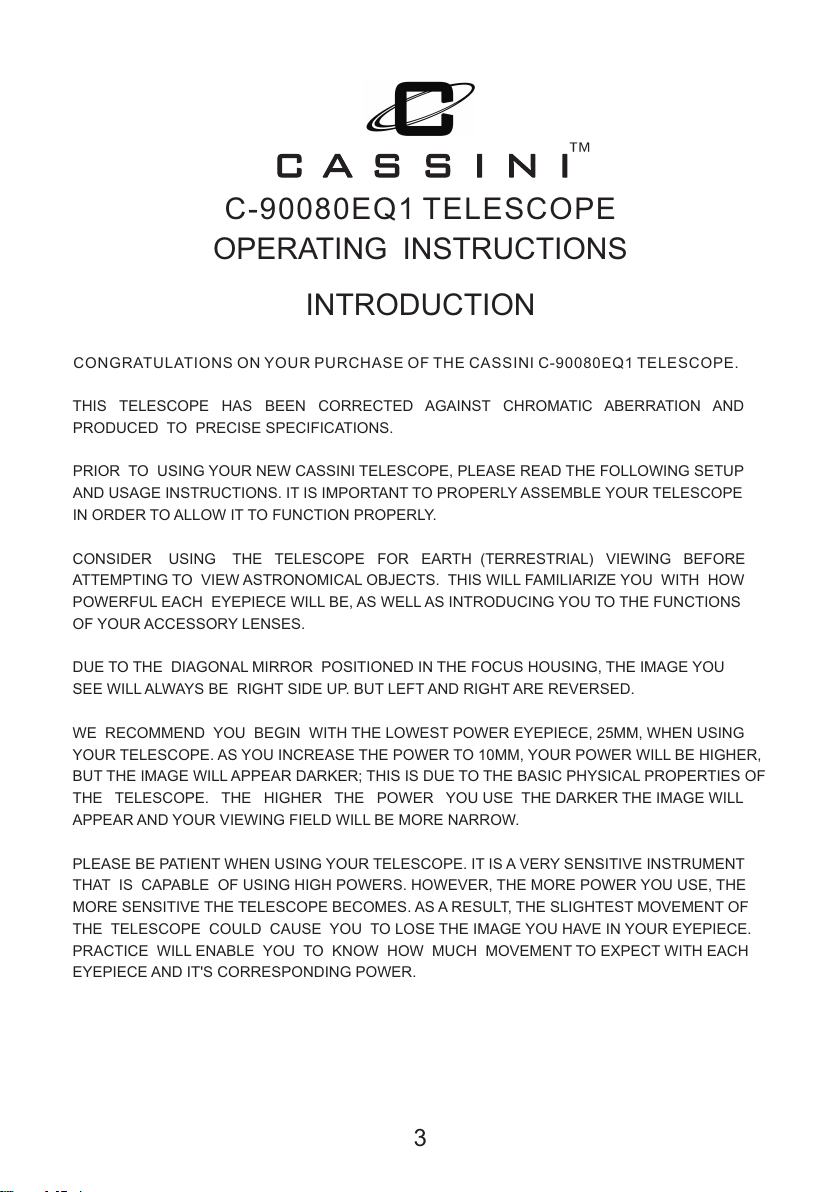

INTRODUCTION

OPERATING INSTRUCTIONS

™

C-90080EQ1 TELESCOPE

CONGRATULATIONS ON YOUR PURCHASE OF THE CASSINI C-90080EQ1 TELESCOPE.

C A S S I N I

PRODUCED TO PRECISE SPECIFICATIONS.

PRIOR TO USING YOUR NEW CASSINI TELESCOPE, PLEASE READ THE FOLLOWING SETUP

AND USAGE INSTRUCTIONS. IT IS IMPORTANT TO PROPERLY ASSEMBLE YOUR TELESCOPE

IN ORDER TO ALLOW IT TO FUNCTION PROPERLY.

CONSIDER USING THE TELESCOPE FOR EARTH (TERRESTRIAL) VIEWING BEFORE

ATTEMPTING TO VIEW ASTRONOMICAL OBJECTS. THIS WILL FAMILIARIZE YOU WITH HOW

POWERFUL EACH EYEPIECE WILL BE, AS WELL AS INTRODUCING YOU TO THE FUNCTIONS

OF YOUR ACCESSORY LENSES.

DUE TO THE DIAGONAL MIRROR POSITIONED IN THE FOCUS HOUSING, THE IMAGE YOU

SEE WILL ALWAYS BE RIGHT SIDE UP. BUT LEFT AND RIGHT ARE REVERSED.

WE RECOMMEND YOU BEGIN WITH THE LOWEST POWER EYEPIECE, 25MM, WHEN USING

YOUR TELESCOPE. AS YOU INCREASE THE POWER TO 10MM, YOUR POWER WILL BE HIGHER,

BUT THE IMAGE WILL APPEAR DARKER; THIS IS DUE TO THE BASIC PHYSICAL PROPERTIES OF

THE TELESCOPE. THE HIGHER THE POWER YOU USE THE DARKER THE IMAGE WILL

APPEAR AND YOUR VIEWING FIELD WILL BE MORE NARROW.

PLEASE BE PATIENT WHEN USING YOUR TELESCOPE. IT IS A VERY SENSITIVE INSTRUMENT

THAT IS CAPABLE OF USING HIGH POWERS. HOWEVER, THE MORE POWER YOU USE, THE

MORE SENSITIVE THE TELESCOPE BECOMES. AS A RESULT, THE SLIGHTEST MOVEMENT OF

THE TELESCOPE COULD CAUSE YOU TO LOSE THE IMAGE YOU HAVE IN YOUR EYEPIECE.

PRACTICE WILL ENABLE YOU TO KNOW HOW MUCH MOVEMENT TO EXPECT WITH EACH

EYEPIECE AND IT'S CORRESPONDING POWER.

THIS TELESCOPE HAS BEEN CORRECTED AGAINST CHROMATIC ABERRATION AND

All manuals and user guides at all-guides.com

ACCESSORIES

10MM = 90X (270X WITH 3X BARLOW)EYEPIECE

.3X BARLOW

USED TO INCREASE THE POWER OF ANY GIVEN

EXAMPLE - 25MM EYEPIECE BY 300%. EYEPIECE

NOTE: SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

EYEPIECES:

ELECTRONIC RED DOT FINDER:

USED TO LOCATE OBJECTS PRIOR

TO USING MAIN TELESCOPE.

PLEASE NOTE: YOU MUST ALIGN THE

FINDER WITH THE MAIN TUBE PRIOR

TO INITIAL ASTRONOMICAL OR TERRESTRIAL USE.

C A S S I N I

™

C-90080EQ1 TELESCOPE

SEPARATELY PROVIDES 36X POWER, WHEN USED

WITH THE 3X BARLOW, YOU NOW HAVE 108X POWER.

MOST POWERFUL - LEAST LIGHT

25MM = 36X (108X WITH 3X BARLOW)EYEPIECE

LEAST POWERFUL - MOST LIGHT

BATTERY

COVER

COUNTER WEIGHT

MICRO-ADJUSTMENT

CASSINI CD-ROMSTELLARIUM

FROM ANY LOCATION YOU CAN SEE THE

ANY TIME OF DAY, SKY AT IT APPEARS AT

OR EVEN IN THE FUTURE.

All manuals and user guides at all-guides.com

ASSEMBLY INSTRUCTIONS

CAUTION: NEVER POINT YOUR TELESCOPE

AT THE SUN. VIEWING THE SUN WITH

THIS TELESCOPE OR EVEN THE UNAIDED

EYE CAN RESULT IN BLINDNESS OR OTHER

SERIOUS EYE DAMAGE.

1 REMOVE ALL PARTS FROM BOX AND IDENTIFY THEM..

C A S S I N I

™

C-90080EQ1 TELESCOPE

TELESCOPE W/MOUNT ATTACHED

TRIPOD (PREASSEMBLED)

RED DOT FINDER

EYEPIECES (25MM & 10MM)

3X BARLOW LENS

COUNTER WEIGHT

TWO MICRO-ADJUSTMENTS

ACCESSORY TRAY

CD-ROM

2. ADJUST TRIPOD TO PROPER HEIGHT BY LOOSENING, ADJUSTING

AND TIGHTENING THE LOCKING KNOBS.

4. LOOSEN MOUNTING KNOB ON THE EQUATORIAL MOUNT (UNDERNEATH)

5. PLACE THE EQUATORIAL MOUNT ONTO THE TOP OF THE TRIPOD.

6. TIGHTEN LOCKING KNOB (UNDERNEATH THE TRIPOD TOP) SECURELY.

3. ATTACH ACCESSORY TRAY

7. ATTACH THE COUNTER WEIGHT TO THE EQUATORIAL MOUNT.

All manuals and user guides at all-guides.com

ASSEMBLY INSTRUCTIONS

CAUTION: NEVER POINT YOUR TELESCOPE

AT THE SUN. VIEWING THE SUN WITH

THIS TELESCOPE OR EVEN THE UNAIDED

EYE CAN RESULT IN BLINDNESS OR OTHER

SERIOUS EYE DAMAGE.

C A S S I N I

™

C-90080EQ1 TELESCOPE

8. ATTACH THE TELESCOPE TO THE EQUATORIAL MOUNT.

9. LOOSEN SCREWS ON ELECTRONIC RED DOT FINDER AND

SLIDE ONTO BRACKET. TIGHTEN ATTACHMENT SCREWS.

(PLEASE SEE FURTHER INSTRUCTIONS ON RED DOT FINDER).

10. ATTACH MICRO-ADJUSTMENT TO EQUATORIAL MOUNT.

11. ATTACH MICRO-ADJUSTMENT TO EQUATORIAL MOUNT.

All manuals and user guides at all-guides.com

3X BARLOW

EYEPIECES

PL10MM

C A S S I N I

™

C-90080EQ1 TELESCOPE

ELECTRONIC RED DOT FINDER

EYEPIECE

SUN SHADE

DIAGONAL MIRROR

MICRO-ADJUSTMETNT

EQUATORIAL MOUNT

COUNTER WEIGHT

COUNTER WEIGHT SHAFT

TRIPOD

ACCESSORY TRAY

ADJUSTABLE

RUBBER FEET

MOUNT LOCKING KNOB

TRIPOD LOCKING KNOB

FOCUSER

KF25MM

OPTICAL TUBE

All manuals and user guides at all-guides.com

HOW TO USE EYEPIECES & ACCESSORIES

C A S S I N I

™

C-90080EQ1 TELESCOPE

PROPER PLACEMENT OF THE EYEPIECES AND ACCESSORIES ARE IMPORTANT IN

ORDER TO ASSURE EASY OPERATIONS AND CLEAR VIEWING.

PLEASE CONSIDER USING YOUR ACCESSORIES IN THE FOLLOWING ORDER. BY DOING

THIS YOU WILL BETTER UNDERSTAND THE IMPACT EACH INDIVIDUAL ACCESSORY HAS

ON THE FUNCTION OF YOUR TELESCOPE.

EYEPIECE POWER POWER W/3X BARLOW

25MM 36X 108X

10MM 90X 270X

1) FOCUSING TUBE

TURN FOCUSING WHEELS TOWARD THE

TELESCOPE UNTIL IT WILL NOT GO FURTHER.

TO FOCUS BEGIN TO TURN THE FOCUSING

KNOBS TOWARD YOUR BODY, SLOWLY, UNTIL

THE IMAGE IS CLEAR. NOTE: YOU MUST HAVE

AN EYEPIECE AND DIAGONAL MIRROR

INSERTED IN ORDER TO VIEW IMAGE.

2) DIAGONAL MIRROR

INSERT THE DIAGONAL MIRROR INTO THE

FOCUSING HOUSING.

3) EYEPIECE INSERTION

AFTER THE DIAGONAL MIRROR IS INSERTED,

PLACE THE EYEPIECE (25MM) INTO THE

DIAGONAL MIRROR. THE LOWER THE NUMBER

ON THE EYEPIECE, THE HIGHER THE POWER

YOUR TELESCOPE WILL BE USING. PLUS,

YOU DECREASE THE FIELD OF VIEW AND

THE BRIGHTNESS OF YOUR IMAGE. WHEN

USING EYEPIECES, WE SUGGEST ALWAYS

STARTING WITH THE LOWEST POWER AND

THEN GOING UP.

4) BARLOW LENS

THE BARLOW LENS IS USED TO ACHIEVE

THE MAXIMUM POWER FROM YOUR

TELESCOPE. FIRST, REMOVE THE DIAGONAL

MIRROR FROM THE FOCUSING TUBE AND

INSERT THE BARLOW LENS DIRECTLY INTO

THE FOCUSING TUBE. YOU WILL HAVE TO

READJUST YOUR FOCUSING DUE TO THE FACT

THAT YOU HAVE INCREASED/DECREASED THE

POWER OF YOUR TELESCOPE DRAMATICALLY.

25MM IDEALLY SUITED FOR ALL TERRESTRIAL AND ASTRONOMICAL VIEWING.

10MM EYEPIECE IS RECOMMENDED FOR NIGHTS OF STEADY SEEING.

All manuals and user guides at all-guides.com

TO MOUNT :

1 REMOVE ELECTRONIC RED DOT FINDER FROM BOX) .

2 LOOSEN THUMB SCREWS ON SIDE OF FINDER AND SLIDE FINDER ONTO DOVETAIL)

MOUNT LOCATED AT TOP OF MAIN TELESCOPE TUBE.

3 TIGHTEN THUMB SCREWS) .

TO CHECK ALIGNMENT WITH MAIN TELESCOPE IMPORTANT :( !)

1 THE ELECTRONIC RED DOT FINDER IS NOT PRE SET AT FACTORY THE FOLLOWING) - .

WILL ALLOW YOU TO ADJUST THE ALIGNMENT.

2 DURING THE DAY LIGHT HOURS AIM THE MAIN TELESCOPE AT AN OBJECT AT LEAST 1 4) , /

MILE OR MORE IN THE DISTANCE AND BRING IT INTO FOCUS.(VERY IMPORTANT)

3 ONCE YOU HAVE CENTERED THE REFERENCE ITEM IN THE MAIN TUBE TIGHTEN ALL) ,

KNOBS AND ADJUSTMENTS TO PREVENT ANY MOVEMENT.

4 REMOVE CIRCULAR BATTERY SAVER LOCATED BENEATH FRONT OF FINDER (BE SURE.)

TO SAVE AND REPLACE THE BATTERY SAVER WHEN NOT IN USE.)

5 TURN FINDER ON BY SLIDING ON/OFF SWITCH FORWARD. ) ON/OFF SWITCH IS LOCATED

ON THE RIGHT SIDE OF THE FINDER.

6 LOOK THROUGH THE FINDER AND LOCATE THE RED DOT) .

7 IF THE OBJECT IN THE FINDER IS NOT THE OBJECT YOU SEE THROUGH THE) RED DOT

MAIN TELESCOPE TUBE, ADJUSTMENT IS REQUIRED.

8 TO MOVE THE RED DOT UP AND DOWN SIMPLY TURN THE ELEVATION SCREW LOCATED) ,

ON THE REAR BOTTOM OF THE FINDER TO HEIGHT REQUIRED.

9 TO MOVE THE RED DOT LEFT AND RIGHT SIMPLY TURN THE WINDAGE SCREW LOCATED) ,

ELECTRONIC FINDER RED DOT

MOUNTING ALIGNMENT

10 THESE ADJUSTMENTS WILL ALLOW YOU TO POSITION THE RED DOT ON THE SAME)

AT THE FRONT LEFT SIDE OF THE FINDER TO THE PROPER POSITION.

OBJECT CENTERED IN THE MAIN TELESCOPE.

C A S S I N I

™

All manuals and user guides at all-guides.com

EYEPIECE POWER POWER WITH 3X BARLOW

25MM 36X 108X

TAKE THE TIME TO BECOME FAMILIAR WITH YOUR NEW TELESCOPE. LEARN THE NAMES

OF THE VARIOUS PARTS, WHERE THEY ARE LOCATED AND THEIR FUNCTION. IT IS BEST TO

PERFORM THESE FUNCTIONS DURING THE DAY TIME.

WHEN SETTING UP FOR A VIEWING SESSION, PLACE THE TELESCOPE IN AN AREA

SHELTERED FROM THE WIND IF POSSIBLE. THE BEST NIGHT TIME VIEWING WILL BE AWAY

FROM CITY LIGHT AND WHEN THE ATMOSPHERE IS "STEADY".

WITH A LITTLE PRACTICE YOU WILL LEARN TO JUDGE WHEN VIEWING CONDITIONS ARE

GOOD. LOOK FOR THE NIGHTS WHEN THE STARS SHINE BRIGHTLY WITH LITTLE OR NO

TWINKLING.

USE LOW POWER TO TAKE ADVANTAGE OF THE WIDER FIELD OF VIEW AND BRIGHTER

IMAGE. RESERVE YOUR HIGHER POWERS FOR THOSE NIGHTS WHEN VIEWING

CONDITIONS ALLOW FOR DETAILED OBSERVATIONS.

POWER CHART

GETTING THE MOST FROM YOUR TELESCOPE

10MM 90X 270X

C A S S I N I

™

USING THE BARLOW LENS

AS STATED EARLIER IN THE INSTRUCTIONS, THE BARLOW LENS INCREASES THE POWER OF

THE EYEPIECES BY 3 TIMES.

TO USE SIMPLY INSERT THE BARLOW LENS INTO THE MAIN FOCUSING TUBE AND THEN PUT

THE DESIRED EYEPIECE INTO THE RECEIVING END OF THE BARLOW LENS.

PLEASE REMEMBER, THE HIGHER THE POWER YOU USE THE DARKER THE IMAGE WILL

APPEAR.

All manuals and user guides at all-guides.com
