Copernicus IFP301-ACC User manual

IFP301-ACC - Version A - Released September 7th, 2016 - Copernicus Educational Products Inc.

This product is meant to be assembled by an adult.

In its unassembled state, small parts present a hazard.

To be used under direct supervision of an adult.

WARNING

IFP Tub Frame

IFP301-ACC

Please Recycle

For assistance, please contact us:

1-800-267-8494

Email [email protected]

Have your packing slip ready for reference

Assembly Guide

IFP301-ACC_2016_A

Check out our other products online at

www.copernicused.com

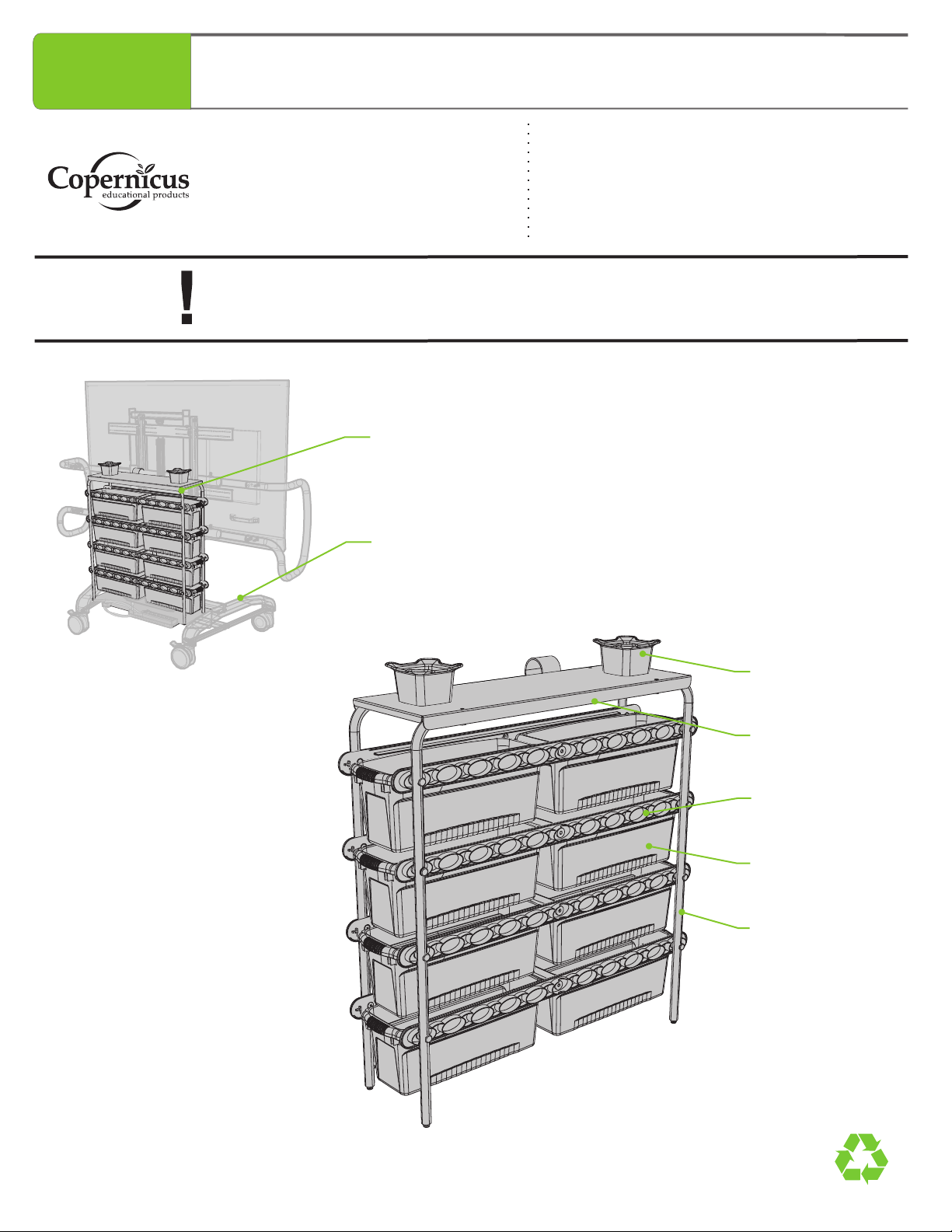

Tiny Tub (2)

Top Shelf (1)

Tub Channel (8)

Small Open Tub (8)

Frame (2)

IFP300

(sold separately)

IFP301-ACC

Installed on IFP300

IFP301-ACC - Version A - Released September 7th, 2016 - Copernicus Educational Products Inc.

To validate your warranty, submit the ON-LINE form at www.copernicused.com

Enter a draw to win a Copernicus Product for your classroom at the same time!

Validate Your Warranty

Frame

Jim Phillips

Chief Cook and Bottle Washer

For assistance, please contact us:

1-800-267-8494

Email [email protected]

Have your packing slip ready for reference

Dear Educator,

Thank you for purchasing one of our products. I hope that the is useful in your classroom.

If you have any questions, concerns, or ideas please contact us by telephone at 1-800-267-8494 or email at

[email protected].

Enjoy using your new product and happy teaching.

IFP Tub Frame

We do not inherit the

earth from our ancestors,

we borrow it from our

children.

NORTH AMERICAN

PROVERB

Change is the end result

of all true learning.

LEO BUSCAGLIA

What you leave behind is

not what is engraved in

stone monuments, but

what is woven into the

lives of others.

PERICLES

Education is the most

powerful weapon which

you can use to change the

world.

NELSON MANDELA

IFP Tub Frame

Frame

Warranty

Year

Component

Warranty

Year

Life

Tub

Warranty

Time

Assembly Guide

IFP301-ACC_2016_A

Check out our other products online at

www.copernicused.com

IFP301-ACC

IFP301-ACC - Version A - Released September 7th, 2016 - Copernicus Educational Products Inc.

Warning! Hazard Risks!

This product is to be used under the supervision of an adult.

Indoor Use

Only

This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not expose

this product to rain or moisture. The internal components are not sealed from the environment.

Read your power strip electrical specifications. Only plug in devices that are approved for use with this

power strip. Connect the supplied power strip directly to a wall outlet. Do not connect to another

power strip or use an extension cord. Unplug when not in use. Do not leave this product plugged in

for more than 72 consecutive hours. Turn off power strip before unplugging.

Power Strip

Specifications

Do not install or use the electrical components of this unit during a lightning storm.

Electrical Shock

In its unassembled state, this product contains parts that can be hazardous to small children. This

product should be assembled by an adult.

Small

Parts

Ensure that any cables extending across the floor to your product are properly bundled and marked to

avoid tripping or falling which may lead to personal injury.

Cable Trip

Hazard

Climb Hazard

Do not climb on, hang from or suspend objects from any components of your product unless otherwise

specified.

Read the electrical specifications of any electronic equipment you are using with your Copernicus

products. Failure to read these specifications and follow their instructions could result in damage to

your equipment or personal injury.

Electronic

Equipment

Adult

Supervision

Please read the warnings below for important safety information regarding your product. Failure to

read these warnings or to follow the instructions below could result in personal injury or damage to

your product that could void your warranty.

IFP301-ACC - Version A - Released September 7th, 2016 - Copernicus Educational Products Inc.

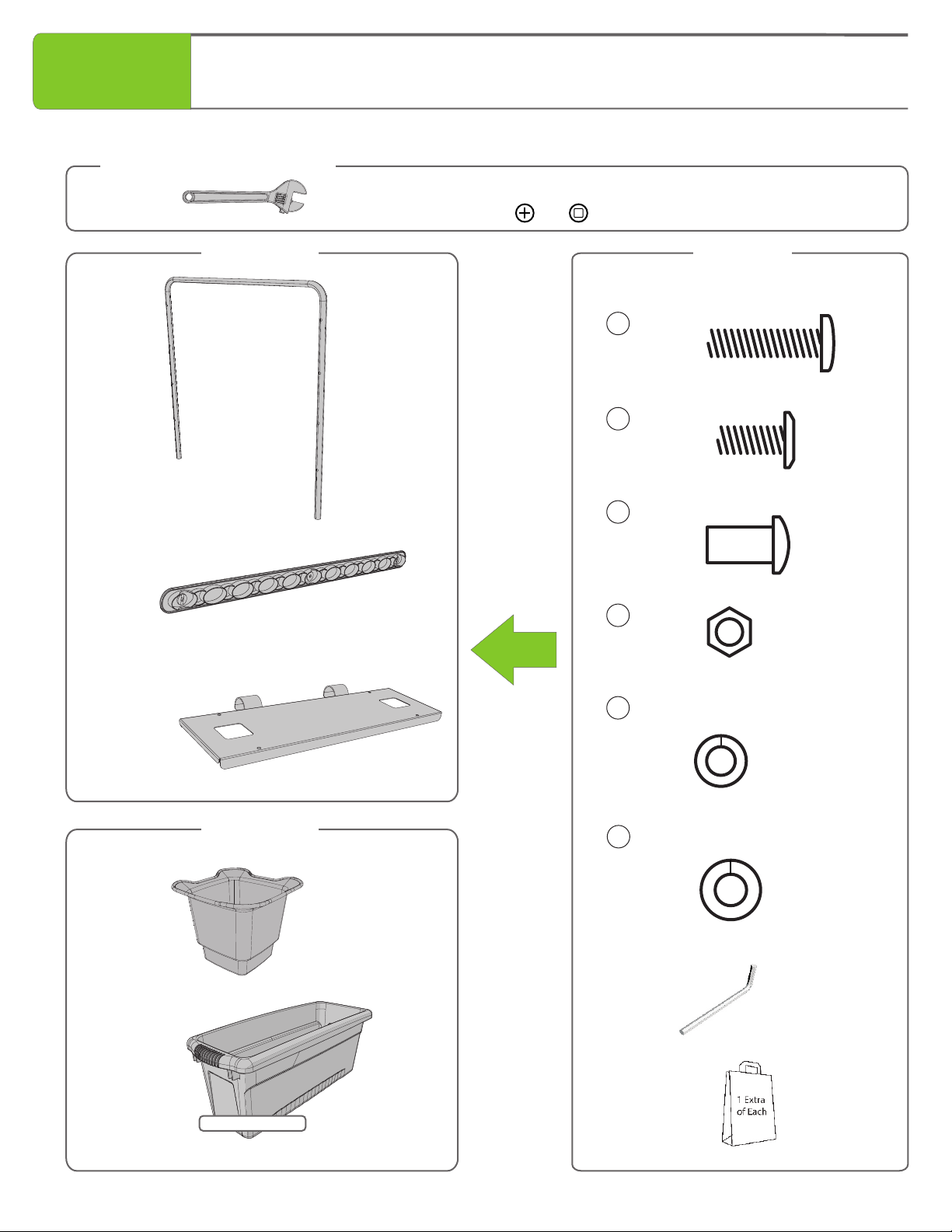

Hardware

Actual Size

Before beginning, you should have:

Additional tools required:

In Box 1

Adjustable wrench x2 OR

11mm

(7/16”)

Screwdriver

+OR

Top Shelf

(32043)

Tub Channel

(23208)

Tiny Tub

(CC4072)

Frame

(33124)

IFP Tub Frame

Small Open Tub

(CC4070)

5 lbs Weight Limit

Bag of extra

hardware

1/4” Spring

Lock Washer

(43010)

A1/4” x 1” Screw

(43004)

M6 x 15mm Screw

(43219)

x16

M6 Barrel Nut

(43272)

x16

Allen Key

Not to Scale

(43281)

M8 Spring

Lock Washer

(43274)

x16

1/4” Nut

43011( )

IFP301-ACC

IFP301-CB

IFP301-ACC - Version A - Released September 7th, 2016 - Copernicus Educational Products Inc.

This symbol denotes a 2 Person Task. For safety, please ensure that there are the

suggested number of people working on steps displaying this symbol.

Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close

attention. The symbol denotes a step needing extra attention to ensure it is done

correctly.

The star symbol highlights an advisory note.

Watch for These Helpful Symbols

Before You Begin

As You Assemble the Unit

Lay out and identify all of the included parts.

Read the assembly guide over once to familiarize yourself with them.

Please note that in its unassembled state, this product contains parts that can be

hazardous to small children. This product should be assembled by an adult.

Follow the steps in sequence.

Before beginning each step, find the part(s) that you need for that step.

Pay attention to the labels on the parts; they are there to help direct you at certain stages.

The title of each step states what you will be doing. Review the text and the pictures as you build

the unit.

2-Person Task

Tips for Assembly

Customer Service - FAQ’s

For parts and other issues regarding this product:missing

Please call Copernicus Customer Service,

1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.

Email our Tech Support Service at [email protected]

My projector isn’t working, who should I call?

Please call the reseller that you bought the product from first

(reseller information can be found on your packing slip).

My interactive board isn’t working, who should I call?

Please call the reseller that you bought the product from first

(reseller information can be found on your packing slip).

where we will be happy to help. Need Tech Support?

Have a Question?

Email our Tech Support Service

www.copernicused.com

Check out some of our

other great products!

IFP301-ACC - Version A - Released September 7th, 2016 - Copernicus Educational Products Inc.

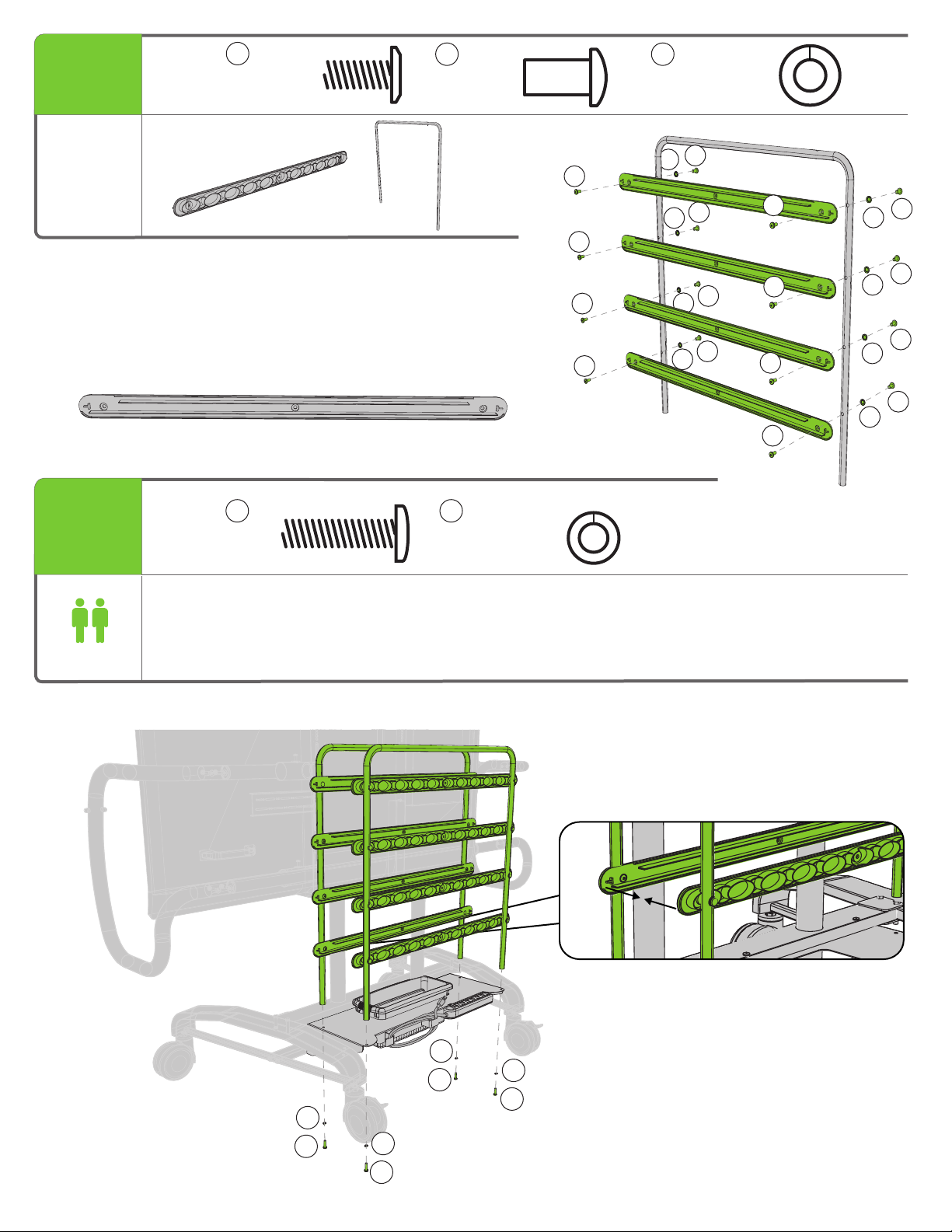

Fasten Frame Assemblies from Step 1 onto Bottom Shelf

M8 Spring

Lock Washer

x16

You will need: (Not to Scale)

Actual Size:

Install Tub Channels on Frame

You will need: (Not to Scale)

Complete this Step Twice to Create Two Frame Assemblies

CM6 Barrel Nut

x16

M6 x 15mm Screw

x16

Frame

Tub Channel

1/4” x 1” Screw

A1/4” Spring

Lock Washer

TOP

BOTTOM

Note:

Ensure Tub Channels are installed in the

correct orientation on the Frame.

2-Person Task

Ensure Tub Channels Face Inward.

IFP301-ACC - Version A - Released September 7th, 2016 - Copernicus Educational Products Inc.

Actual Size:

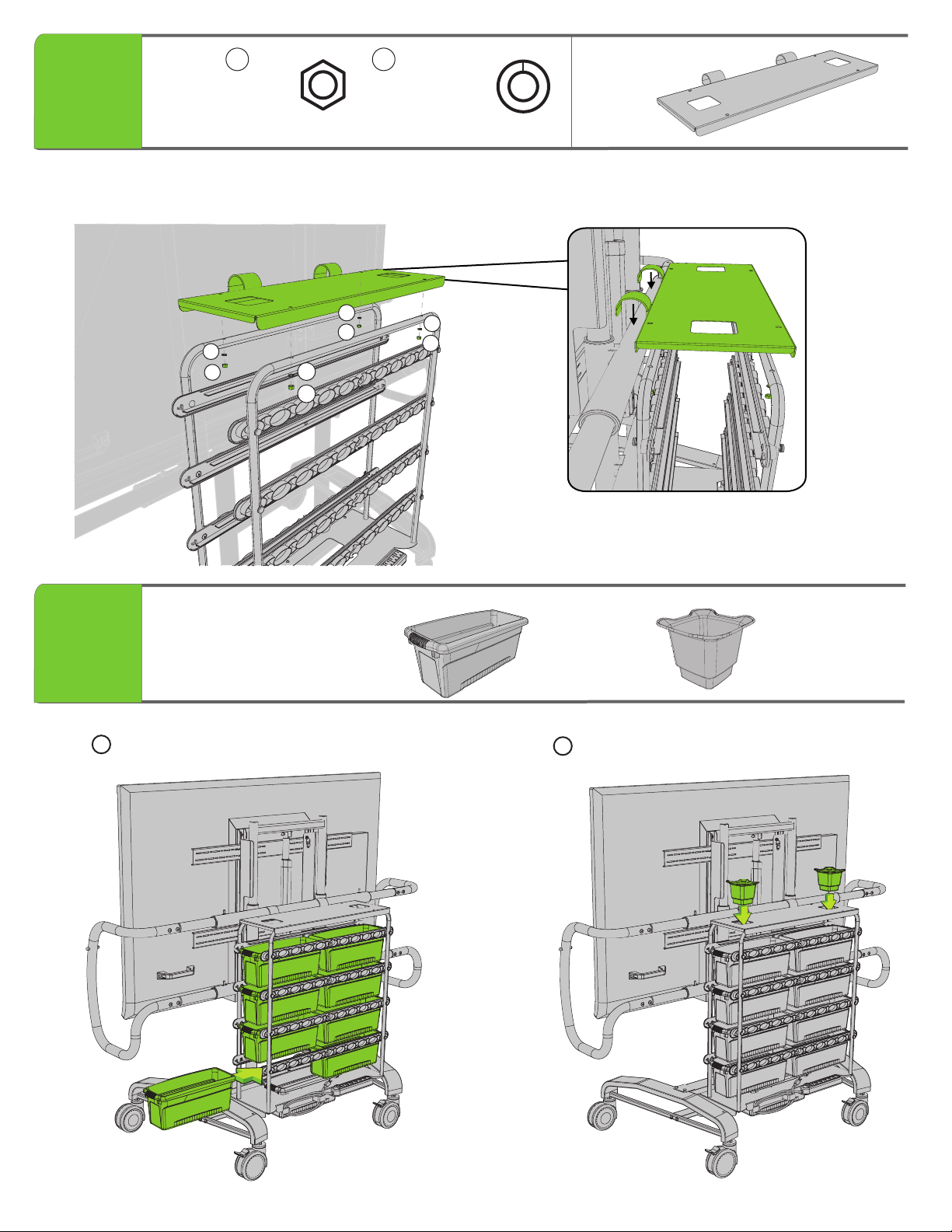

Fasten Top Shelf to Top of Frames

You will need: (Not to Scale)

Ensure the Hooks on the Top Shelf are Pointing Toward Unit.

Top Shelf

D1/4” Spring

Lock Washer

1/4” Nut

4You will need: (Not to Scale)

Insert Small Open Tubs and Tiny Tubs Into Tub Frame.

Small Open Tub

Tiny Tub

Insert Small Tubs in Tub Channels. Insert Tiny Tubs into Holes on Top Shelf.

Note:

Ensure no cords are in the way

before installing shelf onto unit.
