COP Security INSPIRE User manual

CMS MANUAL

INSPIRE

DVR RANGE

CMS Manual

For Inspire Blue and Inspire Red DVR Models

•Introduction

•System Requirements

•Inspire CMS Installation

•CMS Log In Screen

•Inspire CMS Overview

•Device Manager

•Camera Manager

•User Manager

•Local Record Setting

•Streaming Video

•DVR Settings

•Remote Record

•Copy Over Network

•Playback Over Network

•Talkback

•PTZ Control

Contents

CMS Manual

For Inspire Blue and Inspire Red DVR Models

Product Overview

The CMS is designed to allow multiple Inspire DVRs to be viewed on a single computer.

The CMS can access up to 32 Inspire DVRs from a single computer via a network.

This system has functions including live view, remote recording, remote playback, etc.

Friendly user interface is another important feature in this design.

Features

Live View View live video from a DVR(s)

Playback Playback video from a remote DVR or the

local PC

Recording User can record to the local PC

Setup User can setup devices and view

PTZ The CMS can control PTZ cameras across

the network

DVR Setup Change the settings for a DVR across the

network

Software Environment

Operating System Windows XP with SP2, Windows 2000,

Windows Vista, Windows 7View live video

from a DVR(s)

Software Internet Explorer 6.0 or higher

Hardware Requirement

CPU Minimum: Pentium 4/Celeron 2.4GHz or

above

Recommended: Dual Core 3.0GHz

Memory Minimum: 512MB Recommended: 1GB

VGA Card AGP 2x with 128MB

Ethernet 100Mbit

Free Hard Drive Space 10GB

System Requirements

Introduction

CMS Manual

For Inspire Blue and Inspire Red DVR Models

The Inspire CMS is a completely free software provided for all Inspire Blue and Inspire

Red customers, the setup file can be obtained from the CD provided with the DVR or

via www.cop-eu.com

Run the file named Inspire CMS Setup

You will be prompted with a Welcome screen, click Next to continue.

The next page asks which directory you would like to install the CMS to, usually the

default path is sufficient. Click Next to continue and follow instructions on screen.

Inspire CMS Installation

CMS Manual

For Inspire Blue and Inspire Red DVR Models

Once installed press Finish to complete the installation.

Now that the installation is complete an Inspire CMS shortcut will have been created on

the computer desktop, double click this icon to open the Inspire CMS program.

NOTE: It is recommended that the PC is rebooted before running the CMS for the first

time.

CMS Manual

For Inspire Blue and Inspire Red DVR Models

To be able to use and manage the Inspire CMS software the user must first log on to the

software by entering a valid username and password. This is to prevent unwanted

individuals being able to view and control the various cameras and features.

To log in after the initial installation enter the following:

Username: admin

Password: admin

The default admin password can be changed in the CMS settings once the user has

logged in, additional users can also be created with various privileges.

More information on creating user accounts can be found on page 10.

CMS Log in screen

CMS Manual

For Inspire Blue and Inspire Red DVR Models

Once logged into the CMS software you will be presented with the following screen.

A. View and Camera selection

B. Screen view selection

C. Connect/Disconnect

D. CMS Menu

E. Local record

F. DVR settings

G. Playback

H. Copy

I. Talkback

J. PTZ control

K. Remote alarm relays

Inspire CMS Overview

CMS Manual

For Inspire Blue and Inspire Red DVR Models

To be able to view and control DVRs remotely, the DVR connection settings must be first

set in the CMS.

Click on the CMS menu button to bring up the screen below.

To add a new device to the connection list click the Add new device button, then input

the various connection settings for your device.

Group This is the group the DVR will belong to, multiple groups can

be created.

Name This is the reference name of the DVR, this can be anything

youlike.

Address This is the IP or Domain address used to connect to the DVR.

Video port This is the Command Port of the DVR, default is 5050.

Username This is your username for connecting to the DVR, default is

Admin (case sensitive)

Password This is your password for connecting to the DVR, default is

888888.

Camera This is the number of camera channels available on the DVR

Click Confirm when completed and the device list will display the DVR you have added.

Device Manager

CMS Manual

For Inspire Blue and Inspire Red DVR Models

Once all the DVR settings have been added to the device manager you must

programme which cameras you want to stream, here you can mix and match cameras

from separate DVRs in separate locations.

Setup A View

Click the

View

button to select the view to add cameras to. (click add new view

button to create a new view)

Camera Manager

This manual suits for next models

Table of contents

Other COP Security DVR manuals

COP Security

COP Security inspire black 960h User manual

COP Security

COP Security 15-WP16-USB User manual

COP Security

COP Security 15-VT04-CDRW User manual

COP Security

COP Security INSPIRE WHITE series User manual

COP Security

COP Security 15-DVR16SAE-LAN User manual

COP Security

COP Security 325HR User manual

COP Security

COP Security 15-DVR4RT-120-CDRW Quick start guide

COP Security

COP Security DVR04SHD User manual

COP Security

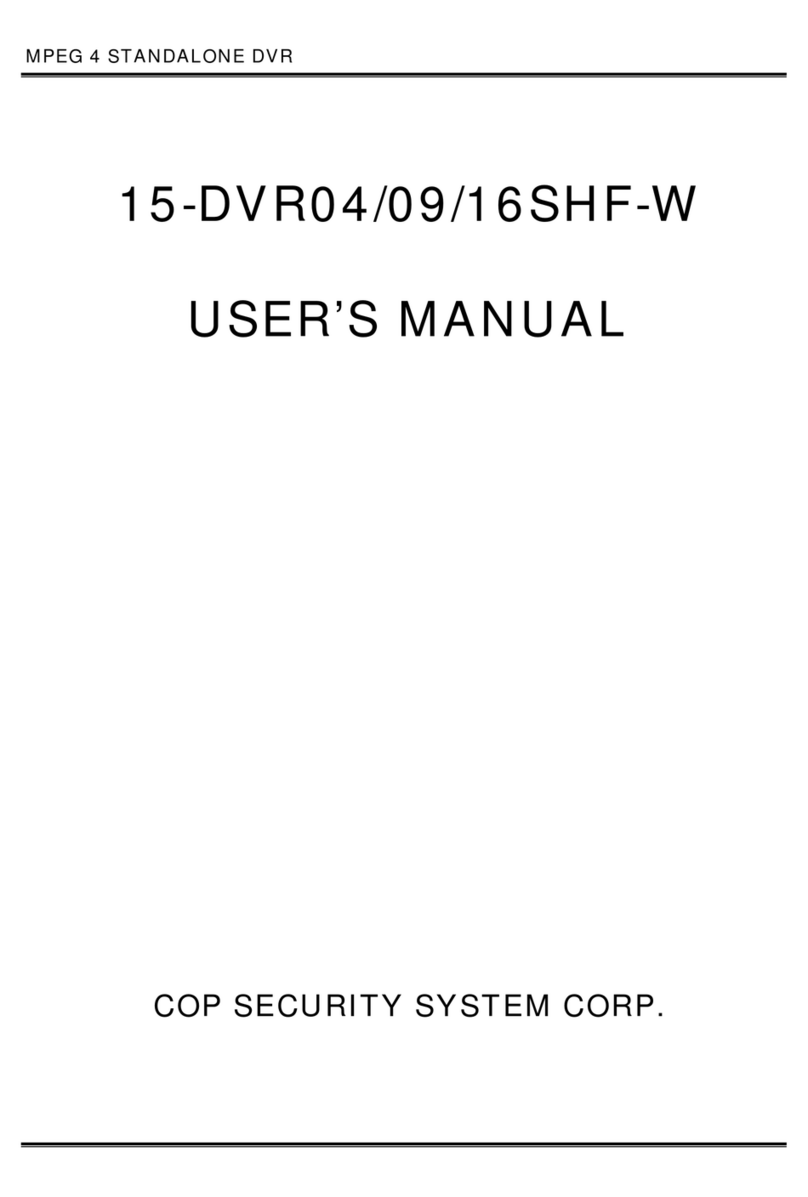

COP Security 15-DVR04 User manual
