Cooper Lighting PROfile AR60T User manual

RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311

Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031

BWTB14 REV 051604

Constructed of extruded aluminum channel with a continuous

insulator. Continuous access slot allows ﬁ xtures to be

attached at any location, as close together or as far apart as

desired. Installs into t-bar type ceiling. Busway opening has

a 1” trim / ﬂ ange.

• UNIVERSAL T-BAR CLIP ACCOMMODATES HARDWARE

BY GRID CEILING MANUFACTURERS

• FLANGE DOUBLES AS CEILING SUPPORT

• COMPATIBLE WITH ALL PROFILE SERIES FIXTURES

Busway is offered in three voltage types and in one or two

circuits. Voltage can be mixed in two circuit conﬁ gurations,

for example: Two circuit channel with 12 Volts on one circuit

and 277 Volts on the second circuit. Each circuit is rated for

300 Volts maximum. The housing serves as a 100% capacity

ground.

A full selection of powerfeeds and connectors are available.

• Manufactured with 6000 series aluminum

• For use with t-bar type ceilings

• 1” surface ﬂ ange doubles as ceiling panel support

• 300V Rating

• Continuous Access Slot

• Internally Polarized

• Solid Copper Conductors

• Up to 10’ Support Intervals

• Durable Powder Coat Finish

60 Amp Busway - Recessed T-Bar Mounted

One or Two Circuit - 12V / 120V / 277V

AR60T

Catalog #

Type

Project

uu uu uu uu

l l l

nnn

❑ 12 Volts 1 Circuit ❑ 120 Volts • 1 Circuit ❑ 277 Volts • 1 Circuit

❑ 12 / 12 Volts • 2 Circuit ❑ 12 / 120 Volts • 2 Circuit ❑ 12 / 277 Volts • 2 Circuit

❑ 120 / 120 Volts • 2 Circuit ❑ 120 / 277 Volts • 2 Circuit ❑ 277 / 277 Volts • 2 Circuit

u12 Volts l120 Volts n277 Volts

Item Busway Length Circuits / Voltage Finish

❑ AR60T 60 Amp Busway Section

for T-Bar Mounting

❑ Specify Length

_______________

(from 1 to 20 feet in 6”

increments)

❑ 1-12 1 Circuit / 12 Volts ❑ WH White

❑ 1-120 1 Circuit / 120 Volts ❑ BK Black

❑ 1-277 1 Circuit / 277 Volts ❑ IS Industrial Silver

❑ 2-12-12 2 Circuit / 12 Volts + 12 Volts ❑ PT Custom Finish

❑ 2-12-120 2 Circuit / 12 Volts + 120 Volts

❑ 2-12-277 2 Circuit / 12 Volts + 277 Volts

❑ 2-120-120 2 Circuit / 120 Volts + 120 Volts

❑ 2-120-277 2 Circuit / 120 Volts + 277 Volts

❑ 2-277-277 2 Circuit / 277 Volts+ 277 Volts

Ordering Example: AR60T - 20 - 2-12-277 - IS

Description: 60 Amp Busway Section for T-Bar Mounting - 20 foot length - 2 Circuit (12 Volts + 277 Volts) - Industrial Silver Finish

AR60T

U.S. Patent Number: 6,517,363



















 

 

















RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311

Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031

BWTB15 REV 051604

CONNECTORS FOR T-BAR CEILING MOUNTED BUSWAY

Item Circuits Finish

❑ AR60LIT ‘L’ Connector - T-Bar Mount

Internal Circuit Indicator

❑ AR60LET ‘L’ Connector - T-Bar Mount

External Circuit Indicator

❑ 1 1 Circuit

❑ 2 2 Circuit

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish



 













❑ AR60TIRT ‘T’ Connector - T-Bar Mount

Internal Circuit Indicator Right

❑ AR60TILT ‘T’ Connector - T-Bar Mount

Internal Circuit Indicator Left

❑ AR60TERT ‘T’ Connector - T-Bar Mount

External Circuit Indicator Right

❑ AR60TELT ‘T’ Connector - T-Bar Mount

External Circuit Indicator Left

❑ 1 1 Circuit

❑ 2 2 Circuit

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish



 







❑ AR60XT ‘X’ Connector - T-Bar Mount ❑ 1 1 Circuit

❑ 2 2 Circuit

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish



❑ AR60BC Bus Connector

(Connects two live busway ends)

❑ 1 1 Circuit

❑ 2 2 Circuit

❑ WH White

❑ BK Black

❑ IS Industrial Silver

RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311

Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031

BWTB16 REV 051604

POWERFEEDS FOR T-BAR CEILING MOUNTED BUSWAY

Item Circuits Finish

❑ AR60PFT End Feed (Top)

for T-Bar Mounting

❑ 1 1 Circuit

❑ 2 2 Circuit

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish

❑ AR60CFT Center Feed (Top)

for T-Bar Mounting

❑ 1 1 Circuit

❑ 2 2 Circuit

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish

❑ AR60EFT End Feed (End)

for T-Bar Mounting

❑ 1 1 Circuit

❑ 2 2 Circuit

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish







❑ AR60LFIT ‘L’ Feed - T-Bar Mount

Internal Circuit Indicator

❑ AR60LFET ‘L’ Feed - T-Bar Mount

External Circuit Indicator

❑ 1 1 Circuit

❑ 2 2 Circuit

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish

















 

 

RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311

Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031

BWTB17 REV 051604

MOUNTING HARDWARE FOR T-BAR CEILING MOUNTED BUSWAY

Item Finish

❑ AR60CB Cable Suspension Kit

Includes adjustable Cable Lock and 36” of suspension cable.

Custom cable lengths available.

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish

❑ AR60TH Threaded Coupler

For accepting 1/4 - 20 threaded rod or eyebolts. Eyebolts and

threaded rod by others.

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish

❑ AR60SM Stem Suspension Coupler

For accepting 1/8” NPT pipe stem. Ceiling connection by others.

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish

❑ AR60TBC T-Bar Attachment Clip

Universal clip secures most types of T-Bar ceiling hardware to

busway lengths. Two clips per foot are supplied with busway

lengths.

RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311

Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031

BWTB18 REV 051604

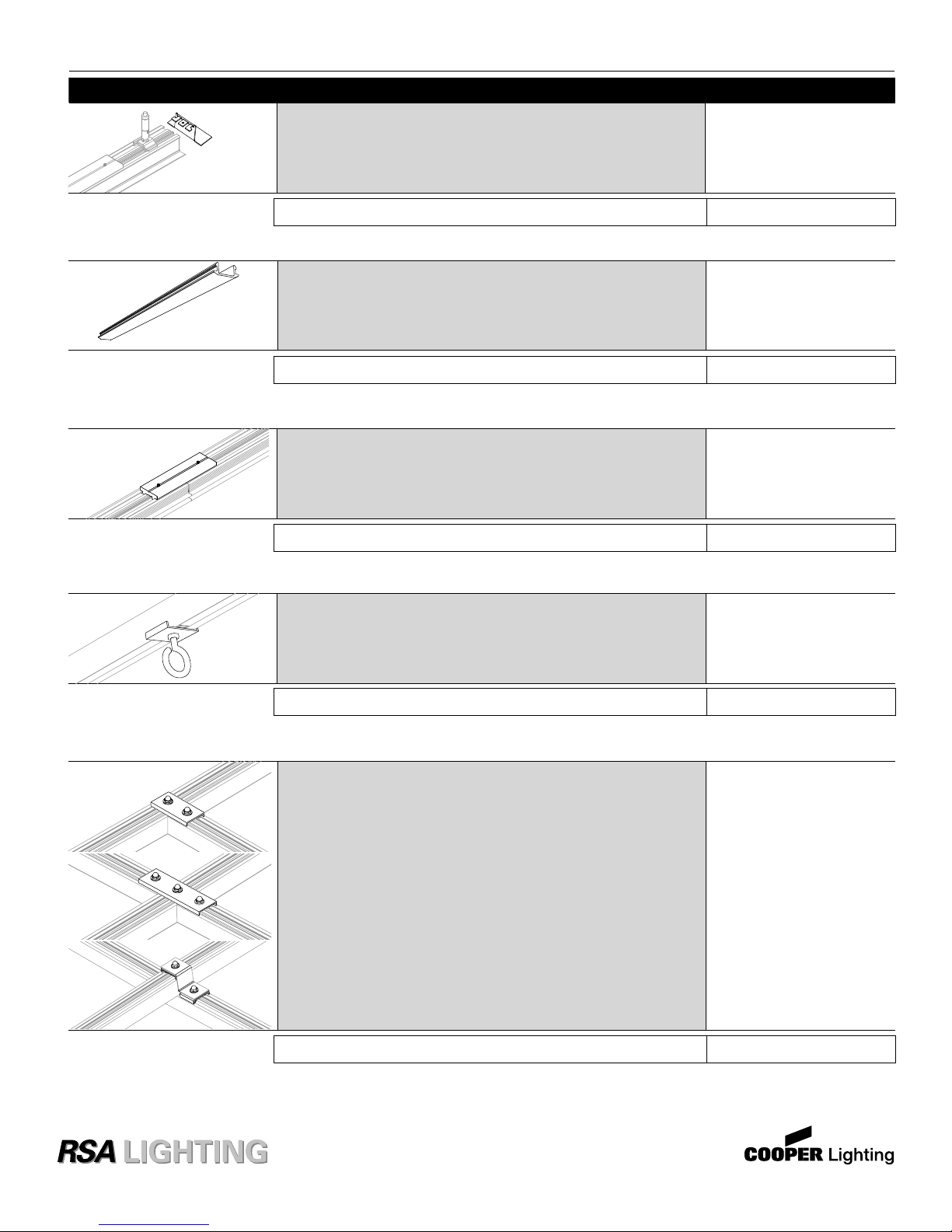

ACCESSORIES FOR T-BAR CEILING MOUNTED BUSWAY

Item Finish

❑ AR60ECT End Cap w/ Set Screw ❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish

❑ AR60CS Closure Strip - 96” Length - Field Cuttable

(Covers open/unused busway slot)

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ AR60HC Housing Coupler

(Provides joint support above busway)

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish

❑ AR60HB Hanger Bolt Attachment

Non-electrical device for suspension of

accessories from the Busway.

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish

❑ AR60GBT Grid Bracket “T” Connect (non-powered)

Provides an inexpensive method for securing two

busway sections together to form a “T” or “L”

conﬁgured intersection.

❑ AR60GBX Grid Bracket “X” Connect (non-powered)

Provides an inexpensive method for securing

three busway sections together to form an “X”

conﬁgured intersection.

❑ AR60GU Grid Bracket “Over/Under” Connect (non-powered)

Provides an inexpensive method for securing two

busway sections together on different planes to

form a “T” or “X” conﬁgured intersection.

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish

RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311

Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031

BWTB19 REV 051604

Item Voltage Finish

❑ AR60RC 3 Prong Receptacle Box (120V only)

❑ AR60RCTL Twist-Lock Receptacle Box

15 Amp fused receptacle in J-Box with Busway

adapter.

❑ 120

❑ 277

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish

❑ AR60FA Fixture/Pendant Adapter

Busway adapter to accommodate ﬁx-

tures by others. Fused 15 Amp Max.

❑ 12

❑ 120

❑ 277

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ AR60JB J-Box Powertap

Busway adapter with attached j-box

to provide power for non-lighting

equipment. Fused 15 Amp Max.

❑ 12

❑ 120

❑ 277

❑ WH White

❑ BK Black

❑ IS Industrial Silver

❑ PT Custom Finish

ACCESSORIES FOR T-BAR CEILING MOUNTED BUSWAY
