Contec DS-080D Series User manual

Digital Signage Player

AMD T56N 1.65GHz, SSD, POSReady7, DVI-I

DS-080D Series

User’s Manual

CONTEC CO.,LTD.

DS-080D Series User’s Manual i

Check Your Package

Thank you for purchasing the CONTEC product.

The product consists of the items listed below.

Check, with the following list, that your package is complete. If you discover damaged or missing items,

contact your retailer.

Product Configuration List

DS-080D-DC6413

Name Pcs.

The main body 1

AC adapter 1

AC cable *1 1

Product guide 1

Warranty Certificate 1

POSReady7 End User License Agreement 1

Setup Manual 1

Serial number label 1

GHOST End User License Agreement 1

Preinstalled OS Recovery Procedures 1

Recovery Media 1

*1 Do not use this AC power cable with any devices except for an attached AC adaptor.

Product Configuration Image

* See the Product Configuration List to check if all the components are included for the specified number of units.

ii DS-080D Series User’s Manual

No part of this document may be copied or reproduced in any form by any means without prior written

consent of CONTEC CO., LTD.

CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this

document.

The information in this document is subject to change without notice.

All relevant issues have been considered in the preparation of this document. Should you notice an

omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD.

Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may

appear in this document or for results obtained by the user as a result of using this product.

Trademarks

AMD and ATI are registered trademarks of AMD Corporation.

MS, Microsoft and Windows are trademarks of Microsoft Corporation.

AMI are registered trademarks of AMI Software International, Inc.

Other brand and product names are trademarks of their respective holder.

DS-080D Series User’s Manual iii

Table of Contents

Check your package.................................................................................................................................i

Copyright.................................................................................................................................................ii

Trademarks..............................................................................................................................................ii

Table of Contents ...................................................................................................................................iii

1. INTRODUCTION 1

About the Product ...................................................................................................................................1

Features.............................................................................................................................................1

Supported OS ...................................................................................................................................1

Customer Support....................................................................................................................................2

Web Site ...........................................................................................................................................2

Limited One-Year Warranty...................................................................................................................2

How to Obtain Service............................................................................................................................2

Liability ...................................................................................................................................................2

Safety Precautions...................................................................................................................................3

Safety Information ...........................................................................................................................3

Caution on the DS-080D Series ......................................................................................................3

2. SYSTEM REFERENCE 5

Specification............................................................................................................................................5

Physical Dimensions...............................................................................................................................6

3. HARDWARE SETUP 7

Before Using the Product for the First Time..........................................................................................7

Hardware Setup.......................................................................................................................................8

Installation Requirements................................................................................................................8

4. EACH COMPONENT FUNCTION 9

Component Name....................................................................................................................................9

Front View........................................................................................................................................9

Component Function.............................................................................................................................10

DC Power Input Connector: DC-IN..............................................................................................10

Display Interface: DVI-I................................................................................................................10

Giga bit-Ethernet: LAN A – B ......................................................................................................11

Serial Port Interface : SERIAL A..................................................................................................11

USB Ports.......................................................................................................................................12

Line out Interface: AUDIO............................................................................................................12

iv DS-080D Series User’s Manual

5. BIOS SETUP 13

Introduction............................................................................................................................................13

Starting Setup.........................................................................................................................................13

Using Setup............................................................................................................................................13

Getting Help....................................................................................................................................13

In Case of Problems........................................................................................................................14

A Final Note About Setup..............................................................................................................14

Main .......................................................................................................................................................15

Advanced ...............................................................................................................................................16

ACPI Settings ........................................................................................................................................17

CPU Configuration.........................................................................................................................18

IDE Configuration..........................................................................................................................19

USB Configuration.........................................................................................................................20

Super IO Configuration.........................................................................................................................21

H/W Monitor..........................................................................................................................................22

Chipset ...................................................................................................................................................23

North Bridge ..........................................................................................................................................24

GFX Configuration................................................................................................................................26

Memory Configuration..........................................................................................................................27

South Bridge ..........................................................................................................................................28

SB SATA Configuration .......................................................................................................................29

SB USB Configuration..........................................................................................................................30

SB GPP Port Configuration...................................................................................................................31

SB HD Azalia Configuration ................................................................................................................32

Boot........................................................................................................................................................33

Security ..................................................................................................................................................34

Save & Exit Settings..............................................................................................................................35

6. APPENDIX 37

Battery....................................................................................................................................................37

1. Introduction

DS-080D Series User’s Manual 1

1. Introduction

About the Product

This is STB for signage, working with AMD G-Series Dual-Core APU (Accelerated Processing Unit)

T56N 1.65GHz.

CPU with enhanced graphics performance helps Full-HD movie to be played smoothly with DVI-I

interface.

SSD can be installed as storage. The body is so compact and supports SATA interface which can

transport data at high speed. It enables you to read high-quality movie, store so big data and transport data

at high bit rate.

DS Series are the products assumed to be used at ordinary environment and market as

"Digital Signage".Operating environment condition, supply period, maintenance period

and other conditions are different from ones of our industrial products (IPC Series,

BOX-PC, PT-Series and others).For details, please consult our retailer.

Features

Integrated processor with CPU and GPU

This product is equipped with AMD G-series Dual-core APU T56N (1.65GHz) that is built-in GPU.

- Discrete GPU-quality graphic processing

This product has APU that is equipped with GPU (Radeon HD6320) that features discrete

GPU-quality.

It supports DirectX 11 and OpenGL 4, and has built-in UVD3 (Unified Video Decoder)

- Fanless and compact design

This fanless design is achieved with energy-saving and compact design.

- Major types of peripherals are supported with rich interfaces

It has a variety of extended interface such as DVI-I, 1000BASE-T x1, USB2.0 x 2, serial (RS-232C).

So it can be used for various purposes.

- Pre-installed Windows Embedded POSReady 7

The OS, Windows Embedded POSReady 7 which is perfect for digital signage use, is pre-installed.

There are many functions on this product. Such as write filters (EWF: Enhanced Write Filter and

FBWF: File-Based Write Filter) and Microsoft Office Viewer that is a file browser for Word, Excel

and PowerPoint.

- Kinect for Windows Runtime (Pre-installed model)

The installed OS is already equipped with a Runtime module which is required on OS side to trip

Kinect for Windows sensor.You can use this product as an application controller which is equipped

with NUI (Natural User Interface ) that features a control with voice or gestures.

Supported OS

- Windows Embedded POSReady7

1. Introduction

2DS-080D Series User’s Manual

Customer Support

CONTEC provides the following support services for you to use CONTEC products more efficiently and

comfortably.

Web Site

Japanese http://www.contec.co.jp/

English http://www.contec.com/

Chinese http://www.contec.com.cn/

Latest product information

CONTEC provides up-to-date information on products.

CONTEC also provides product manuals and various technical documents in the PDF.

Free download

You can download updated driver software and differential files as well as sample programs available in

several languages.

Note! For product information

Contact your retailer if you have any technical question about a CONTEC product or need its price,

delivery time, or estimate information.

Limited One-Year Warranty

CONTEC products are warranted by CONTEC CO., LTD. to be free from defects in material and

workmanship for up to one year from the date of purchase by the original purchaser.

Repair will be free of charge only when this device is returned freight prepaid with a copy of the original

invoice and a Return Merchandise Authorization to the distributor or the CONTEC group office, from

which it was purchased.

This warranty is not applicable for scratches or normal wear, but only for the electronic circuitry and

original products. The warranty is not applicable if the device has been tampered with or damaged

through abuse, mistreatment, neglect, or unreasonable use, or if the original invoice is not included, in

which case repairs will be considered beyond the warranty policy.

How to Obtain Service

For replacement or repair, return the device freight prepaid, with a copy of the original invoice. Please

obtain a Return Merchandise Authorization number (RMA) from the CONTEC group office where you

purchased before returning any product.

* No product will be accepted by CONTEC group without the RMA number.

Liability

The obligation of the warrantor is solely to repair or replace the product. In no event will the warrantor be

liable for any incidental or consequential damages due to such defect or consequences that arise from

inexperienced usage, misuse, or malfunction of this device.

1. Introduction

DS-080D Series User’s Manual 3

Safety Precautions

Understand the following definitions and precautions to use the product safely.

Safety Information

This document provides safety information using the following symbols to prevent accidents resulting in

injury or death and the destruction of equipment and resources. Understand the meanings of these labels

to operate the equipment safely.

DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could

result in death or serious injury.

CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may

result in minor or moderate injury or in property damage.

Caution on the DS-080D Series

Handling Precautions

DANGER

- This product supports an attached AC adapter and AC cable only.

WARNING

- Always check that the power supply is turned off before connecting or disconnecting power cables

and other cables.

- Users should not attempt to disassemble or modify this equipment, or to replace components. The

manufacturer may not be able to provide service for equipment that has been modified by the user.

- This product is not intended for use in aerospace, space, nuclear power, medical equipment, or other

applications that require a very high level of reliability. Do not use the product in such applications.

- If using this product in applications where safety is critical such as in railways, automotive, or

disaster prevention or security systems, please contact your retailer.

- Do not attempt to replace the battery as inappropriate battery replacement poses a risk of explosion.

- For battery replacement, contact your retailer as it must be performed as a process of repair.

- When disposing of a used battery, follow the disposal procedures stipulated under the relevant laws

and/or municipal ordinances.

1. Introduction

4DS-080D Series User’s Manual

CAUTION

- Do not use or store this product in a location exposed to high or low temperature that exceeds range

of specification or that is susceptible to rapid temperature changes.

Example: - Exposure to direct sun - In the vicinity of a heat source

- Do not use this product in extremely humid or dusty locations. It is extremely dangerous to use this

product when it is in concact with water or any other fluid or conductive dust. If this product must be

used in a dusty environment, install it on a dust-proof control panel, for example.

- Avoid using or storing this product in locations subject to shock or vibration that exceeds range of

specification.

- Do not use this product in the vicinity of devices that generate strong magnetic force or noise. Such

products will cause this product to malfunction.

- Do not use or store this product in the presence of chemicals.

- To clean this product, wipe it gently with a soft cloth dampened with either water or mild detergent.

Do not use chemicals or a volatile solvent, such as benzene or thinner, to prevent pealing or

discoloration of the paint.

- This product’s case may become hot. To avoid being burned, do not touch the case while this product

is in operation or immediately after turning off the power. Avoid installation in a location where

people may come into contact with the case.

- CONTEC does not provide any guarantee for the integrity of data on any recording media such as

SSD.

- Always remove the power cable from the power outlet before changing hardware configurations such

as the connection of connectors, and/or the setting of jumpers and switches.

- To prevent corruption of files, always shutdown the OS before turning off this product.

- CONTEC reserves the right to refuse to service a product modified by the user.

- In the event of failure or abnormality (unusual smells or excessive heat generation), unplug the power

cord immediately and contact your retailer.

- To connect with peripherals, use a grounded, shielded cable.

- When transporting this equipment, be careful to protect it against direct vibration and physical shock.

- You cannot clear the BIOS settings on CMOS of this product. The product must be repaired if it

becomes unbootable after the change of BIOS settings.

- Caution on the VCCI Class A

この装置は、クラスA情報技術装置です。この装置を家庭環境で使用すると電波妨害を

引き起こすことがあります。この場合には使用者が適切な対策を講ずるよう要求されるこ

とがあります。 VCCI-A

2. System Reference

DS-080D Series User’s Manual 5

2. System Reference

Specification

Table 2.1. Functional Specification

Model DS-080D

CPU AMD G-Series Dual-Core APU (Accelerated Processing Unit):

T56N = 1.65GHz @ 18W TDP

Chipset AMD A50M Controller Hub

BIOS Manufactured by AMI

Memory 2GB, DDR3-1333

Graphics Controller AMD Radeon HD6320 Series Built in APU

-DirectX 11

-Direct Compute 11

-Open GL 4.0

-Open CL 1.1

-UVD3 Hardware Video Decoder (MPEG2, MPEG4, H.264, VC-1, WMV9)

Interface

Display 1port (29pin DVI-I connector x1)

Audio Line-out x 1, 3.5 φStereo mini jack,

Serial ATA 1-slot, 2.5inch SATA SSD, 16GB (SLC)

LAN 1port (RJ-45 Connector)

Realtek RTL8111C PCI-E Gigabit LAN Controller

USB 2ports (TYPE-A Connector x 2)

USB 2.0-compliant

RS-232C 1port (RJ-50 Connector)

Power Supply

(AC adapter

specification)

This product supports an attached AC adapter and AC cable only.

Input voltage 100-240VAC, 50-60Hz

Input current 1.5A

Rated output voltage 12VDC

Rated output current 5A(Max.)

Longevity *1 61,000H(temperature 25°C FullHD movie playing)

21,000H(temperature 40°C FullHD movie playing)

Physical dimensions

(mm)

200(W) x 150(D) x 34.8(H) (No protrusions)

Weight About 1.3kg

Operating temperature 0 - 40°C

Storage temperature -10 - 60°C

Humidity 10 - 90%RH (No condensation)

Floating dust particles Not to be excessive

Corrosive gases None

*1 This product are designed to use under the good condition.

Table of contents

Other Contec Digital Signage manuals

Contec

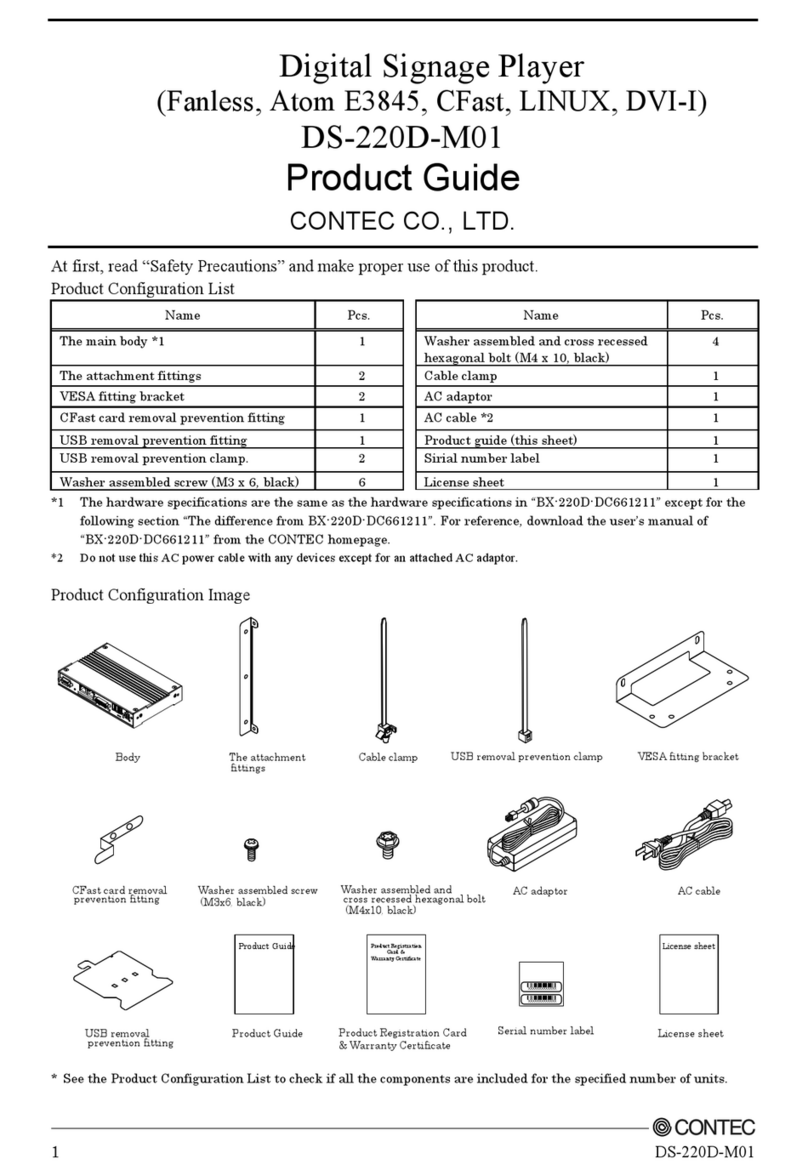

Contec DS-220D-M01 User manual

Popular Digital Signage manuals by other brands

LG 72WS70MS-B user guide

SMART-AVI

SMART-AVI SIGNAGEPRO user manual

LG 65SM5D owner's manual

LG 55EW5TK-A.AUS owner's manual

KeyWest Technology

KeyWest Technology BREEZE installation guide

XtendLan

XtendLan XL-DSP-183C user guide

LG 47VL10 owner's manual

LG WP400 Easy setup guide

Dynascan

Dynascan DS861LR4 user manual

Classic Exhibits

Classic Exhibits SEGUE DESIGNS MOD-1363 Assembly

LG 22XE1J quick start guide

protech

protech KT-7290 Service manual

WebDT

WebDT 515A Basic operation guide

Samsung

Samsung IWJ Series user manual

LG 84TR3B owner's manual

LG 55EJ5D Easy setup guide

EVERI

EVERI Enrollment Kiosk Quick reference guide

LG 75XS4G owner's manual
