CONCORD QC5528 User manual
QC5528
Solar Panel to suit
Wi-Fi Battery Powered Cameras
Quick Start Guide
Wall Mounting

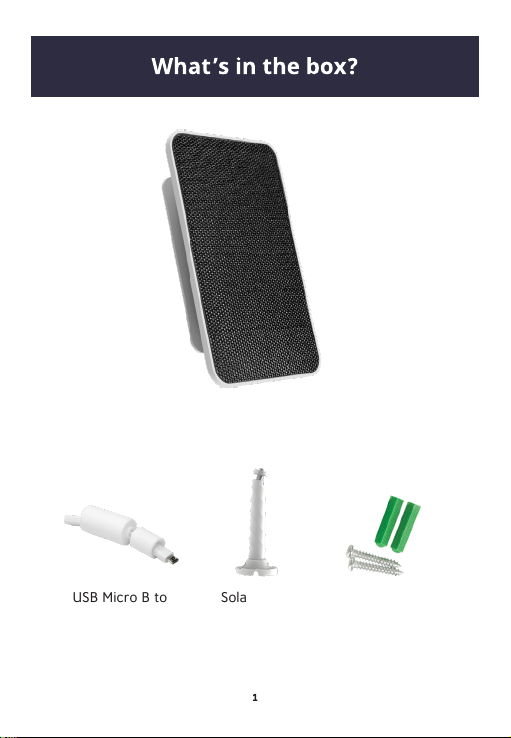

Hardware
Solar Panel
Mounting Base
USB Micro B to
USB Type-C Adaptor
Solar Panel
Getting to know your Solar Panel
Solar Panel
Locking Screw Cap
Mounting Pole
Base
Front
Rear
2
Installing Your Solar Panel
Place the solar panel in an area with consistent sunlight throughout the year. It
only needs a few hours of direct sunlight each day to keep your camera powered.
The amount of power that the solar panel produces is affected by weather
conditions, seasonal changes, geographic location, etc.
Step 2: Screw the mounting pole and base into the back of the solar panel.
Tighten it firmly with the attached nut.
Step 1: Fix the mounting pole and base of the solar panel to the wall using the
included screws. You may need to use the wall anchors depending on the wall type.
3
Installing Your Solar Panel
Step 3: The solar panel’s angle can be adjusted up and down up to 90°.
Step 4: Attach the Micro B USB to USB-C adaptor to the end of the solar panel
cable.
Step 5: Plug the solar panel cable and adaptor to the USB charging socket of the
camera to power.
4
Positioning Your Solar Panel
Step 1: Find an area that gets the most direct sunlight throughout the day.
Step 2: Angle the solar panel 90° upwards or downwards as shown below.
Completed Installation
5
